Enabling Quantum Precision: Why Cryogenic 6-Axis Hexapods Matter

Driven by the rapid advances in quantum technology, there has been a growing demand for motion systems capable of precise optical alignment under cryogenic conditions. While early requests focused on small, compact positioning stages in stacked XYZ configurations, an increasing number of designers are now seeking solutions with a higher number of degrees of freedom and the ability to handle larger moving masses.

Responding to this industry demand, PI has launched a dedicated development program to transfer its proven expertise in alignment solutions, piezo technology and multi-axis nanopositioning systems to this emerging and highly dynamic application field.

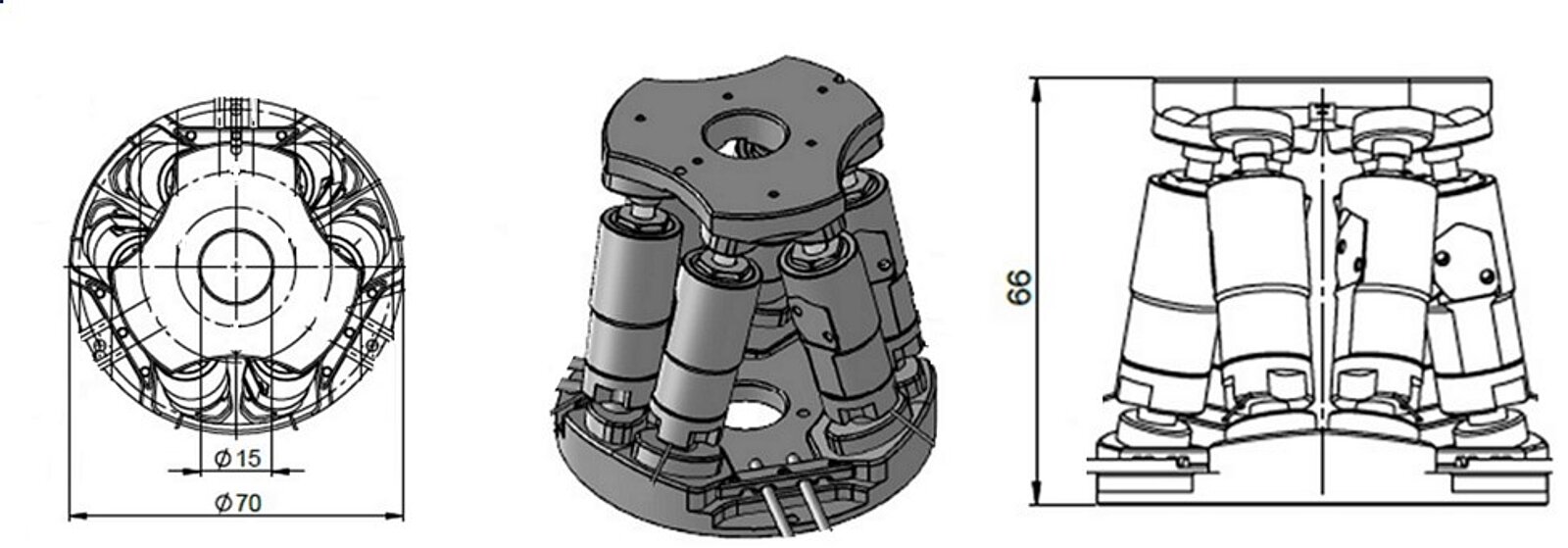

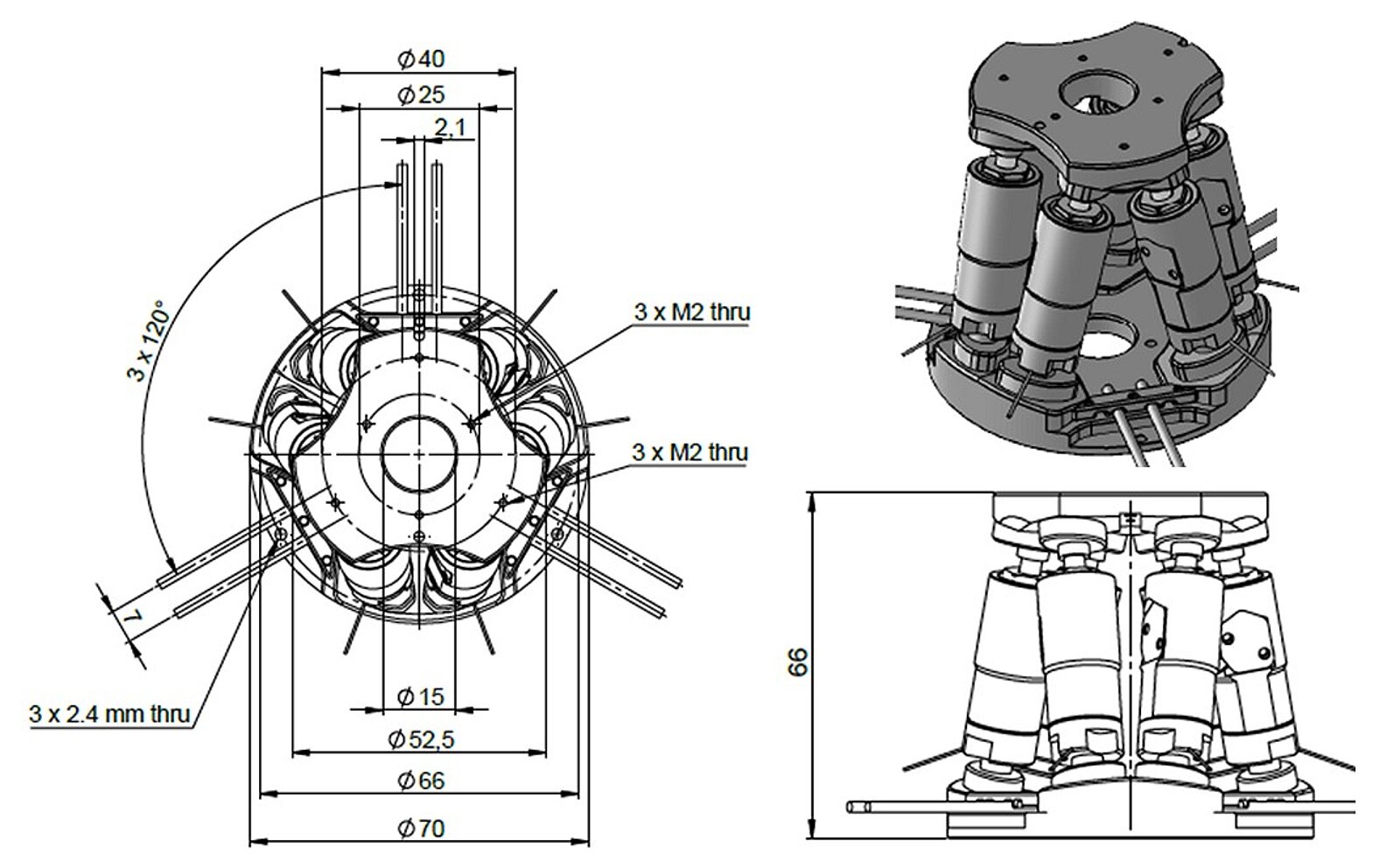

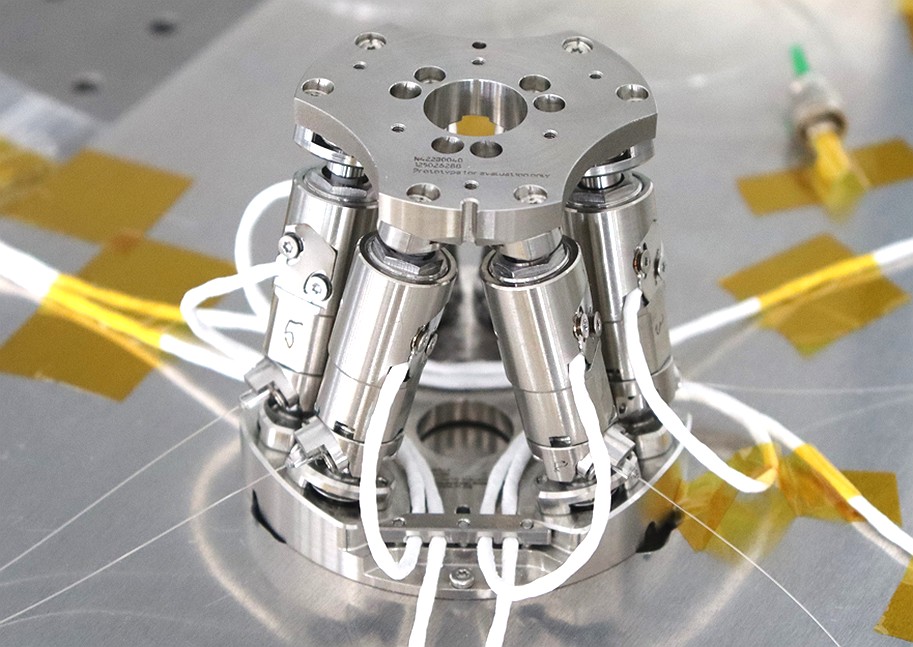

The research and development teams at PI strive to transform this challenge into innovation. Our mission: to engineer a compact, space saving 6DOF nanopositioning system capable of reliably moving loads of several hundred grams with nanometer level precision over travel ranges of several millimeters — all at temperatures as low as 4 K and beyond. This technology empowers researchers and engineers to push the boundaries of quantum and photonics experiments, delivering accuracy where it matters most.

Parallel kinematic 6DOF systems deliver exceptional precision, stiffness, and dynamic performance in a compact package. By controlling all degrees of freedom simultaneously, they eliminate accumulation of errors, enabling outstanding repeatability and long-term stability. The low moving mass ensures fast, vibration free motion, while the programmable pivot point allows highly accurate rotation directly at the point of interest. With no moving cables on the platform, cable forces cannot affect accuracy. In addition, the open aperture provides unobstructed access for beams or samples — ideal for optical, laser, and nanopositioning applications where maximum accessibility and precision are essential.
