E-617 High-Performance Piezo Amplifier

Industrial / OEM Module with Energy Recovery for Continuous Dynamic Applications

  • Peak power to 280 W
  • High currents to 2000 mA
  • Low power consumption due to integrated energy recovery

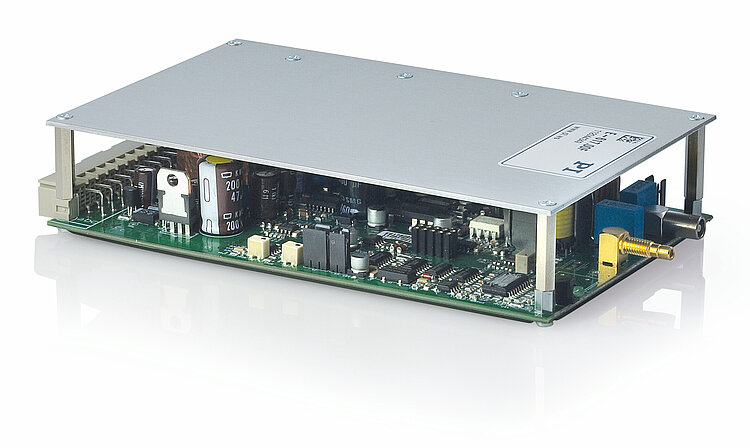

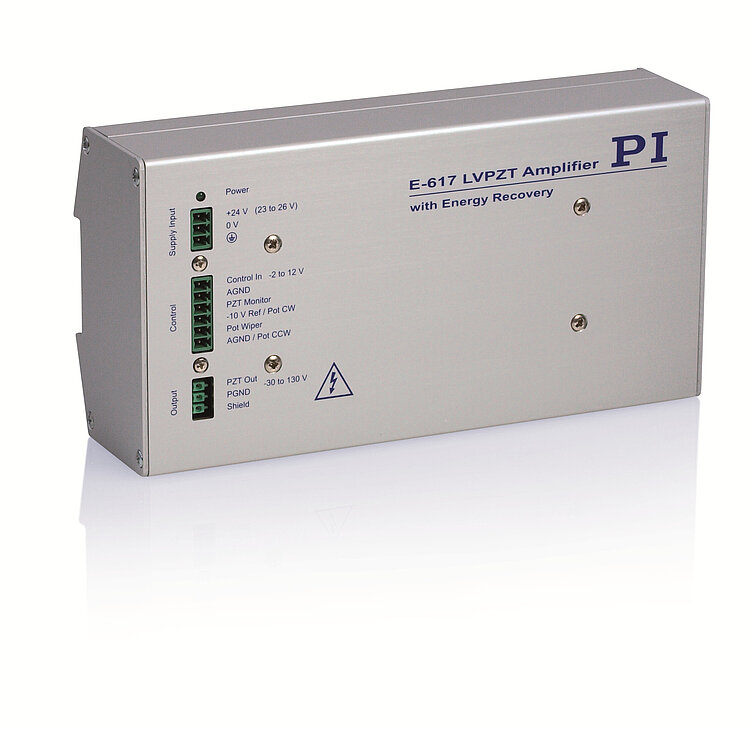

  • OEM module and top hat rail mounting
E-617 High-Performance Piezo Amplifier
Product Description Specifications Downloads Quote / Order

High-power amplifier for low-voltage piezo actuators

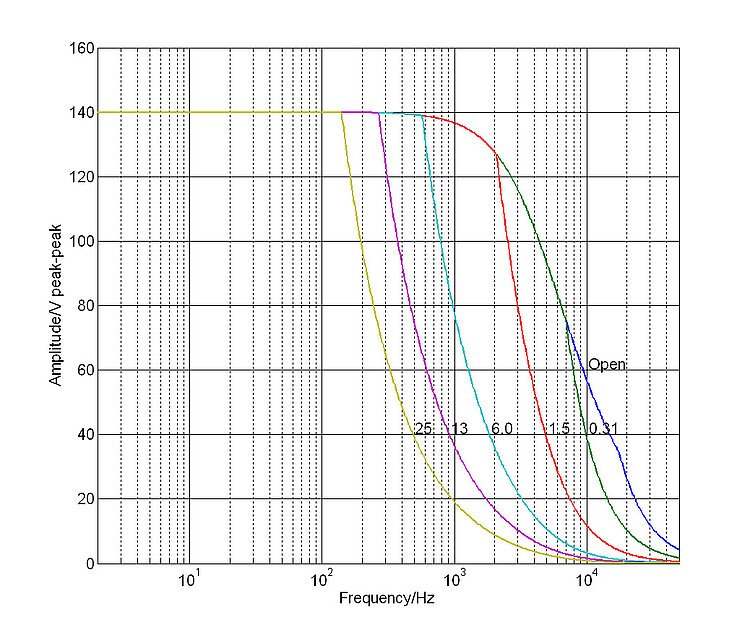

Peak power up to 280 W, average output power up to 100 W. Output and absorption of peak current up to 2000 mA. Dynamic operation of piezo actuators with high capacity at a bandwidth up to the kilohertz range.

High performance with heavy loads

An analog input voltage is amplified in the E-617 amplifier by a factor of 10 and provides precision control of piezo actuators and piezo positioning systems. This analog mode is ideal for applications where fast response times are essential at maximum bandwidth. The specification or position feedback in absolute values is either not significant or is done by external position sensors.

Energy recovery

The efficient switching principle reduces the power consumption and heat dissipation considerably, especially in dynamic applications. In this way, the energy is coupled into the piezo with low loss via pulse width modulation (PWM). The energy generated by the discharging piezo is recovered and made available for the next charge. A unipolar supply voltage between 23 to 26 V DC is sufficient for operation.

Application fields

Industry, automation. High dynamics scanning or switching applications.

Specifications

Datasheet

Datasheet E-617

Version / Date
2020-10-07
pdf - 674 KB
Version / Date
2020-10-07
pdf - 683 KB

Downloads

Datasheet

Datasheet

Datasheet E-617

Version / Date
2020-10-07
pdf - 674 KB
Version / Date
2020-10-07
pdf - 683 KB

Documentation

Documentation

Short Instructions PZ300

Housed Analog Piezo Electronics E-4xx, E-5xx, E-6xx, E-8xx

Version / Date
1.2.0 03/2024
pdf - 754 KB
Version / Date
1.2.0 03/2024
pdf - 791 KB
Documentation

User Manual PZ201

E-617 High-Power Piezo Amplifier with Energy Recovery

Version / Date
1.1.1
pdf - 687 KB
English

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

Compatible Products Compatible Accessories Related Controllers
