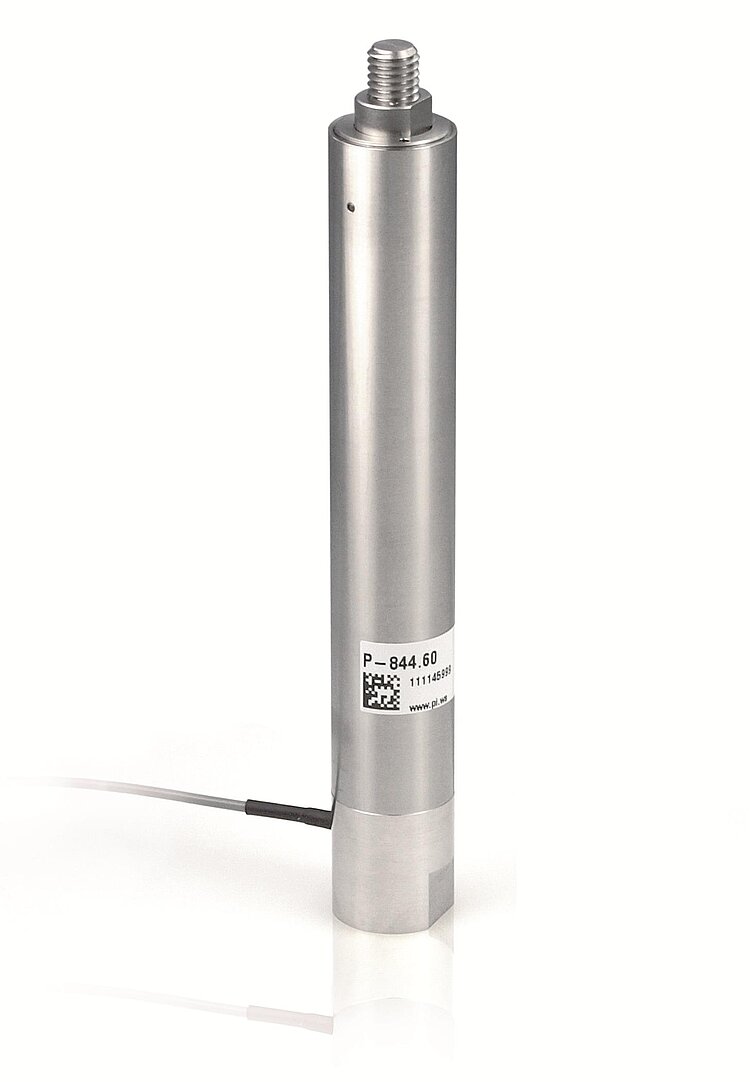

P-844.10
Preloaded piezo actuator, 15 µm travel range, 3000 N / 700 N
P-844 Preloaded Piezo Actuators
For High Loads and Forces
- Outstanding lifetime due to PICMA® piezo actuators
- Travel range to 90 µm
- Push force capacity to 3000 N
- Pull force capacity to 700 N
- µs response time
- Subnanometer resolution
- Vacuum versions, optional water-resistant housing

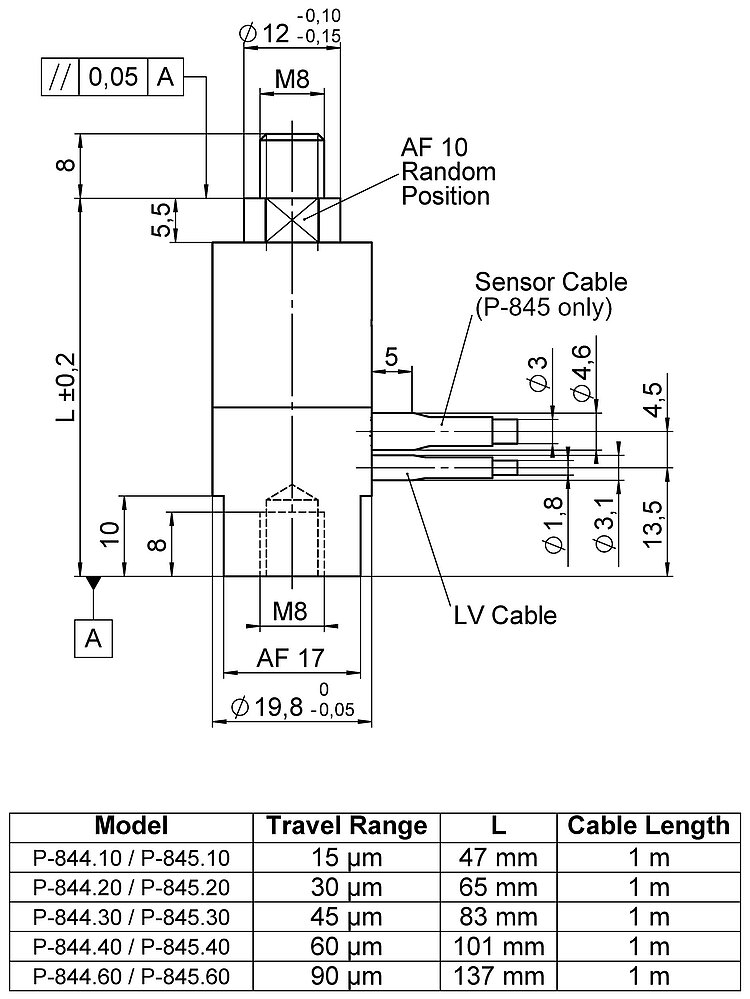

P-844 / P-845, dimensions in mm. Sensor included only with P-845.
P-844 Preloaded Piezo Actuators
Product Description
Specifications
Downloads
Quote / Order
Application fields
- Static and dynamic precision positioning
- Fiber positioning
- Laser tuning
- Nanotechnology
Outstanding lifetime thanks to PICMA® piezo actuators
The patented PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.
Suitable for sophisticated vacuum applications
Piezo actuators do not require lubrication and do not cause abrasion. The all-ceramic isolated PICMA® actuators also do not require polymer isolation and are therefore ideal for vacuum applications.
Specifications
Specifications
P-844.10 | P-844.20 | P-844.30 | P-844.40 | P-844.60 | Unit | Tolerance | |
|---|---|---|---|---|---|---|---|
Travel range at 0 to 100 V | 15 | 30 | 45 | 60 | 90 | µm | ±20 % |
Resolution* | 0.15 | 0.3 | 0.45 | 0.6 | 0.9 | nm | |
Static large-signal stiffness** | 225 | 107 | 75 | 57 | 38 | N/µm | ±20 % |
Push force capacity | 3000 | 3000 | 3000 | 3000 | 3000 | N | max. |
Pull force capacity | 700 | 700 | 700 | 700 | 700 | N | max. |
Torque on tip | 1 | 1 | 1 | 1 | 1 | Nm | max. |
Electrical capacitance | 6 | 12 | 18 | 24 | 36 | µF | ±20 % |
Resonant frequency f0 (no load) | 16 | 12 | 9 | 7.5 | 5.5 | kHz | ±20 % |
Operating temperature range | -40 to 80 | -40 to 80 | -40 to 80 | -40 to 80 | -40 to 80 | °C | |
Mass without cable | 84 | 108 | 132 | 156 | 204 | g | ±5 % |
Length L | 47 | 65 | 83 | 101 | 137 | mm | ±0.2 mm |
Recommended electronics | E-503, E-505, E-610, E-617, E-621, E-625, E-663, E-665, E-709, E-831 | E-503, E-505, E-610, E-617, E-621, E-625, E-663, E-665, E-709, E-831 | E-503, E-505, E-610, E-617, E-621, E-625, E-663, E-665, E-709, E-831 | E-503, E-505, E-610, E-617, E-621, E-625, E-663, E-665, E-709, E-831 | E-503, E-505, E-610, E-617, E-621, E-625, E-663, E-665, E-709, E-831 |
* The resolution of the system is only limited by the noise of the amplifier and measuring technology because PI piezo actuators are free of friction.
** Dynamic small-signal stiffness is approx. 30 % higher.
Voltage connection: LEMO FFA.00.250. Coaxial cable RG 178, 1 m.
Housing / tip material: Stainless steel.
Vacuum versions to 10-6 hPa are available under the following ordering number: P-844.x0V.
All specifications based on room temperature (22 °C ±3 °C).
Downloads
Datasheet
Documentation
Documentation
User Manual P844M0001
P-844 Preloaded piezo actuators
Version / Date
2021-01-29
pdf - 2 MB
Version / Date
2021-01-29
pdf - 2 MB
Documentation
User Manual P844M0002
P-844.xxV Preloaded piezo actuators (vacuum versions)
Version / Date
2021-02-23
pdf - 3 MB
Version / Date
2021-02-23
pdf - 3 MB
3-D Models
3-D Models
P-844 / P-845 3-D model
zip - 156 KB
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
Actuators without sensor
P-844.20
Preloaded piezo actuator, 30 µm travel range, 3000 N / 700 N
P-844.30
Preloaded piezo actuator, 45 µm travel range, 3000 N / 700 N
P-844.40
Preloaded piezo actuator, 60 µm travel range, 3000 N / 700 N
P-844.60
Preloaded piezo actuator, 90 µm travel range, 3000 N / 700 N
Actuators without sensor, vacuum compatible
P-844.10V
Preloaded piezo actuator, 15 µm travel range, 3000 N / 700 N, vacuum compatible to 10-6 hPa
P-844.20V
Preloaded piezo actuator, 30 µm travel range, 3000 N / 700 N, vacuum compatible to 10-6 hPa
P-844.30V
Preloaded piezo actuator, 45 µm travel range, 3000 N / 700 N, vacuum compatible to 10-6 hPa
P-844.40V
Preloaded piezo actuator, 60 µm travel range, 3000 N / 700 N, vacuum compatible to 10-6 hPa
P-844.60V
Preloaded piezo actuator, 90 µm travel range, 3000 N / 700 N, vacuum compatible to 10-6 hPa
Actuators with position sensor available under P-845.
