M-060 • M-061 • M-062 Precision Rotation Stage

Unlimited Travel Range

  • Unlimited travel range
  • High resolution
  • Maximum velocity 16°/s
  • Backlash-compensated worm drive
  • DC gear motor
  • Direction-sensing reference switch
M-060 • M-061 • M-062 Precision Rotation Stage
Product Description Specifications Downloads Quote / Order

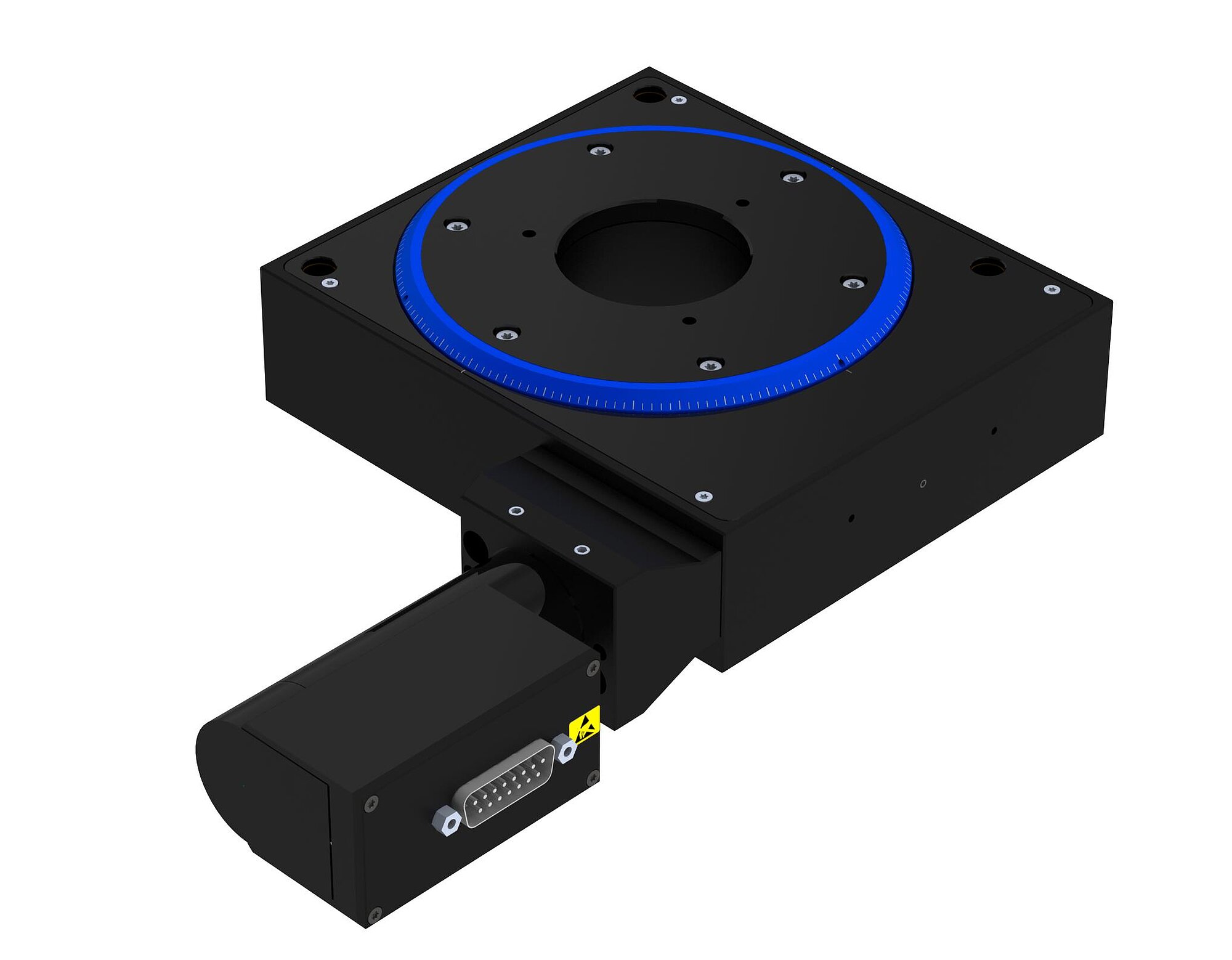

Precision rotation stage with worm drive

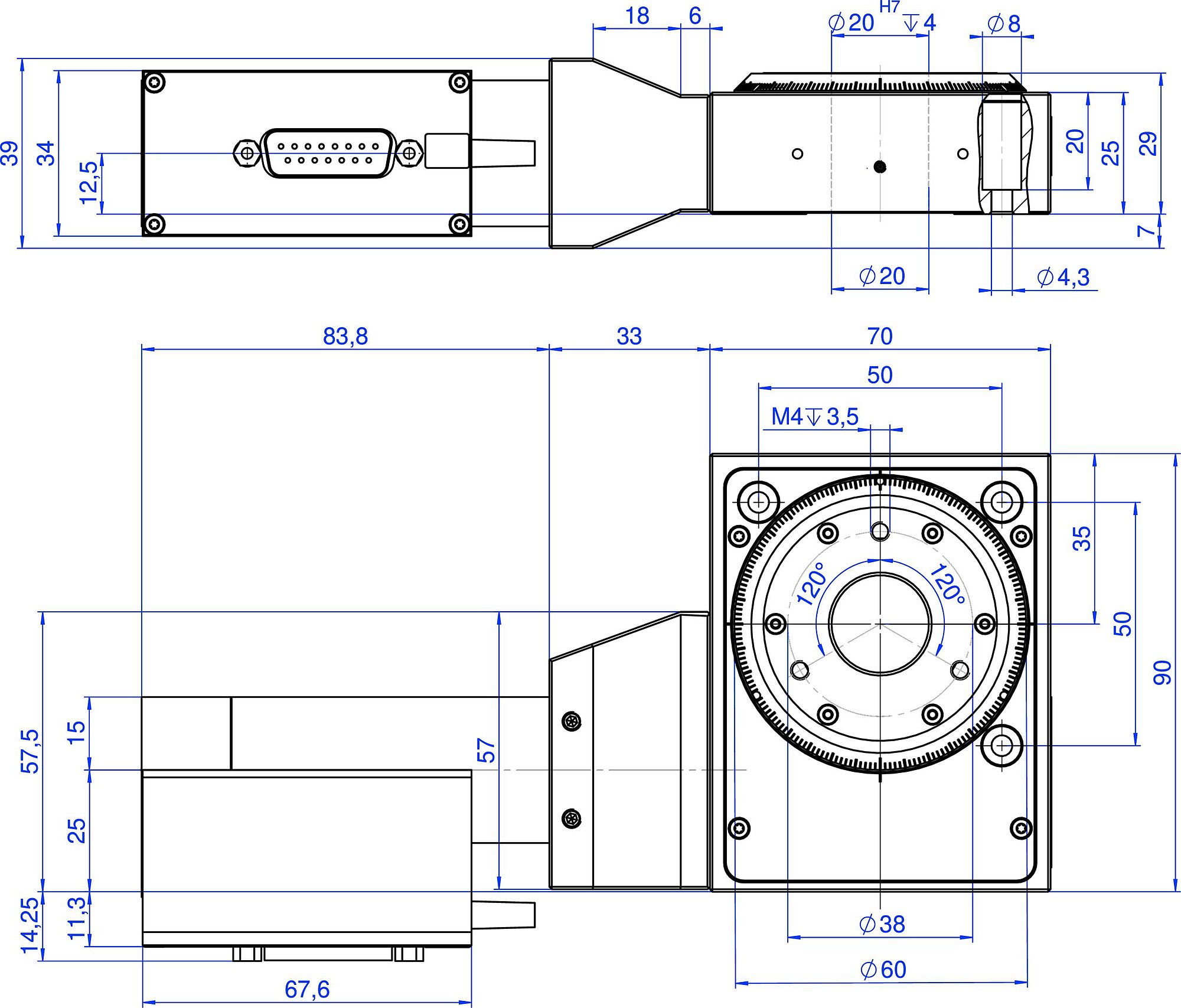

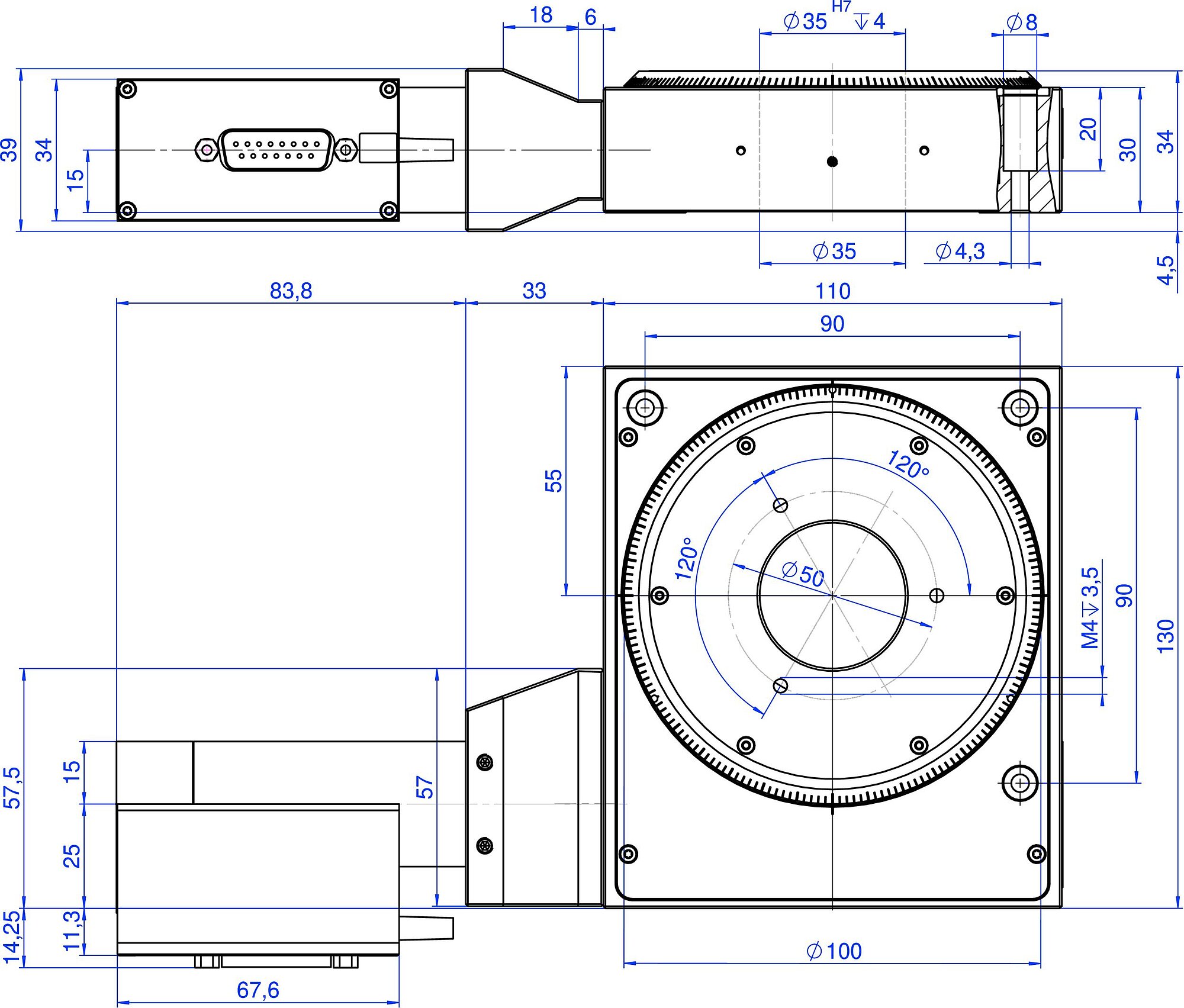

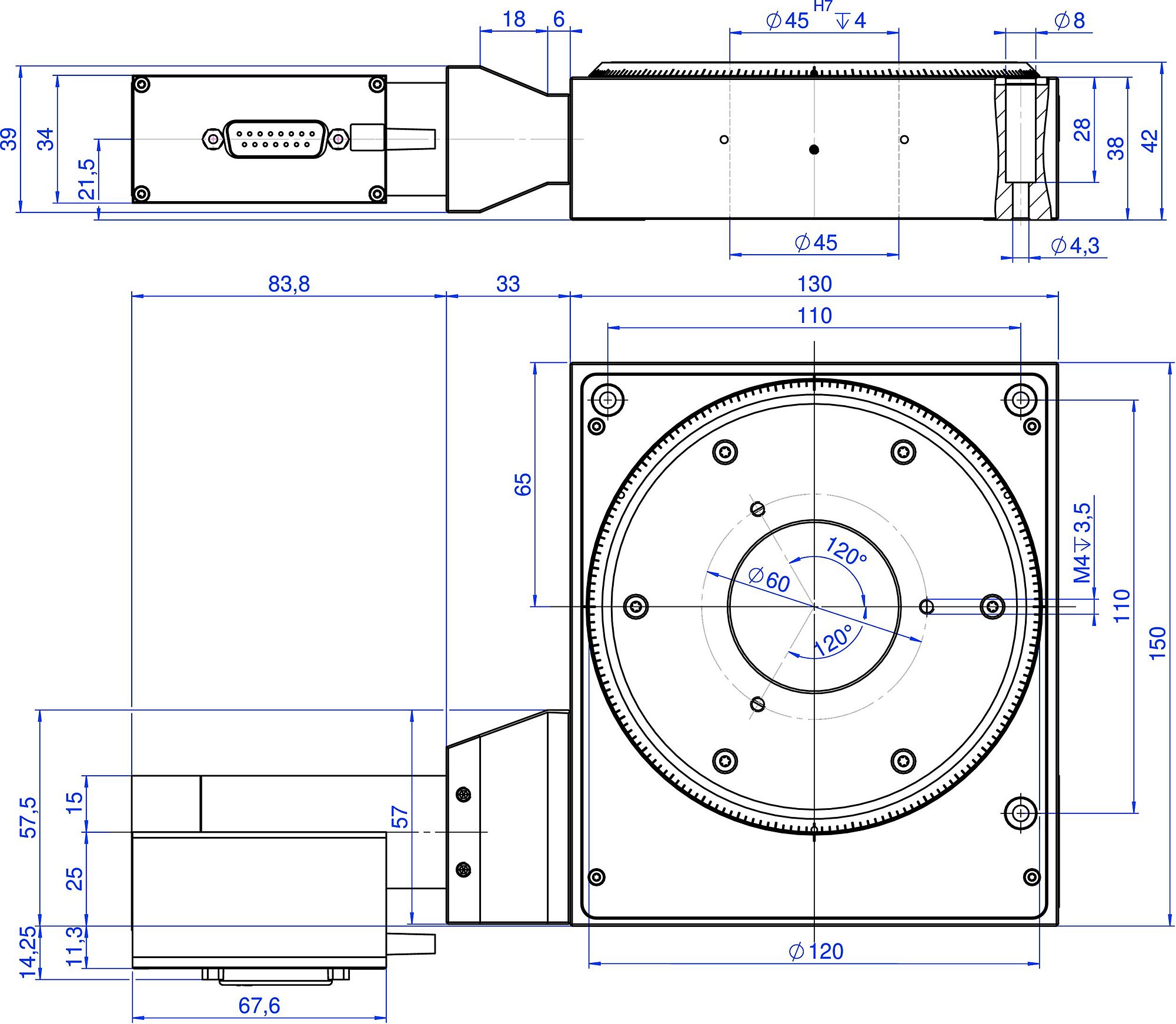

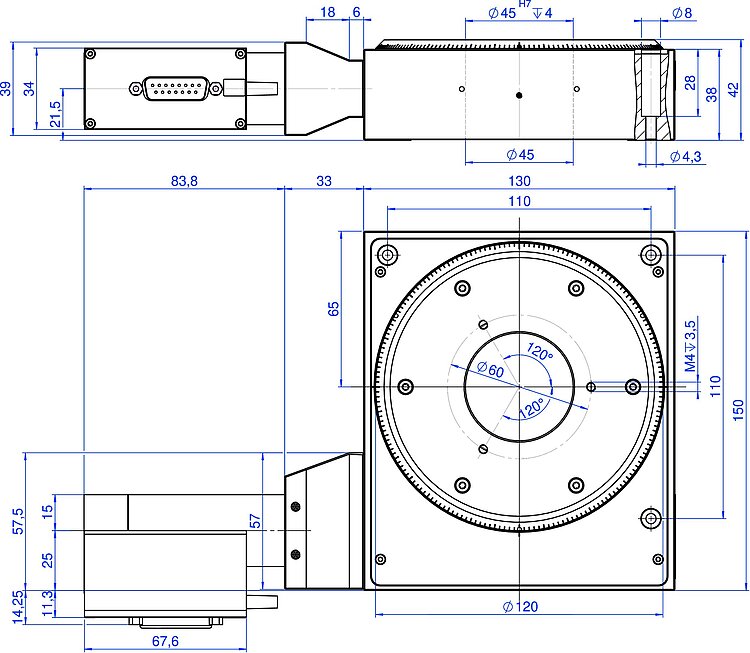

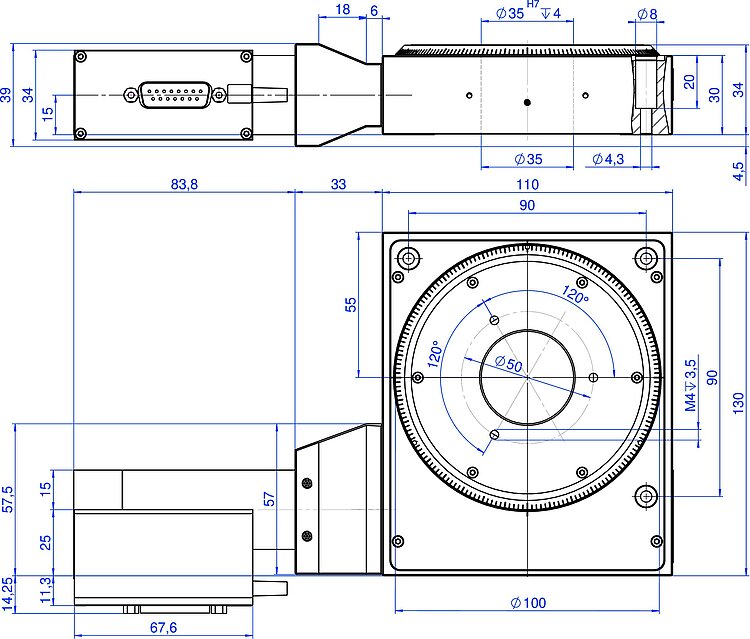

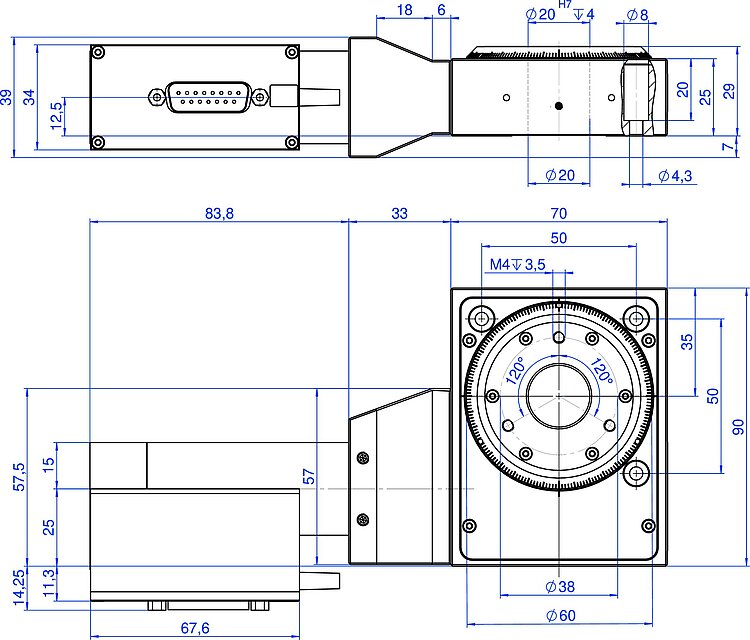

The M-06x series rotation stages feature high-precision and extremely low friction, backlash-compensated worm drives. This enables an unlimited travel range in both directions of rotation. The precision rotation stages are available with three different diameters: 60 mm (20 mm aperture), 100 mm (35 mm aperture), and 120 mm (45 mm aperture).

Application fields

Research and development, semiconductor testing, mass storage tests, metrology, photonics, quality assurance.
