ACS driver module for 4 axes; intermediate circuit voltage 48 V / 550 W; 19-inch housing; integrated ACS IDMsm motion controller; STO (safe torque off) and SS1 (safe stop 1) safety functions; Ethernet and RS-232 interfaces

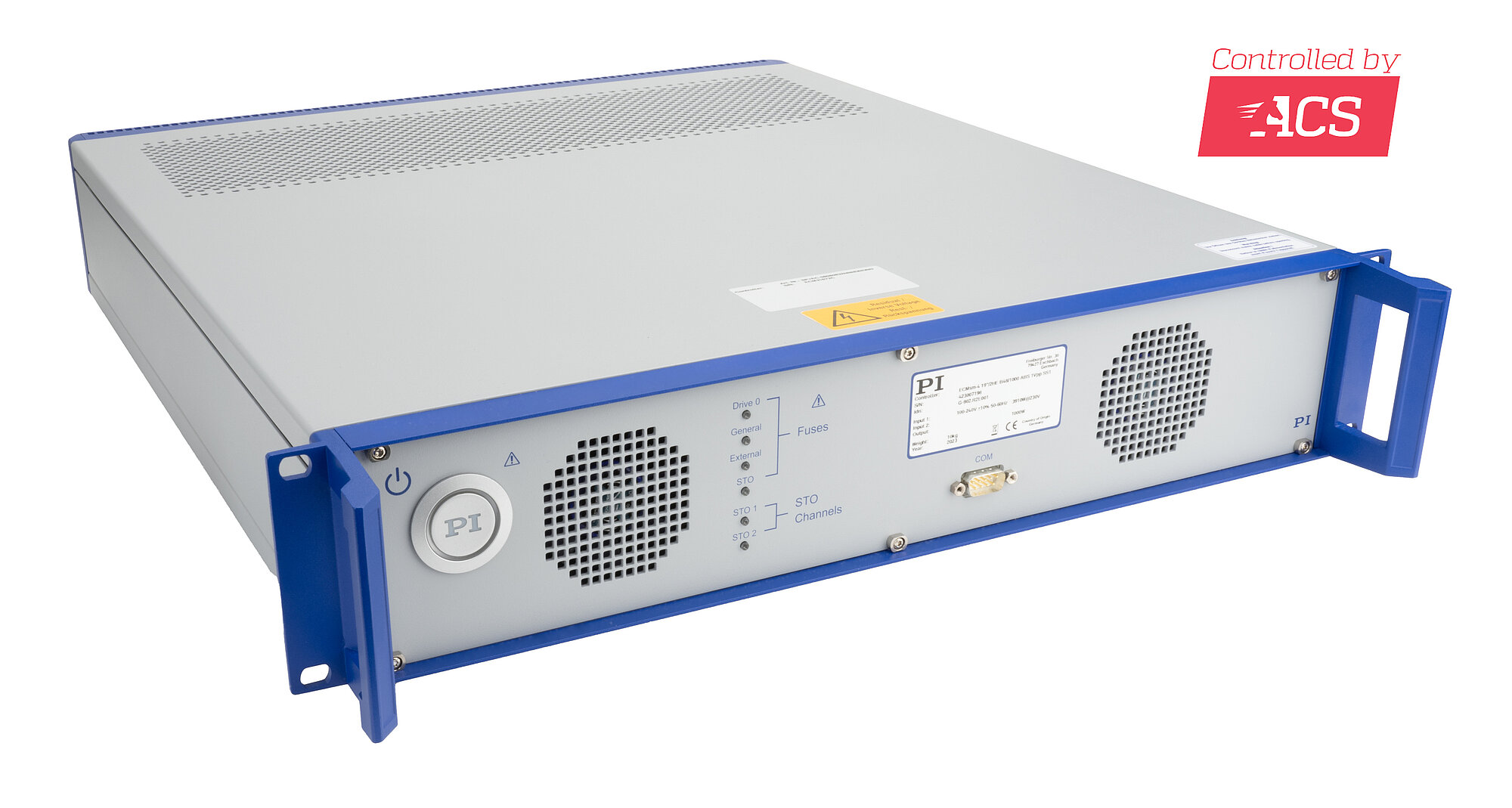

G-902.RxI ACS Driver Module
For 4 Drive Axes with AC Servo Motor, DC Motor, Voice Coil Motor, Stepper Motor
- Universal driver module as benchtop device or control cabinet module
- Directly compatible with positioners from PI
- For AC servo motors / brushless DC motors, brushed DC motors, voice coil motors, stepper motors
- Encoder inputs for incremental and absolute measuring encoders
- Output power per axis to 363 W
- Integrated module for safe stop 1 (SS1) and safe torque off (STO)
- Multiple options for trajectory planning
- Communication via EtherCAT
Universal driver module
ACS driver module for the operation of positioners with different motor and encoder types, can be configured for a variety of applications. 4 axes, 5 A continuous current per axis possible. 4 motor brakes via PWM brake driver, reduced heat generation by the motor brake. Motion profiles are generated by an external motion controller (not included) and received via EtherCAT.
Encoder
Supports incremental encoders (sine/cosine or RS-422) and absolute encoders (BiSS-C, EnDat 2.1 & 2.2, Smart-Abs, SSI, Sanyo-Denki, Panasonic A6). Depending on the application, encoders can be connected to the motor interface or separate sensor interface.
I/O lines
Digital inputs and outputs can be flexibly configured. To evaluate reference switches, digital inputs can alternatively be routed to motor connectors. Depending on the application, inputs for limit and reference switches can be configured for 5 V or 24 V and also as PNP or NPN inputs. Position synchronous trigger signals with up to 10 Mhz output frequency enable precise process control at high travel velocities (position event generator – PEG).
Communication
Communication with a PC via Ethernet TCP/IP and RS-232 interfaces. EtherCAT interface for integration with an EtherCAT network. Commanding via an EtherCAT master.
Configuration
If the types of positioners used are specified when ordering, all connectors of the G-902 are suitably preconfigured at delivery. The default configuration, without positioner-specific adjustments, is detailed in the specifications. For any subsequent adjustments, contact PI customer service.
Specifications
Specifications
| G-902.R1I001 / G-902.R2I001 | ||
|---|---|---|
| Function | ACS driver module IDMsm with connectors for positioners from PI | |
| Design | 19-inch rack-mount housing | |
| Motor types | 2-phase and 3-phase AC servo motors / brushless DC motors, brushed DC motors, voice coil motors, stepper motors | |
| Number of drive axes | 4 | |
| Motion and control | G-902.R1I001 / G-902.R2I001 | |
| Sample/update rate of control loop | 20 kHz position20 kHz velocity20 kHz current | |
| Control algorithms | Cascaded PIVFF controller structure with loop-shaping filtersVelocity feedforwardMIMO (Multiple Input Multiple Output) gantry control algorithmDual-loop controlDisturbance rejectionGain schedulingField-oriented controlSpace vector modulation | |
| Profile generation | 3rd order with uniform end-point modification during operation | |
| Encoder | 1 × per axis, supported types:Incremental: 1 Vss, RS-422Absolute: BiSS-C, EnDat 2.1 & 2.2, Smart-Abs, SSI, Sanyo-Denki, Panasonic A6 | |
| Limit switch | 2 × per axisStandard: 5 V sinking (NPN)Optional configuration: 24 V; sourcing (PNP) | |
| Reference switch | Default: 1 × per axis, 5 V sinking (NPN)Optional configuration: 24 V; sourcing (PNP); use as digital multipurpose inputs on digital I/O connector (HD D-sub 15 (f)) | |
| Motor brake | 1 × per axisIntegrated PWM brake driver with current reduction for reduced brake heating | |
| Functional safety | STO (safe torque off):Electrical interface: Two-channel input, 24 V, insulatedSafety standards:EN/IEC 61800-5-2 Ed. 2 (second environment)EN/IEC 61800-5-1IEC 61508IEC 62061Performance Level PLe and category 3 according to:EN ISO 13849-1/-2SS1 (safe stop 1):Braking time until STO activation: 110-230 msThe exact value for the braking time is a fixed value (SS1-t functionality) and depends on the product configuration. | |
| Electrical properties | G-902.R1I001 | G-902.R2I001 |
| Intermediate circuit voltage | 48 V | 48 V |
| Output power intermediate circuit, continuous/peak (max. 10 s) | 550 W / 550 W at 40 °C | 1000 W / 1200 W at 40 °C |
| Output power per axis (effective value), continuous/peak (max. 1 s) | 186 W* / 363 W* | 186 W / 363 W |
| Current limitation per motor phase (sine amplitude), continuous/peak (max. 1 s) | 5 A / 10 A | 5 A / 10 A |
| Interfaces and operation | G-902.R1I001 / G-902.R2I001 | |

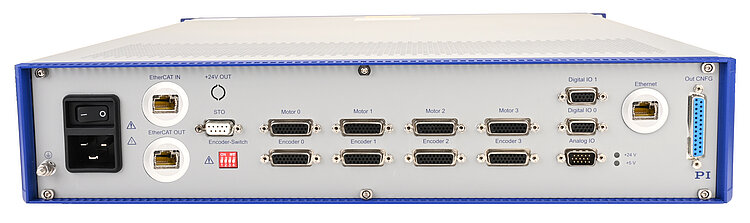

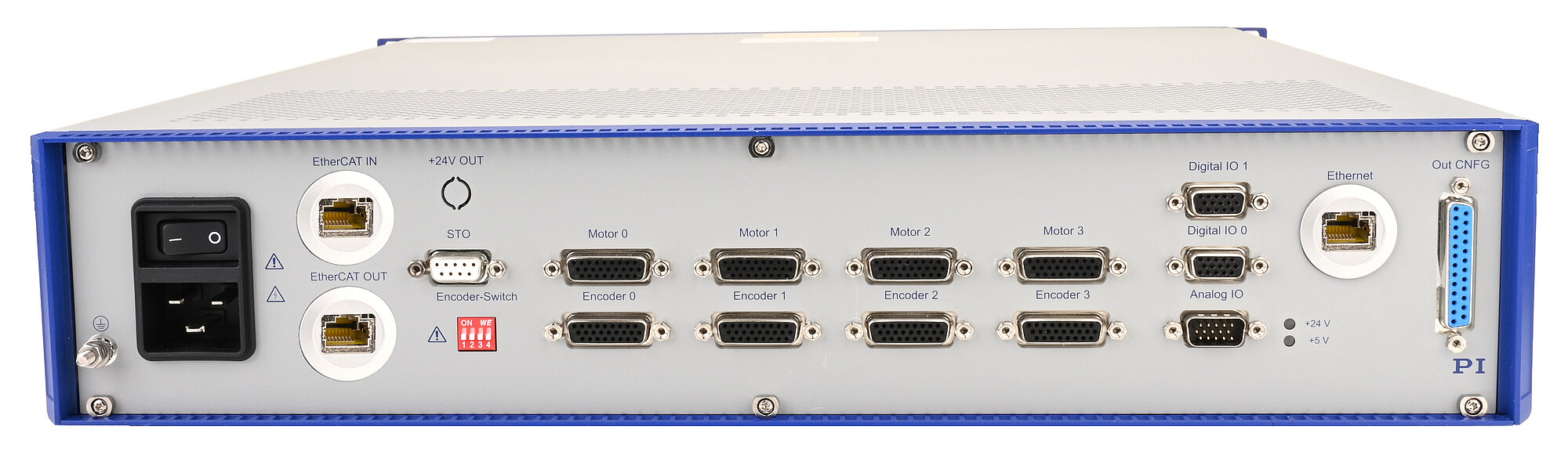

| Motor connector | 4 × HD D-sub 26 (f) | |
| Sensor connector | 4 × HD D-sub 26 (f) or via the motor connectorsConnector selection per axis via DIP switch | |
| Digital inputs | Default:4 × NPN 5 V sinking for reference switches on the motor and encoder connectorsOptional configuration:Up to 4 multipurpose inputs, PNP 24 V source, parallel on 2 × HD D-sub 15 (f) | |
| Digital outputs | 2 × HD D-sub 15 (f):4 × output PNP 24 V source; used for controlling the brake driversD-sub 25 (f):8 × multipurpose output, differential (RS-422) | |
| Analog inputs / outputs | HD D-sub 15 (m):2 differential analog inputs: ±10 V, 12 bit2 differential analog outputs: ±10 V, 10 bit | |
| Outputs for position event generator (PEG) | Parallel on HD D-sub 15 (m) and HD D-sub 15 (f):4 differential outputs (RS-422) for pulses at programmable positions, pulse width 27 ns to 1.745 ms, max. 10 MHz; only possible with incremental encoder | |
| Inputs for STO safety function | D-sub 9 (f):2 inputs (STO1, STO2): 24 V, up to 50 mA per STO input, with an inrush current of less than 70 mA | |
| LEDs | Status of the fuses for the 24 V power supply, STO signals, logic supply | |
| Communication interfaces | EtherCAT IN and OUT: RJ-45Ethernet (TCP/IP, Ethernet/IP, Modbus/TCP): RJ-45RS-232: D-sub 9 (m) | |
| User software | ACS SPiiPlus MMI Application Studio | |
| Application programming interfaces | Program libraries available for C/C++, COM, .NET, MATLAB | |
| Programming | ACSPL+ real-time script language: up to 4 simultaneously running programs (buffers) | |
| Environment | G-902.R1I001 / G-902.R2I001 | |
| Operating voltage | 100-240 V AC, 50-60 Hz | |
| Required fusing per power inlet | IEC: 12-16 A at 250 V AC; 50 HzUL/CSA: 12-20 A at 125/250 V AC; 60 Hz | |
| Operating temperature range | 5 to 40 °C (temperature protection switches off at excessively high temperatures) | |
| GND | 10 kg | |

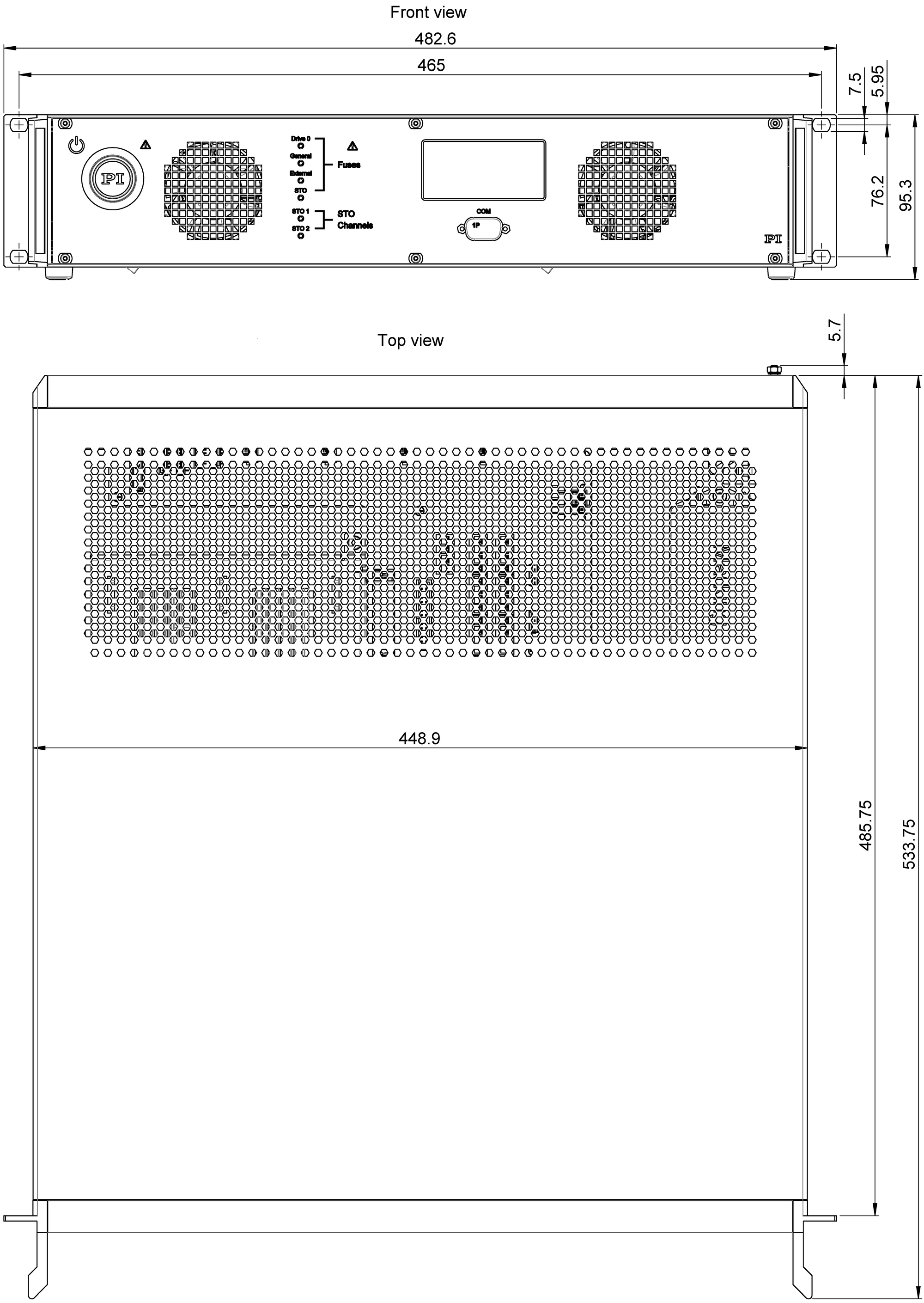

| Dimensions | 482.6 mm × 533.75 mm × 95.3 mm (including handles) |
* Power cannot be made available for all axes simultaneously.
** G-902.R1E002: Motor and sensor connectors are available for axes 2 and 3, but with limited functionality.
