Direct-Drive Linear Motor Stages - High Speed & High Precision - Direct Drive Actuators

Direct-drive, linear stages provide high performance, speed and acceleration over large travel ranges. Direct-drive linear motors are usually based on the electrodynamic (magnetic) principle, but piezoelectric direct-drive motors are another option. These motors are usually based on the electrodynamic (magnetic) principle, but piezoelectric direct-drive motors are another option.  Due to the lack of friction, very good resolution and repeatability is feasible and the lifetime of the direct drive motors is not limited by wear and tear. Linear motor stages are often used in industrial automation applications where throughput and speed are crucial. PI linear motor direct-drive stages are available with ironless (no cogging) and ironcore (higher force) 3-phase motors and voice coil drives (shorter travel ranges). Optical linear incremental encoders or optical linear absolute encoders are integrated to provide position feedback. Mechanical bearings and air bearings for ultra-high precision applications are available.  PI also offers Direct-drive rotary stages.

Choose from a Product Group below, or scroll to see all Product Groups

When the highest geometrical performance is required, linear motor stages with air bearings are recommended.

Read article on performance of linear motor stages.

Voice-Coil Linear Motor Actuators with Mechanical Bearings and Flexure Guides

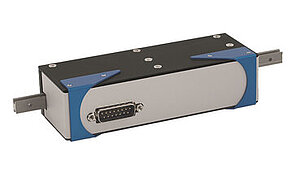

V-273 Voice Coil Actuator
Show more
V-273 Voice Coil Actuator
Force Sensor Option
  • 20mm travel
  • 10nm linear encoder resolution
  • 100mm/sec max. velocity
  • 6N push/pull force
  • 1mN force sensor option
V-277 Voice Coil Actuator
Show more
V-277 Voice Coil Actuator
High-Speed, Force Sensor Option
  • 15mm travel
  • 10nm linear encoder resolution
  • 750mm/sec max. velocity
  • 20N push/pull force
  • 1mN force sensor option
Micro Linear Actuator
Show more
V-900KPIC Mini Vertical Actuator
Zero-Wear Flexures
  • 1.5mm travel
  • 100nm linear encoder resolution
  • Frictionless, zero-wear flexures
  • Very compact: 32x44x14mm

Small and Medium Sized Linear Motor Stages

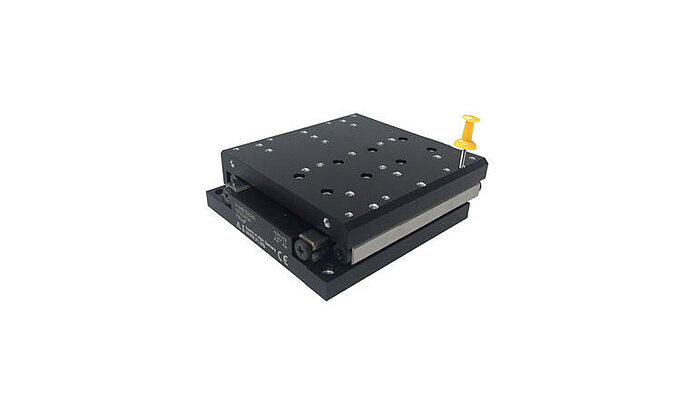

V-408 Low Cost Linear Motor Stage
Show more
V-408 Low Cost Linear Motor Stage
Compact, High Force
  • 25 and 50mm travel
  • 20nm min. incremental motion
  • 10nm linear encoder resolution
  • 0.7m/sec max. velocity
  • 14N push/pull force
V-522/4/8 Voice Coil Stage
Show more
V-522/4/8 Voice Coil Stage
Ideal for Scanning
  • 5/10/25mm travel
  • 20nm min. incremental motion
  • 10nm linear encoder resolution
  • 10’s of Hz scanning frequency
  • 4N push/pull force
V-508 Linear Motor Stage
Show more
V-508 Linear Motor Stage
Compact, High End Sensor Option
  • 80/170/250mm travel
  • 1 to 20nm min. inc. motion
  • 0.2-10nm linear encoder resolution
  • 0.7m/sec max. velocity
  • 14N push/pull force

Direct Drive Linear Motor Stages, 0.1 to 1.2m Travel, Load to 1000N, Speed up to 5m/sec

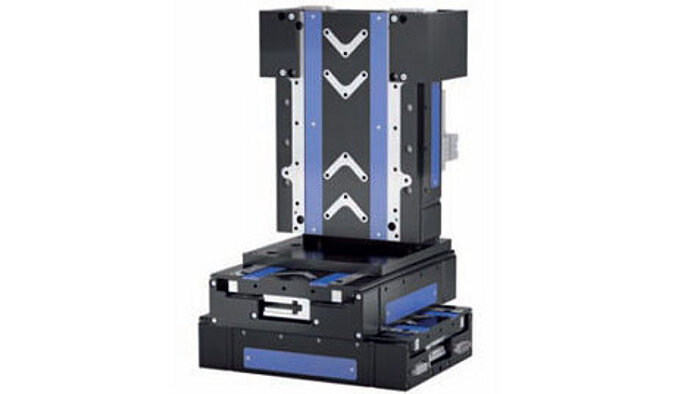

V-551 Linear Motor Stage
Show more
V-551 Linear Motor Stage
Absolute Encoder Option
  • 60/130/230mm travel
  • 0.5 to 2nm min. incremental motion
  • 0.2 to 1nm linear encoder res.
  • 0.5m/sec max. velocity
  • 180N push/pull force

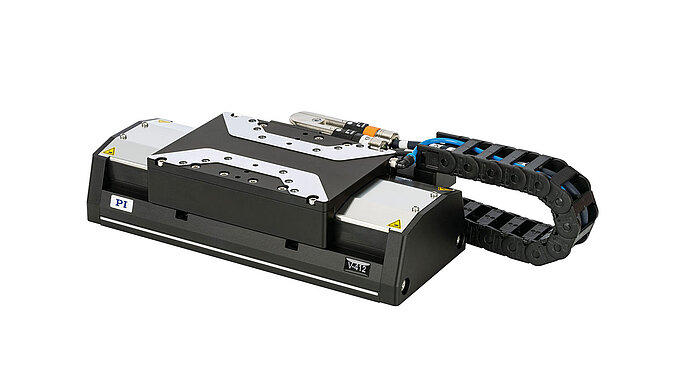

V-412 High Speed Linear Stage
Show more
V-412 High Speed Linear Stage
Linear Motor 400N Load
  • 102 - 610mm (4”-24”) travel
  • 5nm to 10nm min. inc. motion
  • 1nm encoder res.
  • 2m/sec max. velocity
  • 151N peak force
  • Absolute encoder option

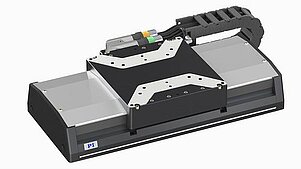

V-417 High Speed Linear Stage
Show more
V-417 High Speed Linear Stage
Linear Motor, 450N Load
  • 102 - 813mm (4”-32”) travel
  • 5nm to 10nm min. inc. motion
  • 1nm encoder res.
  • 2m/sec max. velocity
  • 300N peak force
  • Absolute encoder option
V-817 Affordable X / XY Configurable Stage
Show more
V-817 Economical High Performance Stage
Linear Motor, 3m/sec 600N Load
  • 204 - 813mm (8”-32”) travel
  • 10nm min. inc. motion
  • <1nm encoder res.
  • 3m/sec max. velocity
  • 300N peak force
  • Excellent value for precision automation
LMS-270 Linear Motor Stage
Show more
LMS-270 Linear Motor Stage
Long Travel to 1m
  • 300/500/800/1000mm travel
  • 50nm min. incremental motion
  • 15nm linear encoder res.
  • 0.8m/sec max. velocity
  • 480N push/pull force
V-857 High-Speed Linear Module
Show more
V-857 High-Speed Linear Module
Linear Motor, 5m/sec 1000N Load
  • 400 - 1200mm travel
  • 0.1µm min. inc. motion
  • <1nm encoder res.
  • 5m/sec max. velocity
  • 420N peak force
  • Excellent value for precision automation

Ultra-High Precision Stages with Linear Motors and Air Bearings

The PIglide MB air bearing stage is linear servo motor driven with fully preloaded air bearings and an integral optical linear encoder. This stage offers ultra-precision in a miniature package. The combination of non-contact components results in a frictionless motion platform that offers the highest performance, quality, and life. This stage is ideally suited for many high precision applications, such as metrology, photonics alignment, optics positioning, and scanning. The non-contact design also makes these stages ideal for cleanroom applications. There are no moving electrical cables to manage. The air bearing offers a locking design for the ultimate in position stability.
Show more
A-141 Miniature Air Bearing Stage
Ultra-Compact Air Bearing Stage
  • 40mm travel
  • 3.5kg load
  • 20nm resolution
  • 57x83mm table; 38mm height
  • 0.25m/sec max. velocity
  • 0.35g max. acceleration
PIglide LC air bearing positioning stages are linear servo motor driven with fully preloaded air bearings and optical linear encoders. The combination of these non-contact components results in a frictionless motion platform that offers the highest performance, quality and life. These stages are ideally suited for many high precision applications, such as metrology, photonics alignment, semiconductor, flat panel display and precision scanning applications. The non-contact design also makes these stages ideal for cleanroom applications.
Show more
A-110 PIglide Air Bearing Stage
Affordable Design, Travel to 16”
  • 2/4/8/12/16” travel
  • 10kg load
  • 1nm resolution, abs/enc option
  • 160x200mm table; 60mm height
  • 1m/sec max. velocity
  • 3g max. acceleration
The PIglide AT3 series of stages are linear servo motor driven with fully preloaded air bearings and an integral optical linear encoder. The combination of these non-contact components results in a frictionless motion platform that offers the highest performance, quality, and life. These stages are ideally suited for many high precision applications, such as metrology, photonics alignment, semiconductor inspection, flat panel display, laser machining, and precision scanning applications. The non-contact design also makes these stages ideal for cleanroom applications. A high-force linear motor can drive the stage to top speed within a few milliseconds, and the large capacity bearings can support payloads up to 35 kg. The laterally opposed, actively preloaded air bearing design in this model will support normal, vertical, and side-mounted orientations.
Show more

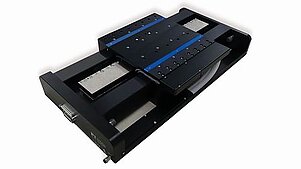

A-123 PIglide Air Bearing Stage
Large, Travel to 30”
  • 2/4/6/10/14/20/30” travel
  • 10kg load
  • 1nm resolution, abs/enc option
  • 210x210mm table; 85mm height
  • 1m/sec max. velocity
  • 3g max. acceleration
Show more

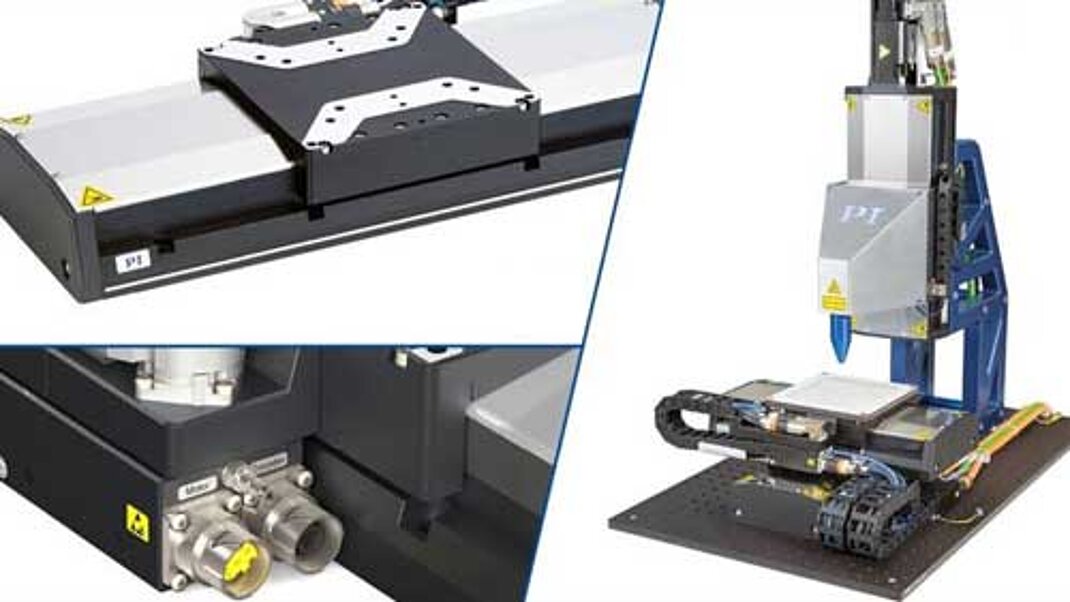

Video: Precision Automation Drive Principles

Watch Video

PI's Direct Drive Servo Motor Solutions with Air Bearings, 3-Phase Motors, Voice Coil, Hexapod 6D, MagLev, Rotation

High Speed, Direct Drive Rotary Stages
