- Width 166mm
- Travel range to 813 mm
- Nominal force 87 N
- Incremental or absolute linear encoder
- Precision recirculating ball bearings, load capacity to 450 N
- Covering strip on the side for protection against particles

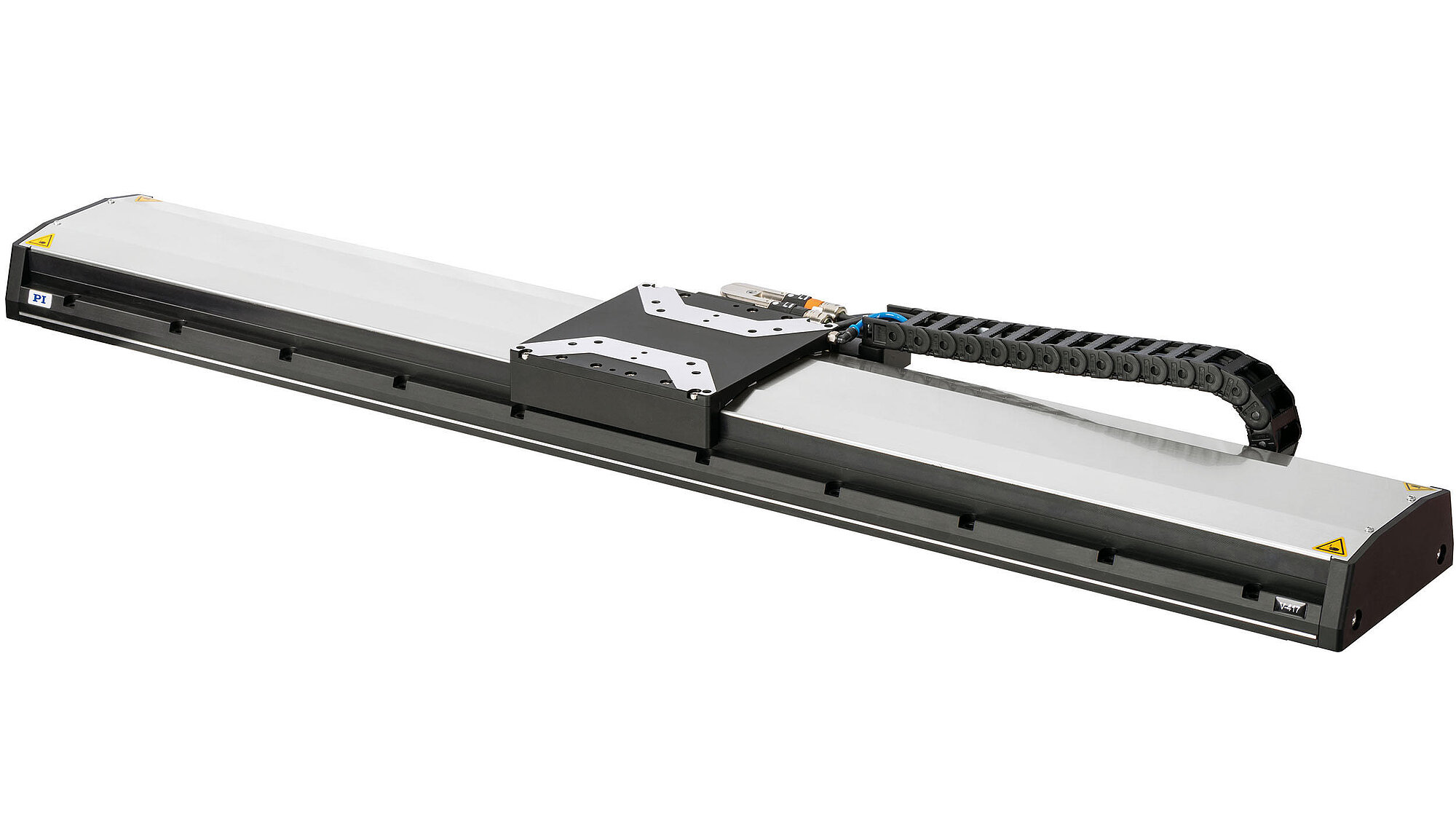

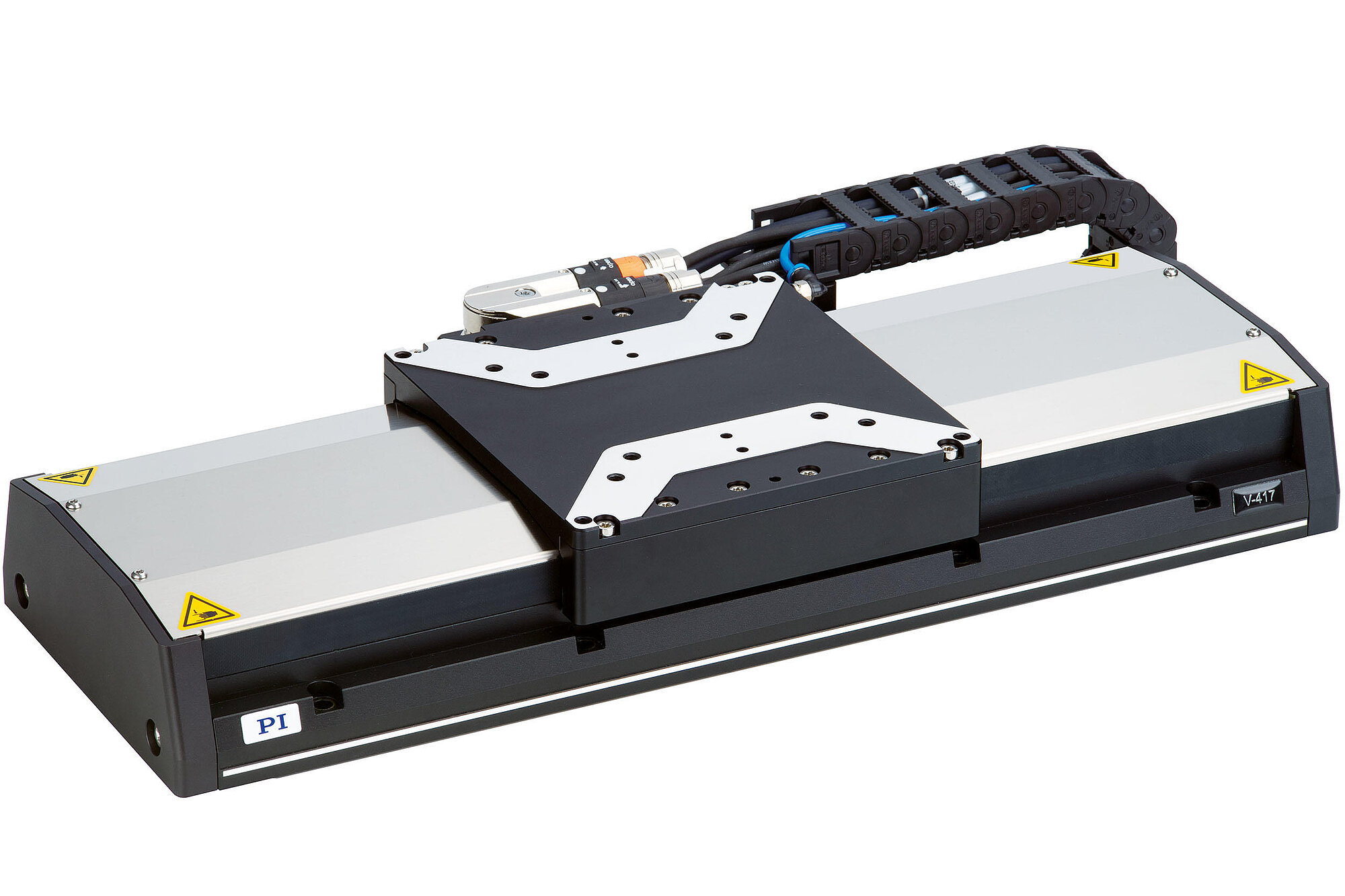

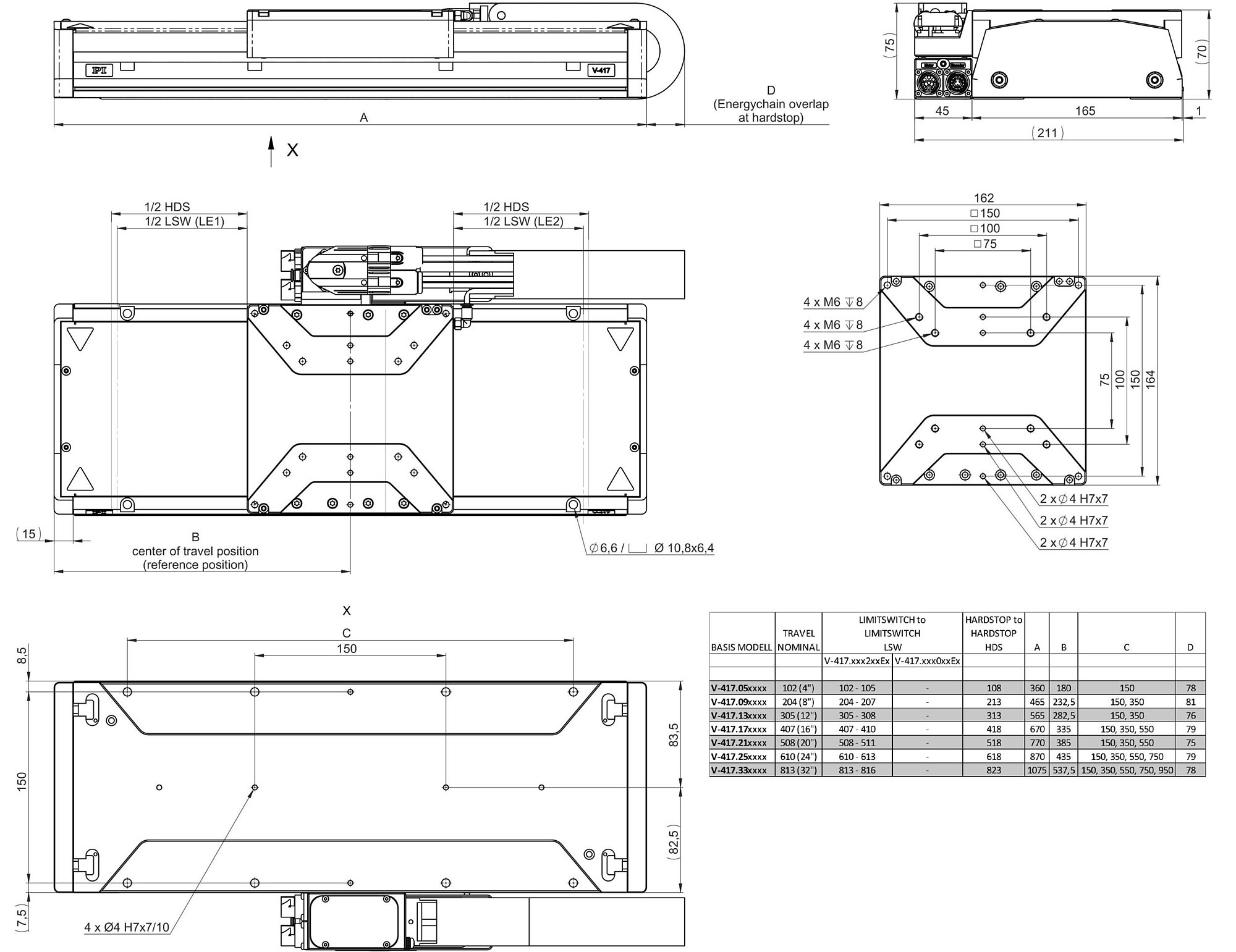

Reference-class linear positioner
With the V-417, PI has a high-precision linear stage with linear motor in its portfolio for industrial solutions. Its design is consistently geared to demanding industrial conditions and it is characterized by high stiffness and the use of high-quality components: High-performance ironless linear motors, heavy-duty recirculating ball bearing guides, and precision incremental linear encoders. The high resolution of the encoders allows an excellent tracking performance, small tracking errors, and short settling times. For maximum flexibility, it is possible to choose between incremental and absolute encoders. Absolute encoders supply explicit position information that enables immediate determination of the position. This means that referencing is not required during switch-on, which increases efficiency and safety during operation. Industry-compatible connectors offer a fast and secure connectivity. The covering strip on the side and the purge air connector prevent contamination by particles.

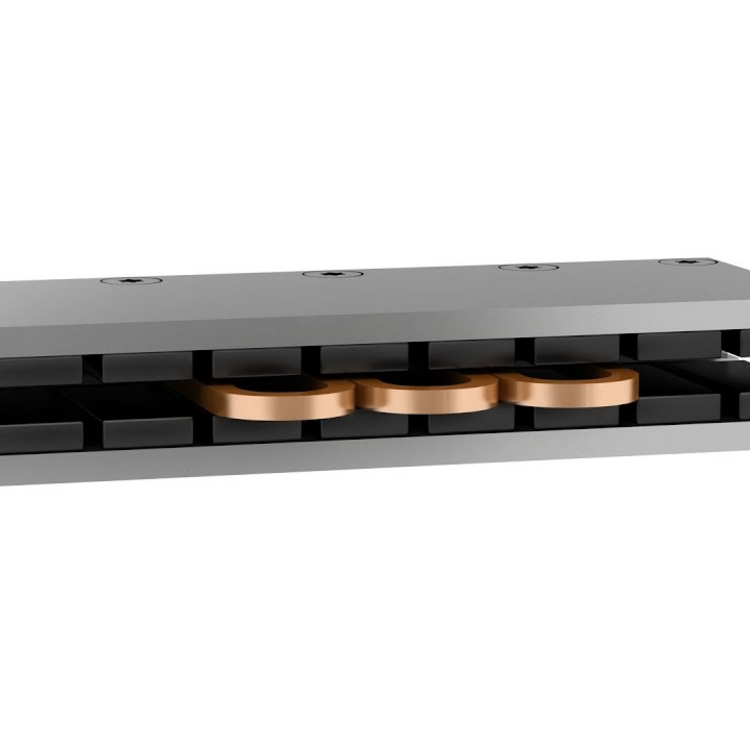

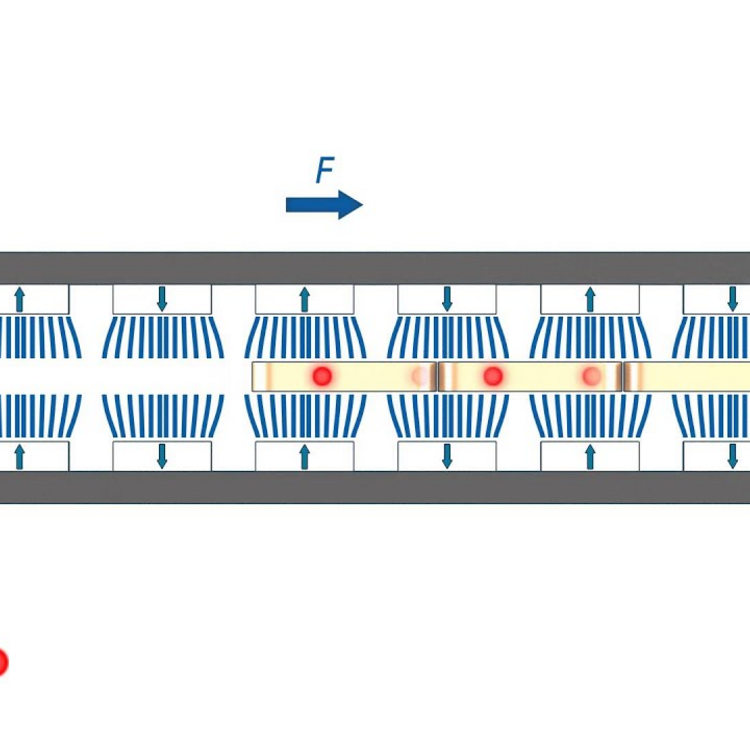

Linear motors are electromagnetic direct drives. They dispense with mechanical components in the drivetrain and transfer the drive force directly and friction-free to the motion platform. The drives reach high velocities and accelerations. Ironless motors are particularly suitable for positioning tasks with the highest demands on precision because there is no undesirable interaction with the permanent magnets. This allows smooth running even at the lowest velocities and at the same time, there is no vibration at high velocities. Nonlinearity in control behavior is avoided and any position can be controlled easily. The drive force can be set freely.
Laser cutting. Scanning. Digital printing. Electronics assembly and inspection. AOI (Automatic Optical Inspection). Automation. Flat screen manufacturing. Applications with high demands on dynamics, precision, smooth scan motion, short settling times, and low tracking error.
