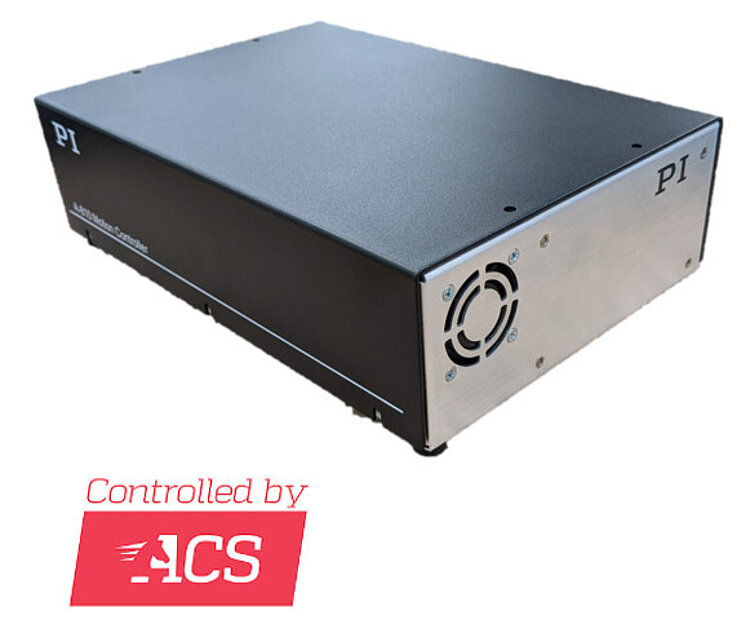

A-811.CE PIglide Motion Controller for One Axis

For Stages with Direct Drive, TCP/IP Interface

  • Fully-integrated servo-controller with drive
  • Compact benchtop device, external AC/DC-power supply
  • For voice coil drives, DC motors, and brushless 3-phase motors; quiet PWM drives
  • Encoder inputs support incremental (analog sine/cosine) and absolute (BiSS-C, EnDat 2.2) encoders
  • Output current up to 10 A continuous / 20 A peak
  • Functional safety: STO (Safe Torque Off)
A-811.CE PIglide Motion Controller for One Axis
Product Description Specifications Downloads Quote / Order

Overview

PI's single-axis motion controller A-811.CE offers a fully integrated electronics solution with controller and servo drive in a compact desktop housing. The A-811.CE controller is designed and optimized for operating the PIglide air-bearing linear and rotation stages, and other PI stages which are equipped with servomotor and high-resolution encoders.

The standard controller is equipped with inputs for incremental and absolute encoders. Support for sine/cosine encoders has an integrated interpolation factor of up to 65536x (16 bit). The controllers has an on-board flash memory for stored motion programs and parameters.

It is possible to operate the A-811.CE controller in stand-alone mode via stored programs, or from an external PC. A PC is required for programming and startup. The complete software is included in the scope of delivery.

If the controller is purchased together with a PIglide air bearing stage or positioning system, PI will do the servo tuning, startup of the controller, and error calibration, and supply a complete ready-to-use positioning system.

The A-811.CE features the state-of-the-art ACS ECMsa Motion Controller with integrated servo drive.

Options

  • Various motor current output levels

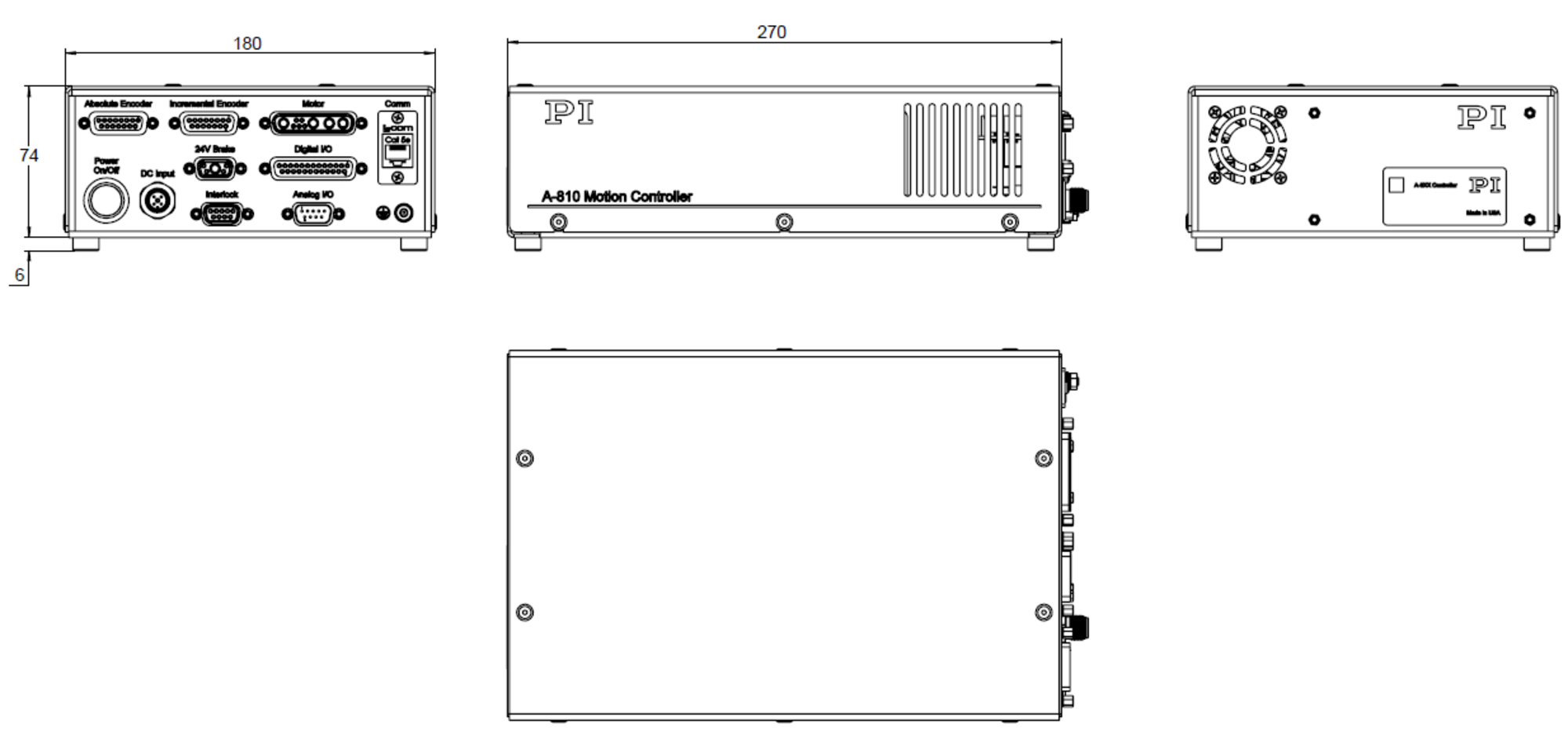

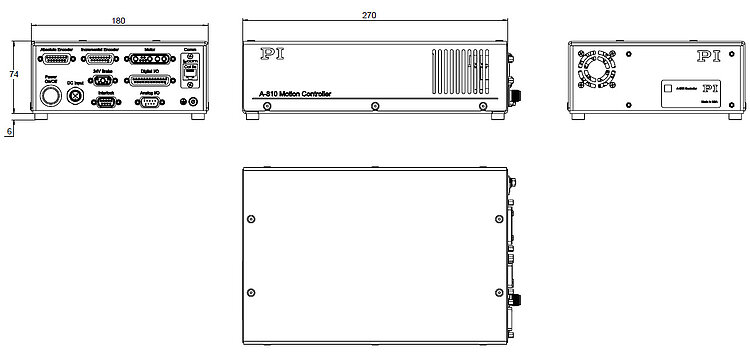

Specifications

Datasheet

Datasheet A-811.CE

Version / Date
2021-12-20
pdf - 235 KB
Version / Date
2021-12-20
pdf - 229 KB

Downloads

Datasheet

Datasheet

Datasheet A-811.CE

Version / Date
2021-12-20
pdf - 235 KB
Version / Date
2021-12-20
pdf - 229 KB

3-D Models

3-D Models

3D model A-811.CE

Version / Date
2022-02-16
zip - 12 MB
English

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

A-811.CED02 NEW!
PIglide Motion controller, compact benchtop housing, one axis, incremental encoder with sin/cos signal transmission and absolute encoder, output current 2.5 A continuous / 5 A peak, 24 to 48 V DC input voltage
A-811.CED05 NEW!
PIglide Motion controller, compact benchtop housing, one axis, incremental encoder with sin/cos signal transmission and absolute encoder, output current 5 A continuous / 10 A peak, 24 to 48 V DC input voltage
