PICMA® Piezo Linear Actuators

Multilayer Piezo Actuators with All-Ceramic Insulation

The PICMA® Stack piezo linear actuators from PI Ceramic feature linear displacements with low piezo voltages. Encapsulated versions for operation with splash water or oil are available.

The miniature actuators PICMA® Chip with a height of only 2 mm are also offered as round version with inner hole. These extremely compact piezo actuators feature maximum dynamics with high resonant frequencies. PICMA® Chip piezo actuators can be easily combined to stack actuators.

PICMA® Actuators

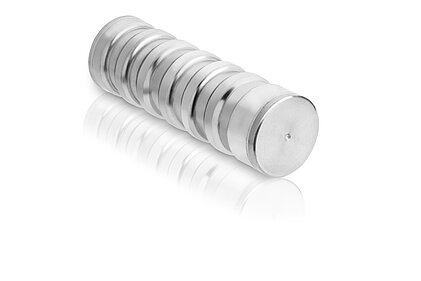

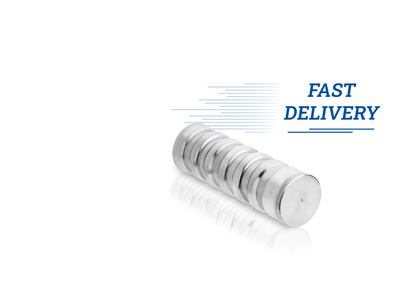

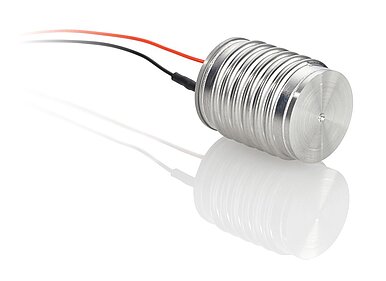

Encapsulated PICMA® Stack Piezo Actuators

P-88x.x5 Encapsulated PICMA® Stack Piezo Actuators

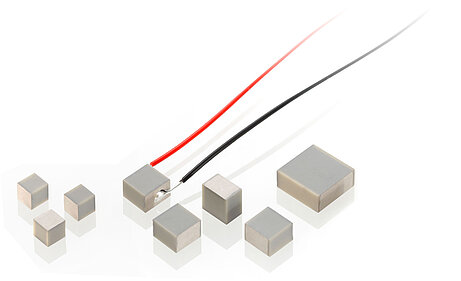

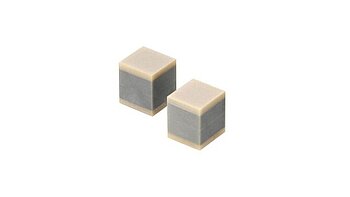

PICMA® Chip Actuators

PL0xx PICMA® Chip Actuators

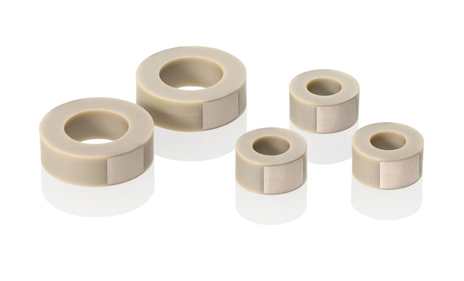

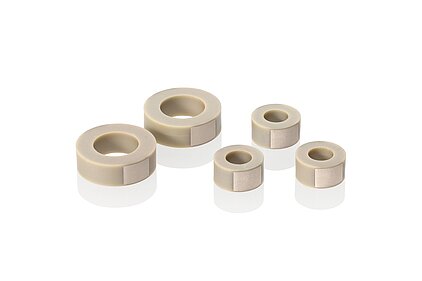

Round PICMA® Chip miniature piezo actuators, lapped end surfaces.

PD0xx • PD1xx Round PICMA® Chip Actuators

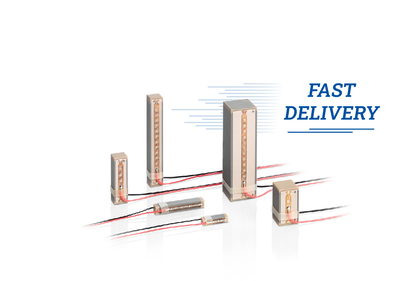

PICMA® Stack Multilayer Piezo Actuators

P-882 – P-888 PICMA® Stack Multilayer Piezo Actuators

Piezo Actuators

P-810 • P-830 Piezo Actuators

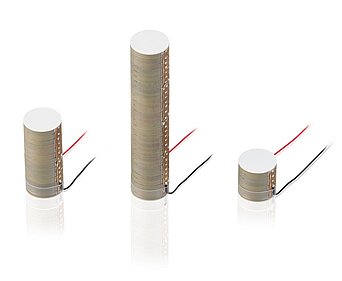

PI P-088 Round PICMA® Stack Multilayer Piezo Actuator

P-088 Round PICMA® Stack Multilayer Piezo Actuator

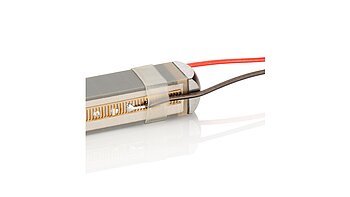

PI P-080 Leads

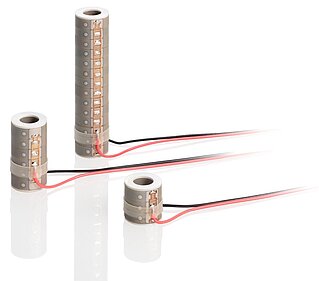

P-080 PICMA® Stack Multilayer Ring Actuator

PiezoMove®

P-604 Compact PiezoMove Linear Actuator

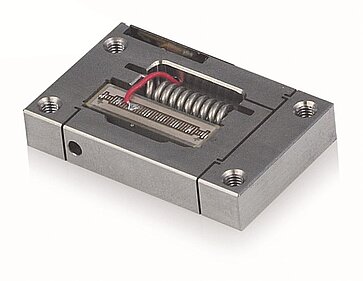

P-603 Inexpensive PiezoMove Linear Actuator

P-602 PiezoMove High-Stiffness Linear Piezo Actuator

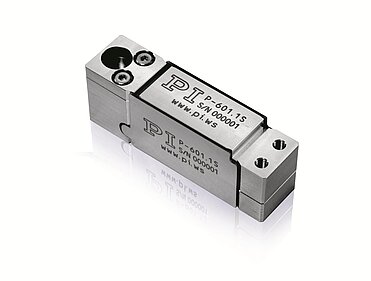

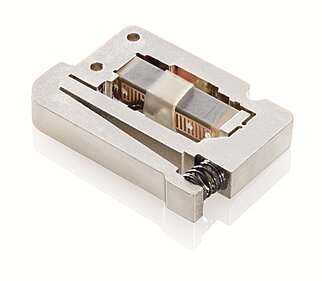

P-601 PiezoMove Linear Actuator with Guides

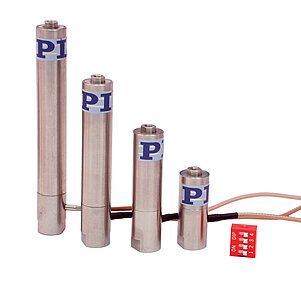

Preloaded Actuators

P-845 Preloaded Piezo Actuators

P-844 Preloaded Piezo Actuators

P-843 Preloaded Piezo Actuators

P-842 Preloaded Piezo Actuators

P-840 Preloaded Piezo Actuators

P-820 Preloaded Piezo Actuators

Controller

PI E-610.00

For PICMA® Stack/Chip Multilayer Actuators

Amplifiers with high output current allow dynamic operation of the actuators and precise positioning while requiring low power.

Customization

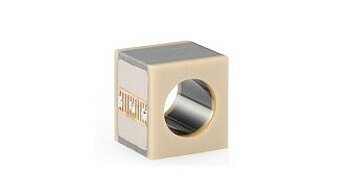

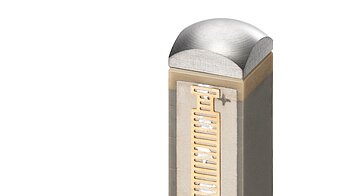

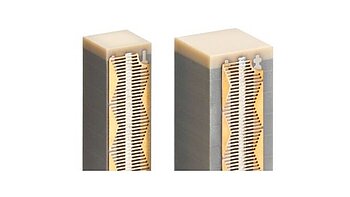

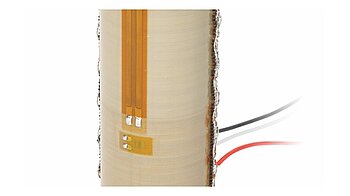

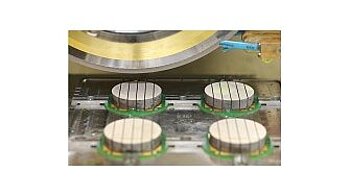

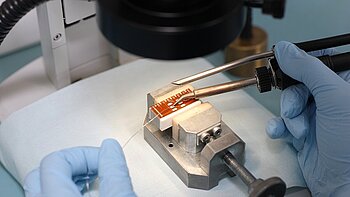

PICMA® multilayer piezo actuators are produced in different shapes. Depending on the application, they can also be assembled with adapted ceramic or metal end pieces, additional coating, temperature sensors, etc. On request, we will gladly offer you customized products.

Applications and Markets

  • Clinical research and diagnostics
  • High-speed switching
  • Moving test strips
  • Life sciences and biotechnology
  • Nanopositioning
  • Microscopy and therapeutic applications
  • Active and adaptive optics
  • Aerosol production
  • Metrology and interferometry
