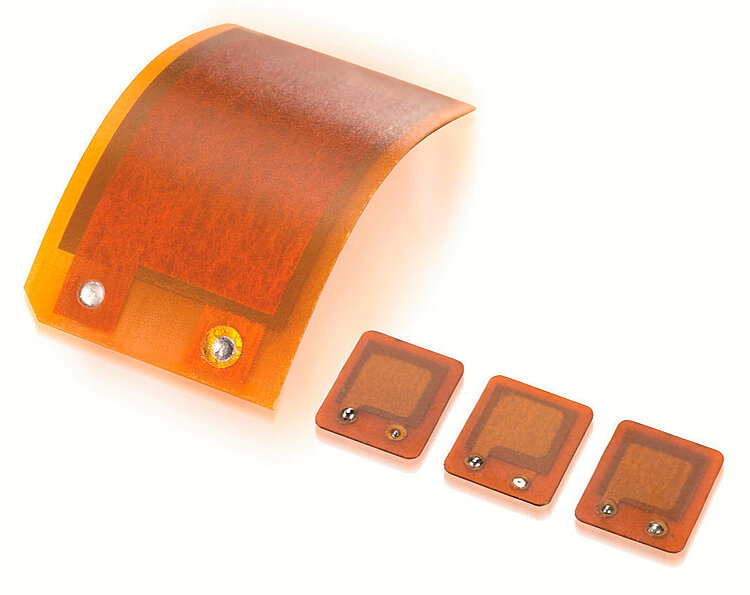

P-876 DuraAct Patch Transducer

Bendable and Robust

  • Useable as actuator, sensor or energy generator
  • Inexpensive
  • Min. bending radii of down to 12 mm
  • Compact design
  • Individual solutions
P-876 DuraAct Patch Transducer
Product Description Specifications Downloads Quote / Order

Patch transducer

Functionality as actuator and sensor component. Nominal operating voltage from 100 up to 1000 V, depending on the active layer height. Power generation for self-sufficient systems possible up to the milliwatt range. Can also be applied to curved surfaces.

Robust, inexpensive design

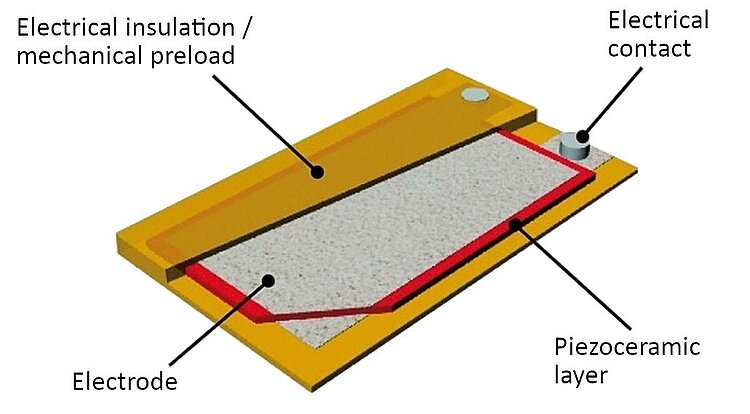

Laminated structure consisting of a piezoceramic plate, electrodes and polymer materials. Manufactured with bubble-free injection method. The polymer coating simultaneously serves as electrical insulation and as mechanical preload, which makes the DuraAct bendable.

Customized versions and other specifications on request

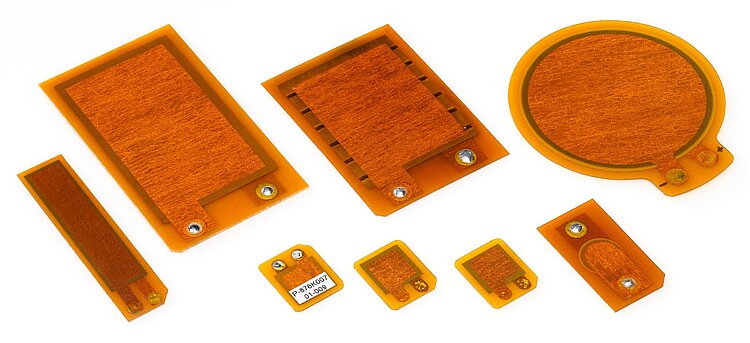

  • Flexible choice of size
  • Flexible choice of thickness and therefore bending ability
  • Flexible choice of piezoceramic material
  • Variable design of the electrical connections
  • Combined actuator/sensor applications, even with several piezoceramic layers
  • Multilayer piezo elements

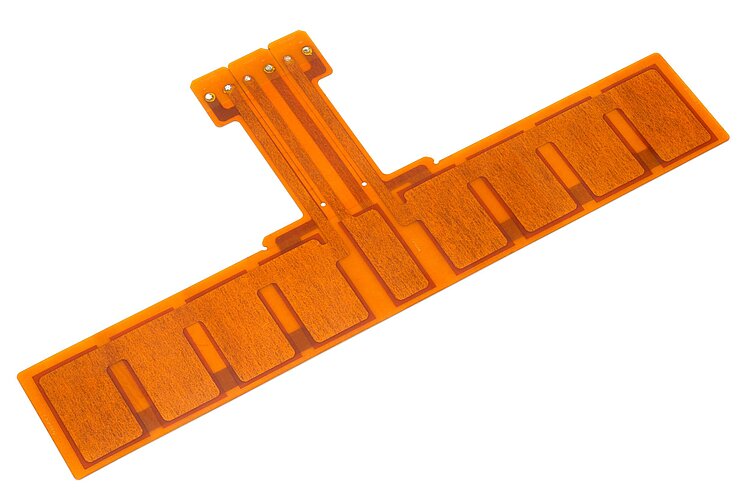

  • Arrays

Application fields

Industry and research. Can also be applied to curved surfaces or used for integration in structures. For adaptive systems, energy harvesting, structural health monitoring.

Specifications

Datasheet

Datasheet P-876

Version / Date
2023-05-11
pdf - 732 KB
Version / Date
2023-05-11
pdf - 740 KB
Version / Date
2019-02-06
pdf - 811 KB

Downloads

Datasheet

Datasheet

Datasheet P-876

Version / Date
2023-05-11
pdf - 732 KB
Version / Date
2023-05-11
pdf - 740 KB
Version / Date
2019-02-06
pdf - 811 KB

Documentation

Documentation

User Manual P876T0001

P-876, P-878 DuraAct and DuraAct Power Patch Transducers

Version / Date
2023-07-07
pdf - 574 KB
Version / Date
2023-07-07
pdf - 621 KB

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
