C-815.82D02 NEW!
Data transmission cable for hexapods, drag-chain compatible, HD D-sub 78 m/f, 2 m
NEW

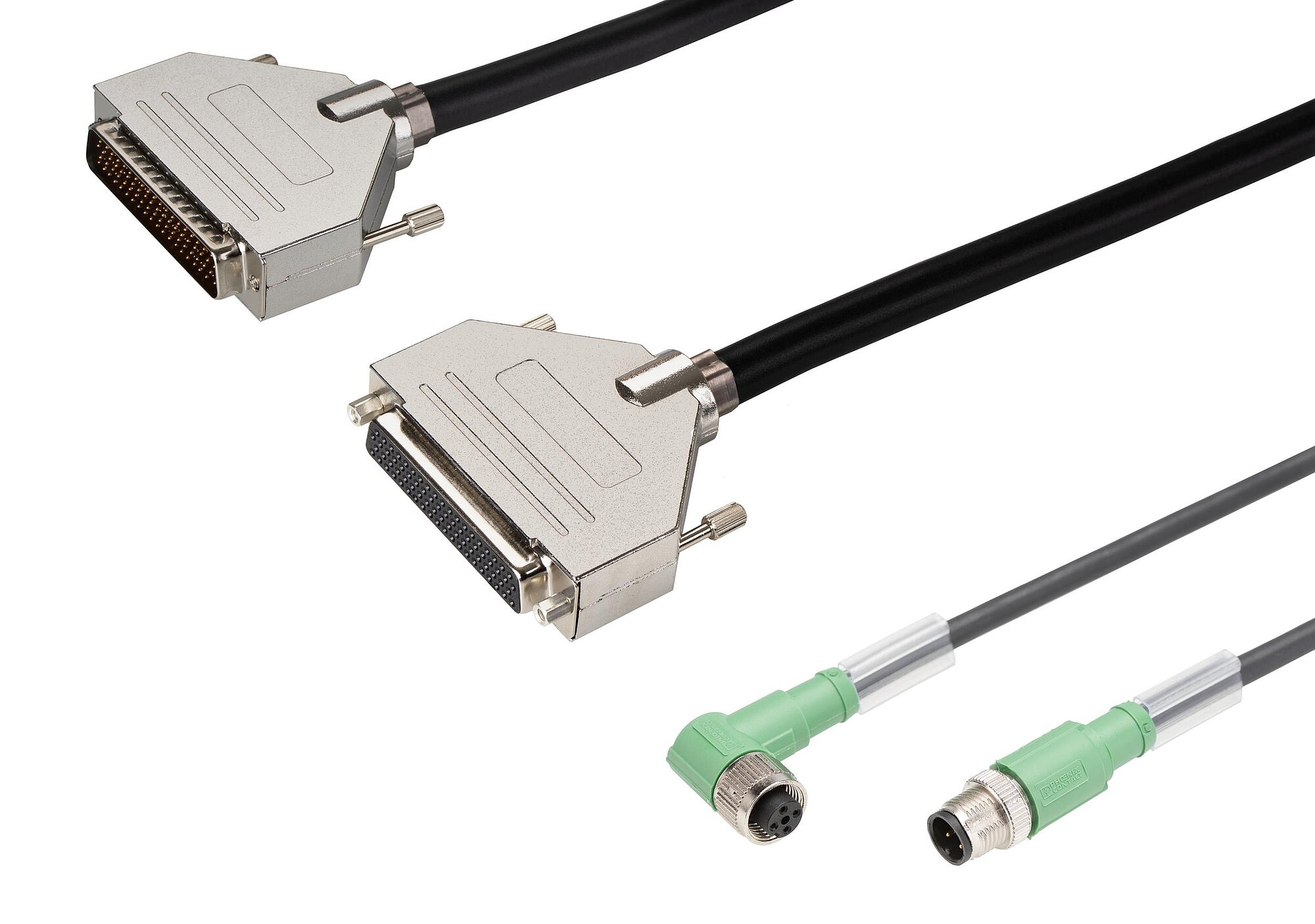

C-815.82xxx Hexapod Cables
Power Supply and Data Transmission Cables
- Drag chain compatible version for industrial applications
- Cable length of 2 to 20 m
- Accessories for hexapods with low power requirement

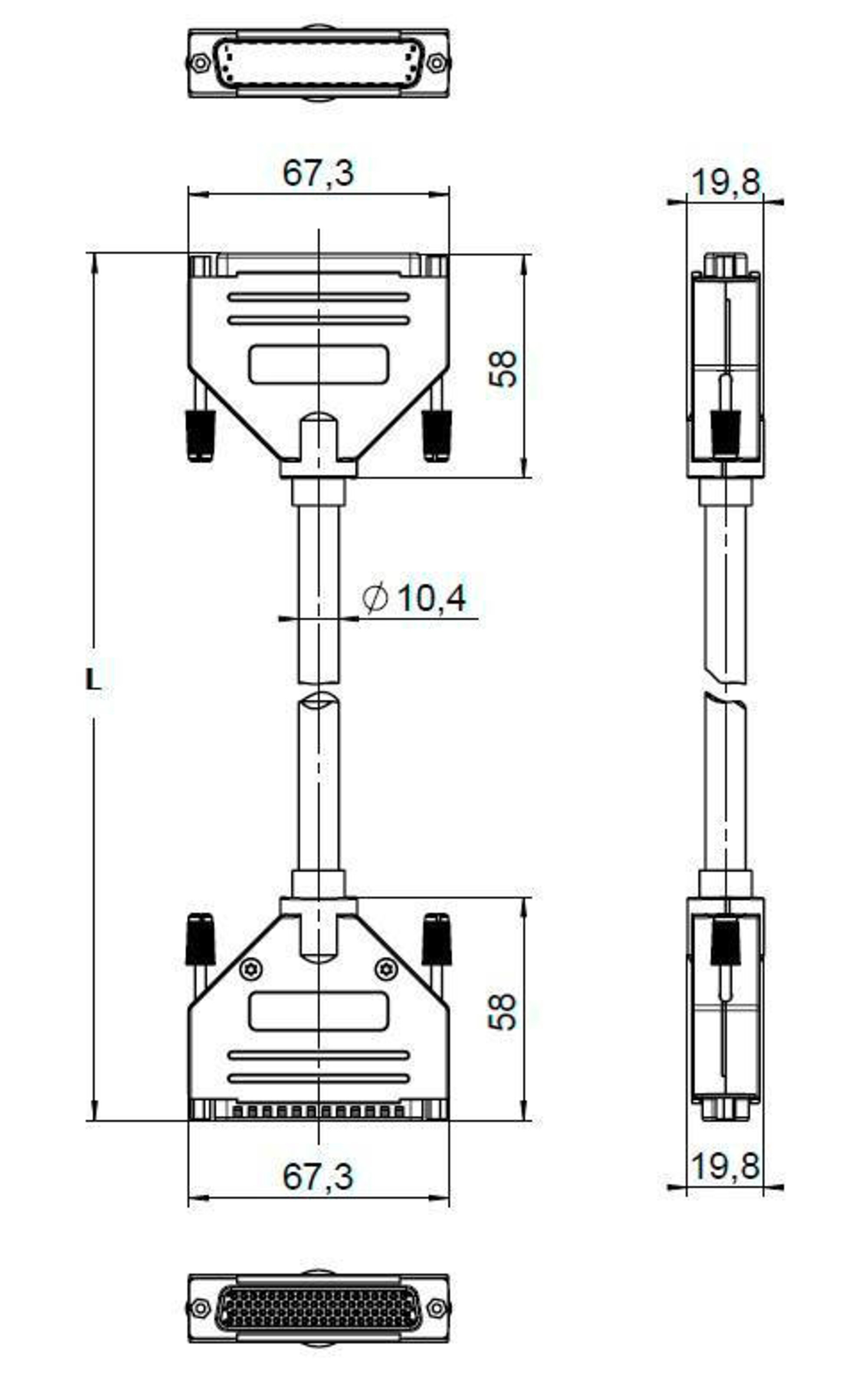

Specified length L of the C-815.82Dxx data transmission cable

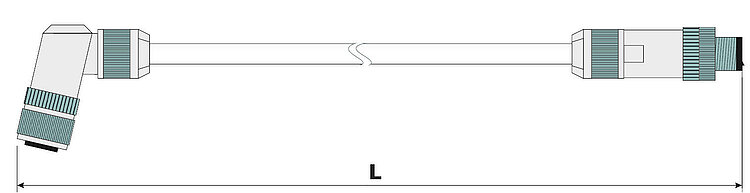

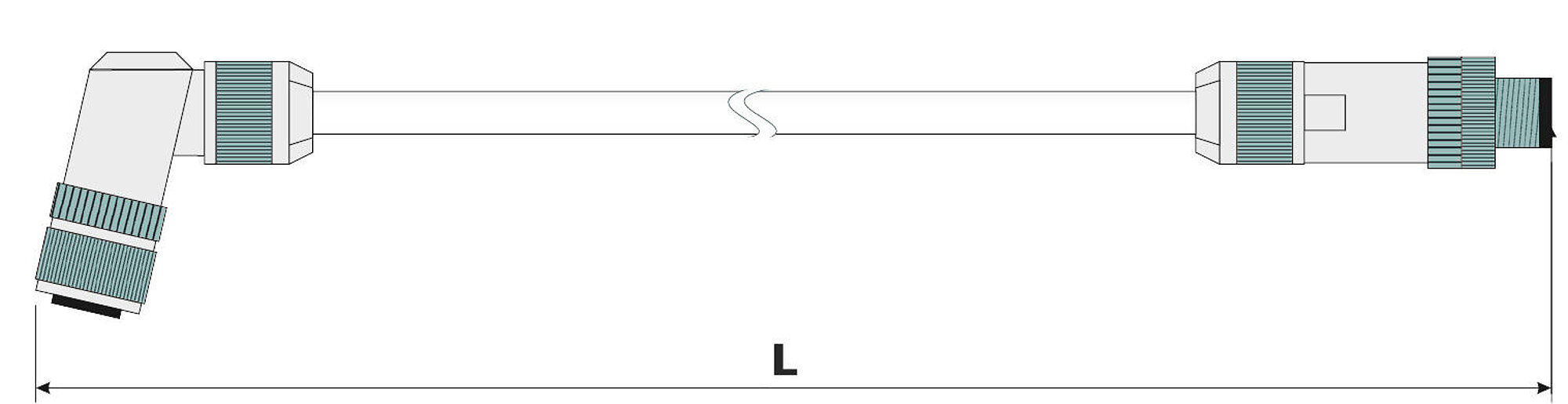

Specified length L of the C-815.82PxxA power supply cable with angled connector (m)

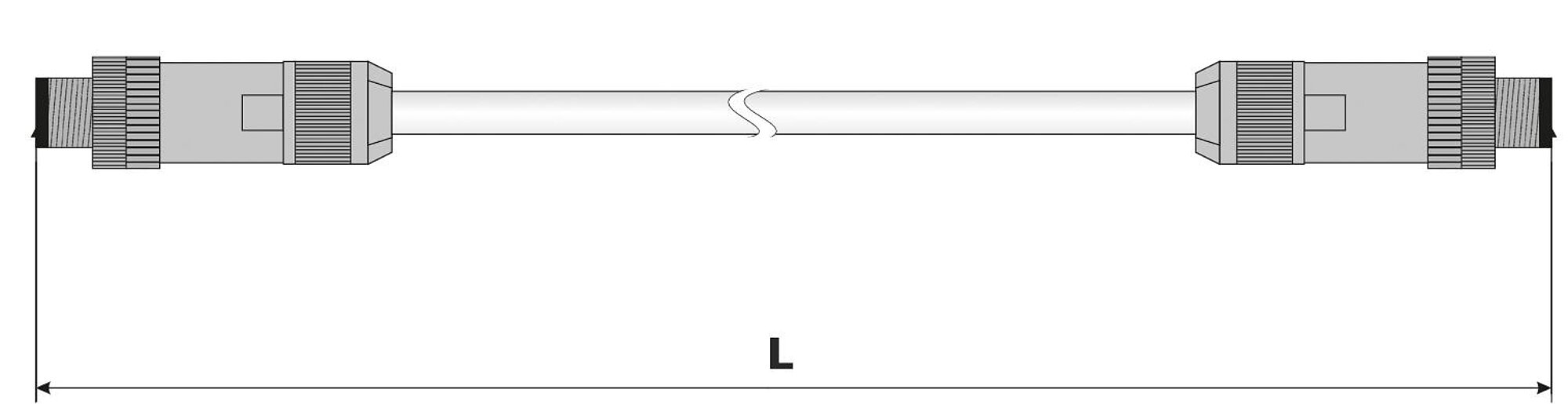

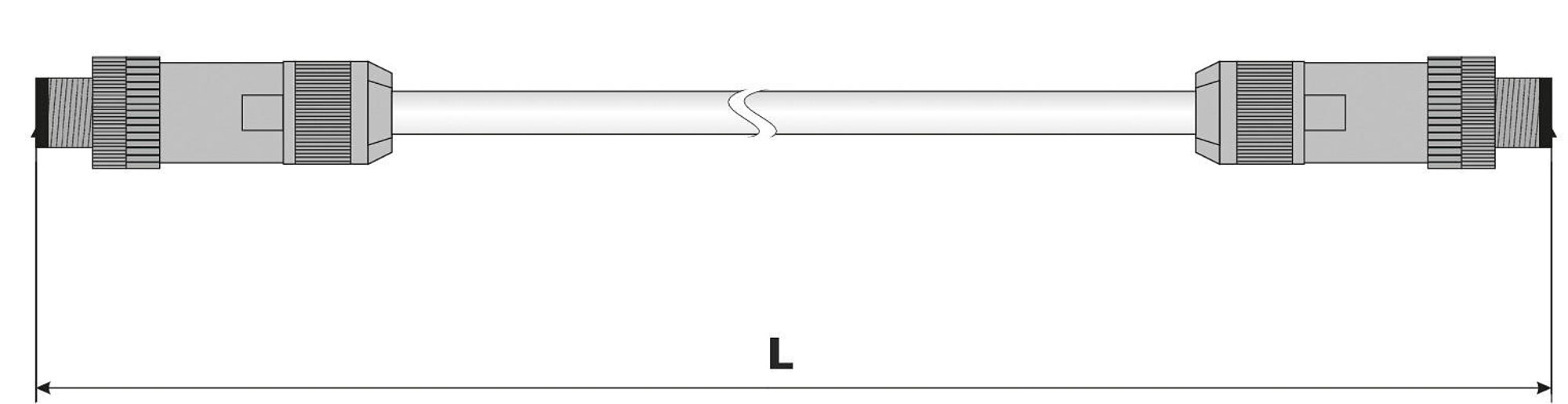

Specified length L of the C-815.82PxxE power supply cable with straight connector (m)

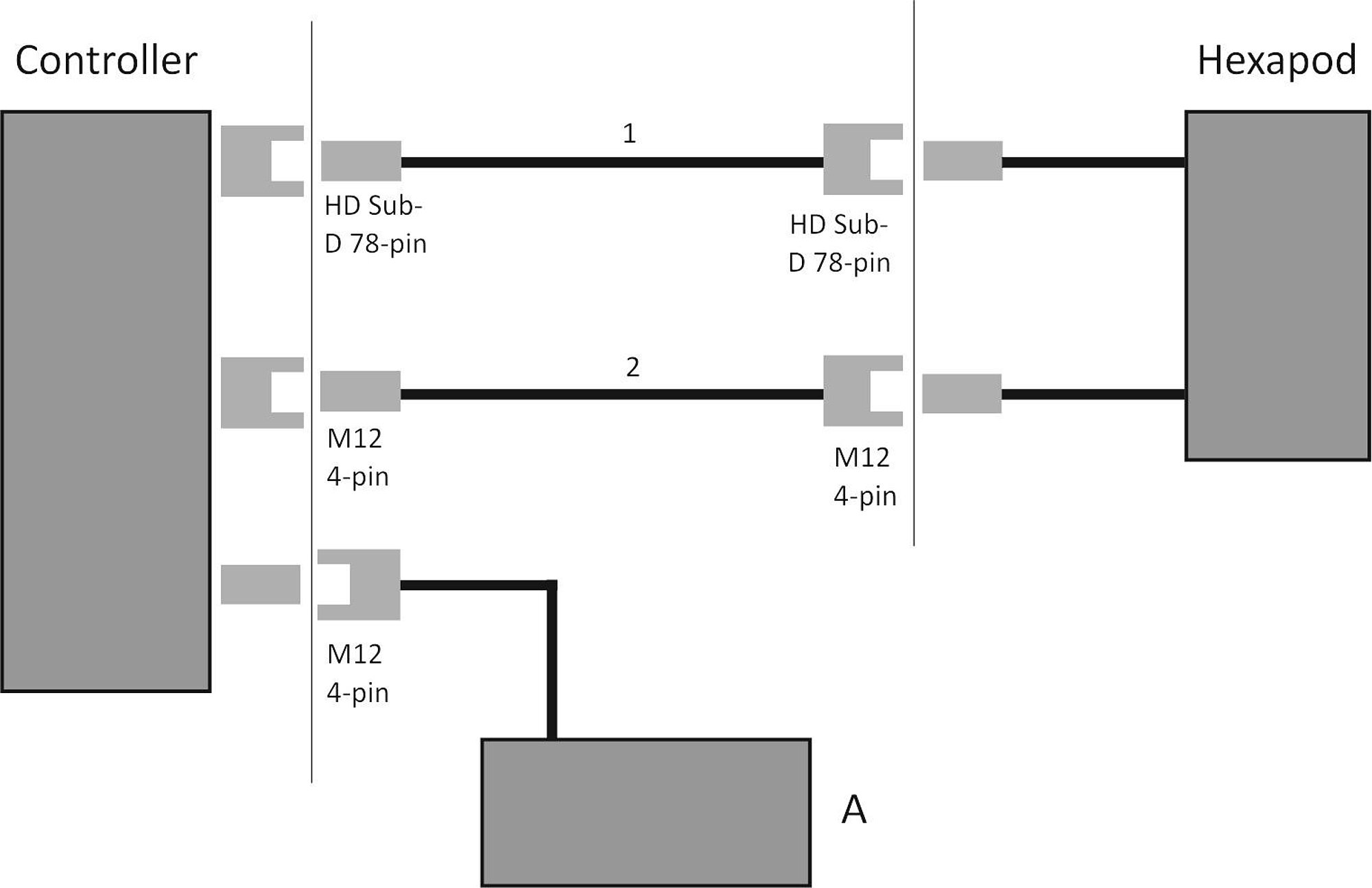

Cabling example using the H-811 with cables fixed to the hexapod
C-815.82xxx Hexapod Cables
Product Description
Specifications
Downloads
Quote / Order
Specifications
Specifications
Model overview | ||
|---|---|---|
Data transmission cable | Power supply cable, single-side angled connector | Power supply cable, straight connectors |
All hexapod types | H-820, H-824, H-825, H-840, H-850 | H-810, H-811, H-206 |
C-815.82D02 | C-815.82P02A | C-815.82P02E |
C-815.82D03 | C-815.82P03A | C-815.82P03E |
C-815.82D05 | C-815.82P05A | C-815.82P05E |
C-815.82D07 | C-815.82P07A | C-815.82P07E |
C-815.82D10 | C-815.82P10A | C-815.82P10E |
C-815.82D20 | C-815.82P20A | C-815.82P20E |
The models differ with respect to the following features: 1. Cable type 2. Length 3. Connector type (power cables only) These features are coded in the product number by the character after the C-815.82 as follows: | ||
|---|---|---|
Character following the C-815.82 | Meaning | Possible values |
First character | Cable type | D – Data transmission values P – Power supply cable |
Second character | Length | 02 – 2m 03 – 3m 05 – 5m 07 – 7.5m 10 – 10m 20 – 20m |
Third character | Connector type (power supply cable only) | A – Angled connector E – Straight connector |
Cables longer that 20 m require additional power drivers.
Ask about customized versions.
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
Data transmission cables
C-815.82D03 NEW!
Data transmission cable for hexapods, drag-chain compatible, HD D-sub 78 m/f, 3 m
C-815.82D05 NEW!
Data transmission cable for hexapods, drag-chain compatible, HD D-sub 78 m/f, 5 m
C-815.82D07 NEW!
Data transmission cable for hexapods, drag-chain compatible, HD D-sub 78 m/f, 7.5 m
C-815.82D10 NEW!
Data transmission cable for hexapods, drag-chain compatible, HD D-sub 78 m/f, 10 m
C-815.82D20 NEW!
Data transmission cable for hexapods, drag-chain compatible, HD D-sub 78 m/f, 20 m
Power supply cables
C-815.82P02A NEW!
Power supply cable for hexapods, drag-chain compatible, M12 m/f angled, 2 m
C-815.82P03A NEW!
Power supply cable for hexapods, drag-chain compatible, M12 m/f angled, 3 m
C-815.82P05A NEW!
Power supply cable for hexapods, drag-chain compatible, M12 m/f angled, 5 m
C-815.82P07A NEW!
Power supply cable for hexapods, drag-chain compatible, M12 m/f angled, 7.5 m
C-815.82P10A NEW!
Power supply cable for hexapods, drag-chain compatible, M12 m/f angled, 10 m
C-815.82P20A NEW!
Power supply cable for hexapods, drag-chain compatible, M12 m/f angled, 20 m
C-815.82P02E NEW!
Power supply cable for hexapods, drag-chain compatible, M12 m/f straight, 2 m
C-815.82P03E NEW!
Power supply cable for hexapods, drag-chain compatible, M12 m/f straight, 3 m
C-815.82P05E NEW!
Power supply cable for hexapods, drag-chain compatible, M12 m/f straight, 5 m
C-815.82P07E NEW!
Power supply cable for hexapods, drag-chain compatible, M12 m/f straight, 7.5 m
C-815.82P10E NEW!
Power supply cable for hexapods, drag-chain compatible, M12 m/f straight, 10 m
C-815.82P20E NEW!
Power supply cable for hexapods, drag-chain compatible, M12 m/f straight, 20 m
