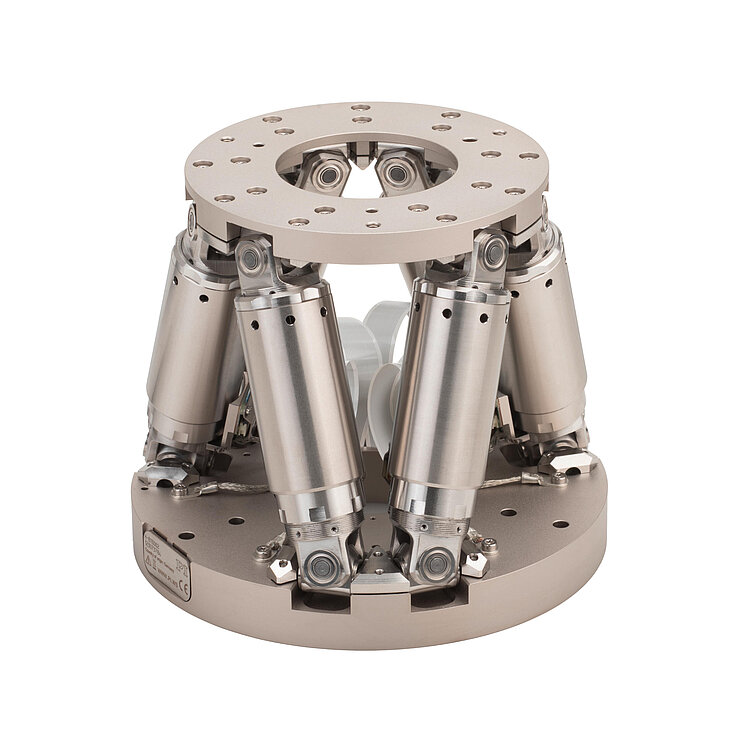

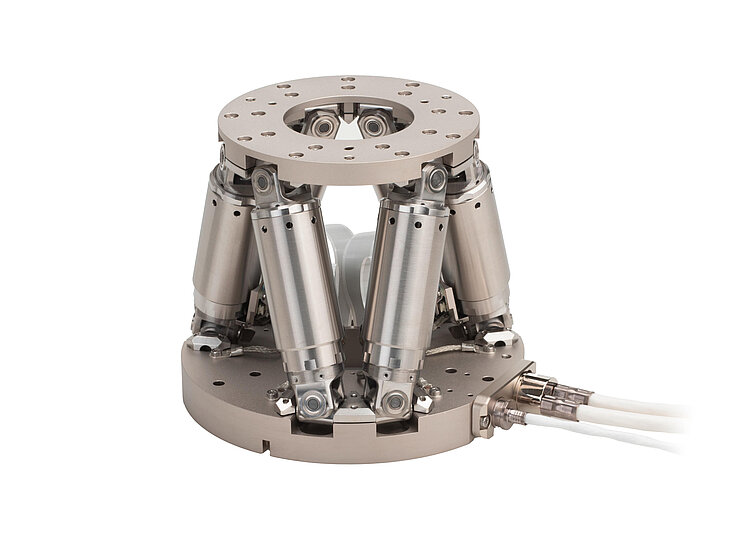

H-811.I2V Vacuum-Compatible 6-Axis Miniature Hexapod

Fast, Compact, and Highly Precise

  • Travel ranges to ±17 mm / ±21°
  • Load capacity to 5 kg
  • Repeatability to ±0.06 µm
  • Velocity to 10 mm/s
  • Vacuum compatible to 10-6 hPa
H-811.I2V Vacuum-Compatible 6-Axis Miniature Hexapod
Product Description Specifications Downloads Quote / Order

Reference-class 6-axis positioning system

Parallel-kinematic design for six degrees of freedom, making it significantly more compact and stiff than serial-kinematic systems, higher dynamics, no moved cables: Higher reliability, reduced friction. suitable for vacuum environments to 10-6 hPa.

Brushless DC Motor (BLDC)

Brushless DC motors are particularly suitable for high rotational speeds. They can be controlled very accurately and ensure high precision. Because they dispense with sliding contacts, they run smoothly, are wear-free and therefore achieve a long lifetime.

PIVirtualMove

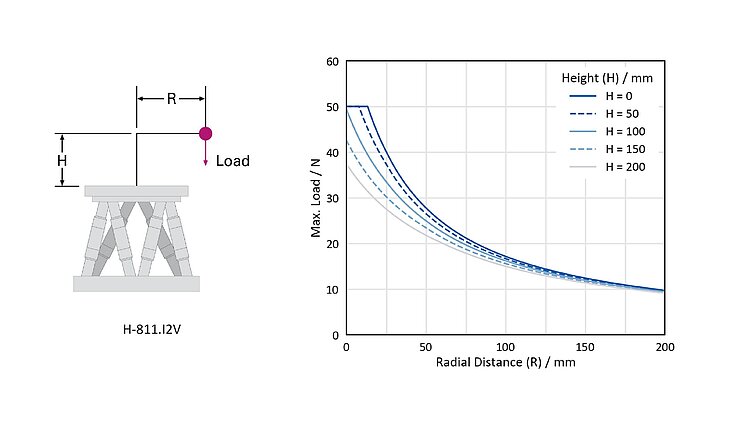

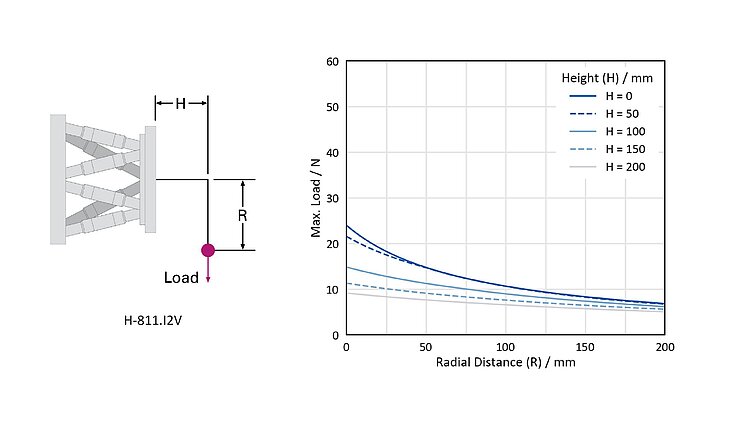

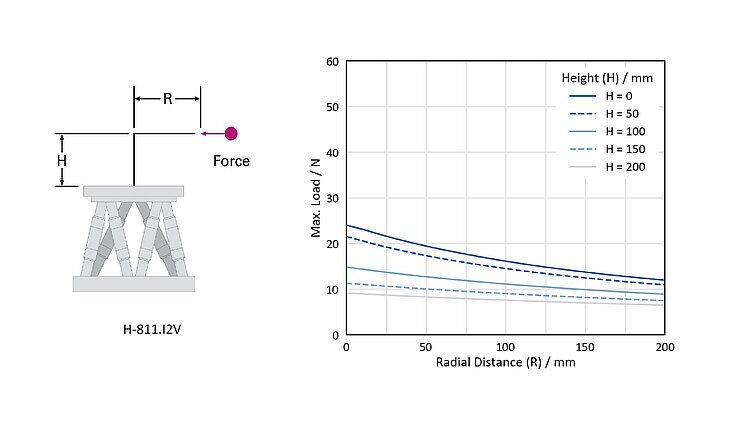

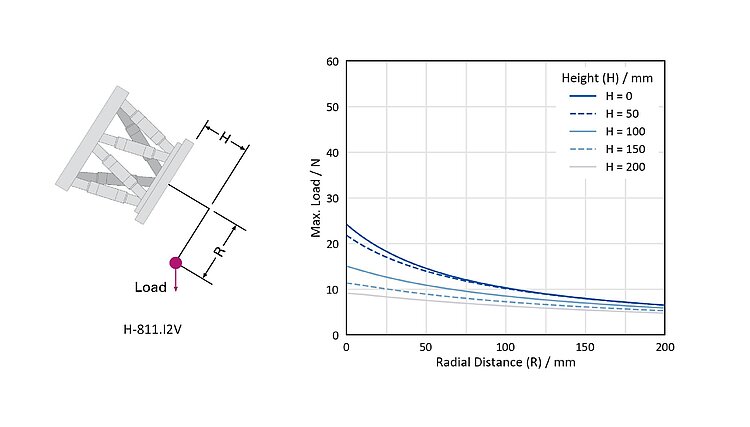

The simulation software simulates the limits of the workspace and load capacity of a hexapod. Therefore, even before purchasing, you can check whether a particular hexapod model can handle the loads, forces, and torques occurring in an application. For this purpose, the simulation tool takes the position and motion of the hexapod as well as the pivot point and several reference coordinate systems into account.

Application fields

Industry and research, micromanufacturing, medical technology, tool inspection.

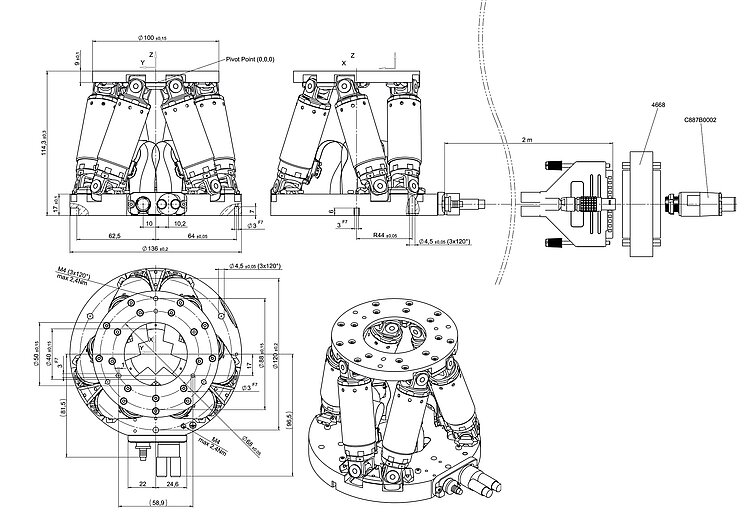

Specifications

Datasheet

Datasheet H-811.I2V

Version / Date
2024-02-28
pdf - 3 MB
Version / Date
2024-02-28
pdf - 3 MB

Downloads

Product Note

Product Note

Product Change Notification H-811.I2V

Version / Date
2020-06-08
pdf - 64 KB
English

Datasheet

Datasheet

Datasheet H-811.I2V

Version / Date
2024-02-28
pdf - 3 MB
Version / Date
2024-02-28
pdf - 3 MB

Documentation

Documentation

Short Instructions MS247EK

Hexapod Systems: H-xxx Hexapod with C-887.5xx Controller

Version / Date
2.0.0 06/2020
pdf - 2 MB
Version / Date
2.0.0 06/2020
pdf - 2 MB
Documentation

User Manual MS235

H-811.I2, H-811.I2V, H-811.F2, and H-811.S2 miniature hexapods

Version / Date
2.5.0 2023-02-23
pdf - 7 MB
Version / Date
2.5.0 2023-02-23
pdf - 7 MB

3-D Models

3-D Models

H-811.I2V 3D Model

Version / Date
2023-02-01
zip - 6 MB

Software Files

Software Files

PIVirtualMove

Version / Date
1.0.1.0, 2024-01
zip - 150 MB

White Paper

White Paper

Industrial Safety Device for Hexapods

How to Connect a Safety Light Barrier to a Hexapod System

Version / Date
WP4025E 2020-02
pdf - 1 MB
Version / Date
WP4025D 2020-01
pdf - 1 MB

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

H-811.I2V

Miniature hexapod microrobot, brushless DC motor, vacuum compatible to 10-6hPa, 5 kg load capacity, 10 mm/s velocity, cable set 2 m on the vacuum side, feedthroughs. Air-side connecting cables are not included in the scope of delivery and must be ordered separately.
