X-Y-Tip-Tilt Stage for Rotary Air Bearing Spindles, from PI

New platforms provide precise payload alignment with four additional degrees of freedom.

As a leader in precision motion control solutions, PI (Physik Instrumente) introduces the A-60x MTT, stainless steel multi-axis top that combines with its offerings of PIglide rotary air bearing stages and platforms. Air-bearings have no rolling or sliding elements and deliver completely frictionless, non-contact motion, resulting in negligible hysteresis or reversal error, better geometric performance, and velocity stability, which are ideal prerequisites for high-end industrial inspection and manufacturing operations.

Linear and Angular Adjustments

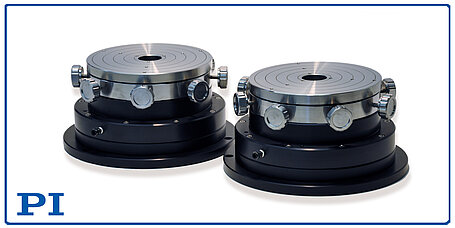

Mounted to rotary air bearings to provide manual adjustments in X-Y-tip-tilt, the A-60x MTT enables the perfect alignment of a payload to the bearing’s axis of rotation. Constructed from durable, wear-resistant stainless-steel with table diameters from 75mm to 300mm and a clear aperture, this accessory is ideal for metrology, roundness measurement, and part gauging applications as passive rotary air bearings are designed for accuracy, precision, high stiffness, and ease of use, in any orientation, and are easily integrated with motors and encoders for complete positioning solutions.

In-House Air Bearing Design and Manufacturing Experience
PI designs and manufactures all air bearing products in the USA. PI’s engineering team has more than 200 man years of air bearing design experience. In addition to customized systems for OEMs, PI offers a substantial standard product line of air bearing stages that includes motorized and non-motorized, linear, rotary, spherical, X/XY, voice coil, compact, and large scale systems, as a complement to its comprehensive range of piezo nano positioning stages, traditional motorized positioners and hexapod 6-axis parallel positioning systems. The air bearing technology and engineered systems capabilities puts PI in the unique position to cover the whole motion range from finger-tip sized nano-positioners to large scale stages with long travel ranges, through a plethora of different drives and guiding systems that can be tailored to meet the needs of an OEM or customer.

Details Articles Video

Motorized Tip/Tilt/Z Stage with Air Bearings»

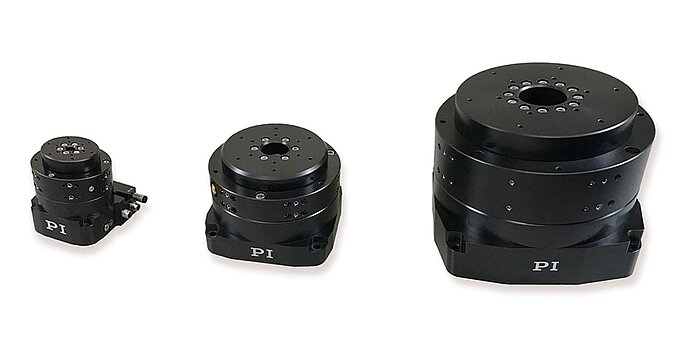

Rotary Tables with Air Bearings»
