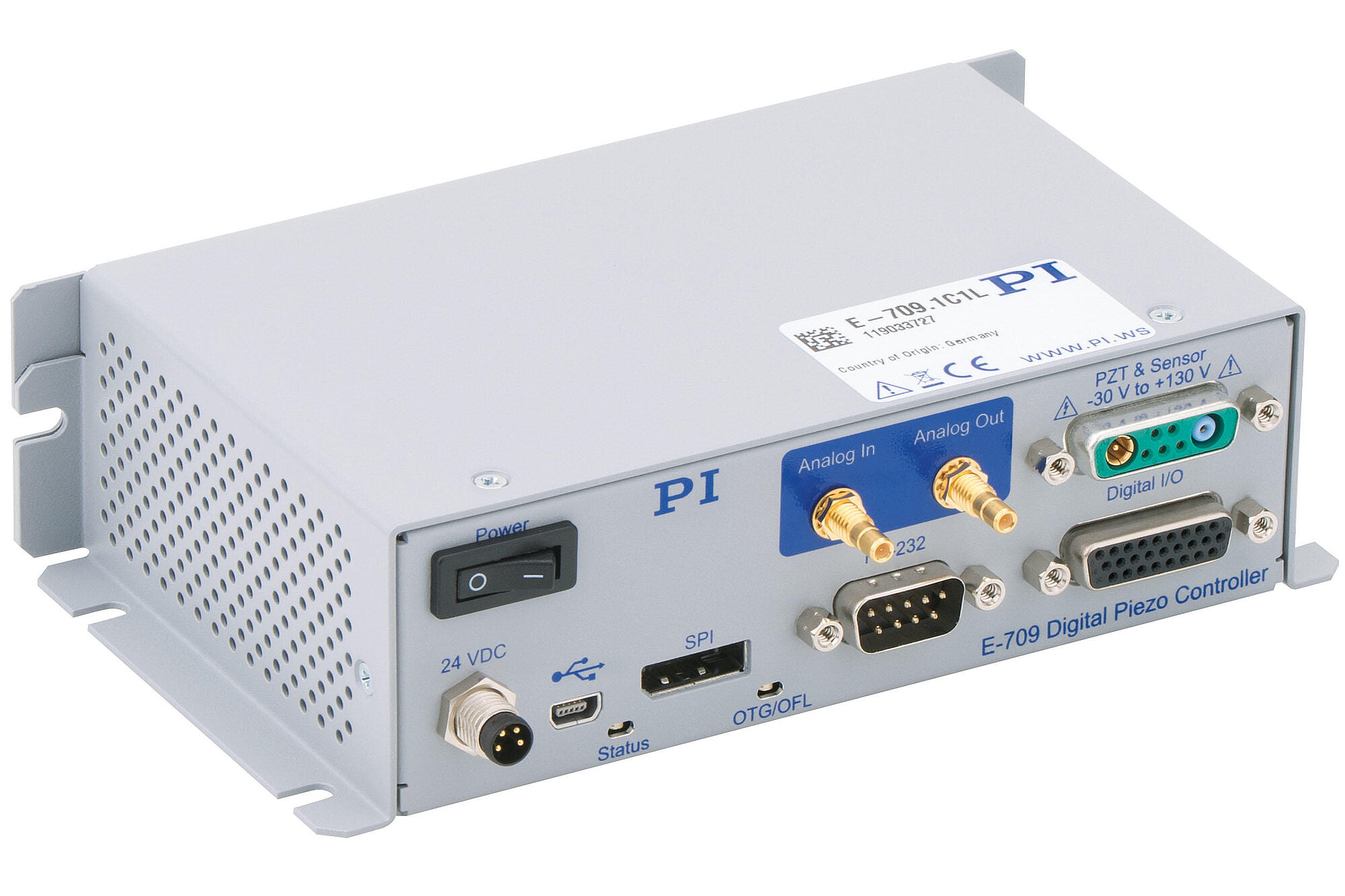

E-709.1C1L Compact and Cost-Optimized Digital Piezo Controller

For Capacitive Sensors, 1 Axis, with Monitoring Functionality

  • Many configuration options for application-optimized dynamics
  • Active control of device temperature
  • Extensive safety and monitoring functionalities
  • Linearity error maximum of 0.01 %
E-709.1C1L Compact and Cost-Optimized Digital Piezo Controller
Product Description Specifications Downloads Quote / Order

Cost-optimized, high-performance controller

For piezo-based single-axis nanopositioning systems with capacitive sensors. Output voltage -30 to 130 V. Amplifier and sensor evaluation optimized for dynamic applications. Digital linearization. Digital servo controller can optionally be combined with profile generator and position feedforward control. Wave generator. Data recorder. Autozero. Trigger I/O. Supports all current ID chips from PI. Compact design with functional blocks for an easy derivation of OEM versions.

Temperature management

High position stability of the sensor electronics thanks to active temperature control. Adaptable to a wide variety of operating conditions. Temperature stable in less than 10 minutes after switching on. A short warm-up phase allows continuous operation to be dispensed with, therefore increasing the lifetime of the nanopositioning system while reducing energy requirement.

Safety and monitoring functionalities

Overtemperature protection for amplifier and sensor electronics. Short-circuit proof. Continuous, hardware-based measurement of input and output values such as voltage and current as well as internal temperature. High-frequency measurements for static and dynamic evaluation. Remote diagnostics possible thanks to specific query and recording of values.

Interfaces

USB and RS-232/RS-485 for commanding via PI General Command Set (GCS). Real-time SPI interface for position specification and query. High-bandwidth analog control input or sensor input. Analog output for sensor monitor or controlling an external amplifier. The servo cycle can be synchronized via differential inputs and outputs and the SPI interface.

Software interfaces

Extensive software support, e.g., for NI LabVIEW, C, C++, MATLAB, Python. Compatible with µManager and MetaMorph. PIMikroMove user software.

Application fields

  • Multiphoton microscopy, confocal microscopy
  • 3-D imaging
  • Screening
  • Autofocus systems
  • Surface analysis
  • Wafer inspection

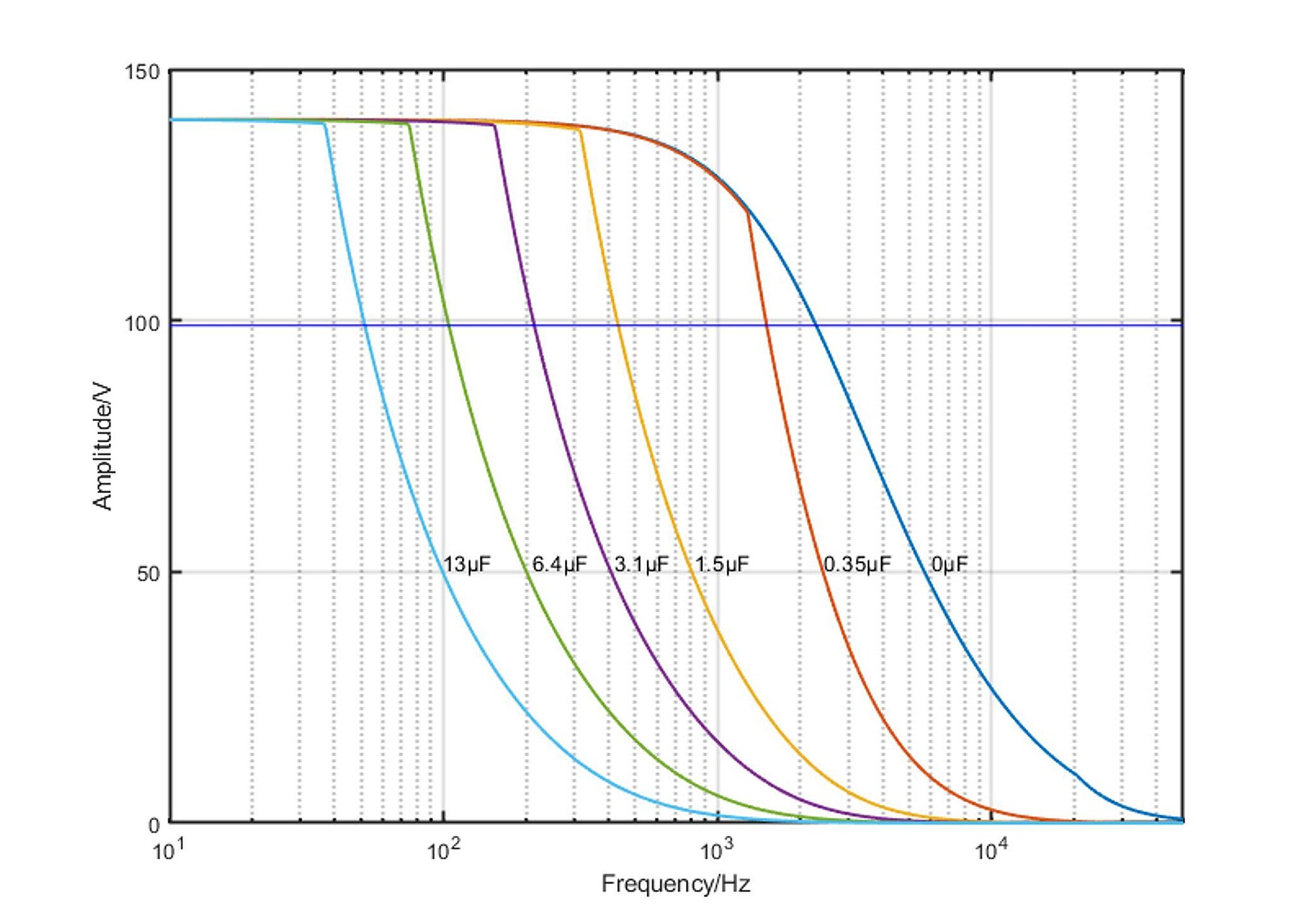

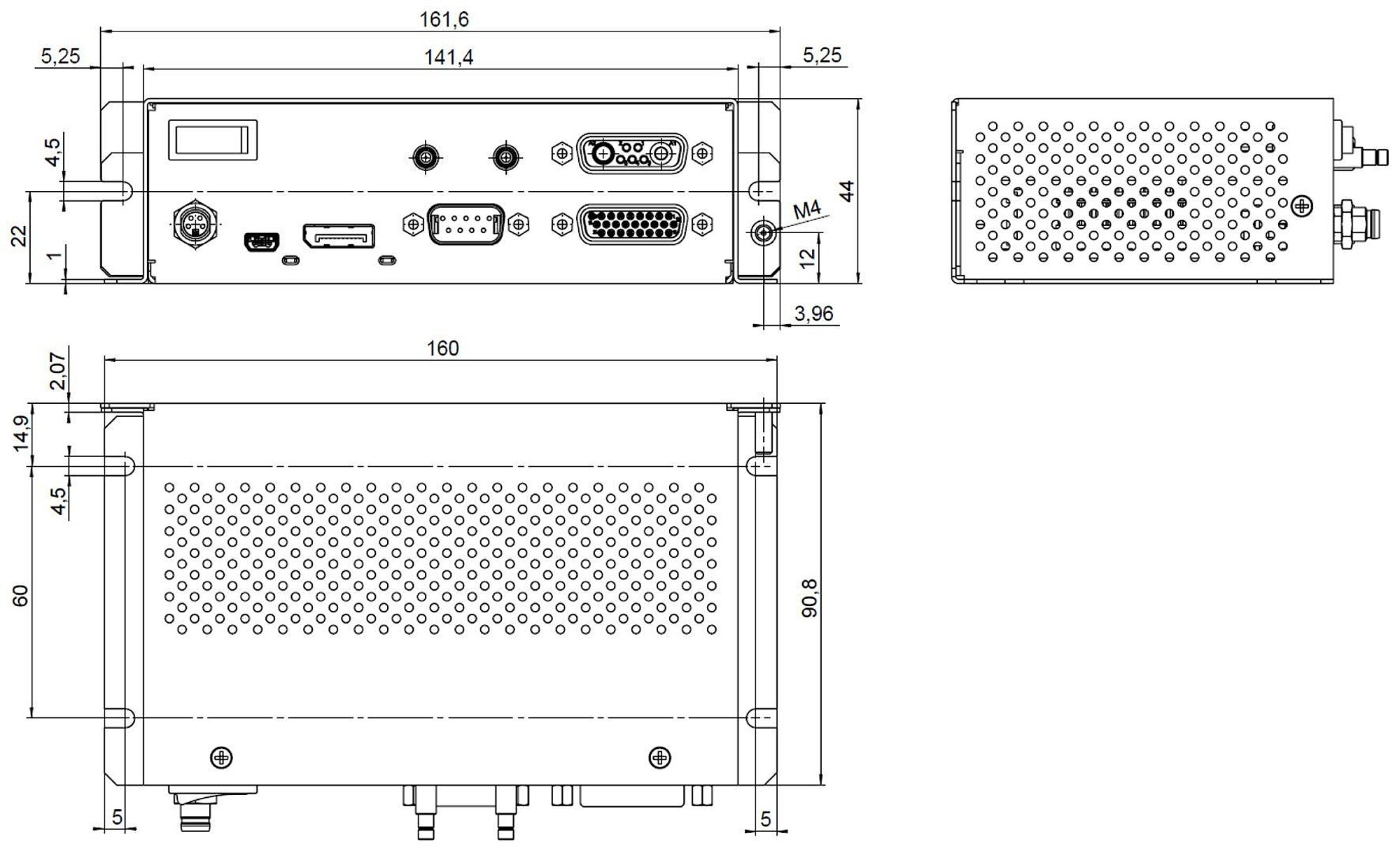

Specifications

Datasheet

Datasheet E-709.1C1L

Version / Date
2020-09-03
pdf - 354 KB
Version / Date
2020-09-03
pdf - 357 KB
Version / Date
2021-01-14
pdf - 540 KB

Downloads

Datasheet

Datasheet

Datasheet E-709.1C1L

Version / Date
2020-09-03
pdf - 354 KB
Version / Date
2020-09-03
pdf - 357 KB
Version / Date
2021-01-14
pdf - 540 KB

Documentation

Documentation

User Manual E709T0002

SPI Interface Description

Version / Date
2020-09-02
pdf - 707 KB
English
Documentation

User Manual PZ305

E-709.1C1L Digital piezo controller, 1 axis, -30 to 130 V, capacitive sensor, monitoring functionality, benchtop device

Version / Date
1.0.0 2020-09-02
pdf - 4 MB
English

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
