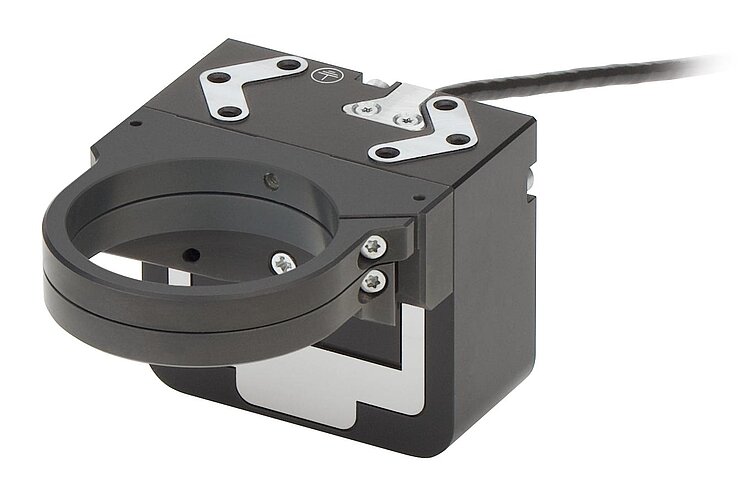

P-725.xCDE1S PIFOC Scanner System for Microscope Objectives

Dynamic focus scanner of the entry-level class for travel ranges up to 400 µm, incl. controller

  • Travel range 100 µm or 400 µm
  • Significantly faster response and longer lifetime than motorized drives
  • Fine positioning of objectives with sub-nm resolution
  • Large clear aperture with Ø 29 mm
P-725.xCDE1S PIFOC Scanner System for Microscope Objectives
Product Description Specifications Downloads Quote / Order

Application fields

  • Super-resolution microscopy
  • Light disk microscopy
  • Confocal microscopy
  • 2-photon microscopy
  • 3D imaging
  • Screening
  • Interferometry
  • Measuring technology
  • Autofocus systems
  • Biotechnology
  • Semiconductor inspection

PIFOC scanner system of the entry-level class

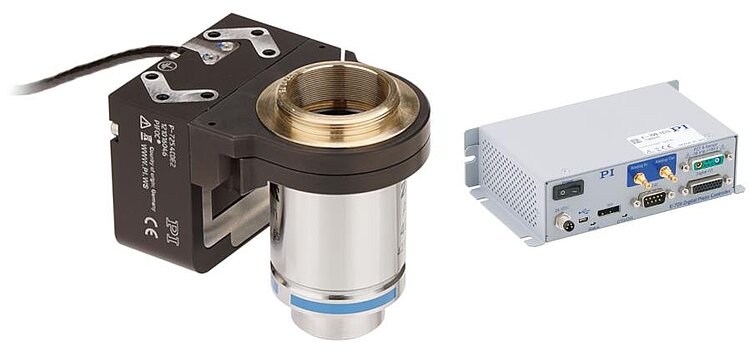

System consisting of P-725.xCDE1 PIFOC scanner and E-709.1C1L controller.

Outstanding lifetime thanks to PICMA®piezo actuators

PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

Subnanometer resolution with capacitive sensors

Capacitive sensors measure with subnanometer resolution without contacting. They guarantee excellent linearity of motion, long-term stability, and a bandwidth in the kHz range.

High guide accuracy due to zero-play flexure guides

Flexure guides are free of maintenance, friction, and wear, and do not require lubrication. Their stiffness allows high load capacity and they are insensitive to shock and vibration. They work in a wide temperature range.

Specifications

Datasheet

Datasheet P-725.xCDE1S

Version / Date
2024-03-25
pdf - 952 KB
Version / Date
2024-03-25
pdf - 966 KB

Downloads

Datasheet

Datasheet

Datasheet P-725.xCDE1S

Version / Date
2024-03-25
pdf - 952 KB
Version / Date
2024-03-25
pdf - 966 KB

Documentation

Documentation

User Manual P725UM0003

P-725.xCDE1S PIFOC Scanner System for Microscope Objectives

Version / Date
2024-06-14
pdf - 1 MB
Version / Date
2024-06-14
pdf - 1 MB
Documentation

Short Instructions PZ240

Piezo Positioning Systems: P-5xx / P-6xx / P-7xx

Version / Date
6.2.0 03/2024
pdf - 561 KB
Version / Date
6.2.0 03/2024
pdf - 595 KB

3D Models

3D Models

P-725.xCDE1S 3D Model

zip - 509 KB

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

P-725.1CDE1S NEW!

PIFOC scanner system for microscope objectives; fast step-and-settle; 100 µm travel range; capacitive, direct position measuring; D-sub 7W2 (m) connector; 1.5 m cable length. System consisting of P-725.1CDE1 PIFOC scanner and E-709.1C1L controller.

P-725.4CDE1S NEW!

PIFOC scanner system for microscope objectives; fast step-and-settle; 400 µm travel range; capacitive, direct position measuring; D-sub 7W2 (m) connector; 1.5 m cable length. System consisting of P-725.4CDE1 PIFOC scanner and E-709.1C1L controller.
