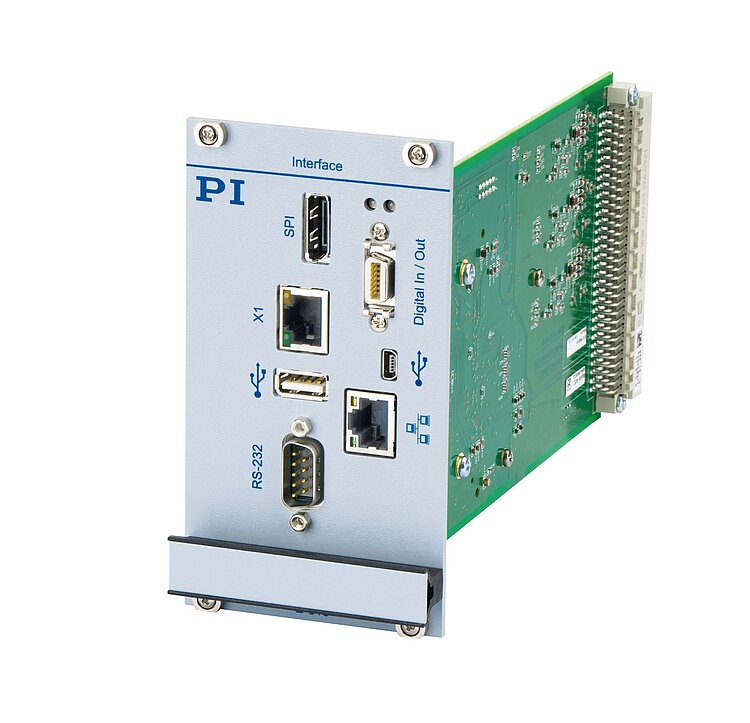

E-518 Digital Interfaces and Function Unit

For the Modular E-500 Motion Controller System

  • Low-noise 20-bit D/A and A/D transducer
  • 25 kHz sample rate
  • TCP/IP, USB as well as RS-232 interface
  • Wave generator with programmable trigger inputs and outputs
  • 3 channels
  • Plug-in module for E-500 piezo system
E-518 Digital Interfaces and Function Unit
Product Description Specifications Downloads Quote / Order

Interface and function module for piezo-based positioning systems

Interface module for digital control of the closed-loop analog E-500 motion control system. Availability of digital functions such as wave generator or data recorder.

Interfaces

Commanding via TCP/IP, USB, and RS-232 interfaces. Digital inputs and outputs for automation.

Extensive functions, software support

Powerful macro command language. Nonvolatile macro storage, e.g., for stand-alone operation with autostart macro. Data recorder. Wave generator. Extensive software support, e.g., for NI LabVIEW, C, C++, MATLAB, Python. PIMikroMove user software.
