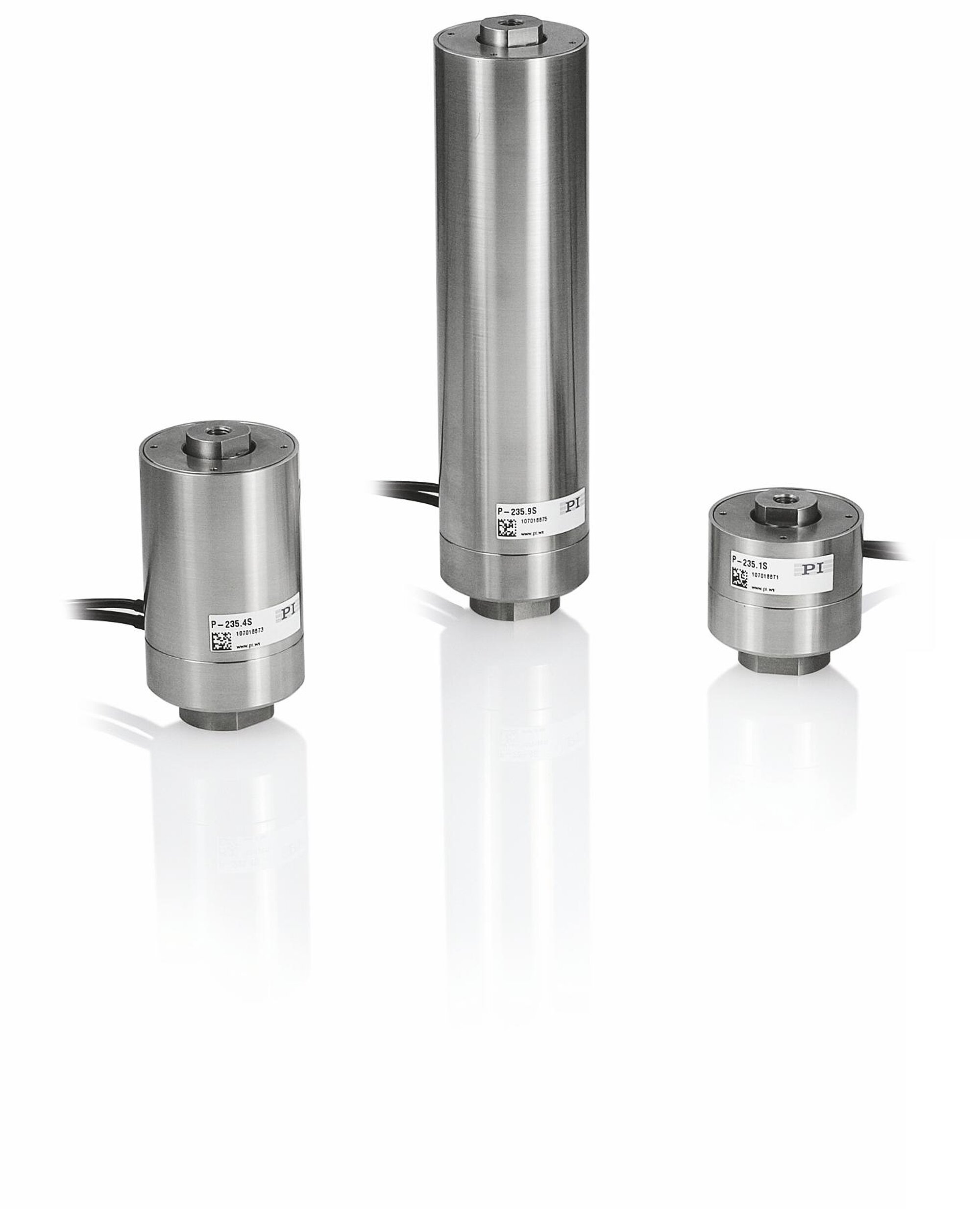

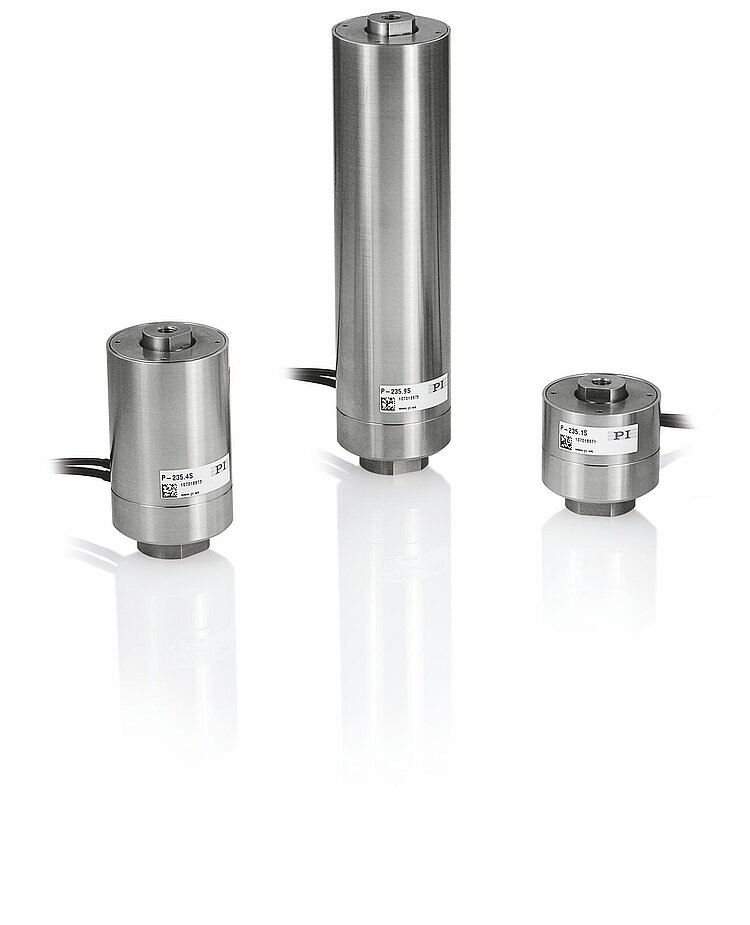

P-235 PICA Power Piezo Actuators

Preloaded High-Load Piezo Actuators (HVPZT) with Sensor Option

  • Extremely high stiffness
  • Push force capacity to 30000 N
  • Pull force capacity to 3500 N
  • Travel range up to 180 µm
  • Options: Vacuum, high-temperature versions, waterproof housing
P-235 PICA Power Piezo Actuators
Product Description Specifications Downloads Quote / Order

Application fields

  • Active vibration absorber
  • Adaptive mechanics
  • Precision mechanics / micromechanics
  • Optics
  • Measuring technology / interferometry
  • Adaptive systems technology
  • Switch
  • Laser tuning
  • Force generation / materials testing
  • Nanotechnology

PICA Power piezo actuators for high loads

PICA Power high-load stack actuators are reliable and provide long travel ranges for heavy loads. The actuators are suitable for demanding loads with high temperatures.

Suitable for sophisticated vacuum applications

Piezo actuators do not require lubricants or cause abrasion. Versions are available for vacuum to 10-6 hPa and for particularly high or low operating temperatures.

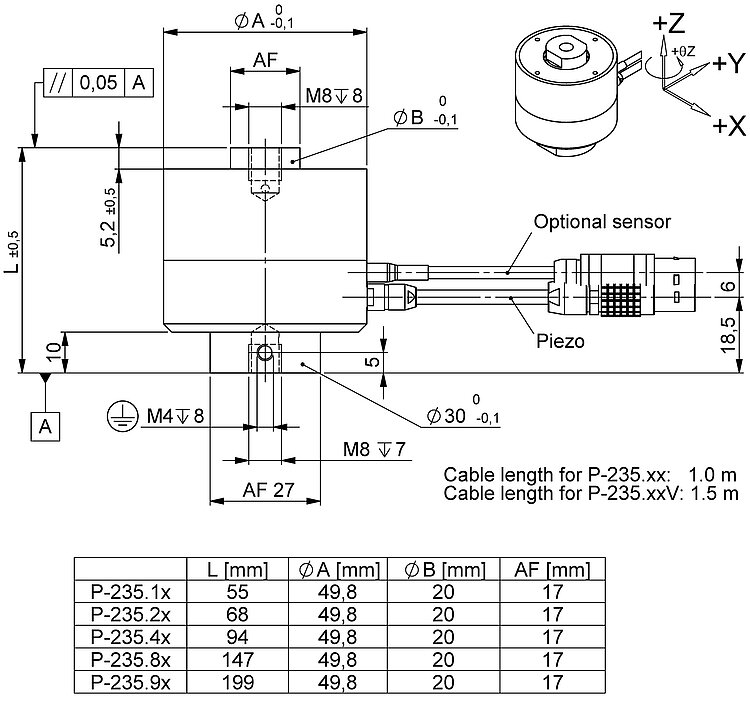

Specifications

Datasheet

Datasheet P-235

Version / Date
2022-12-21
pdf - 741 KB
Version / Date
2022-12-21
pdf - 745 KB
Version / Date
2018-09-11
pdf - 666 KB
Version / Date
2018-10-24
pdf - 742 KB

Downloads

Product Note

Product Note

Product Change Notification Piezo Actuator Driven Products

Version / Date
2021-04-19
pdf - 377 KB
English

Datasheet

Datasheet

Datasheet P-235

Version / Date
2022-12-21
pdf - 741 KB
Version / Date
2022-12-21
pdf - 745 KB
Version / Date
2018-09-11
pdf - 666 KB
Version / Date
2018-10-24
pdf - 742 KB

Documentation

Documentation

User Manual PZ245

P-225, P-235 Preloaded High-Load Piezo Actuators, 1000 V

Version / Date
1.1.2 2024-01-23
pdf - 2 MB
Version / Date
1.1.2 2024-01-23
pdf - 2 MB
Documentation

Short Instructions PZ246EK

Preloaded PICA Piezo Actuators 1000 V: P-21x, P-2x5

Version / Date
2.2.1 August 2018
pdf - 1 MB
English

3-D Models

3-D Models

P-235 3-D model

zip - 2 MB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

P-235.10V

PICA Power piezo actuator; PICA piezo actuator drive; 15 µm travel range (open loop); PIC255; vacuum compatible to 10⁻⁶ hPa; LEMO HVPZT; 1.5 m cable length

P-235.1SV

PICA Power piezo actuator; PICA piezo actuator drive; 15 µm travel range; PIC255; SGS, direct position measuring; vacuum compatible to 10⁻⁶ hPa; LEMO HVPZT; 1.5 m cable length

P-235.20V

PICA Power piezo actuator; PICA piezo actuator drive; 30 µm travel range (open loop); PIC255; vacuum-compatible to 10⁻⁶ hPa; LEMO HVPZT; 1.5 m cable length

P-235.2SV

PICA Power piezo actuator; PICA piezo actuator drive; 30 µm travel range; PIC255; SGS, direct position measuring; vacuum compatible to 10⁻⁶ hPa; LEMO HVPZT; 1.5 m cable length

P-235.40V

PICA Power piezo actuator; PICA piezo actuator drive; 60 µm travel range (open loop); PIC255; vacuum-compatible to 10⁻⁶ hPa; LEMO HVPZT; 1.5 m cable length

P-235.4SV

PICA Power piezo actuator; PICA piezo actuator drive; 60 µm travel range; PIC255; SGS, direct position measuring; vacuum compatible to 10⁻⁶ hPa; LEMO HVPZT; 1.5 m cable length

P-235.80V

PICA Power piezo actuator; PICA piezo actuator drive; 120 µm travel range (open loop); PIC255; vacuum-compatible to 10⁻⁶ hPa; LEMO HVPZT; 1.5 m cable length

P-235.90V

PICA Power piezo actuator; PICA piezo actuator drive; 180 µm travel range (open loop); PIC255; vacuum-compatible to 10⁻⁶ hPa; LEMO HVPZT; 1.5 m cable length

P-235.9SV

PICA Power piezo actuator; PICA piezo actuator drive; 180 µm travel range; PIC255; SGS, direct position measuring; vacuum compatible to 10⁻⁶ hPa; LEMO HVPZT; 1.5 m cable length
