P-010.xxP – P-056.xxP PICA Power Piezo Actuators

For High-Dynamics Applications

  • Operating temperature up to 150 °C
  • High operating frequencies
  • High load capacity
  • Force generation up to 70 kN
P-010.xxP – P-056.xxP PICA Power Piezo Actuators
Product Description Specifications Downloads Quote / Order

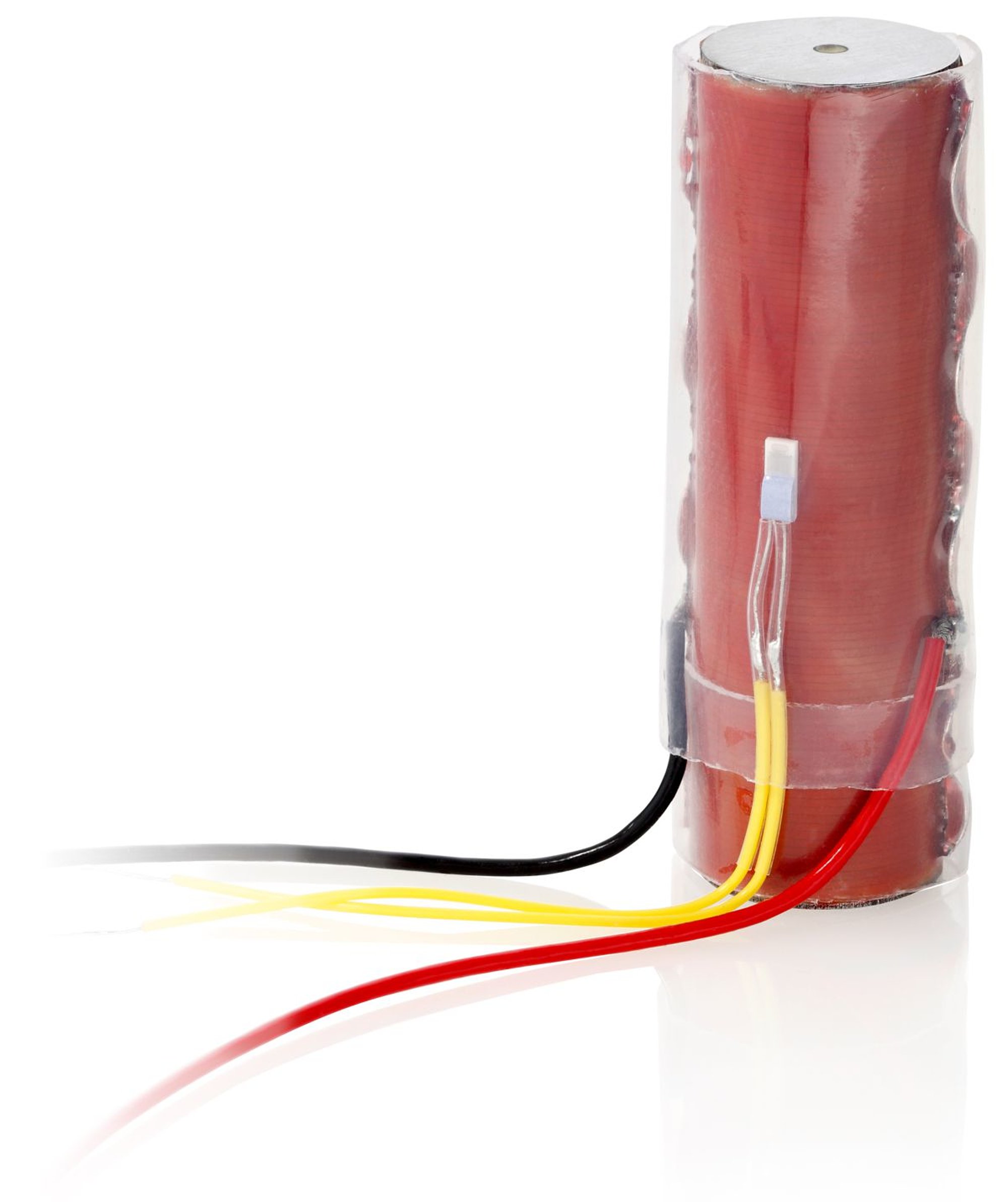

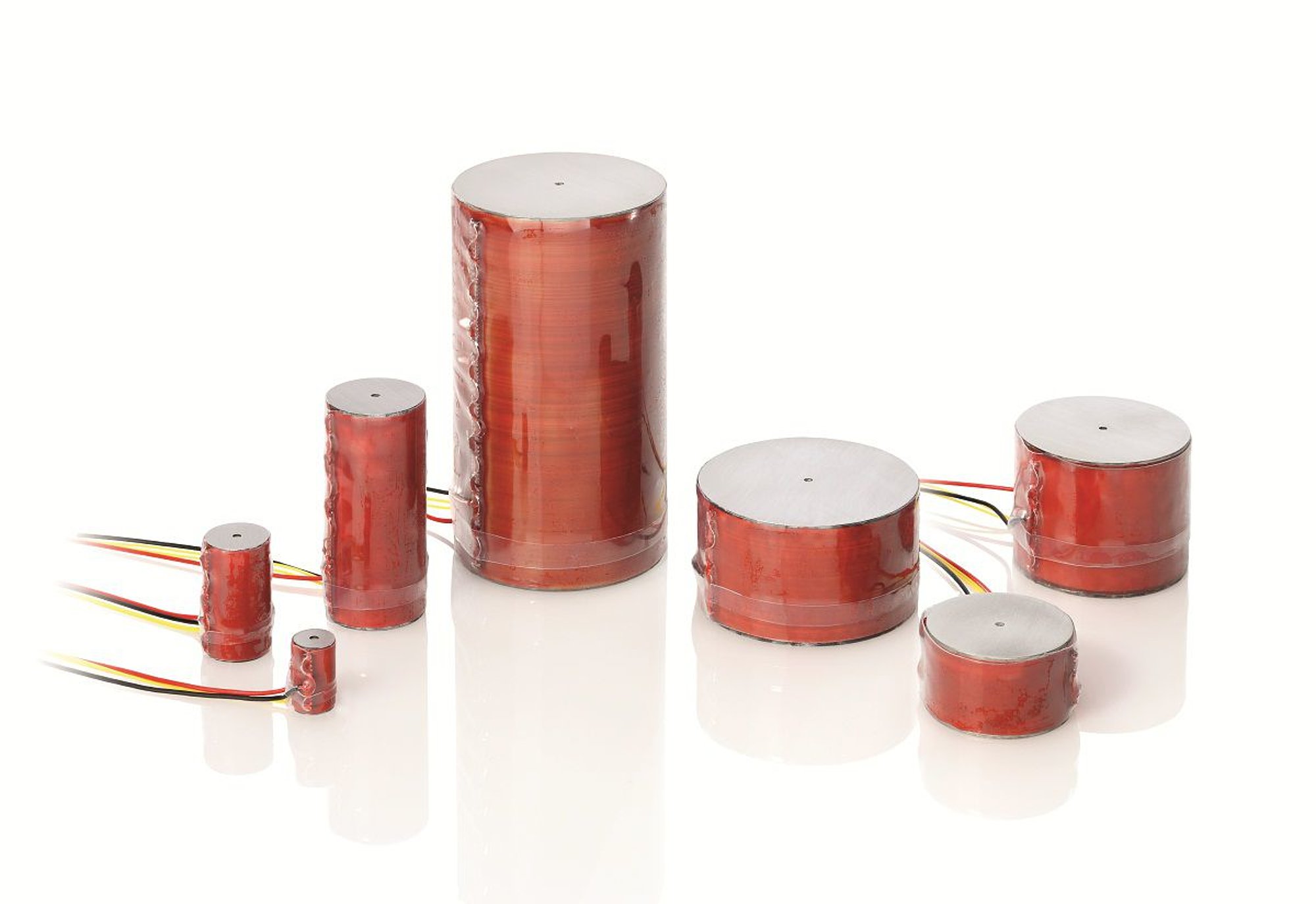

Stacked piezo linear actuator
Operating voltage 0 to 1000 V. Long lifetime without derating. Large displacement, low electrical capacitance. Sub-nanometer resolution, µs response. Integrated temperature sensor to prevent damage from overheating. Extreme reliability: >109 cycles





Available options

  • Bipolar control
  • SGS sensors for positional stability
  • PZT ceramic material
  • Operating voltage range, displacement, layer thickness
  • Load capacity, force generation
  • Geometric shapes: rectangular, inner hole
  • Mechanical interfaces: flat, metal, ceramic, glass, sapphire, etc.
  • Integrated piezoelectric detector layers
  • Operating temperature of up to 200 °C
  • UHV-compatible to 10-9 hPa
  • Non-magnetic versions
  • Extra-tight length tolerances



Fields of application

Industry and research. For active damping of oscillations, precision mechanics and machining, active structures (adaptive systems technology)



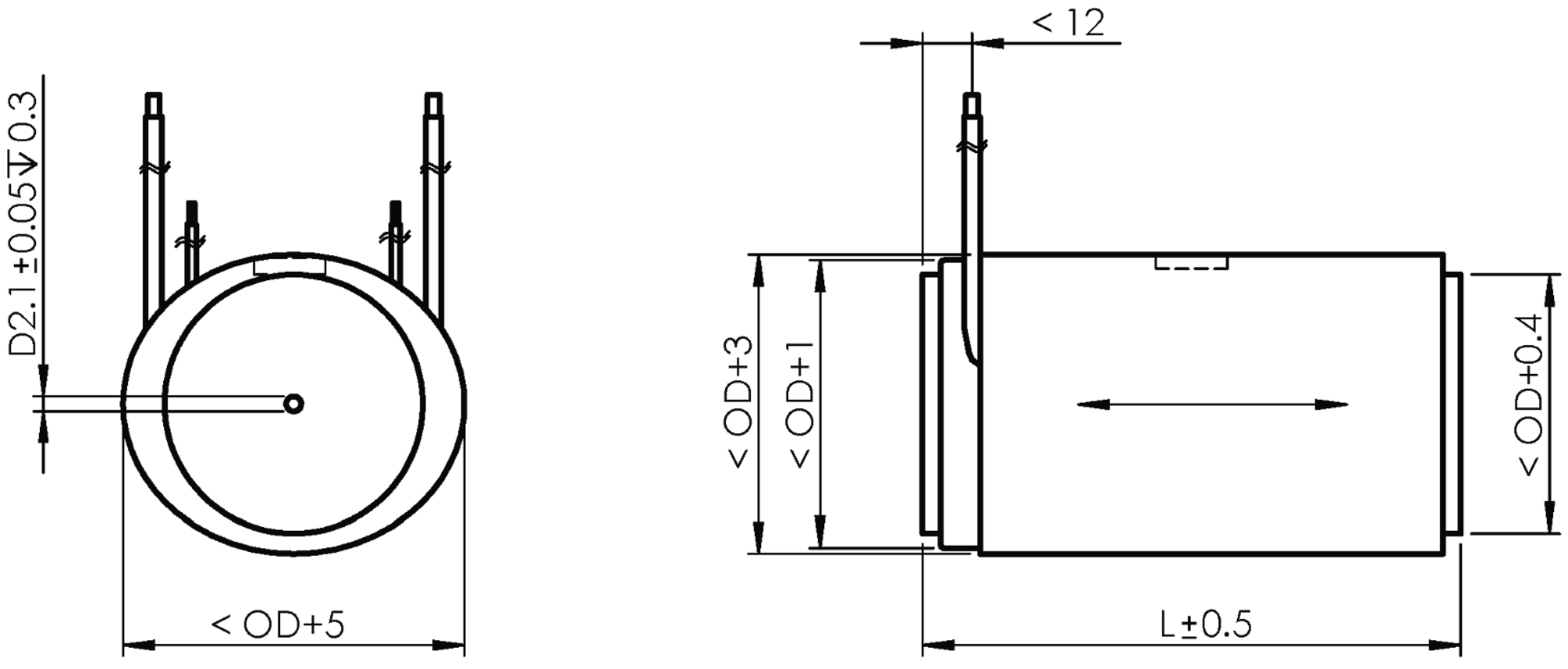

Specifications

Datasheet

Datasheet P-010xx.P - P-056xx.P

Version / Date
2015-02-02
pdf - 913 KB
Version / Date
2015-02-02
pdf - 898 KB

Downloads

Datasheet

Datasheet

Datasheet P-010xx.P - P-056xx.P

Version / Date
2015-02-02
pdf - 913 KB
Version / Date
2015-02-02
pdf - 898 KB

Documentation

Documentation

User Manual PZ138

PICA Piezo Actuators: P-007, P-010, P-016, P-025, P-035, P-045, P-050, P-056 PICA Stack/Power/Thru Customized Products

Version / Date
2014-12-10
pdf - 922 KB
Version / Date
2014-12-10
pdf - 923 KB
Documentation

Short Instructions PZ257EK

PICA Piezo Actuators up to 1000 V: P-0xx, P-1xx, P-405, PICA Stack, PICA Power, PICA Thru, PICA Shear, Picoactuator®

Version / Date
3.0.0 04/2021
pdf - 812 KB
Version / Date
3.0.0 04/2021
pdf - 826 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

Custom designs or different specifications on request.
