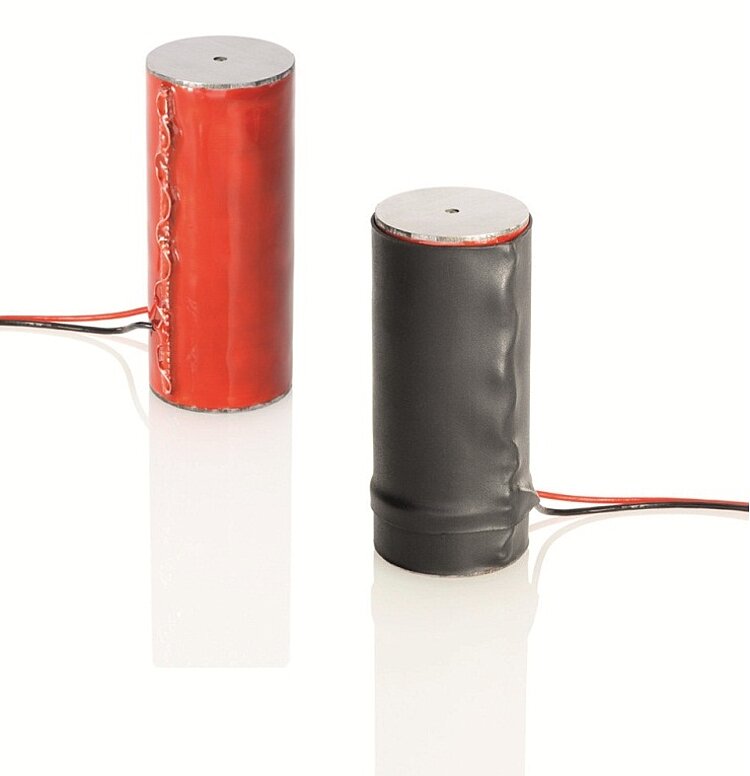

P-007 – P-056 PICA Stack Piezo Actuators

High Forces, High Displacement, Flexible Production

  • Travel ranges to 300 µm
  • High load capacity
  • Force generation up to 80 kN
  • Extreme reliability: >109 cycles
P-007 – P-056 PICA Stack Piezo Actuators
Product Description Specifications Downloads Quote / Order

Stacked piezo linear actuator

Operating voltage 0 to 1000 V. Long lifetime without derating. High specific displacement. High forces. Sub-nanometer resolution, µs response. Operating temperature range -20 to 85 °C



Available options

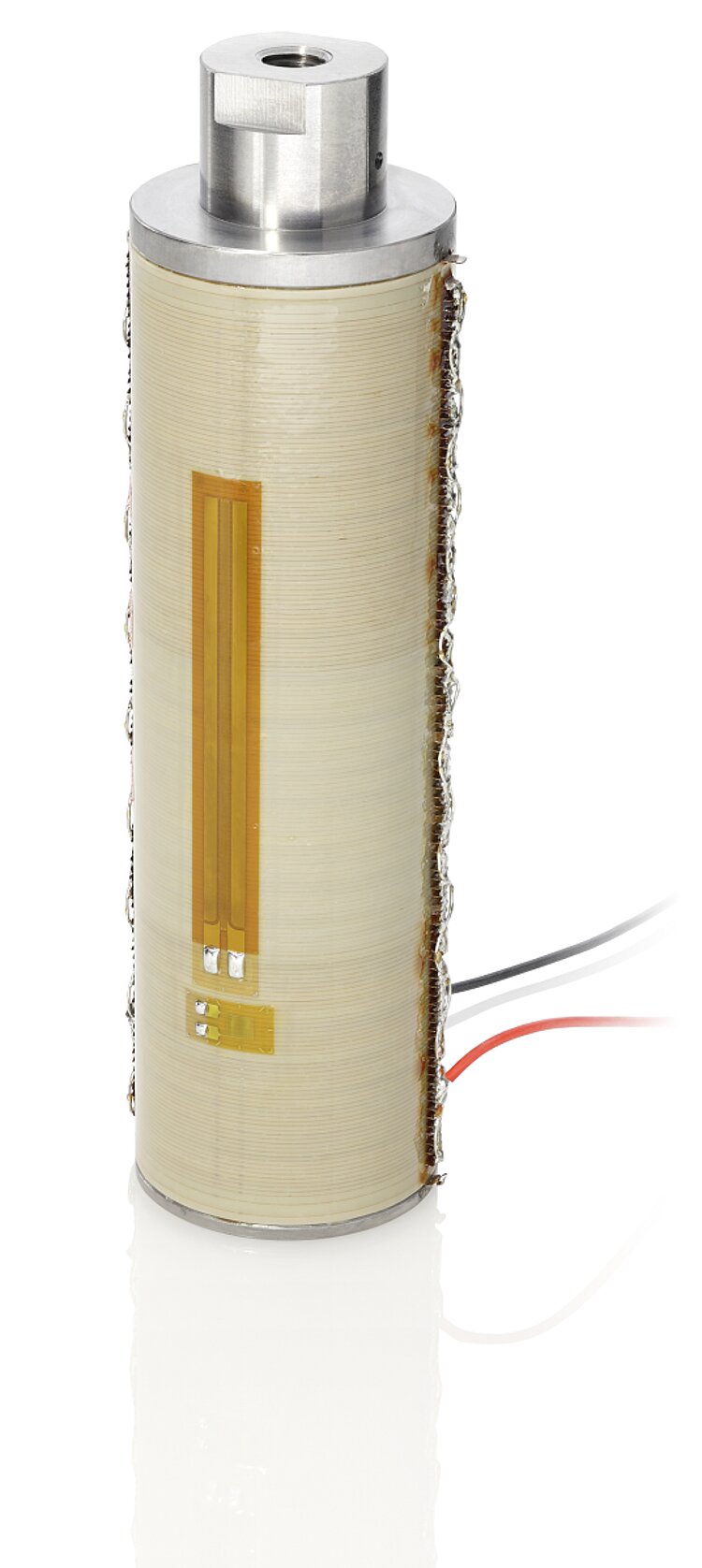

  • SGS sensors for positional stability
  • PZT ceramic material
  • Operating voltage range, displacement, layer thickness
  • Load capacity, force generation
  • Geometric shapes: round, rectangular
  • Mechanical interfaces: flat, spherical, metal, ceramic, glass, sapphire, etc.
  • Integrated piezoelectric detector layers
  • Special high / low temperature versions, temperature sensor
  • Vacuum-compatible and non-magnetic versions
  • Extra-tight length tolerances



Fields of application

Industry and research. For high-load positioning, precision mechanics / -machining, switches

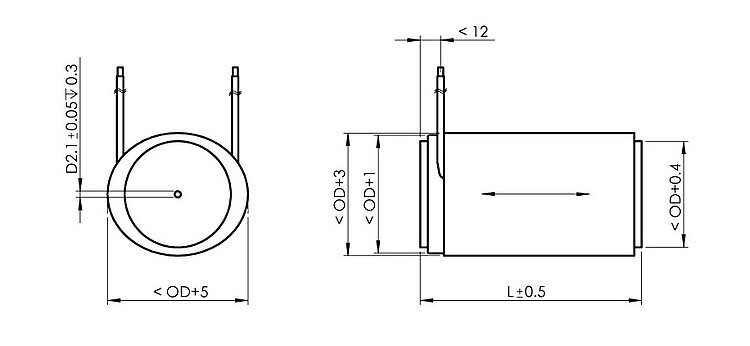

Specifications

Datasheet

Datasheet P-007 - P-056

Version / Date
2015-02-02
pdf - 879 KB
Version / Date
2015-02-02
pdf - 865 KB

Downloads

Datasheet

Datasheet

Datasheet P-007 - P-056

Version / Date
2015-02-02
pdf - 879 KB
Version / Date
2015-02-02
pdf - 865 KB

Documentation

Documentation

User Manual PZ138

PICA Piezo Actuators: P-007, P-010, P-016, P-025, P-035, P-045, P-050, P-056 PICA Stack/Power/Thru Customized Products

Version / Date
2014-12-10
pdf - 922 KB
Version / Date
2014-12-10
pdf - 923 KB
Documentation

Short Instructions PZ257EK

PICA Piezo Actuators up to 1000 V: P-0xx, P-1xx, P-405, PICA Stack, PICA Power, PICA Thru, PICA Shear, Picoactuator®

Version / Date
3.0.0 04/2021
pdf - 812 KB
Version / Date
3.0.0 04/2021
pdf - 826 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

Custom designs or different specifications on request.
