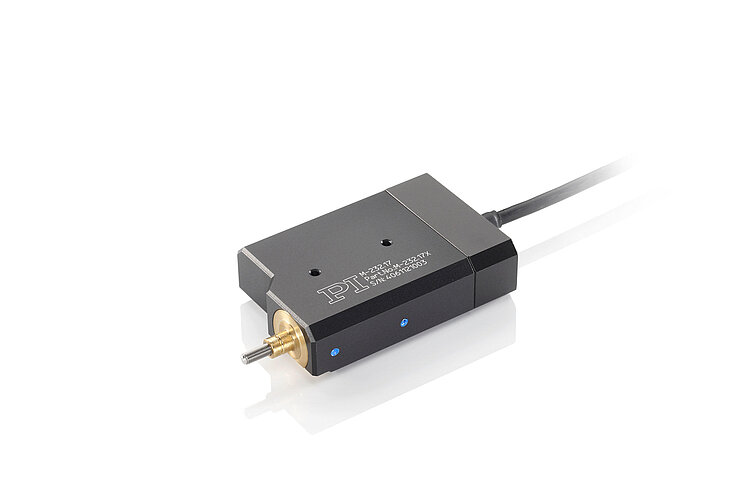

M-232 High-Resolution Linear Actuator with DC Motor

Compact due to Folded Drive

M-232 High-Resolution Linear Actuator with DC Motor
Product Description Specifications Downloads Quote / Order
  • Travel range 17 mm
  • Min. incremental motion 0.1 µm
  • Velocity to 1.5 mm/s
  • Closed-loop DC motors
  • MTBF >5000 h

Compact precision-class linear drive

High-resolution linear actuator, DC motor. Compact design due to folded drive. Rotating end piece, rotating pusher. Position-controlled DC motors with a gearhead and high-resolution rotary encoders allow for incremental motion and repeatability of just 100 nm

Fits on the M-105 microtranslation stage.

High-quality components

Extremely low-friction and backlash-free construction. Noncontact limit switches protect the mechanical system. Closed-loop variants with differential encoder driver for a safe position signal transmission at distances up to 10 m

Application fields

Precision alignment, motorized replacement for micrometer screws.

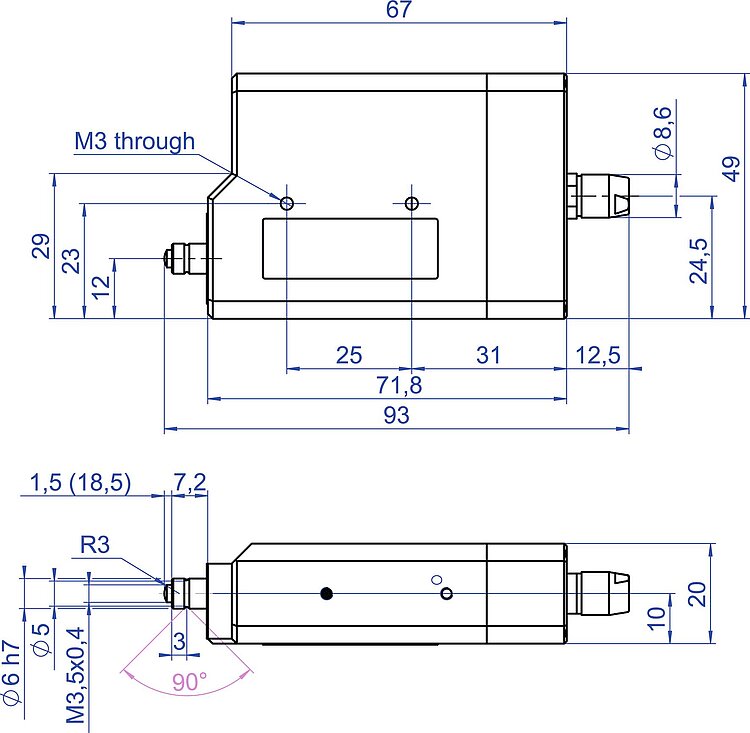

Specifications

Datasheet

Datasheet M-232

Version / Date
2018-03-01
Version / Date
2018-03-01
Document language
pdf - 525 KB
pdf - 534 KB

Downloads

Product Note

Product Note

Product Change Notification Lable Change M-products

Version / Date
2019-10-01
Document language English
pdf - 230 KB
Product Note

Product Change Notification M-Portfolio Streamlining 2

M-227.10S, M-230.10V, M-230.25V, M-232.17S, M-235.22S, M-235.2VD, M-235.2VG, M-235.52S, M-235.5VD, M-235.5VG
Version / Date
2019-04-05
Document language English
pdf - 71 KB

Datasheet

Datasheet

Datasheet M-232

Version / Date
2018-03-01
Version / Date
2018-03-01
Document language
pdf - 525 KB
pdf - 534 KB

Documentation

Documentation

Short Instructions MP122EK

Linear Actuators: M-168 / M-22x / M-23x
Version / Date
2.2.0 02/2018
Document language English
pdf - 375 KB
Documentation

User Manual MP105

M-232 Compact High-Resolution Linear Actuator
Version / Date
1.0.0 2012-10-22
Version / Date
1.0.0 2012-10-22
Document language

3-D Models

3-D Models

M-232 3-D model

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
