L-239 High-Load Linear Actuator

This product has been replaced by the following new product: M-228 • M-229 High-Resolution Linear Actuator with Stepper Motor

Dynamic, High-Resolution Precision Drive with DC or Stepper Motor

High drive force up to 300 N
Travel range 52 mm (2")
Minimum incremental motion 0.1 µm
Velocity to 50 mm/s
Preloaded, low-friction ball screw

quote / order

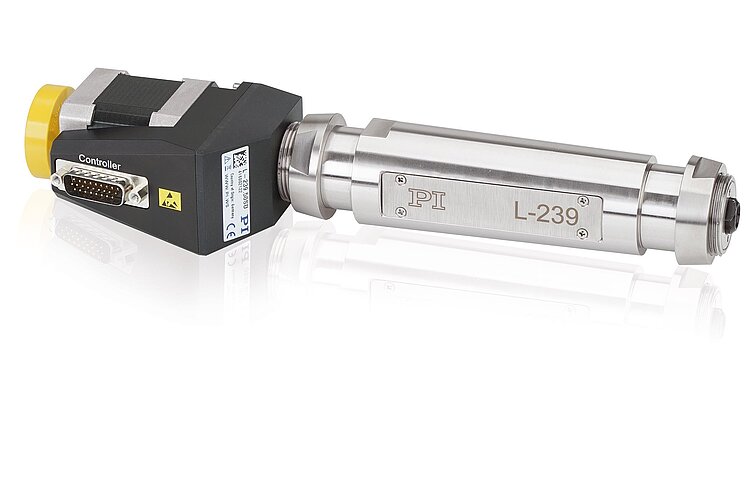

L-239.50SD

L-239.03x232, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

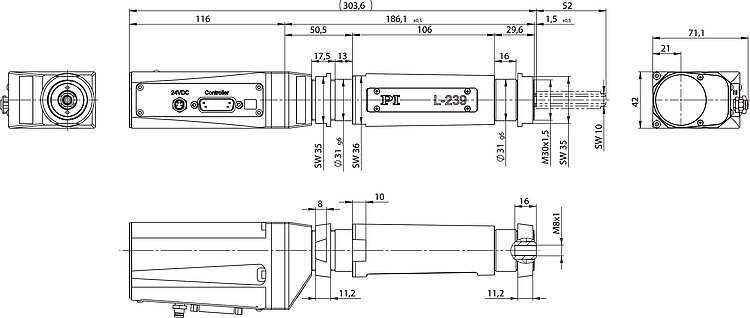

L-239.50AD, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

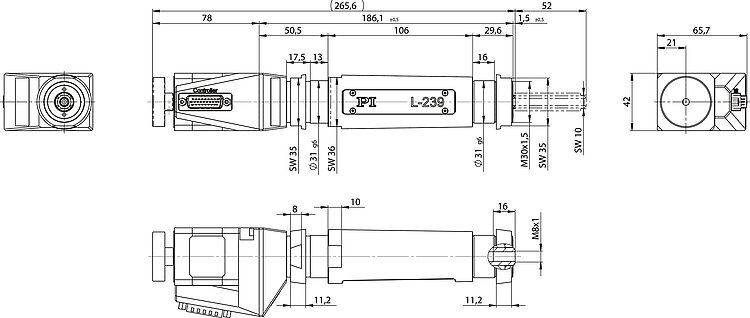

L-239.50SD, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

Product overview

High-resolution high-load linear actuator. Stepper motor for high torque. Highly dynamic, closed-loop DC and BLDC motors for high velocities. Robust design for industrial environments.

High-quality components

Ground ball screw for high velocities
Low-friction output shaft bearing can handle lateral forces to 100N
Nonrotating tip for uniform motion prevents wobble, torque, and wear at the point of contact
Contactless limit switches protect the mechanics, a direction-sensing reference switch simplifies automation tasks
Optional on request and at additional charge: Increase of drive force to 1000 N.

Application fields

Research. Automation. Optical alignment.

specifications quote / order

This content is only available on tablets or desktop devices.

Select a travel range:

Motion	L-239.033232	L-239.035232	L-239.50AD	L-239.50SD	Tolerance
Active axes	X	X	X	X
Travel range in X	52 mm	52 mm	52 mm	52 mm
Maximum velocity in X, unloaded	50 mm/s	50 mm/s	50 mm/s	25 mm/s
Positioning	L-239.033232	L-239.035232	L-239.50AD	L-239.50SD	Tolerance
Minimum incremental motion in X	0.2 µm	0.2 µm	0.2 µm	0.1 µm	typ.
Unidirectional repeatability in X	± 0.1 µm	± 0.1 µm	± 0.1 µm	± 0.05 µm	typ.
Bidirectional repeatability in X	2 µm	2 µm	2 µm	2 µm	typ.
Reference switch	Hall effect, N/C contact, 5 V, NPN	Hall effect, N/C contact, 5 V, NPN	Hall effect, N/C contact, 5 V, TTL	Hall effect, N/C contact, 5 V, NPN
Limit switches	Hall effect, N/C contact, 5 V, NPN	Hall effect, N/C contact, 5 V, NPN	Hall effect, N/C contact, 5 V, TTL	Hall effect, N/C contact, 5 V, NPN
Integrated sensor	Incremental rotary encoder	Incremental rotary encoder	Incremental rotary encoder	—
Sensor signal	A/B quadrature, RS-422	A/B quadrature, RS-422	A/B quadrature, RS-422	—
Sensor resolution	20000 Cts./rev.	20000 Cts./rev.	20000 Cts./rev.	—
Drive Properties	L-239.033232	L-239.035232	L-239.50AD	L-239.50SD	Tolerance
Drive type	DC motor	Brushless DC motor	DC motor with ActiveDrive	2-phase stepper motor
Nominal voltage	24 V	24 V	24 V	24 V
Motor resolution	—	—	—	200 Full steps/rev.
Drive force in positive direction of motion in X	300 N	300 N	300 N	300 N	typ.
Drive force in negative direction of motion in X	300 N	300 N	300 N	300 N	typ.
Mechanical Properties	L-239.033232	L-239.035232	L-239.50AD	L-239.50SD	Tolerance
Permissible push force in Y	10 N	10 N	10 N	10 N	max.
Holding force in X, passive	40 N	40 N	40 N	80 N
Moved mass in X, unloaded	155 g	155 g	155 g	155 g
Drive screw type	Ball screw	Ball screw	Ball screw	Ball screw
Drive screw pitch	1 mm	1 mm	1 mm	1 mm
Guide	Recirculating ball bearing guide	Recirculating ball bearing guide	Recirculating ball bearing guide	Recirculating ball bearing guide
Overall mass	1750 g	1750 g	1720 g	1650 g
Material	Aluminum, stainless steel	Aluminum, stainless steel	Aluminum, stainless steel	Aluminum, stainless steel
Miscellaneous	L-239.033232	L-239.035232	L-239.50AD	L-239.50SD	Tolerance
Operating temperature range	5 to 40 °C	5 to 40 °C	5 to 40 °C	5 to 40 °C
Connector	HD D-sub 26 (m)	HD D-sub 26 (m)	D-sub 15 (m)	HD D-sub 26 (m)
Connector for supply voltage	—	—	M8 4-pole (m)	—
Recommended controllers/drivers	C-863 C-885 with C-863.20C885 C-884 Modular ACS controller	C-891 C-885 with C-891.11C885 Modular ACS controller	C-863 C-885 with C-863.20C885 C-884	C-663.12 C-885 with C-663.12C885 Modular ACS controller

At PI, technical data is specified at 22 ±3 °C. Unless otherwise stated, the values are for unloaded conditions. Some properties are interdependent. The designation "typ." indicates a statistical average for a property; it does not indicate a guaranteed value for every product supplied. During the final inspection of a product, only selected properties are analyzed, not all. Please note that some product characteristics may deteriorate with increasing operating time.
