V-141 Compact Linear Translation Stage with Direct-Drive Linear Motors
Engineered by PI USA's development team and manufactured in Hopkinton, MA, the V-141 linear motor stage offers exceptional performance in a highly compact and cost-effective format.
Key Features & Technical Highlights
- Compact and Versatile Form Factor

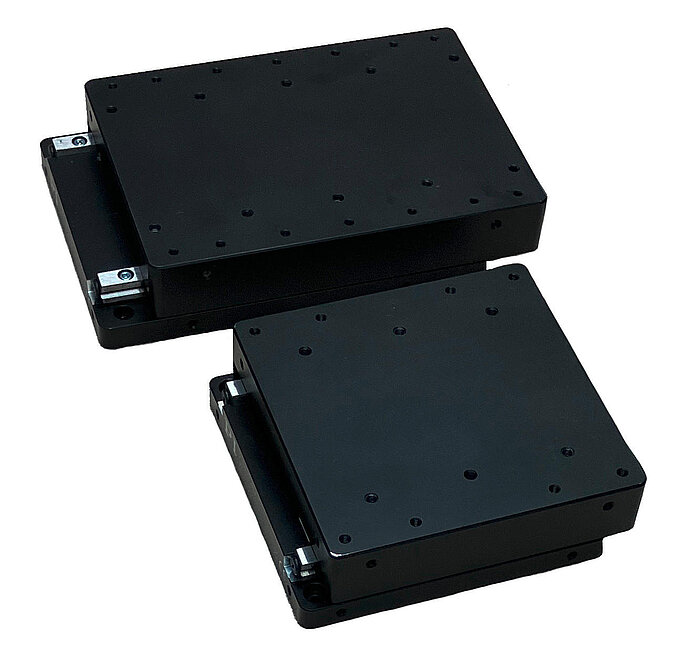

Available with travel ranges of 40mm, 60mm, and 100mm, and a footprint as small as 80×80mm, the V 141 is ideal for space-constrained setups such as in OEM systems, microscopy, semiconductor processing, and lab automation.
High Precision and Dynamic Motion
- Bidirectional repeatability: 0.12µm
- Straightness: as tight as 2µm
- Straightness: as tight as 3µm
- Maximum velocity: up to 1m/s
These specifications enable rapid scanning and alignment with exceptional accuracy.
- Friction-Free Direct Drive Motor with Crossed Roller Bearings
Featuring a non-cogging, friction free, ironless 3-phase linear motor and crossed-roller bearings, the V 141 eliminates backlash and wear, delivering smooth, maintenance free performance suited for continuous 24/7 operation.
- Flexible Multi Axis Configurations

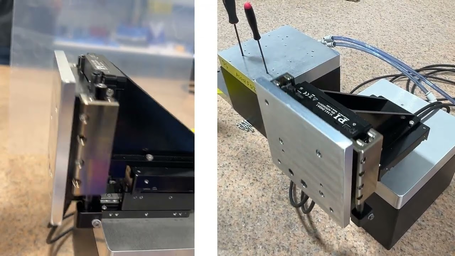

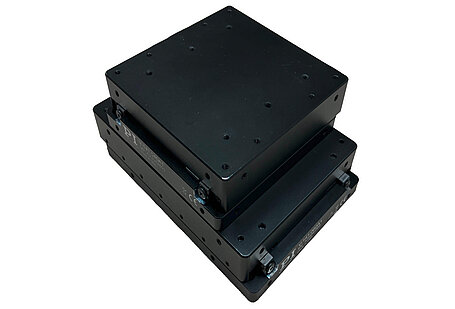

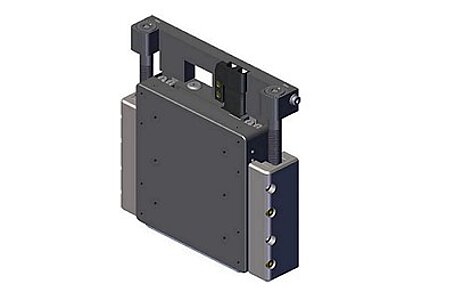

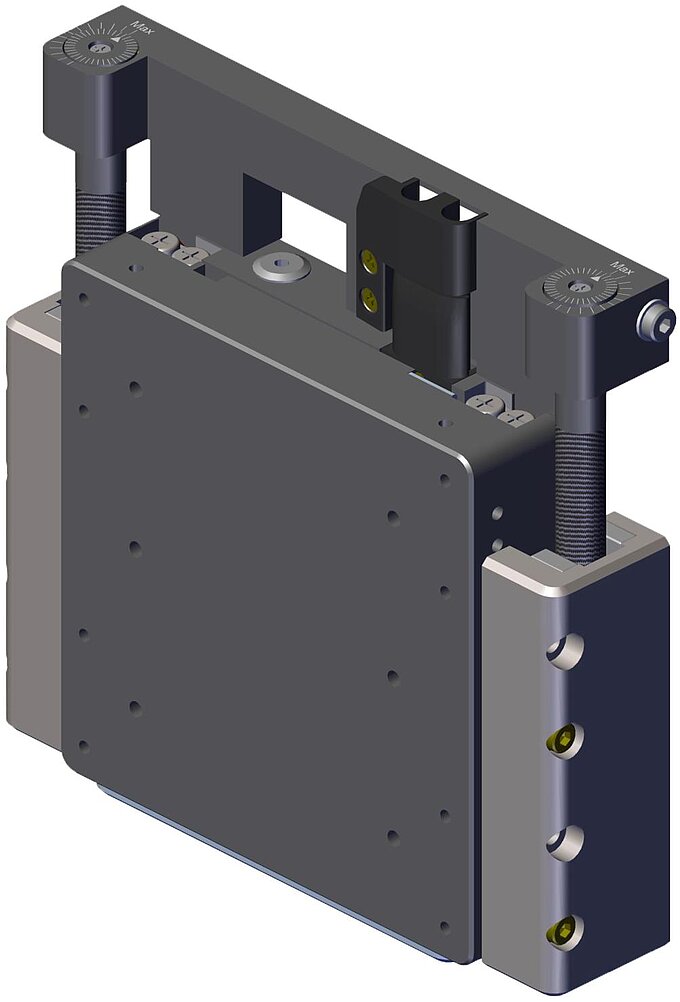

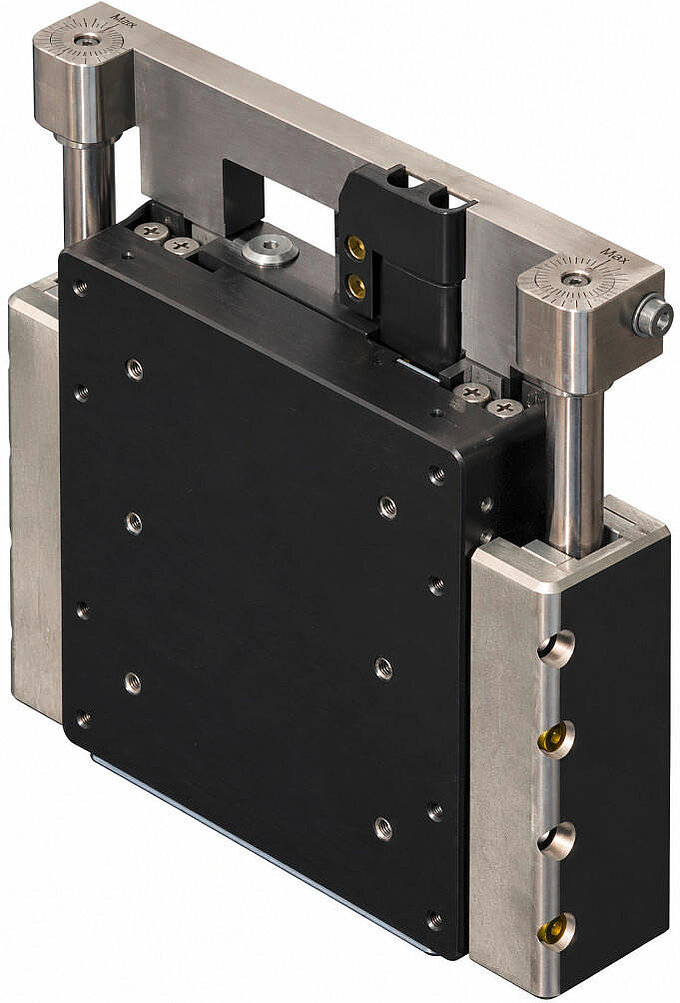

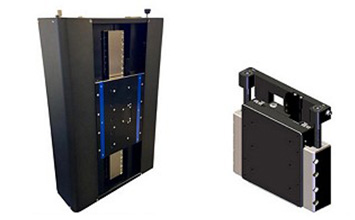

The family supports XY and XYZ assemblies. A magnetically counterbalanced vertical translation stage integrates a user-selectable preload to improve dynamics and reduce motor load. Special 6-axis variants are also offered.
- Photonics Alignment Systems

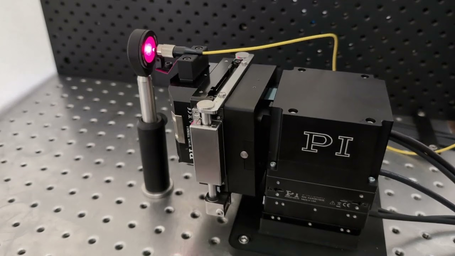

Based on the V-141 stage, the F-141 photonics alignment system family, with up to 6 degrees of freedom, is available.
- Seamless Controller Integration
When paired with PI’s EtherCAT-based A-8xx series motion controllers, users benefit from high-dynamics motion control, reduced heat generation, rapid step-and-settle performance, and simplified integration via standard fieldbus protocols.
Designed for Key Industries
The V 141 is engineered to meet the needs of cutting-edge applications in:
- Precision micro-assembly
- Biotechnology and life sciences
- Laser micro-processing
- Pick-and-place automation
- Photonics alignment and assembly
- Metrology and semiconductor test & measurement
Additional US-manufactured linear motor stages:
- V-781 Integrated XY Stage
- V-574 Ultra-High Performance Linear Stage
- US-made Linear and Rotary Stages Overview
- Precision Gantries and Granite-Based Split Bridges
About the V-141 Family
The V 141 family represents PI USA’s commitment to delivering industrial high-precision, compact motion solutions that do not compromise on performance or durability. With direct-drive technology, ultra-precision guidance, and versatile configurations, the V 141 is designed to excel in both research and industrial environments where space, speed, and accuracy are critical.
