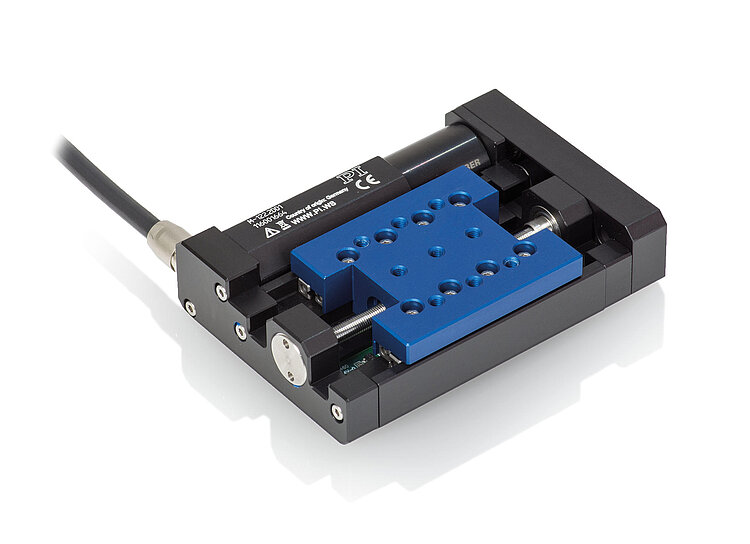

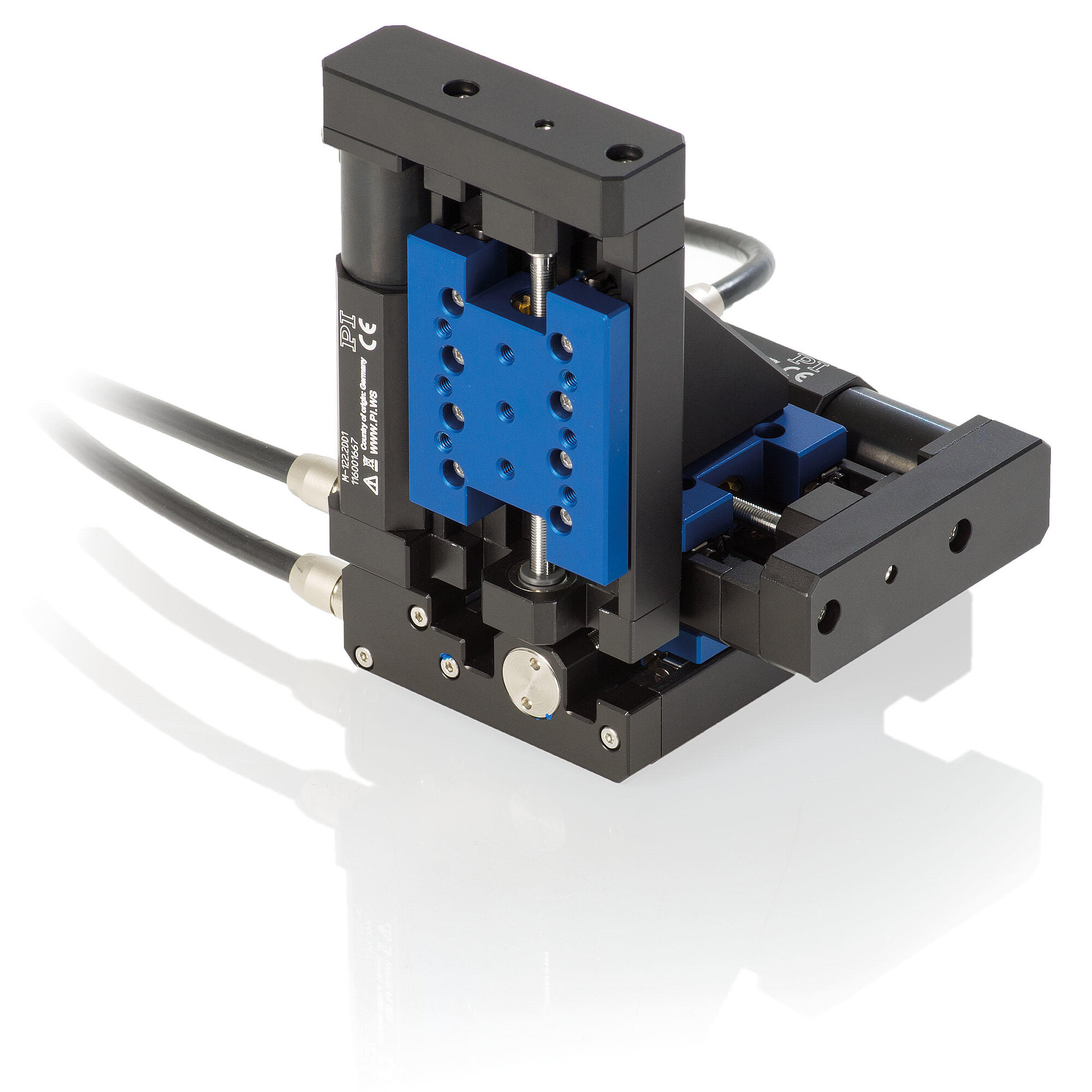

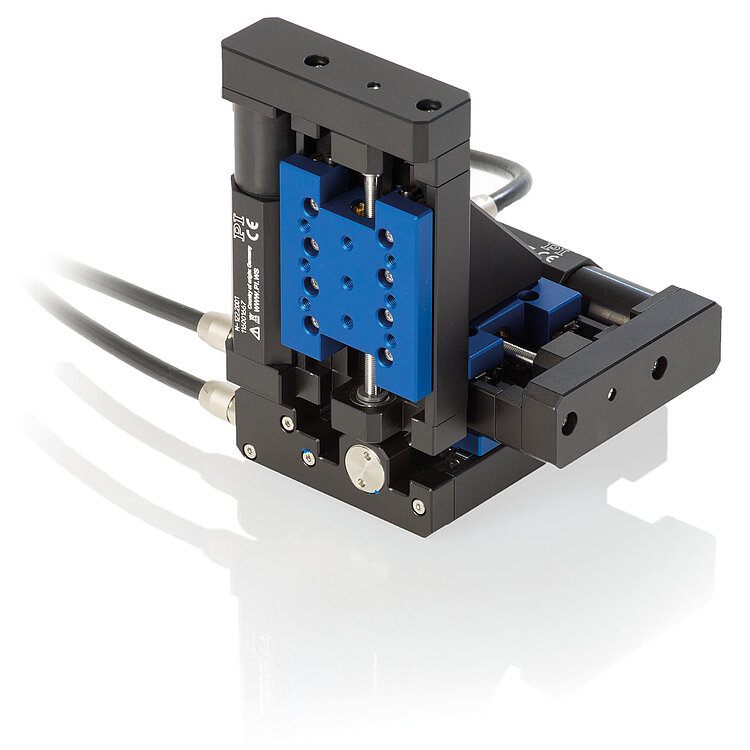

M-122.2DD1 Microtranslation Stage

Compact Linear Stage with Direct Position Measuring

  • Travel range 25 mm
  • Integrated linear encoder option for highest accuracy with 0.1 µm Resolution
  • Min. incremental motion 0.2 µm
  • Max. velocity 20 mm/s
  • Ball screw for high velocities and number of cycles

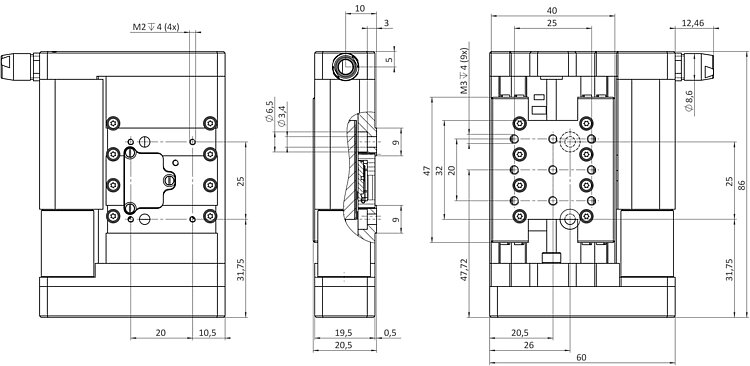

M-122.2DD1 Microtranslation Stage
Product Description Specifications Downloads Quote / Order

Highly accurate position measuring with incremental linear encoder

Noncontact optical encoders measure the position directly at the platform with the greatest accuracy. Nonlinearity, mechanical play or elastic deformation have no influence on the measurement.

Application fields

Optical alignment. Precision automation.
