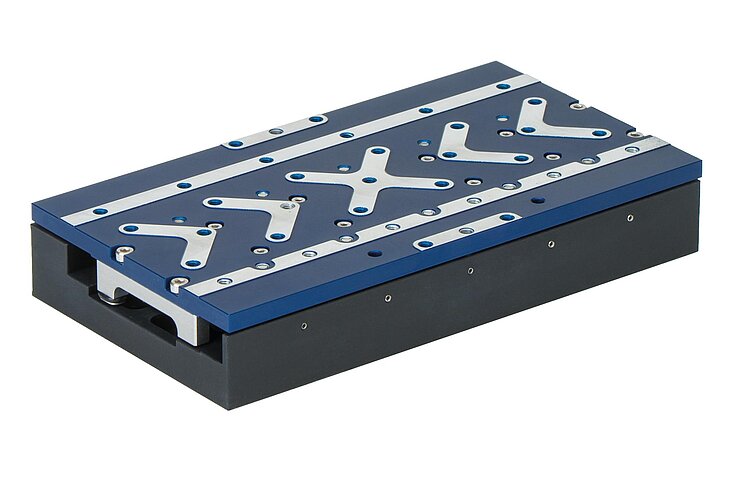

PIMag® precision linear stage; 80 mm × 25 mm cross section; 80 mm travel range; 100 N load capacity; incremental linear encoder with sin/cos signal transmission, 80 µm sensor signal period; iron-core 3-phase linear motor, 48 V
V-508 PIMag
Versatile Options for Adapting to Requirements
- Travel ranges 80 mm, 170 mm, and 250 mm
- Incremental linear encoder
- Compact cross section: 80 mm × 25 mm
- Crossed roller guides for high load capacity
- Iron-core PIMag® linear motor developed by PI
Overview
The design of the V-508 linear stages allows flexible adaptation to specific requirements. Technically sophisticated and cost-critical applications can be equally served with different travel ranges, drives, and measuring systems. XY assemblies are also possible.
Applications and use cases
Industry and research
Measuring technology, photonics, and precision scanning in semiconductor or medical technology
Technology

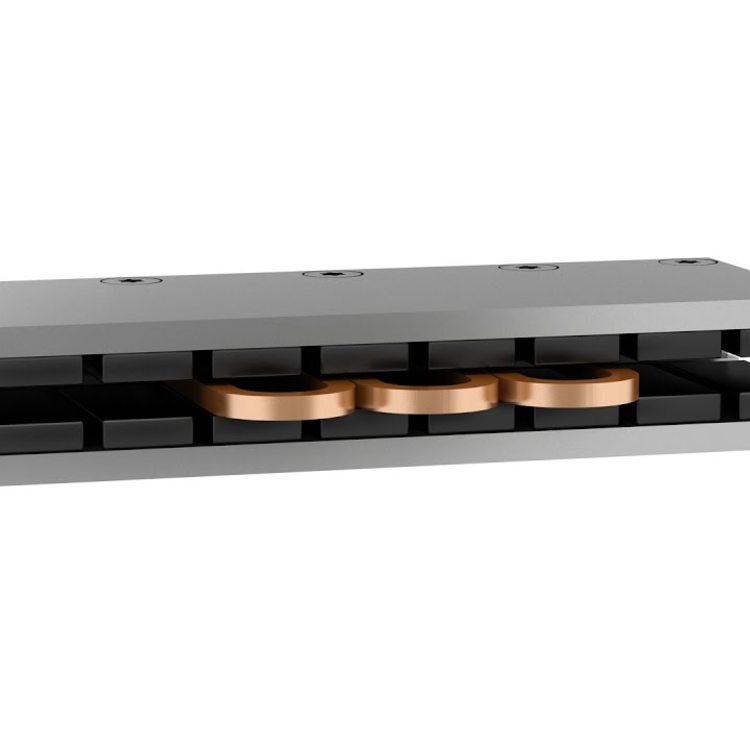

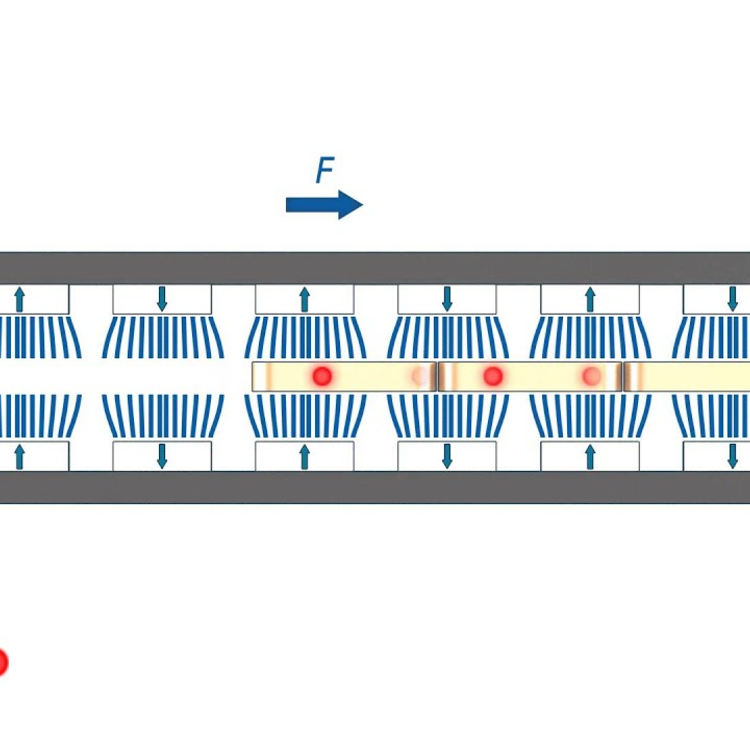

Linear motors are electromagnetic direct drives. They dispense with mechanical components in the drivetrain and transfer the drive force directly and friction-free to the motion platform. The drives reach high velocities and accelerations.
Iron-core motors are used when high forces and accelerations must be achieved in a limited installation space. The design with iron cores maximizes the magnetic forces and ensures high thermal stability of the drive.
PIMag® linear motors: PI develops proprietary magnetic motors if positioning systems need to achieve specific performance characteristics that cannot be reached by using drive components currently available on the market, for example, to achieve a high force density or a compact design. The motors developed in-house are identified by the PIMag® brand name.
Crossed roller guides: In crossed roller guides, the point contact of balls in ball guides is replaced by the line contact of hardened rollers. Consequently, they are considerably stiffer and require less preloading, which reduces friction and allows smoother running. Crossed roller guides are also distinguished by high guiding accuracy and load capacity. Force-guided rolling element cages prevent cage creep.
Direct position measuring: Position measuring is performed with the highest accuracy directly at the motion platform so that nonlinearity, mechanical play, or elastic deformation have no influence on position measuring.
Specifications
Specifications
Motion | Unit | Tolerance | V-508.232020 | V-508.632020 | V-508.932020 |
|---|---|---|---|---|---|
Active axes |
|
| X | X | X |
Travel range | mm |
| 80 | 170 | 250 |
Acceleration, unloaded | m/s² | max. | 5 | 5 | 5 |
Maximum velocity, unloaded | mm/s |
| 700 | 700 | 700 |
Straightness error in Y (straightness) | µm | typ. | 4 | 10 | 20 |
Straightness error in Z (flatness) | µm | typ. | 4 | 10 | 20 |
Angular error around Y (pitch) | µrad | max. | 100 | 200 | 300 |
Angular error around Z (yaw) | µrad | max. | 100 | 200 | 300 |
Positioning | Unit | Tolerance | V-508.232020 | V-508.632020 | V-508.932020 |
|---|---|---|---|---|---|
Minimum incremental motion | µm | typ. | 0.02 | 0.02 | 0.02 |
Bidirectional repeatability | µm | typ. | 0.2 | 0.2 | 0.2 |
Reference switch |
|
| Encoder index | Encoder index | Encoder index |
Limit switch |
|
| Hall effect | Hall effect | Hall effect |
Integrated sensor |
|
| Incremental linear encoder | Incremental linear encoder | Incremental linear encoder |
Sensor signal |
|
| Sin/cos, 1 V peak-to-peak | Sin/cos, 1 V peak-to-peak | Sin/cos, 1 V peak-to-peak |
Sensor signal period | µm |
| 80 | 80 | 80 |
Sensor resolution | nm |
| 10 | 10 | 10 |
Drive properties | Unit | Tolerance | V-508.232020 | V-508.632020 | V-508.932020 |
|---|---|---|---|---|---|
Drive type |
|
| Iron-core 3-phase linear motor | Iron-core 3-phase linear motor | Iron-core 3-phase linear motor |
Nominal voltage | V |
| 48 | 48 | 48 |
Nominal current, RMS | A | typ. | 1.1 | 1.1 | 1.1 |
Peak current, RMS | A | typ. | 3.2 | 3.2 | 3.2 |
Drive force | N | typ. | 5 | 5 | 5 |
Peak force | N |
| 14 | 14 | 14 |
Force constant | N/A |
| 4.81 | 4.81 | 4.81 |
Motor constant | N/√W | typ. | 1.67 | 1.67 | 1.67 |
Time constant | ms |
| 0.79 | 0.79 | 0.79 |
Resistance phase-phase | Ω | typ. | 2.46 | 2.46 | 2.46 |
Inductance phase-phase | mH |
| 1.94 | 1.94 | 1.94 |
Back EMF | Vs/m | max. | 3.02 | 3.02 | 3.02 |
Pole pitch N-N | mm |
| 18 | 18 | 18 |
Mechanical properties | Unit | Tolerance | V-508.232020 | V-508.632020 | V-508.932020 |
|---|---|---|---|---|---|
Permissible push force in Z | N | max. | 100 | 100 | 100 |
Moved mass, unloaded | g |
| 350 | 600 | 790 |
Guide |
|
| Crossed roller guide | Crossed roller guide | Crossed roller guide |
Overall mass | kg |
| 1 | 1.6 | 2.1 |
Material |
|
| Aluminum, black anodized | Aluminum, black anodized | Aluminum, black anodized |
Miscellaneous | Unit | Tolerance | V-508.232020 | V-508.632020 | V-508.932020 |
|---|---|---|---|---|---|
Operating temperature range | °C |
| 5 to 40 | 5 to 40 | 5 to 40 |
Maximum permissible temperature of drive components | °C |
| 80 | 80 | 80 |
Drive connector |
|
| HD D-sub 26 (m) | HD D-sub 26 (m) | HD D-sub 26 (m) |
Sensor connector |
|
| D-sub 15 (f) | D-sub 15 (f) | D-sub 15 (f) |
Cable length | m |
| 2 | 2 | 2 |
Recommended controllers / drivers |
|
| C-891 | C-891 | C-891 |
At PI, technical data is specified at 22 ±3 °C. Unless otherwise stated, the values are for unloaded conditions. Some properties are interdependent. The designation "typ." indicates a statistical average for a property; it does not indicate a guaranteed value for every product supplied. During the final inspection of a product, only selected properties are analyzed, not all. Please note that some product characteristics may deteriorate with increasing operating time.
Downloads
Datasheet
Documentation
User Manual MP169E
PIMag® precision linear stage
3D Models
V-508 3D model
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
Ordering information
PIMag® precision linear stage; 80 mm × 25 mm cross section; 170 mm travel range; 100 N load capacity; incremental linear encoder with sin/cos signal transmission, 80 µm sensor signal period; iron-core 3-phase linear motor, 48 V
PIMag® precision linear stage; 80 mm × 25 mm cross section; 250 mm travel range; 100 N load capacity; incremental linear encoder with sin/cos signal transmission, 80 µm sensor signal period; iron-core 3-phase linear motor, 48 V
