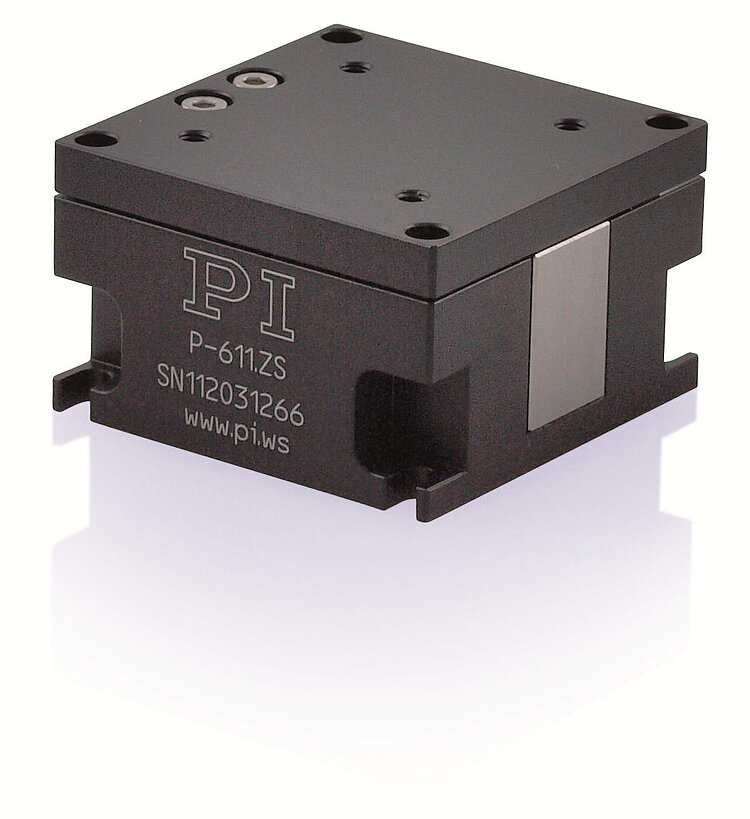

P-611.Z Piezo Z Stage

Compact Nanopositioner

P-611.Z Piezo Z Stage
Product Description Specifications Downloads Quote / Order

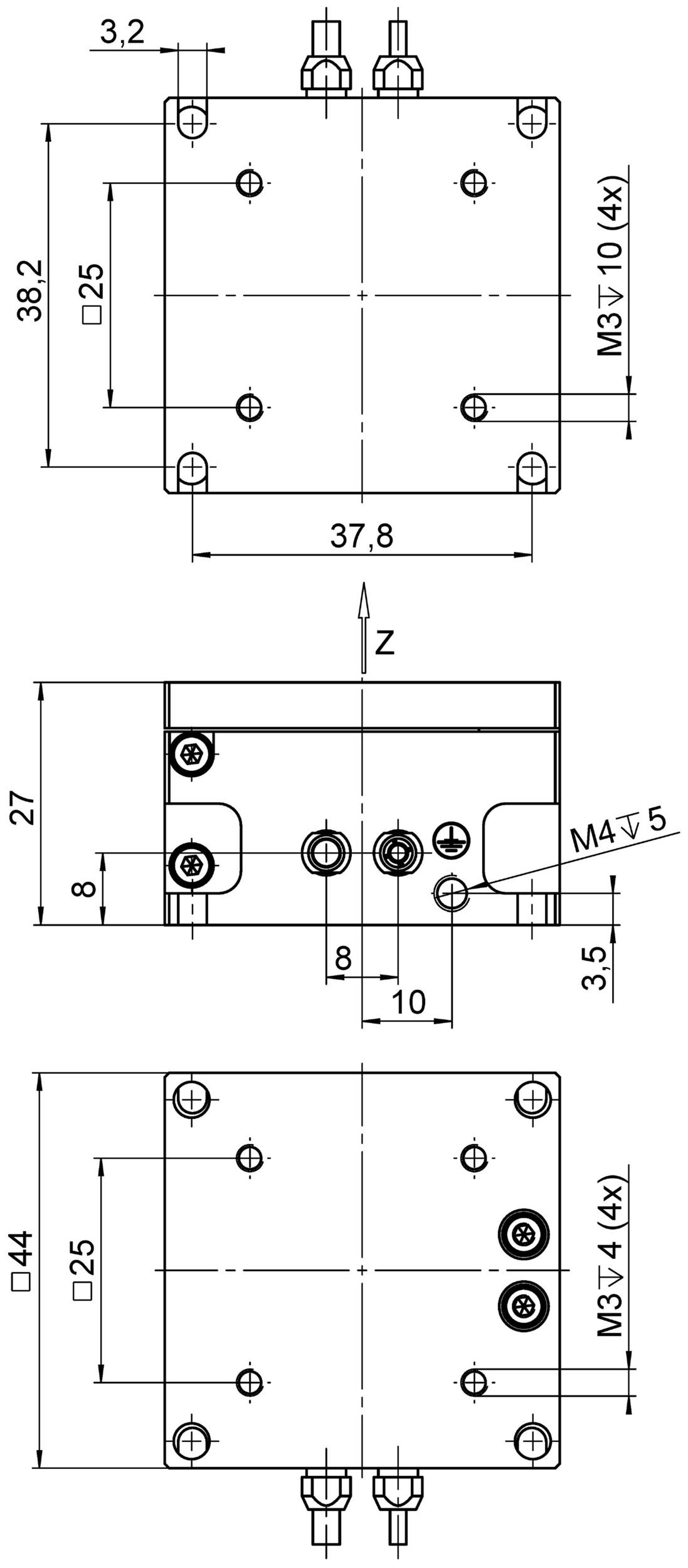

  • Compact: Surface only 44 mm × 44 mm
  • Travel range 100 µm
  • Resolution to 0.2 nm
  • Particularly inexpensive systems (mechanics and controller)
  • Zero-play, high-precision flexure guide system
  • Outstanding lifetime due to PICMA® piezo actuators
  • X, XY, XZ and XYZ versions

Fields of application

  • Micromachining
  • Photonics
  • Fiber positioning
  • Test procedures and quality assurance

Outstanding lifetime thanks to PICMA® piezo actuators

The patented PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

High guiding accuracy due to zero-play flexure guides

Flexure guides are free of maintenance, friction, and wear, and do not require lubrication. Their stiffness allows high load capacity and they are insensitive to shock and vibration. They are 100 % vacuum compatible and work in a wide temperature range.

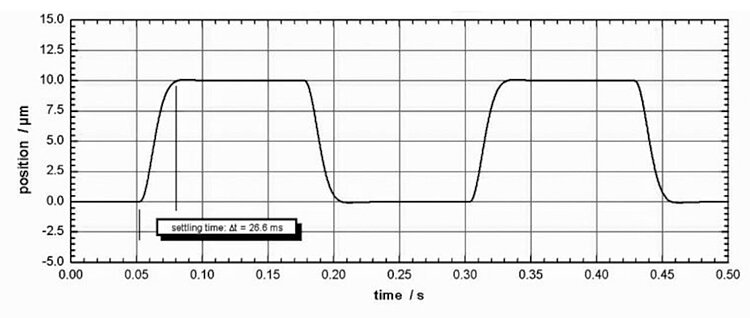

Specifications

Datasheet P-611.Z

Version / Date
2018-08-14
Version / Date
2018-08-14
Version / Date
2018-06-13
Version / Date
2018-07-18
Document language
pdf - 697 KB
pdf - 702 KB
pdf - 716 KB
pdf - 798 KB

Downloads

Datasheet

Datasheet P-611.Z

Version / Date
2018-08-14
Version / Date
2018-08-14
Version / Date
2018-06-13
Version / Date
2018-07-18
Document language
pdf - 697 KB
pdf - 702 KB
pdf - 716 KB
pdf - 798 KB

Documentation

User Manual PZ253

P-611 Nanopositioning Systems with Strain Gauge Sensors / without Sensor
Version / Date
2014-07-24
Version / Date
2014-07-24
Document language
pdf - 1 MB
pdf - 1 MB

Technical Note P611T0006

Unpacking and Handling of P-611 Nanopositioning Systems
Version / Date
2018-01-24
Document language English
pdf - 1 MB

3-D Models

P-611.Z 3-D model

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
