P-286, P-288, P-289 Bimorph Piezo Disk Translators With Long Travel Range

  • Displacement to 200 µm
  • Sub-nm Resolution
  • Low Cost
  • Flat Design
  • For Small Forces
  • Displacement to 200 µm



Disk Translators belong to the group of bimorph piezoelectric actuators translators are high resolution actuators for static and dynamic applications providing fast response and sub-nanometer resolution.

Compared to stack translators, they provide for a relatively large travel range (up to 200 µm) in an extremely small package. P-286 can be attached to a flat surface with the outer ring. The translator expands via the central tapped connector. P-288 and P-289 are double disk constructions where the expansion occurs between the two facing tapped connectors.



Application examples:

Static and dynamic positioning, pneumatic valves, patch clamping, etc.

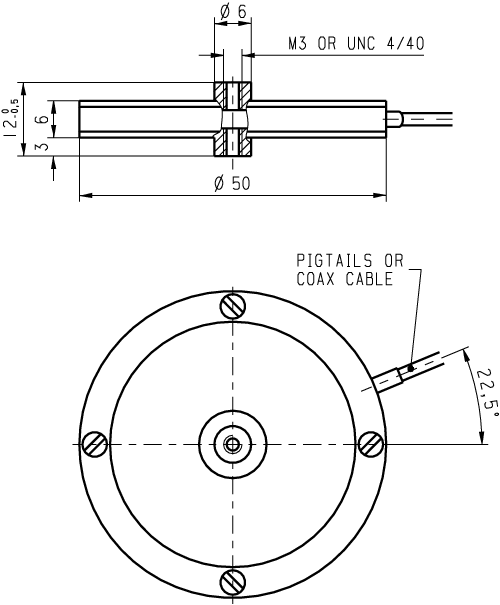

P-286 P-288 P-289 HVPZT Disk Translators

Ordering Information:
P-286.20 Disk Translator, 100 µm, 300 mm Teflon Leads
P-286.23 Disk Translator, 100 µm, w/o Top Piece and Silicone Insulation, 300 mm Teflon Leads
P-286.40 Disk Translator, 100 µm, 1 m Coaxial Cable, LEMO Connector
P-288.00 Mini Disk Translator, 50 µm, 300 mm Teflon Leads
P-289.20 Double Disk Translator, 200 µm, 300 mm Teflon Leads
P-289.40 Double Disk Translator, 200 µm, 1 m Coaxial Cable, LEMO Connector





TECHNICAL DATA: P-288, P-289

Models

P-286.xx

P-288.00

P-289.xx

Units

Notes

Open loop travel @ 0 to -750 V (P-288),
0 to -1000 V (P-286, P-289)

100

50

200

µm ± 20 %

A4

* Open loop resolution

1.0

0.5

2.0

nm

C2

Stiffness

0.3

0.2

0.15

N/µm ± 20 %

D1

Force generation (blocked)

30

10

30

N ± 20 %

D2

Push/pull force capacity

20 / 10

10 / 5

20 / 10

N

D3

Torque limit (at tip)

3

3

3

mNm

D6

Max. operating voltage

-1000

-750

-1000

V

A7

Electrical capacitance

35

9

70

nF ± 20 %

F1

Dynamic operating current coefficient (DOCC)

0.5

0.25

0.5

µA/(Hz x µm)

F2

Unloaded resonant frequency (f0)

2.5

2

1.1

kHz ± 20 %

G2

Standard operating temperature range

-40 to +80

-40 to +80

-40 to +80

° C



Voltage connection

s.Ordering Information

s.Ordering Information

s.Ordering Information

s.Ordering Information

J1

Weight

42

8

56

g ± 5 %

K

Material case / end pieces

N-S

brass

N-S



L

Recommended Amplifier/Controller

B, I

B, I

B, I



M

* Noise equivalent motion with E-507 amplifier

This is a legacy product that may have limited availability or may have been replaced. Ask a PI engineer for an equivalent new model.
