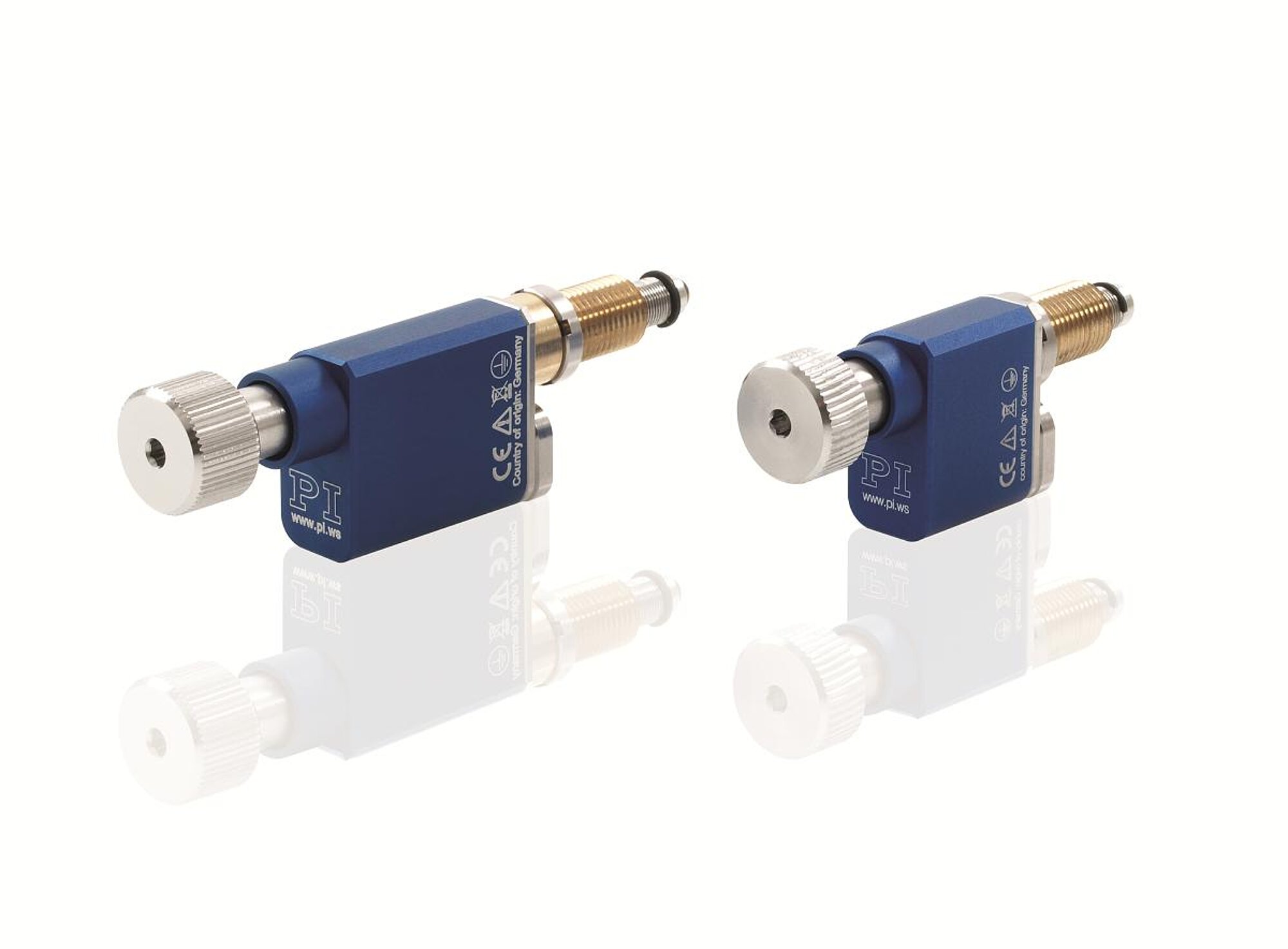

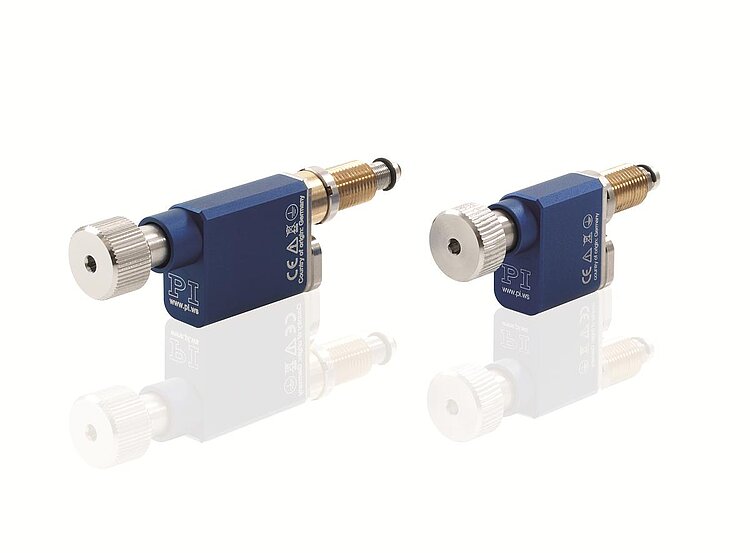

N-472 PiezoMike Linear Actuator

With Position Sensor for Closed-Loop Operation

  • High stability and holding force 100 N
  • Self-locking at rest even when closed-loop control is switched off
  • Compact design with integrated incremental encoder
  • Feed force 22 N
  • Lifetime >1,000,000,000 steps at ambient conditions and >50,000,000 steps under vacuum conditions
N-472 PiezoMike Linear Actuator
Product Description Specifications Downloads Quote / Order

Inertia drive

Compact, inexpensive inertia drive principle (stick-slip). At rest, the drive is self-locking, requires no current, and does not generate any heat. It holds the position with maximum force.

Integrated position sensor

An incremental encoder measures the relative motion to a freely definable reference position.

Alignment of mechanical and optomechanical components

Stable alignment of optical paths. Long-term positioning stability: High stability at target position, reliable startup even after longer downtimes. High holding force and resolution by combining piezo actuators with mechanical thread translation. Vacuum-compatible versions to 10-6 hPa available.

Specifications

Datasheet

Datasheet N-472

Version / Date
2023-07-13
pdf - 686 KB
Version / Date
2023-07-13
pdf - 688 KB

Downloads

Product Note

Product Note

Product Change Notification N-310.XX-N-47X.XX

Version / Date
2023-01-23
pdf - 86 KB
Product Note

Product Change Notification N-47x.xxx

Version / Date
2020-05-20
pdf - 225 KB
English

Datasheet

Datasheet

Datasheet N-472

Version / Date
2023-07-13
pdf - 686 KB
Version / Date
2023-07-13
pdf - 688 KB

Documentation

Documentation

Short Instructions MP171EK

PiezoMike Linear Actuators: N-45x / N-47x / N-48x

Version / Date
1.1.0 03/2020
pdf - 1 MB
Version / Date
1.1.0 03/2020
pdf - 1 MB
Documentation

User Manual MP144

N-472 Closed-loop PiezoMike Linear Actuator

Version / Date
1.5.0 2023-09-29
pdf - 2 MB
Version / Date
1.5.0 2023-09-29
pdf - 2 MB

3D Models

3D Models

N-472 3-D model

Version / Date
2022-01-19
zip - 3 MB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

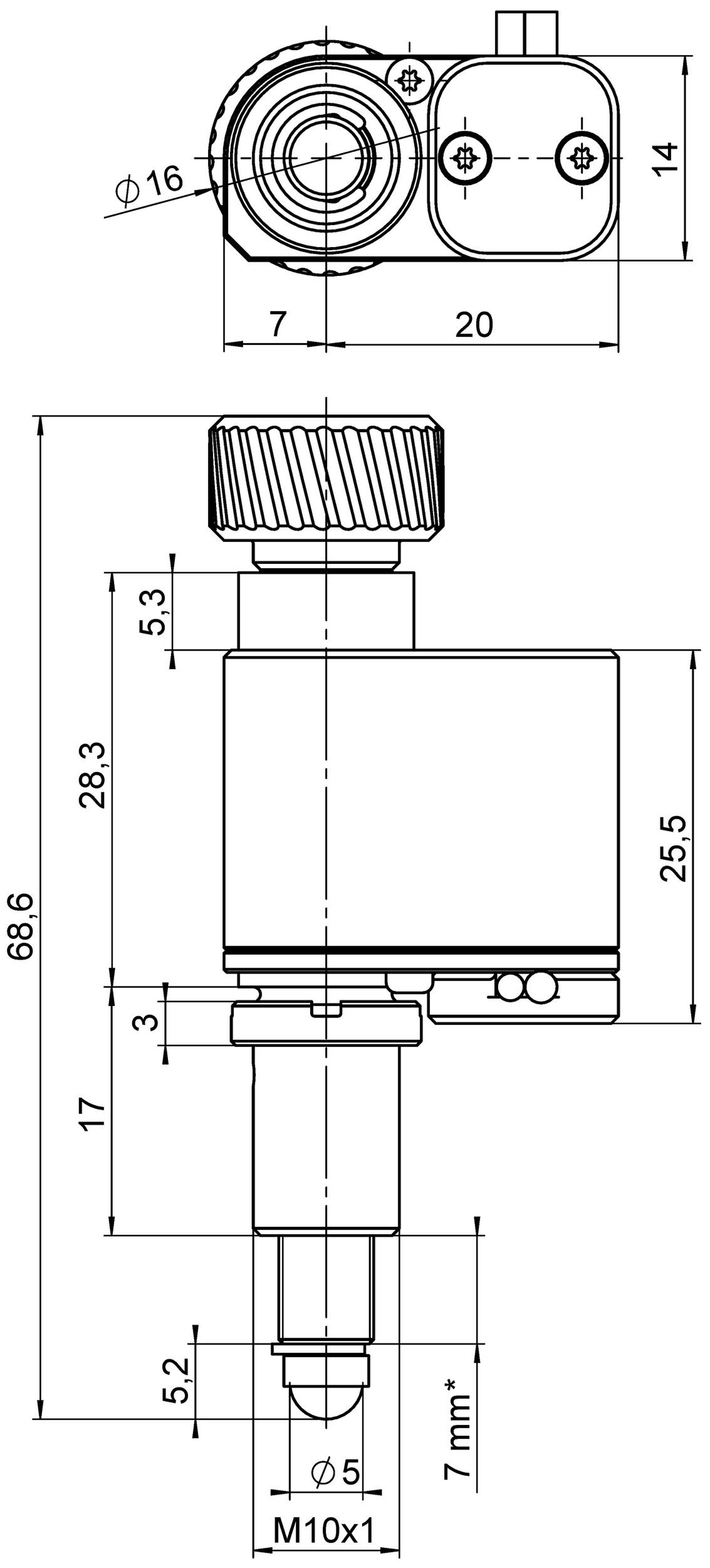

N-472.110

Closed loop PiezoMike linear actuator; piezoelectric inertia drive; 7 mm travel range; M10×1 thread; 22 N feed force; 2 mm/min maximum velocity; 2 m cable length

N-472.110Y

Closed loop PiezoMike linear actuator; piezoelectric inertia drive; 7 mm travel range; M10×1 thread; 22 N feed force; 2 mm/min maximum velocity; 2 m cable length; turned cable exit

N-472.11V

Closed loop PiezoMike linear actuator; piezoelectric inertia drive; 7 mm travel range; M10×1 thread; 22 N feed force; 2 mm/min maximum velocity; vacuum compatible to 10-6 hPa; 1 m cable length

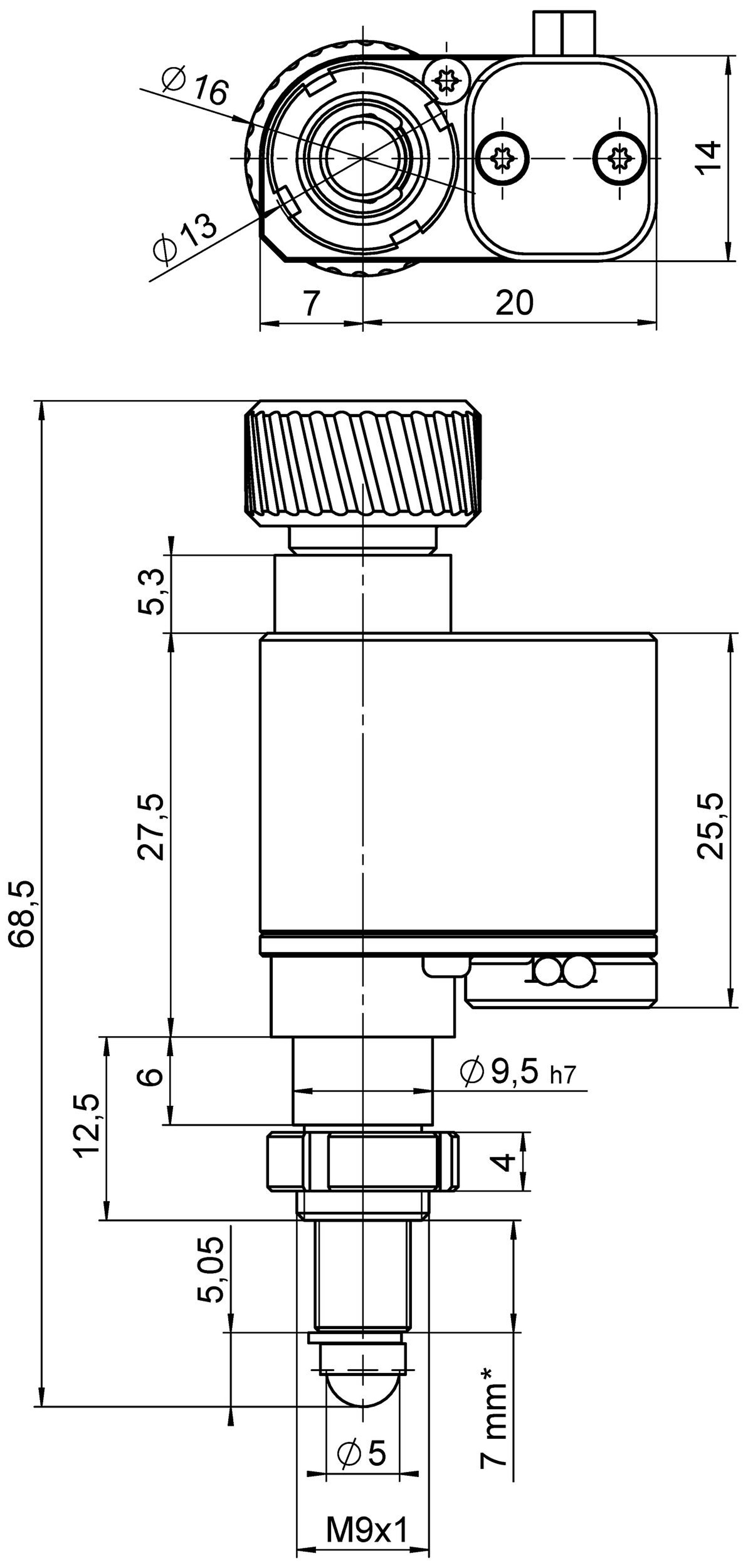

N-472.120

Closed loop PiezoMike linear actuator; piezoelectric inertia drive; 7 mm travel range; 9.5 mm (0.375") clamping shank; 22 N feed force; 2 mm/min maximum velocity; 2 m cable length

N-472.120Y

Closed loop PiezoMike linear actuator; piezoelectric inertia drive; 7 mm travel range; 9.5 mm (0.375") clamping shank; 22 N feed force; 2 mm/min maximum velocity; 2 m cable length; turned cable exit

N-472.12V

Closed loop PiezoMike linear actuator; piezoelectric inertia drive; 7 mm travel range; 9.5 mm (0.375") clamping shank; 22 N feed force; 2 mm/min maximum velocity; vacuum compatible to 10-6 hPa; 1 m cable length
