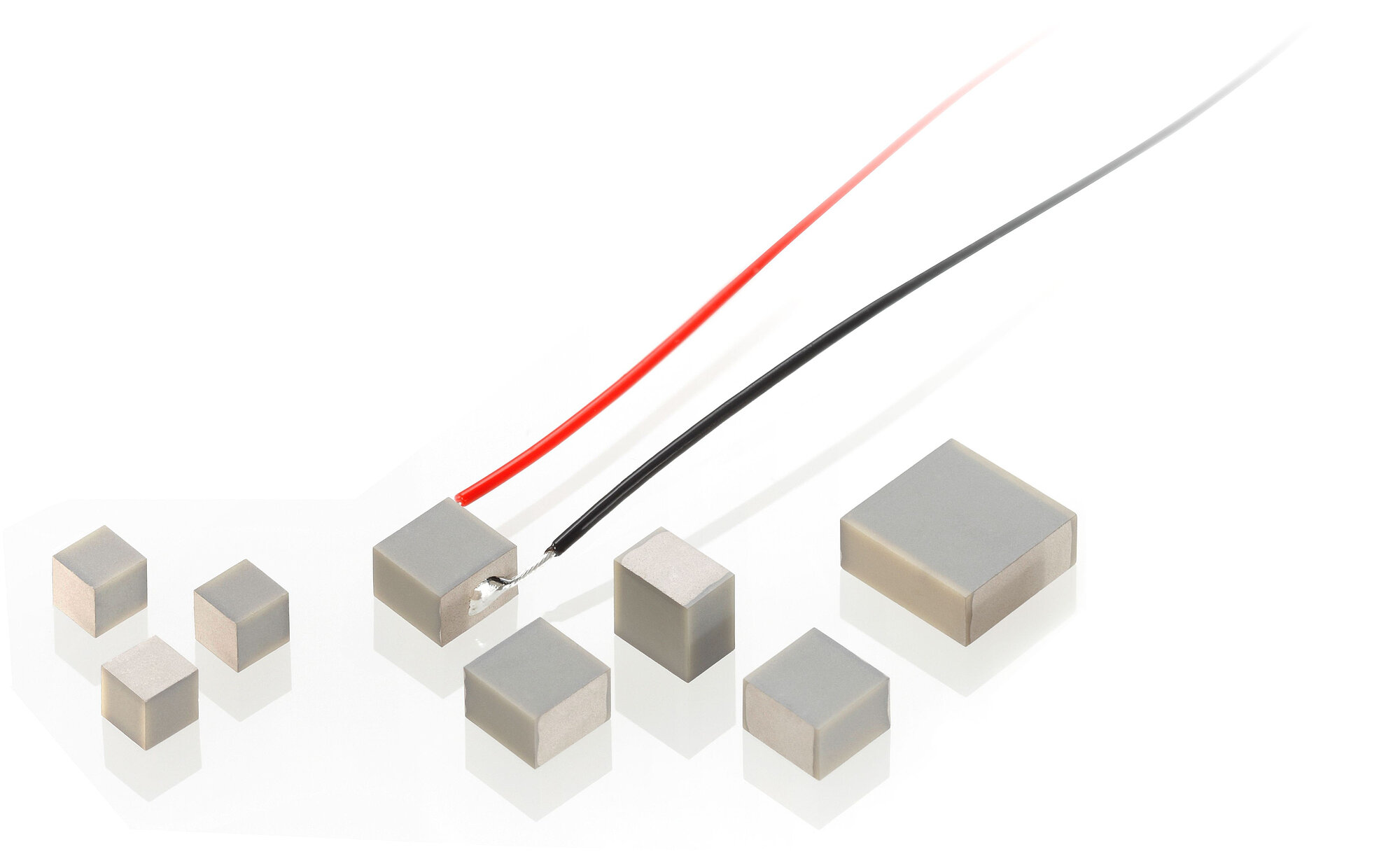

Piezo linear actuator with PICMA® multilayer technology
Operating voltage -20 to 100 V. Ceramic insulation, polymer free. Humidity resistance. UHV-compatible to 10-9 hPa, no outgassing, high bakeout temperature. Flexible thanks to numerous designs. Versions with rectangular, round or annular cross section.

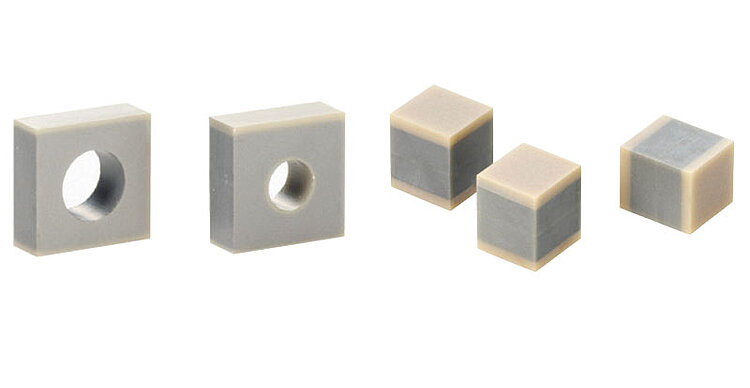

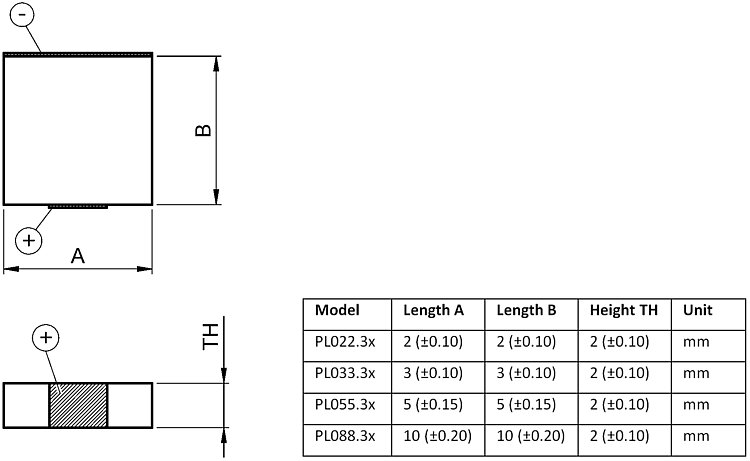

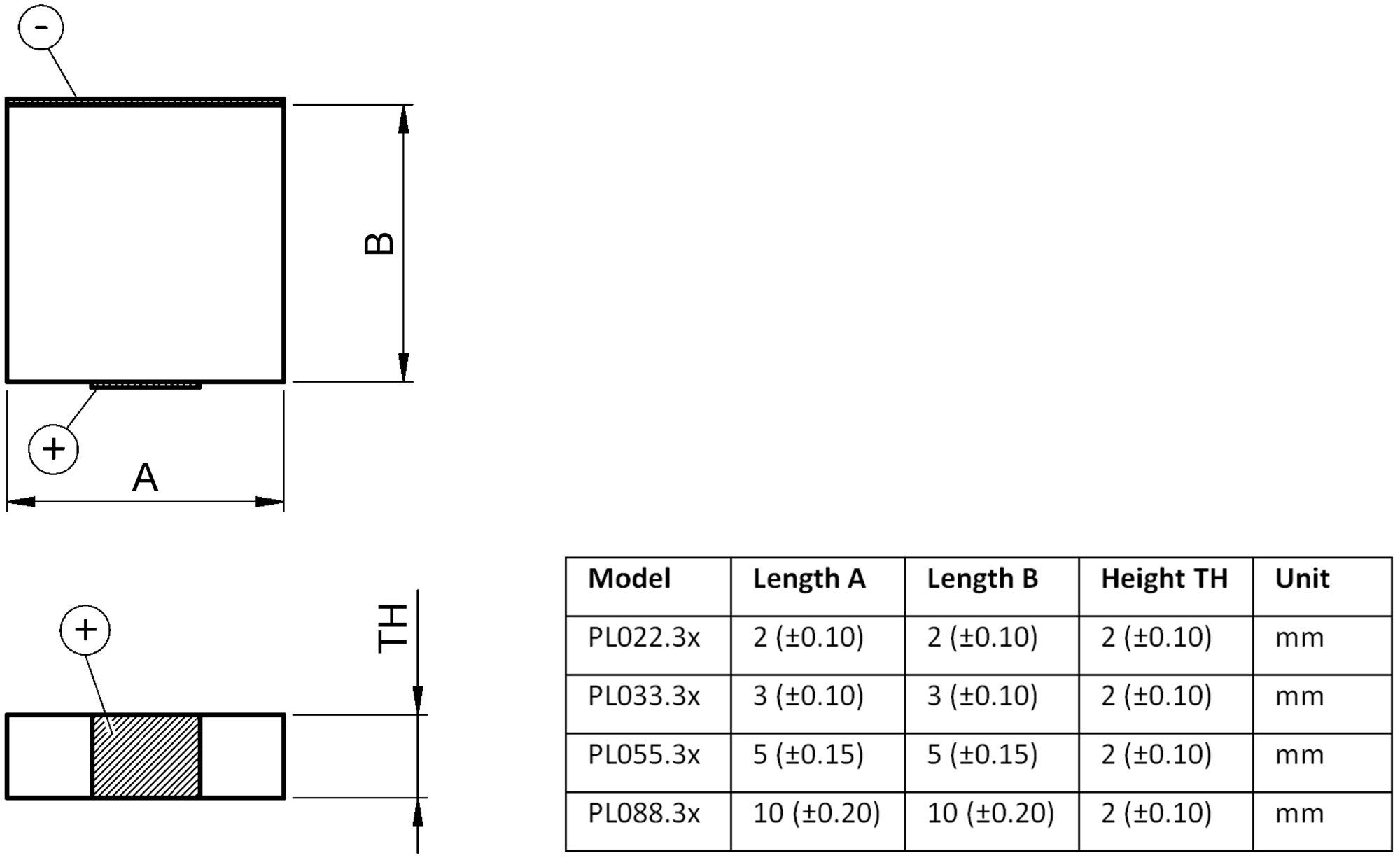

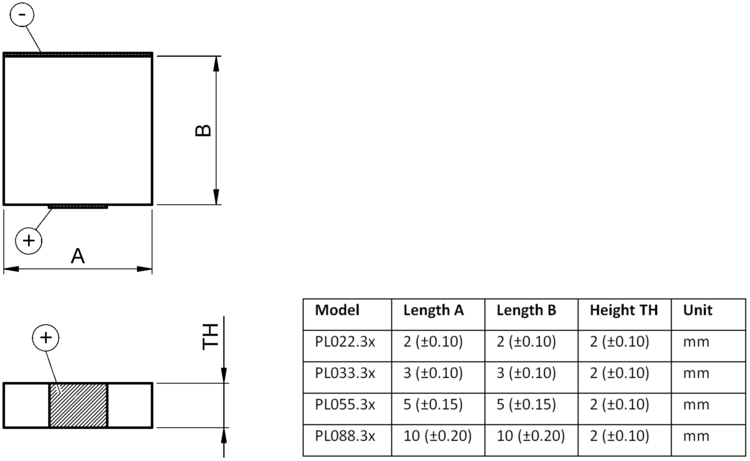

PTFE-insulated wire leads. Various geometric shapes, inner hole. Precision-ground ceramic end plates.
Fields of application
Industry and research. For laser tuning, microdispensing, life sciences.
User Manual PZ265PL022 / PL033 / PL055 / PL088 PICMA® Chip miniature multilayer piezo actuators; PD161 Round PICMA® Chip miniature multilayer piezo actuators; PD050 / PD080 / PD120 / PD150 / PD160 Round PICMA® Chip miniature multilayer piezo actuators with inner hole1.1.0 2021-09-271.1.0 2021-09-27Documentation
Short Instructions PZ264PICMA® Multilayer Piezo Actuators: P-08x, P-88x, PD0xx, PD410, PL0xx, PL1xx, PICMA® Stack, PICMA® Chip, PICMA® Bender3.0.0 04/20203.0.0 04/2020
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
PICMA® Chip actuatorsPL088.30PICMA® Chip miniature piezo actuator, 2.2 µm travel range, 10 mm × 10 mm × 2 mmPL055.30PICMA® Chip miniature piezo actuator, 2.2 µm travel range, 5 mm × 5 mm × 2 mmPL033.30PICMA® Chip miniature piezo actuator, 2.2 µm travel range, 3 mm × 3 mm × 2 mm
PICMA® Chip actuators with PTFE-insulated stranded wiresPL088.31PICMA® Chip miniature piezo actuator, 2.2 µm travel range, 10 mm × 10 mm × 2 mm, stranded wiresPL055.31PICMA® Chip miniature piezo actuator, 2.2 µm travel range, 5 mm × 5 mm × 2 mm, stranded wiresPL033.31PICMA® Chip miniature piezo actuator, 2.2 µm travel range, 3 mm × 3 mm × 2 mm, stranded wires
Ask about custom designs!
