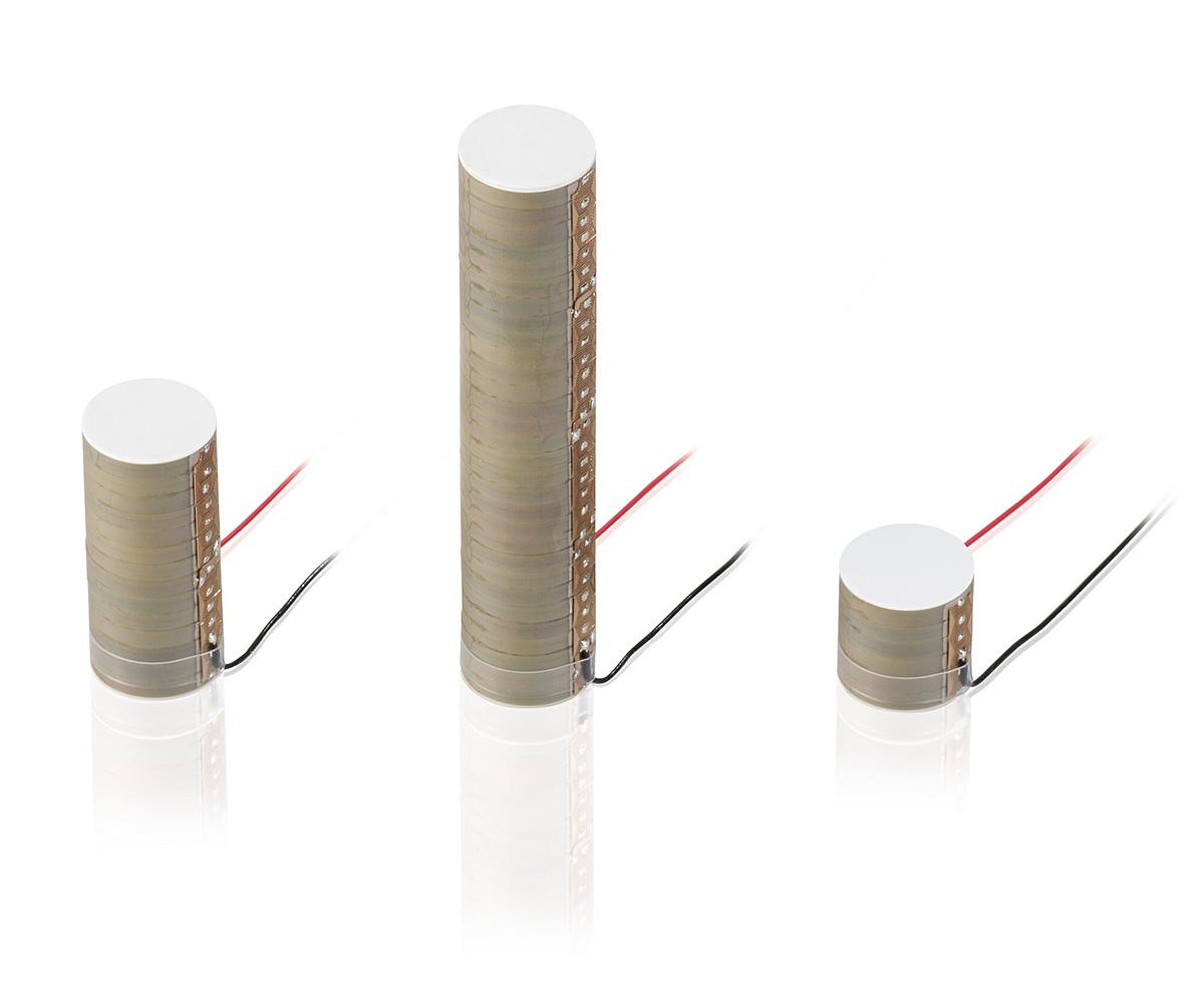

P-088 Round PICMA® Stack Multilayer Piezo Actuator

High Blocking Force

  • Superior lifetime
  • Ideal for dynamic operation
  • Flexible, adaptable overall height
  • OEM versions available without stranded wires
  • UHV-compatible to 10-9 hPa
P-088 Round PICMA® Stack Multilayer Piezo Actuator
Product Description Specifications Downloads Quote / Order

Multilayer stack actuators

The actuators are easily scaled, thanks to the stacked construction, flexible adaptation of the travel range is possible. The round cross section ensures easy integration.

UHV-compatible to 10-9 hPa. The actuators do not outgas and can be baked out at high temperatures.



PICMA® piezo linear actuators

Low operating voltage -20 to 100 V. Ceramic insulation. High reliability, long lifetime.



Possible modifications

Different heights, fast mounting according to customer requirements. Variety of shapes. Precision-ground end plates for reduced tolerances. Spherical tips.



Fields of application

Industry and research. For laser tuning, microdispensing, life sciences.

Specifications

Datasheet

Datasheet P-088

Version / Date
2024-01-08
pdf - 456 KB
Version / Date
2024-01-08
pdf - 462 KB

Downloads

Datasheet

Datasheet

Datasheet P-088

Version / Date
2024-01-08
pdf - 456 KB
Version / Date
2024-01-08
pdf - 462 KB

Documentation

Documentation

User Manual PZ259

P-882 – P-888 PICMA® Stack multilayer piezo actuators, P-080 PICMA® Stack multilayer ring actuators with inner hole, P-088 PICMA® Stack multilayer piezo actuators, round cross section

Version / Date
1.1.0 2021-09-27
pdf - 3 MB
Version / Date
1.1.0 2021-09-27
pdf - 3 MB
Documentation

Short Instructions PZ264

PICMA® Multilayer Piezo Actuators: P-08x, P-88x, PD0xx, PD410, PL0xx, PL1xx, PICMA® Stack, PICMA® Chip, PICMA® Bender

Version / Date
3.0.0 04/2020
pdf - 826 KB
Version / Date
3.0.0 04/2020
pdf - 761 KB

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

P-088.720

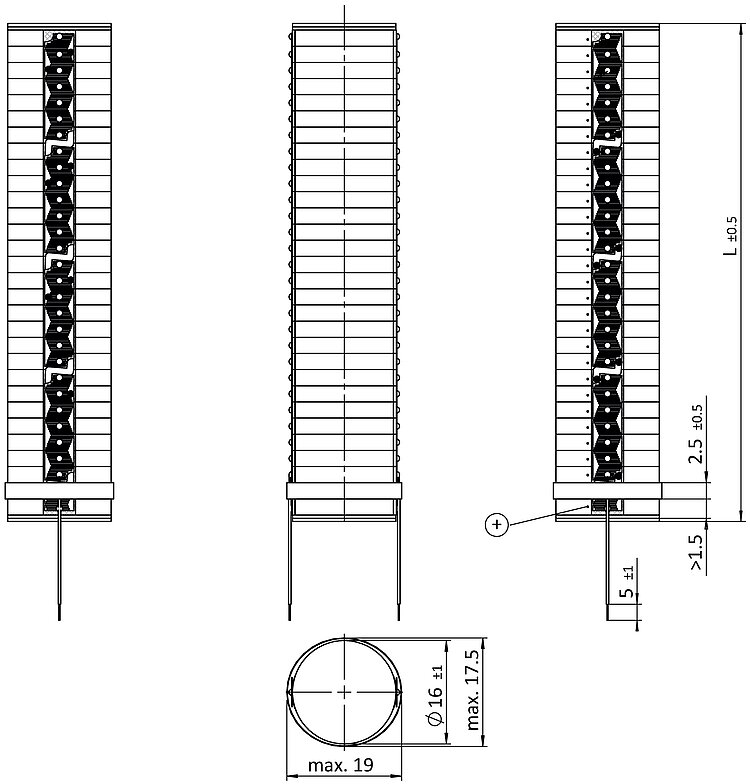

Round PICMA® Stack multilayer piezo actuator; 14 µm travel range (open loop); Ø 16 mm; length 16 mm; 7500 N feed force; vacuum-compatible to 10⁻⁹ hPa; solderable contacts

P-088.721

Round PICMA® Stack multilayer piezo actuator; 14 µm travel range (open loop); Ø 16 mm; length 16 mm; 7500 N feed force; vacuum-compatible to 10⁻⁹ hPa; connecting wires

P-088.740

Round PICMA® Stack multilayer piezo actuator; 32 µm travel range (open loop); Ø 16 mm; length 36 mm; 7500 N feed force; vacuum-compatible to 10⁻⁹ hPa; solderable contacts

P-088.741

Round PICMA® Stack multilayer piezo actuator; 32 µm travel range (open loop); Ø 16 mm; length 36 mm; 7500 N feed force; vacuum-compatible to 10⁻⁹ hPa; connecting wires

P-088.780

Round PICMA® Stack multilayer piezo actuator; 70 µm travel range (open loop); Ø 16 mm; length 77 mm; 7500 N feed force; vacuum-compatible to 10⁻⁹ hPa; solderable contacts

P-088.781

Round PICMA® Stack multilayer piezo actuator; 70 µm travel range (open loop); Ø 16 mm; length 77 mm; 7500 N feed force; vacuum-compatible to 10⁻⁹ hPa; connecting wires
