P-733.3 XYZ Piezo Nanopositioner

High-Precision XYZ Scanner with Aperture

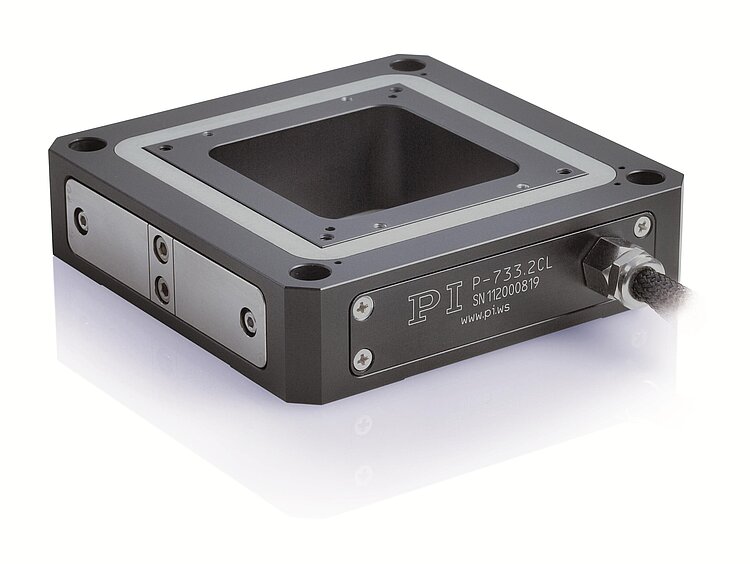

P-733.3 XYZ Piezo Nanopositioner
Product Description Specifications Downloads Quote / Order
  • Travel ranges to 100 µm × 100 µm in X, Y and to 10 µm in Z
  • Resolution to 0.1 nm due to capacitive sensors
  • High velocity versions with direct drive
  • Ultrahigh vacuum-compatible and nonmagnetic versions
  • Parallel kinematics for higher accuracy and dynamics
  • Parallel metrology for active compensation of guiding errors
  • Zero-play, high-precision flexure guide system
  • Clear aperture 50 mm × 50 mm for transmitted-light applications

Fields of application

  • Scanning microscopy
  • Confocal microscopy
  • Mask/wafer positioning
  • Surface measuring technology
  • Nanoimprinting
  • Micromanipulation
  • Image processing / stabilization
  • Nanopositioning with high flatness and straightness of motion

Outstanding lifetime thanks to PICMA® piezo actuators

The patented PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

Subnanometer resolution with capacitive sensors

Capacitive sensors measure with subnanometer resolution without contacting. They guarantee excellent linearity of motion, long-term stability, and a bandwidth in the kHz range.

High guiding accuracy due to zero-play flexure guides

Flexure guides are free of maintenance, friction, and wear, and do not require lubrication. Their stiffness allows high load capacity and they are insensitive to shock and vibration. They are 100 % vacuum compatible and work in a wide temperature range.

Automatic configuration and fast component exchange

Mechanics and controllers can be combined as required and exchanged quickly. All servo and linearization parameters are stored in the ID chip of the Sub-D connector of the mechanics. The autocalibration function of the digital controllers uses this data each time the controller is switched on.

High tracking accuracy in the nanometer range due to parallel position measuring

All degrees of freedom are measured against a single fixed reference. Undesired crosstalk of motion to another axis can be actively compensated in real time (depending on the bandwidth) (active guiding). High tracking accuracy is achieved in the nanometer range even in dynamic operation.

Suitable for sophisticated vacuum applications

All components used in the piezo systems are are excellently suited for use in vacuum. No lubricant or grease is necessary for operating. Polymer-free piezo systems allow particularly low outgas rates.


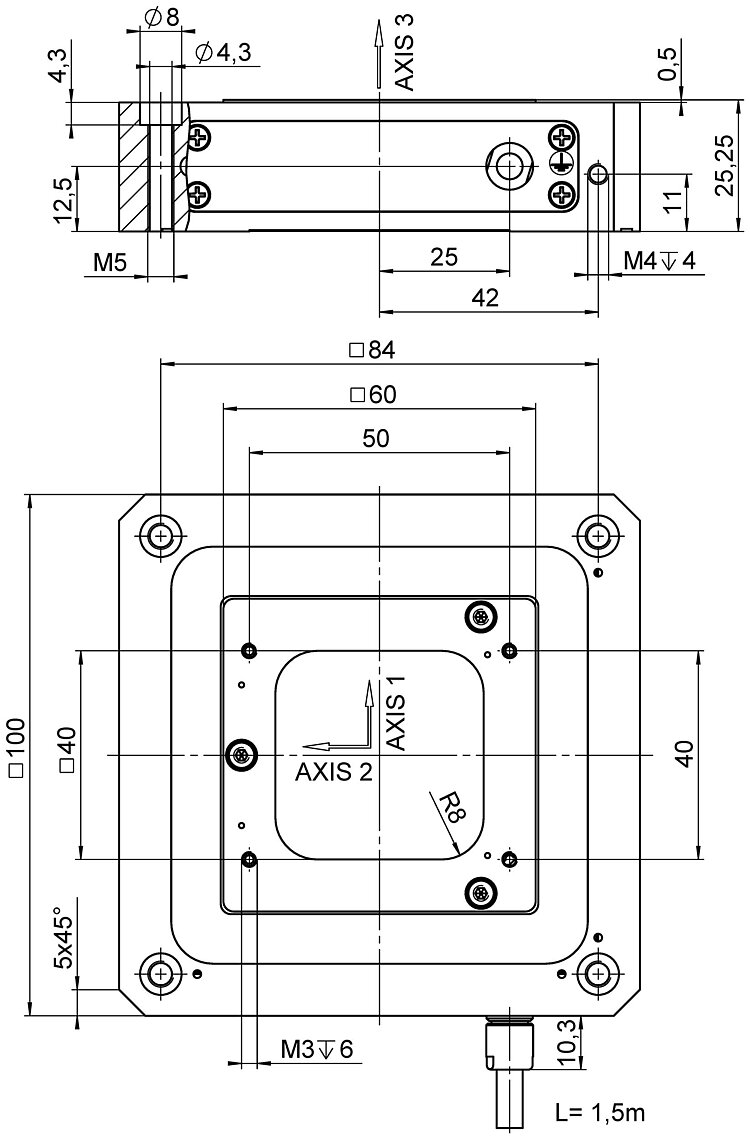

Datasheet P-733.3

Version / Date
Version / Date
Document language
pdf - 624 KB
pdf - 632 KB



Datasheet P-733.3

Version / Date
Version / Date
Document language
pdf - 624 KB
pdf - 632 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

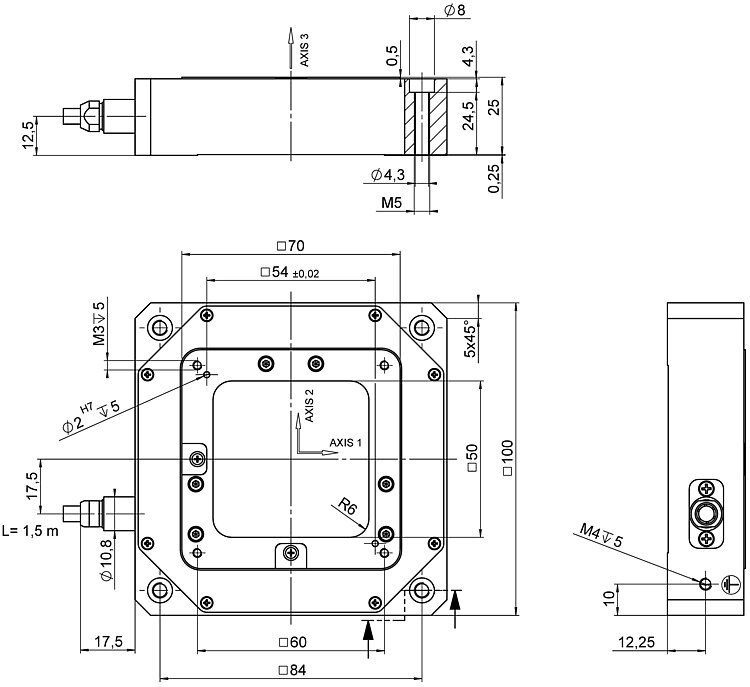

With direct drive

High dynamics, precision XYZ nanopositioning system, 30 µm × 30 µm × 10 µm, direct drive, capacitive sensors, parallel metrology, Sub-D connector

Versions with Sub-D connector (m)

Versions with LEMO connector

Linear positioners, vacuum compatible to 10-9 hPa
