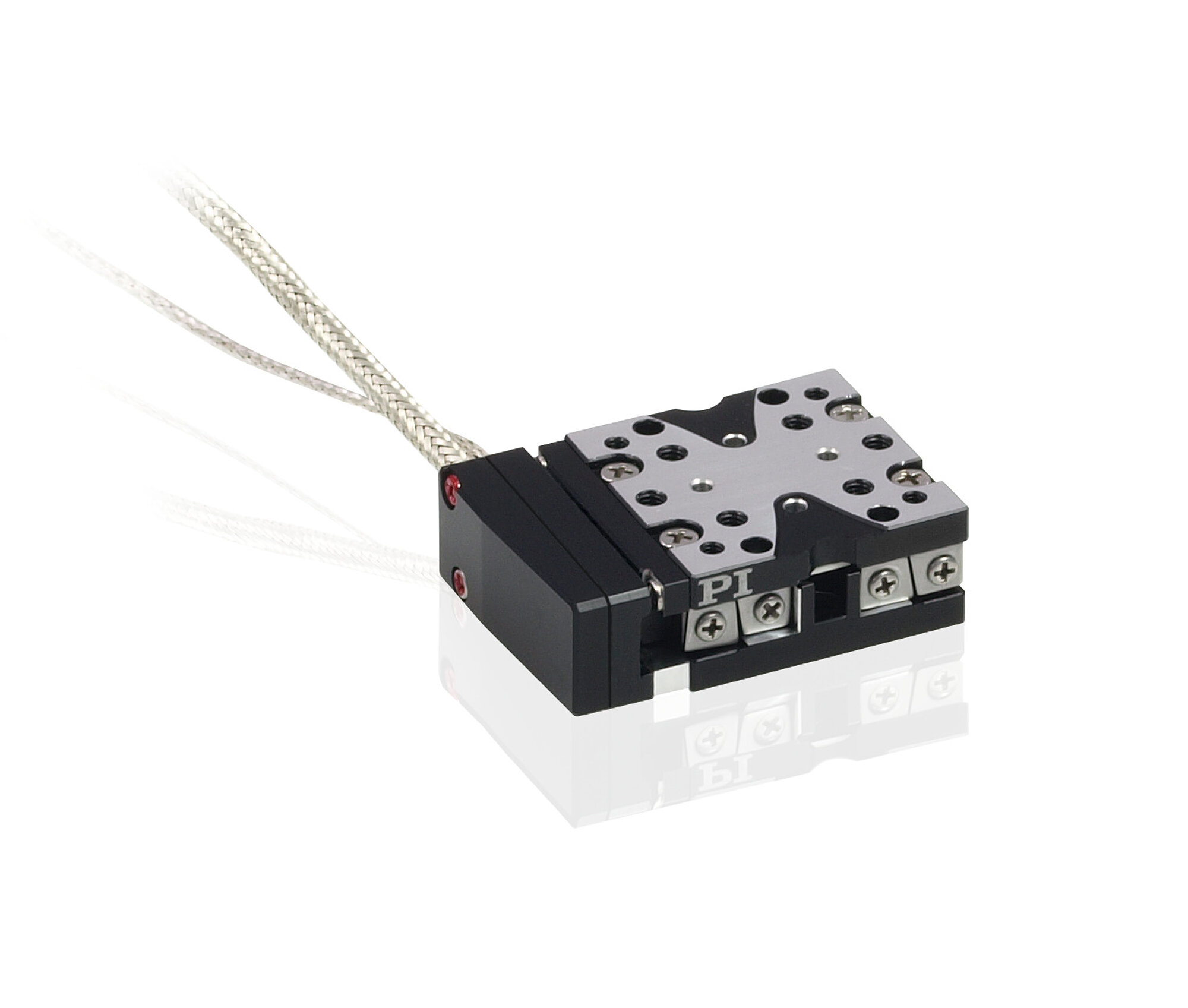

Q-522 Q-Motion® Miniature Linear Stage
Piezo Motors for Small Dimensions, High Resolution, and a Favorable Price
- Only 22 mm in width and 10 mm in height
- Direct position measurement with incremental encoder with up to 1 nm resolution
- Minimum incremental motion up to 2 nm
- XY mounting without adapter
- Q-622 rotation stage mountable without adapter
- Suitable for vacuum to 10-6 hPa, versions to 10-9 hPa available
Piezoelectric inertia drive
Piezo inertia drives are space-saving and affordable piezo-based drives with relatively high holding forces and a virtually unlimited travel range. The inertia drive principle is based on a single piezoelectric actuator that is controlled with a modified sawtooth voltage provided by special driver electronics. The actuator expands slowly and moves the runner. Due to its inertia, the runner is unable to follow the subsequent fast contraction of the actuator and remains at its position. With an operating frequency of up to 20 kHz, the drives acting directly on the runner and achieve velocities of max. 10 mm/s.
Direct-measuring principle
Versions with noncontact optical linear encoder available. Resolution 4 nm or 1 nm, depending on the version. Versions with encoder have a reference point switch
Vacuum and nonmagnetic environments
All Q-Motion® linear stages are suitable for operation in high vacuum to 10-6 hPa. Furthermore, ultrahigh vacuum variants are also available for 10-9hPa. Nonmagnetic versions are available on request
Application fields
Microassembly, Photonics, Optical alignment, Microscopy, Beamline instrumentation, Semiconductor technology, Testing

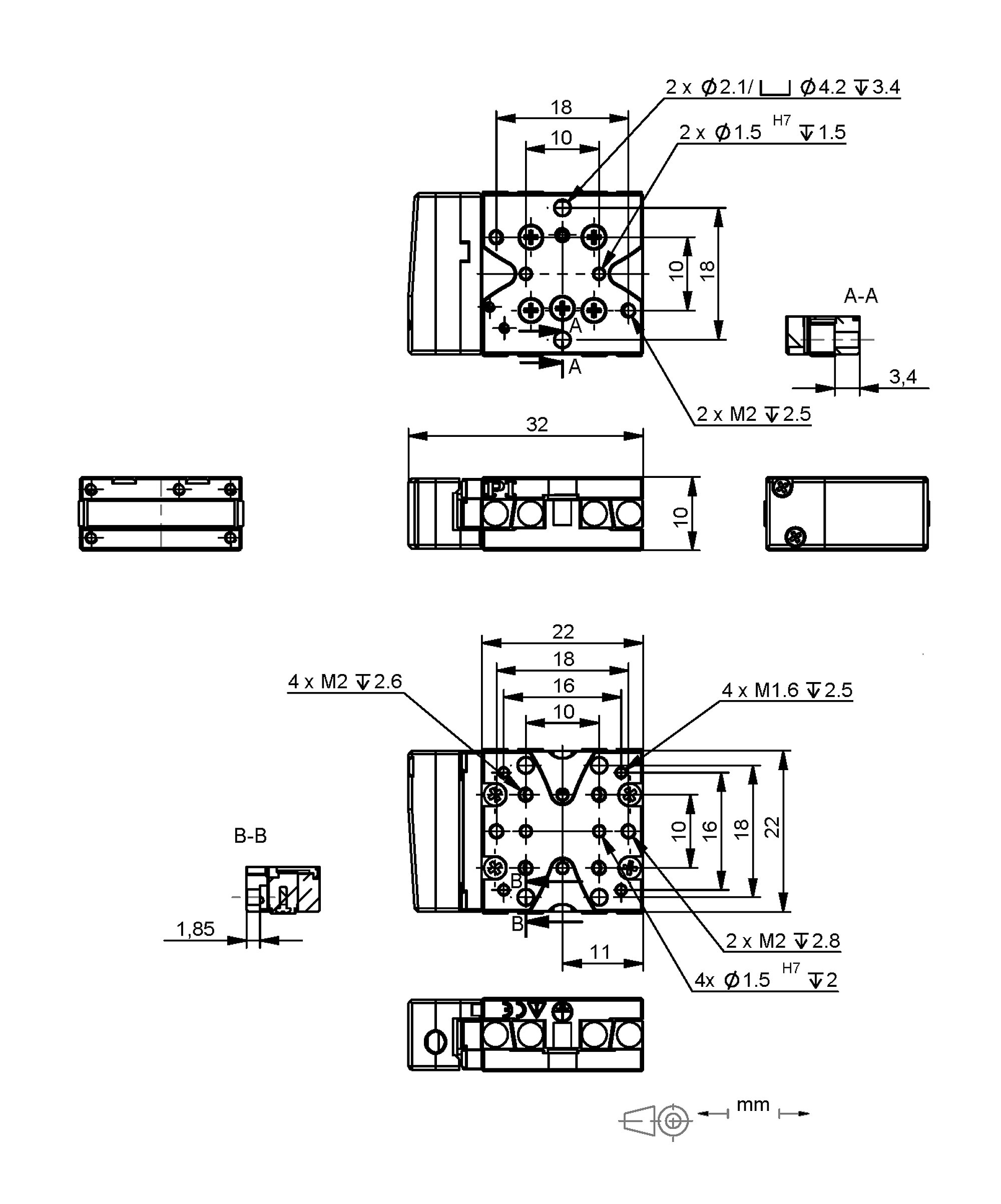

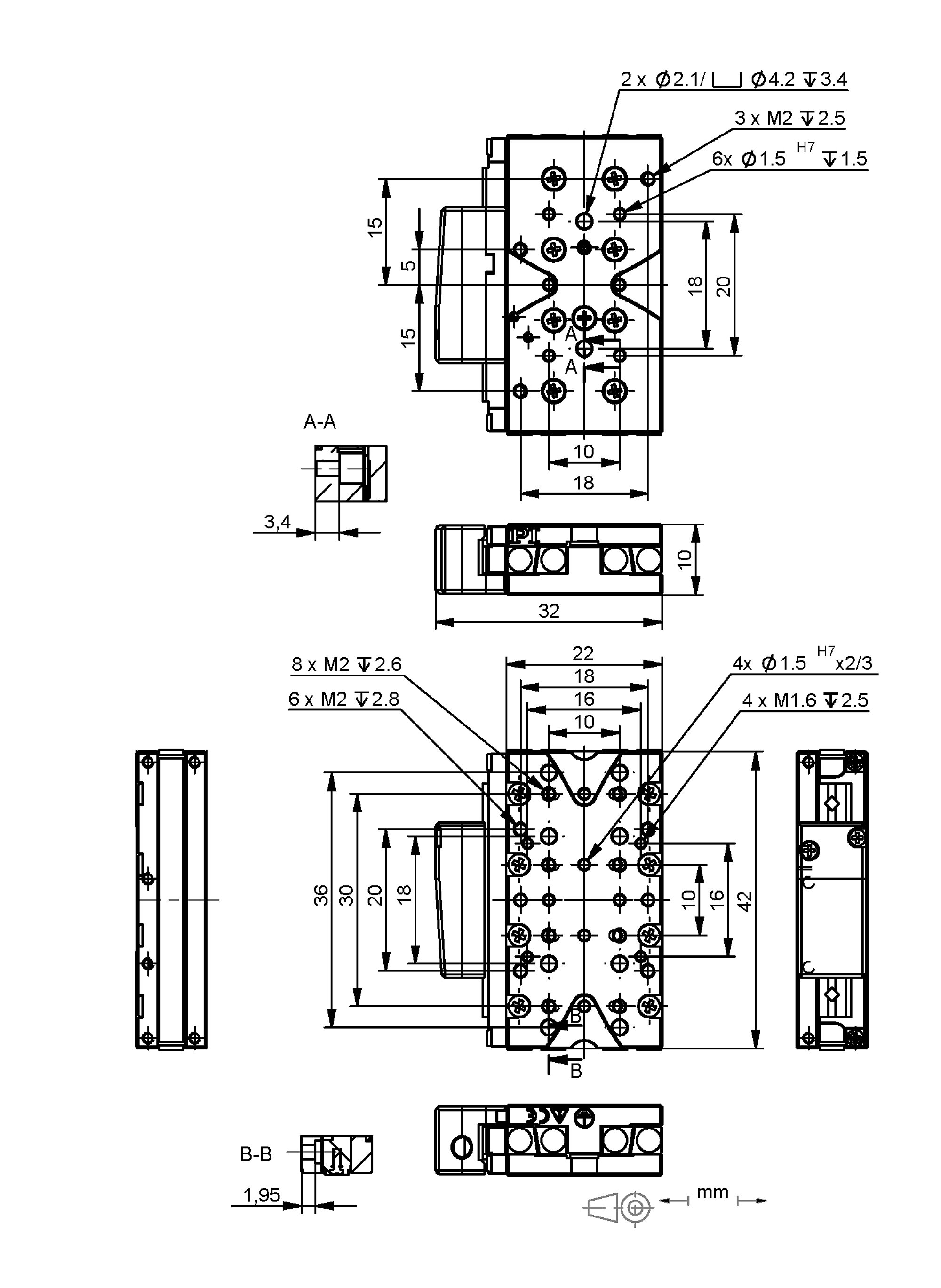

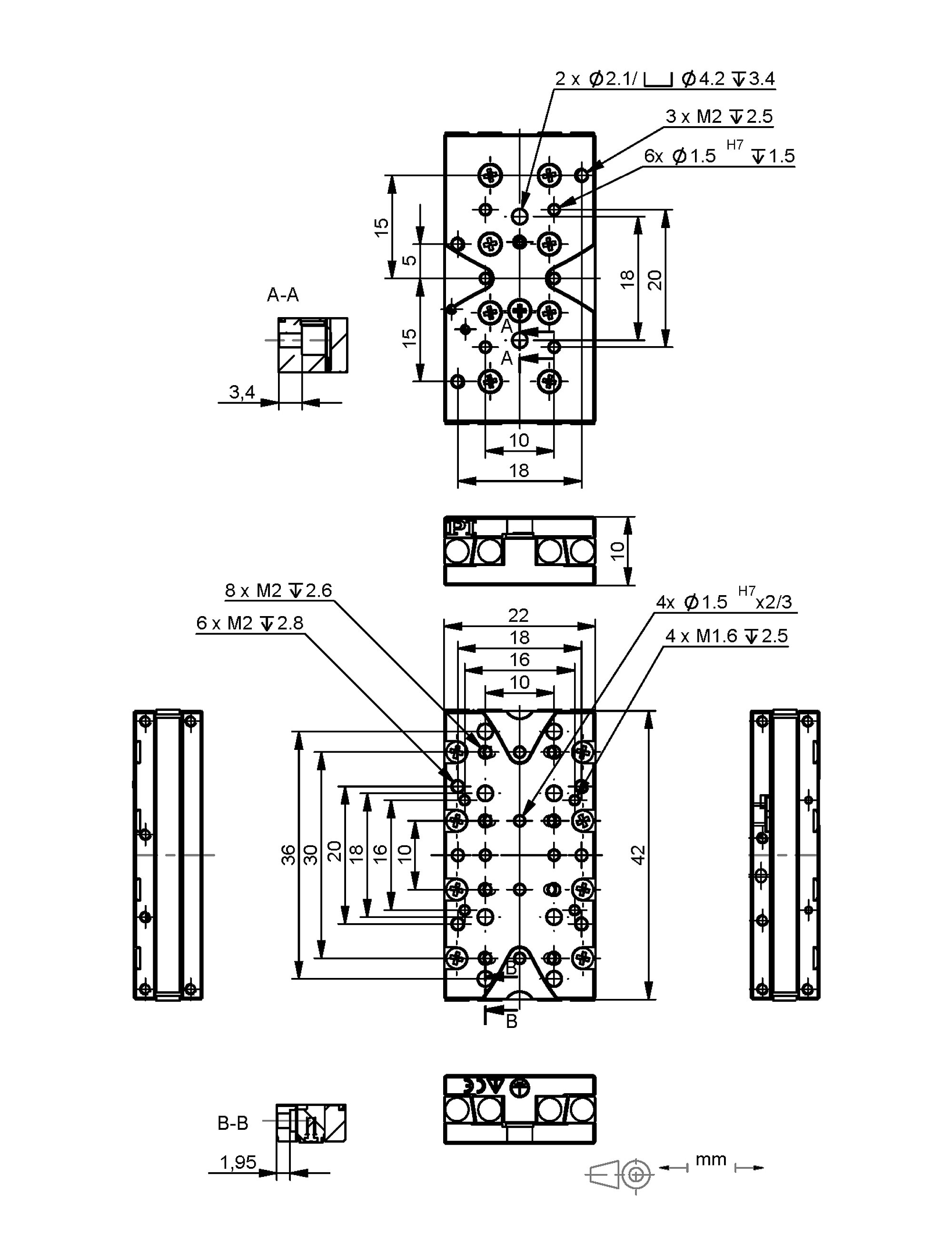

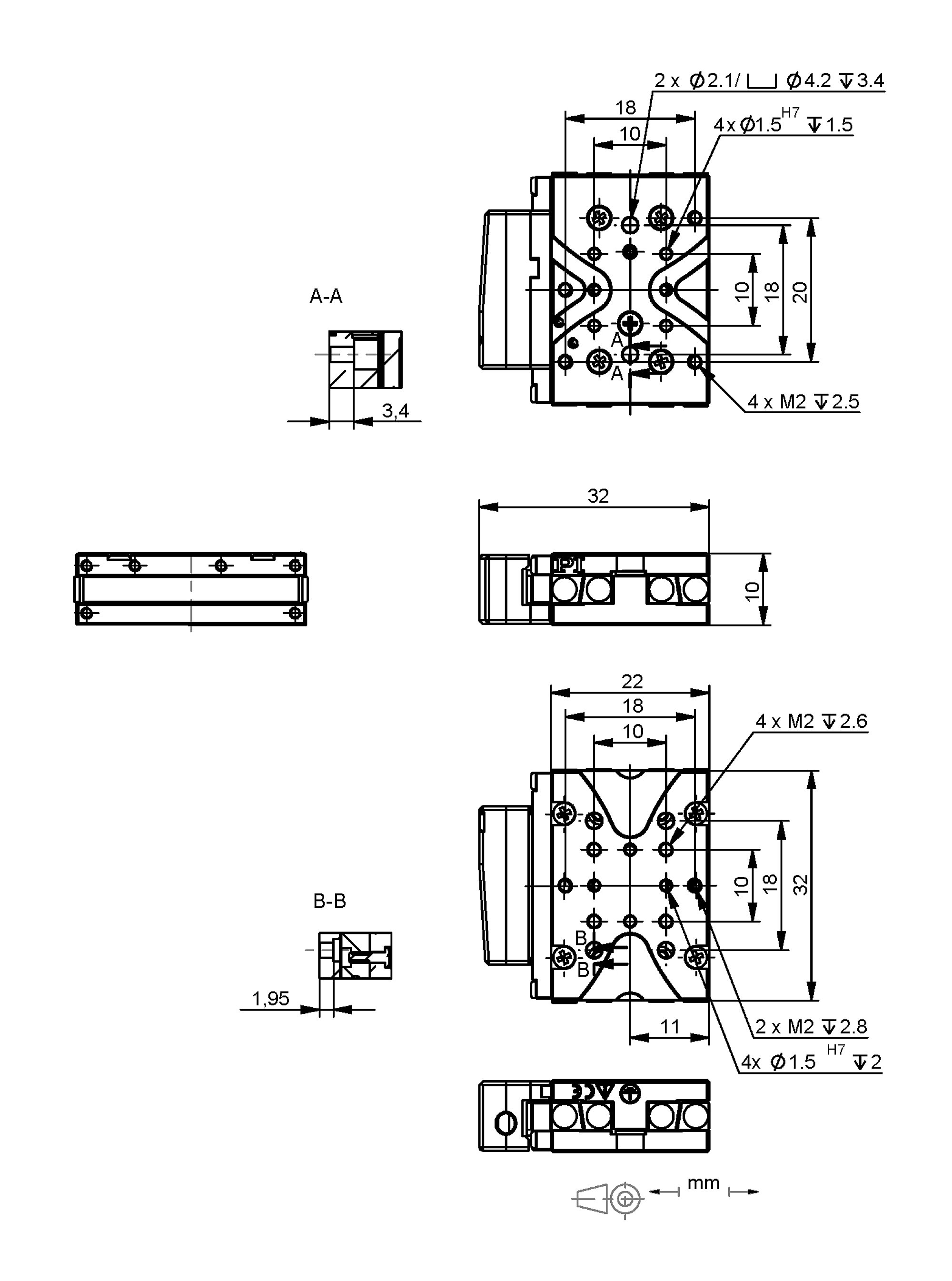

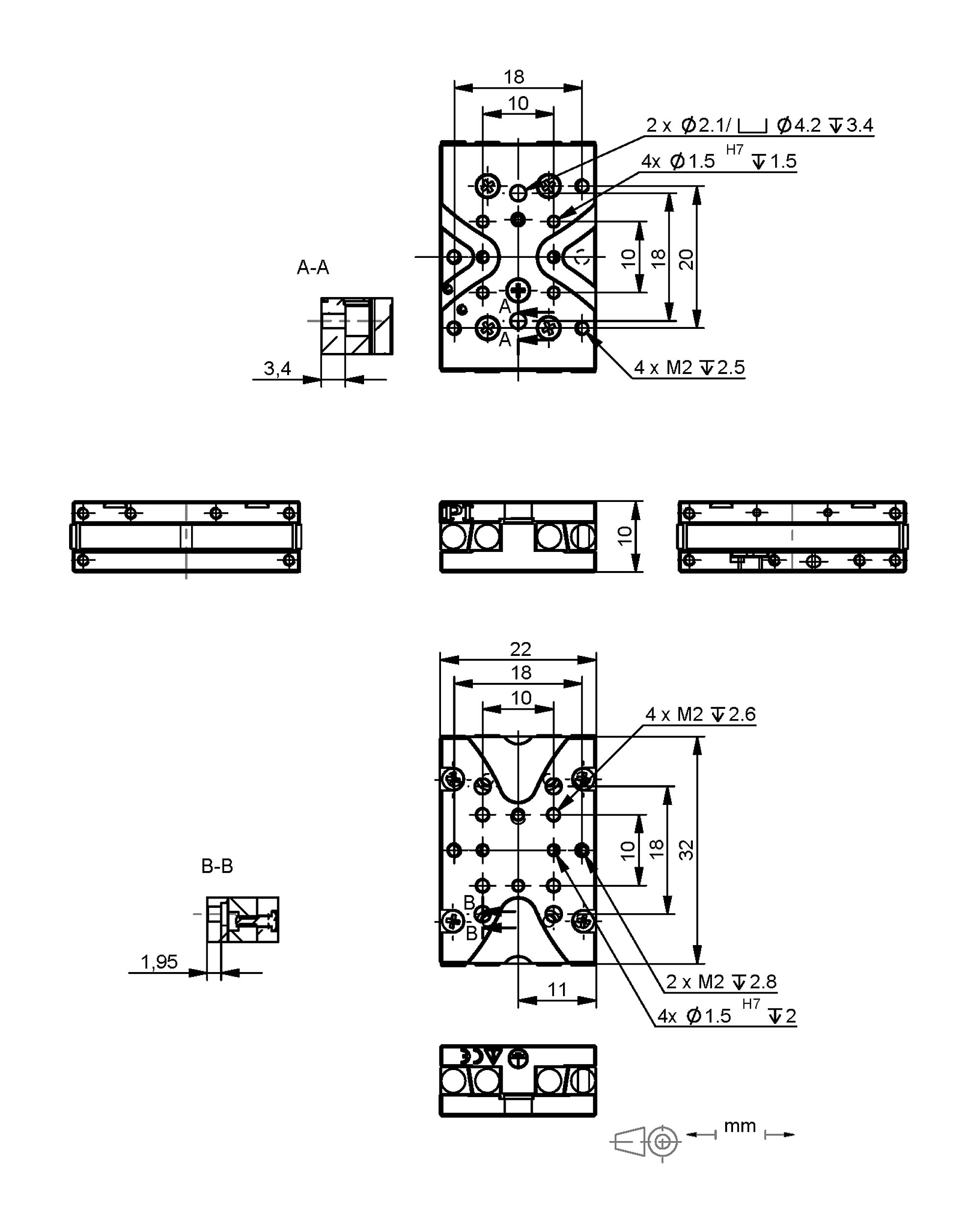

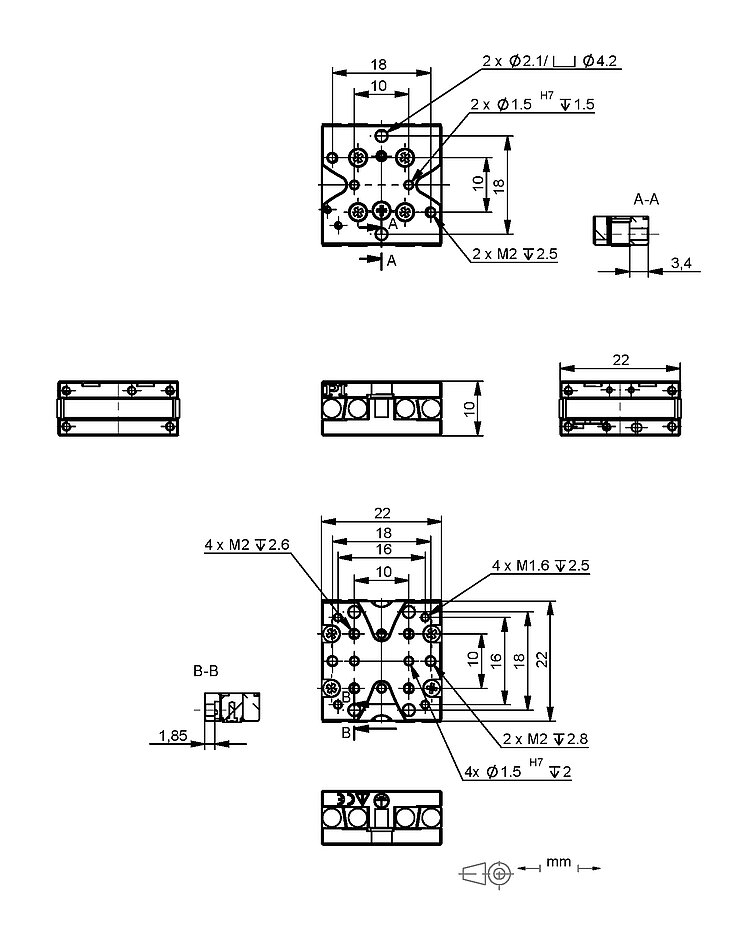

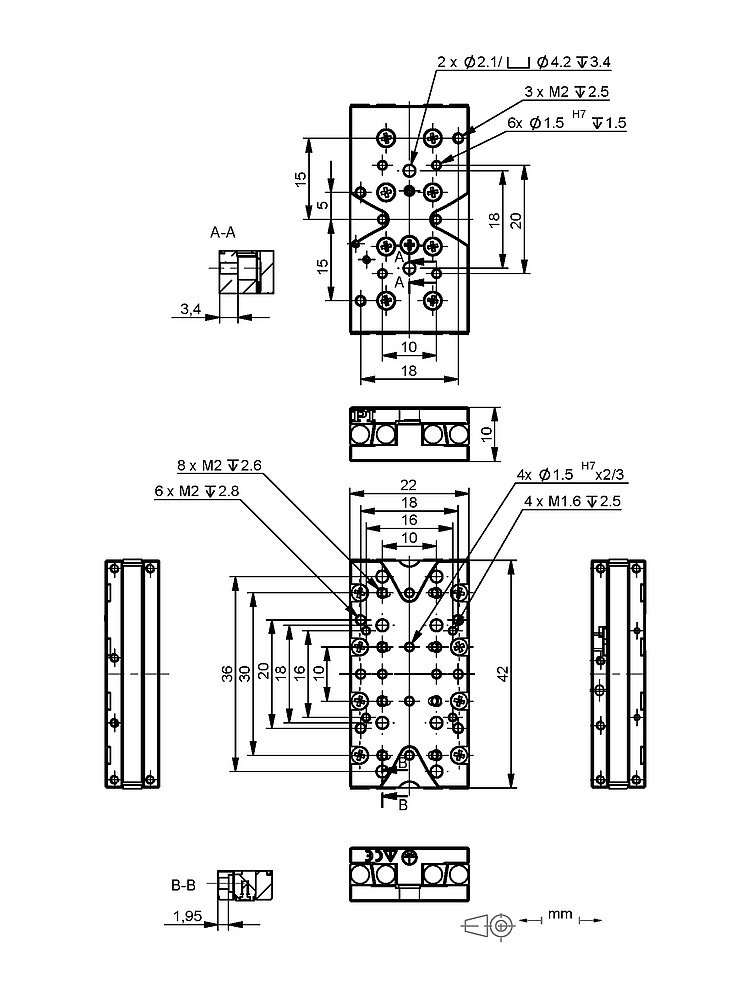

Specifications
This content is only available on tablets or desktop devices.Specifications
Motion and positioning | Q-522.030 | Q-522.040 / Q-522.04U | Q-522.130 | Q-522.140 / Q-522.14U | Q-522.230 | Q-522.240 / Q-522.24U | Q-522.x00 / Q-522.x0U | Unit |
---|---|---|---|---|---|---|---|---|
6.5 mm travel range, resolution 4 nm | 6.5 mm travel range, resolution 1 nm, UHV version Q-522.04U | 13 mm travel range, resolution 4 nm | 13 mm travel range, resolution 1 nm, UHV version Q-522.14U | 26 mm travel range, resolution 4 nm | 26 mm travel range, resolution 1 nm, UHV version Q-522.24U | 6.5 mm to 26 mm travel range, open loop, UHV versions Q-522.x0U | ||
Active axis | X | X | X | X | X | X | X | |
Travel range | 6.5 | 6.5 | 13 | 13 | 26 | 26 | 6.5 to 26 | mm |
Integrated sensor | Linear encoder | Linear encoder | Linear encoder | Linear encoder | Linear encoder | Linear encoder | - | |
Sensor resolution | 4 | 1 | 4 | 1 | 4 | 1 | - | nm |
Minimum incremental motion | 8 | 2 | 8 | 2 | 8 | 2 | - | nm |
Unidirectional repeatability over entire travel range | 25 | 25 | 25 | 25 | 30 | 30 | - | nm |
Bidirectional repeatability over entire travel range | 40 | 40 | 40 | 40 | 50 | 50 | - | nm |
Unidirectional repeatability over 100 µm travel range | 12 | 12 | 12 | 12 | 12 | 12 | - | |
Bidirectional repeatability over 100 µm travel range | 24 | 24 | 24 | 24 | 24 | 24 | - | nm |
Pitch / yaw over entire travel range | 100 | 100 | 100 | 100 | 100 | 100 | 100 | µrad |
Pitch / yaw over 100 µm travel range | 1 | 1 | 1 | 1 | 1 | 1 | 1 | µrad |
Maximum velocity* | 10 | 10 | 10 | 10 | 10 | 10 | 10 | mm/s |
Drive properties | Q-522.030 | Q-522.040 / Q-522.04U | Q-522.130 | Q-522.140 / Q-522.14U | Q-522.230 | Q-522.240 / Q-522.24U | Q-522.x00 / Q-522.x0U | Unit |
---|---|---|---|---|---|---|---|---|
Motor type | Piezoelectric inertia drive | Piezoelectric inertia drive | Piezoelectric inertia drive | Piezoelectric inertia drive | Piezoelectric inertia drive | Piezoelectric inertia drive | Piezoelectric inertia drive |
Miscellaneous | Q-522.030 | Q-522.040 / Q-522.04U | Q-522.130 | Q-522.140 / Q-522.14U | Q-522.230 | Q-522.240 / Q-522.24U | Q-522.x00 / Q-522.x0U | Unit |
---|---|---|---|---|---|---|---|---|
Operating temperature range | 0 to 40 | 0 to 40 | 0 to 40 | 0 to 40 | 0 to 40 | 0 to 40 | 0 to 40 | °C |
Material | Aluminum, steel | Aluminum, steel | Aluminum, steel | Aluminum, steel | Aluminum, steel | Aluminum, steel | Aluminum, steel | |
Mass, including cabling | 107 | 107 | 118 | 118 | 128 | 128 | 68 to 88 | g |
Cable length | 1 | 1 | 1 | 1 | 1 | 1 | 1 | m |
Connector | Sub-D | Sub-D | Sub-D | Sub-D | Sub-D | Sub-D | Sub-D | |
Recommended electronics | E-873.1AT, | E-873.1AT, E-873.3QTU, E-873.10C885 | E-873.1AT, E-873.3QTU, E-873.10C885 | E-873.1AT, E-873.3QTU, E-873.10C885 | E-873.1AT, E-873.3QTU, E-873.10C885 | E-873.1AT, E-873.3QTU, E-873.10C885 | E-872.401 |
Downloads
Product Note
Product Change Notification Q-xxx; N-765
Documentation
User Manual MP134
Q-522 Q-Motion Miniature Linear Stage, Piezoelectric Inertia Drive
3D Models
Q-522 3-D model
