L-836.APxD Adapter Bracket

NEW

For Mounting L-8x6 Stages Vertically

Simple Z mounting of L-8x6 stages
Delivery includes mounting kit

quote / order

L-836.AP1

Download datasheet specifications quote / order

Datasheet

Datasheet L-836.APxD

Version / Date

2025-05-08

pdf - 1 MB

Version / Date

2025-05-08

pdf - 1 MB

Download

	L-836.AP1D	L-836.AP2D	L-836.AP3D
Material	Anodized aluminum alloy	Anodized aluminum alloy	Anodized aluminum alloy
Overall mass	340 g	500 g	715 g

Download datasheet downloads quote / order

Datasheet

Datasheet L-836.APxD

Version / Date

2025-05-08

pdf - 1 MB

Version / Date

2025-05-08

pdf - 1 MB

Download

3D Models

L-836.APxD 3D Model

Version / Date

2025-05-08

zip - 2 MB

quote / order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

L-836.AP1D NEW!

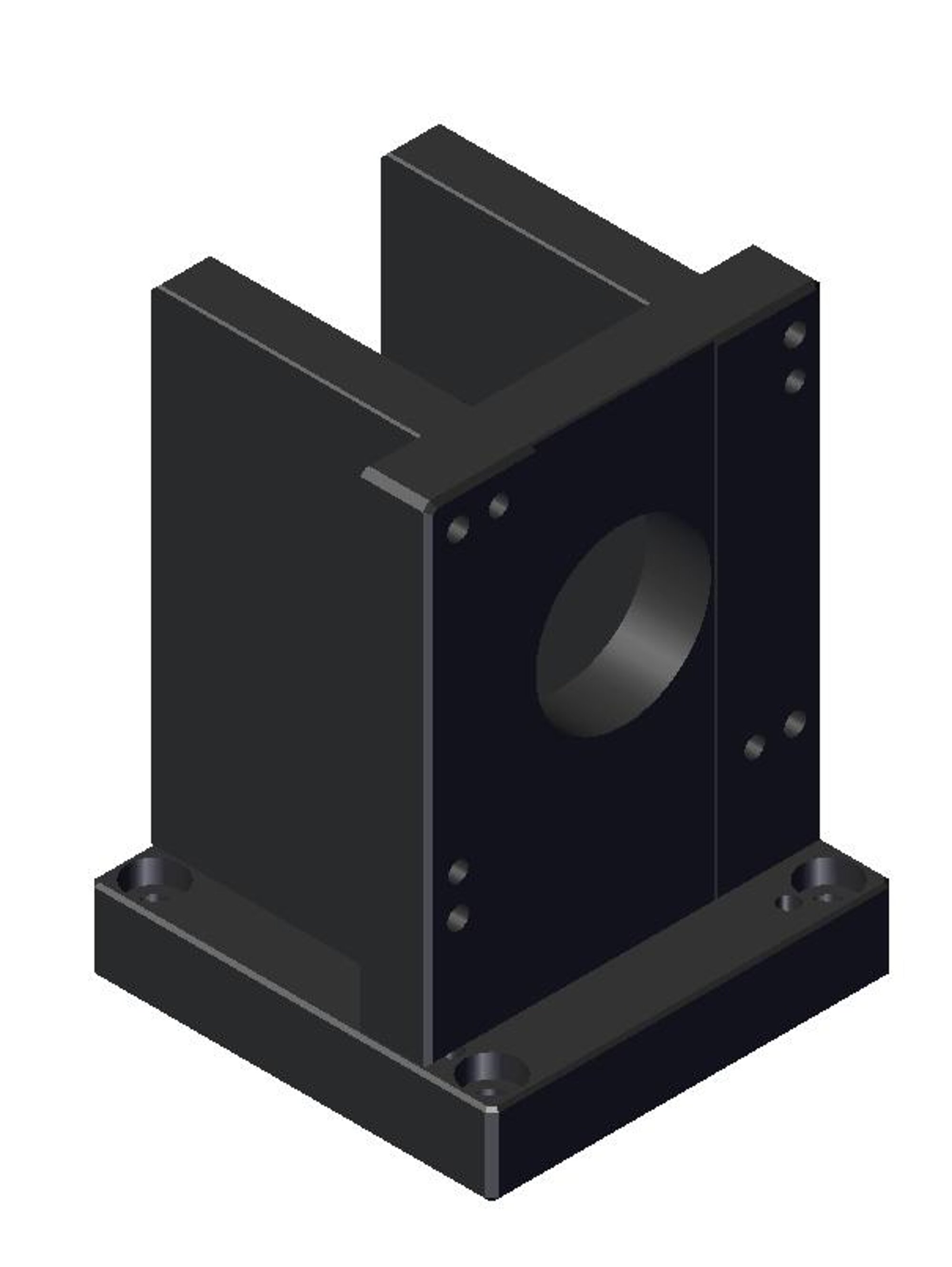

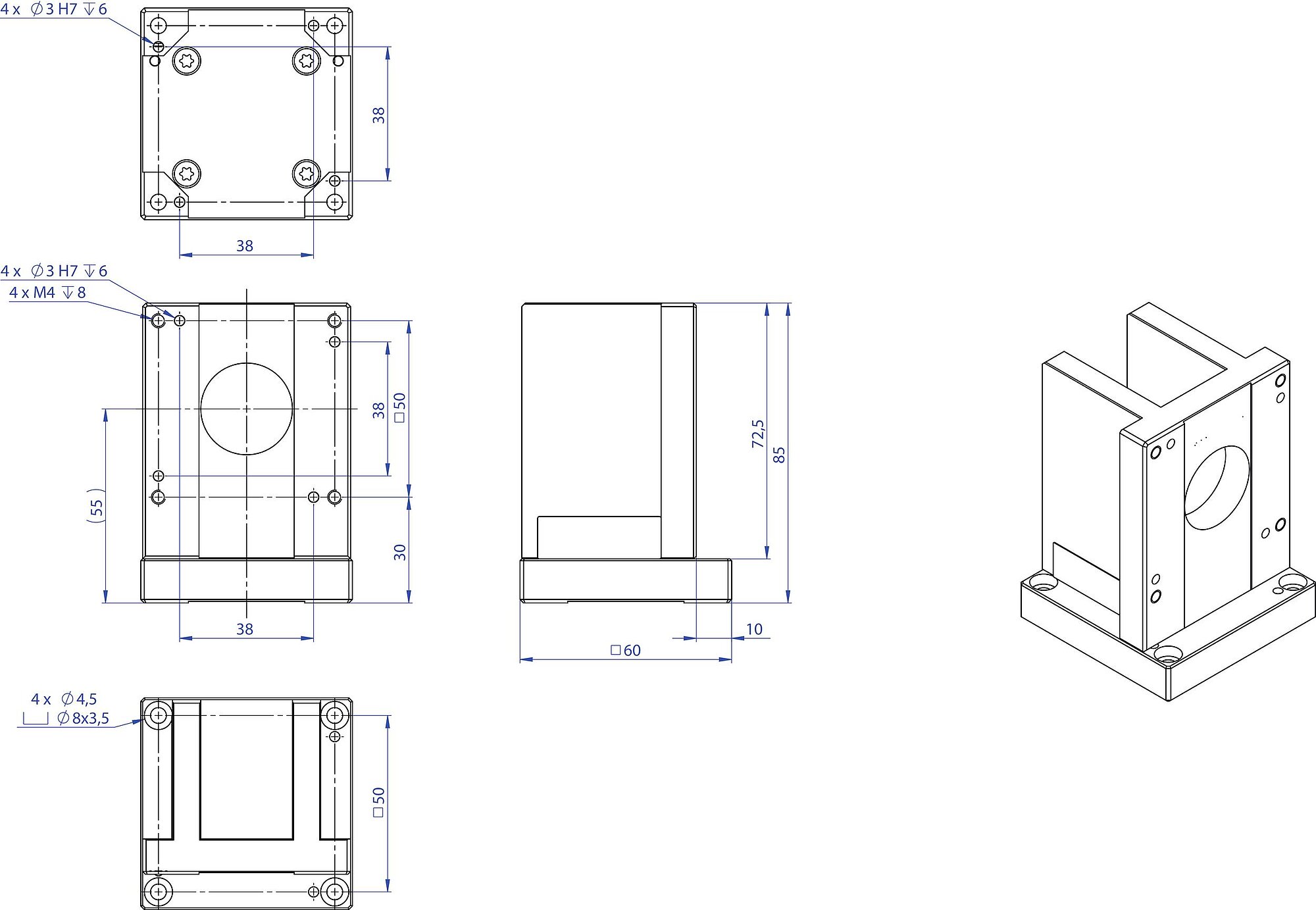

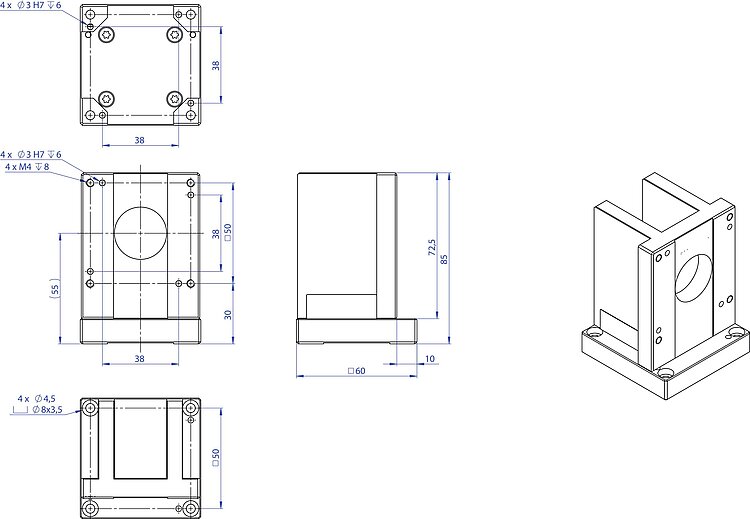

Adapter bracket for vertical mounting of L-8x6 stages; length 85 mm; incl. mounting kit

Add to quote list Remove from quote list

L-836.AP2D NEW!

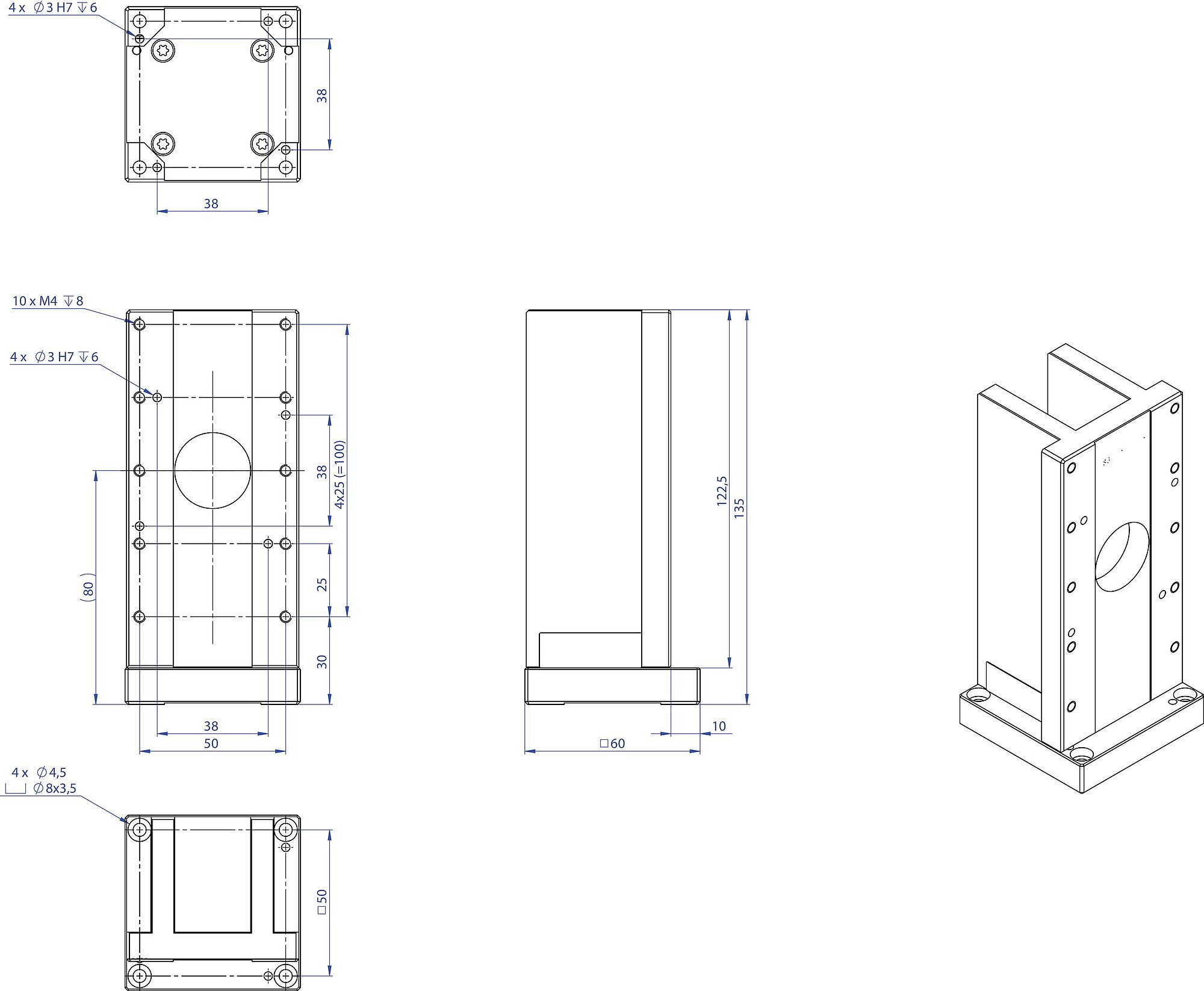

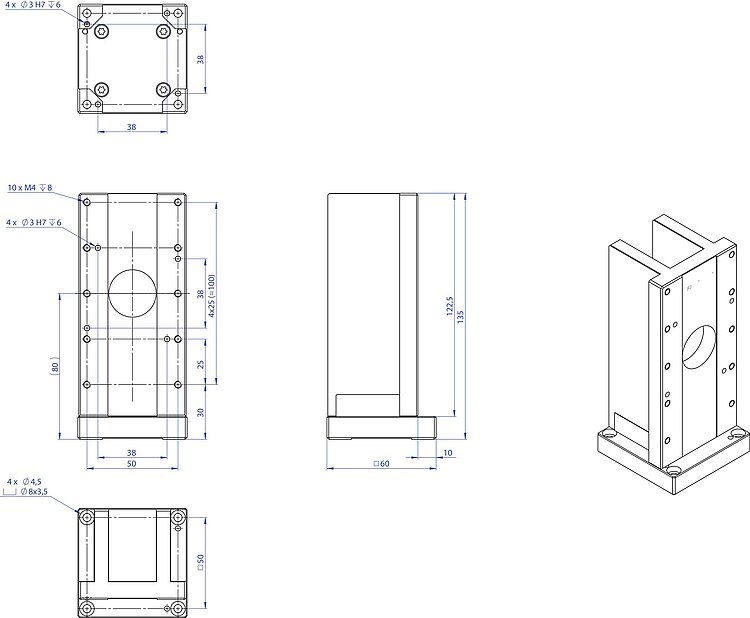

Adapter bracket for vertical mounting of L-8x6 stages; length 135 mm; incl. mounting kit

Add to quote list Remove from quote list

L-836.AP3D NEW!

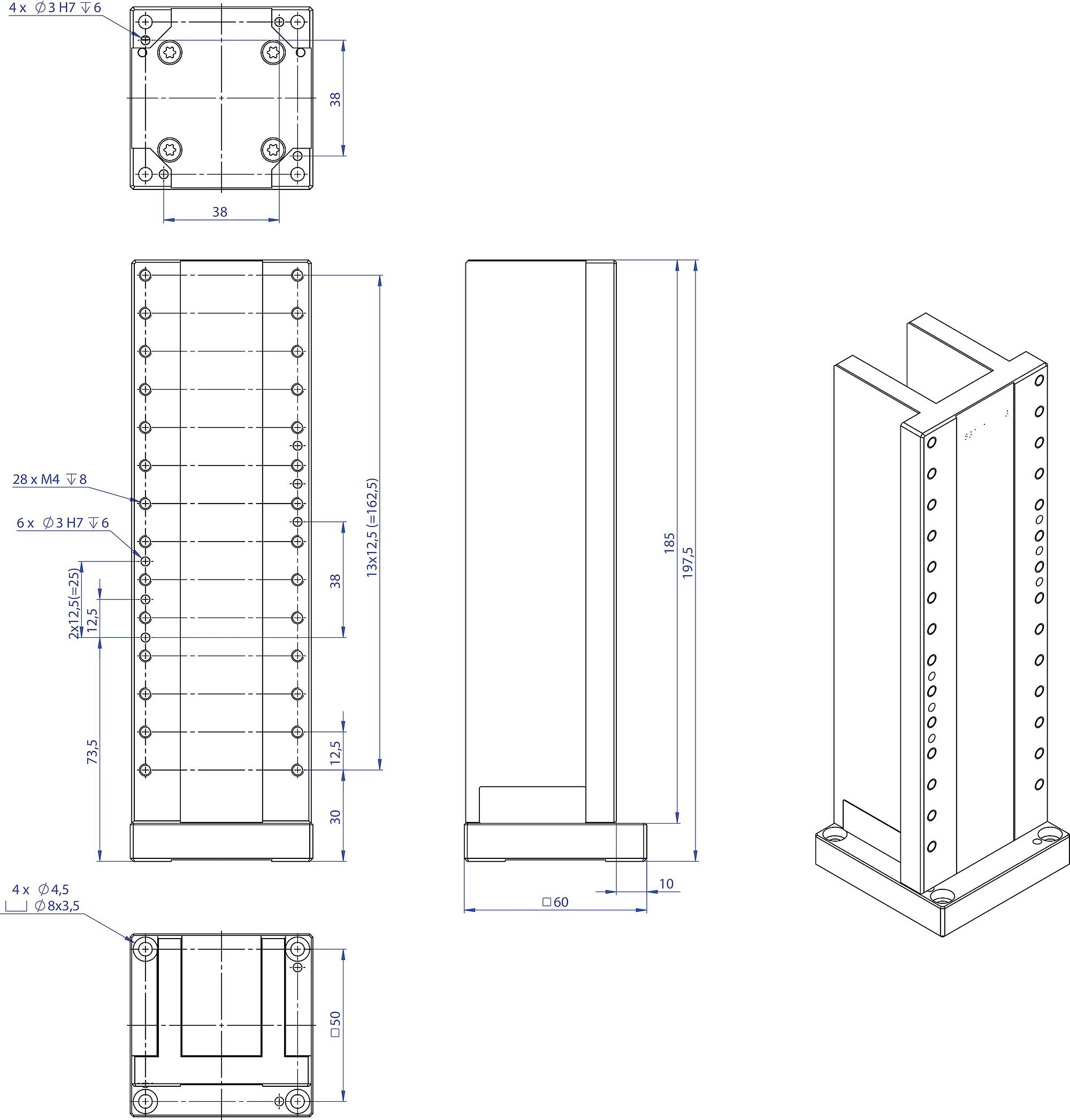

Adapter bracket for vertical mounting of L-8x6 stages; length 197.5 mm; incl. mounting kit

Add to quote list Remove from quote list
