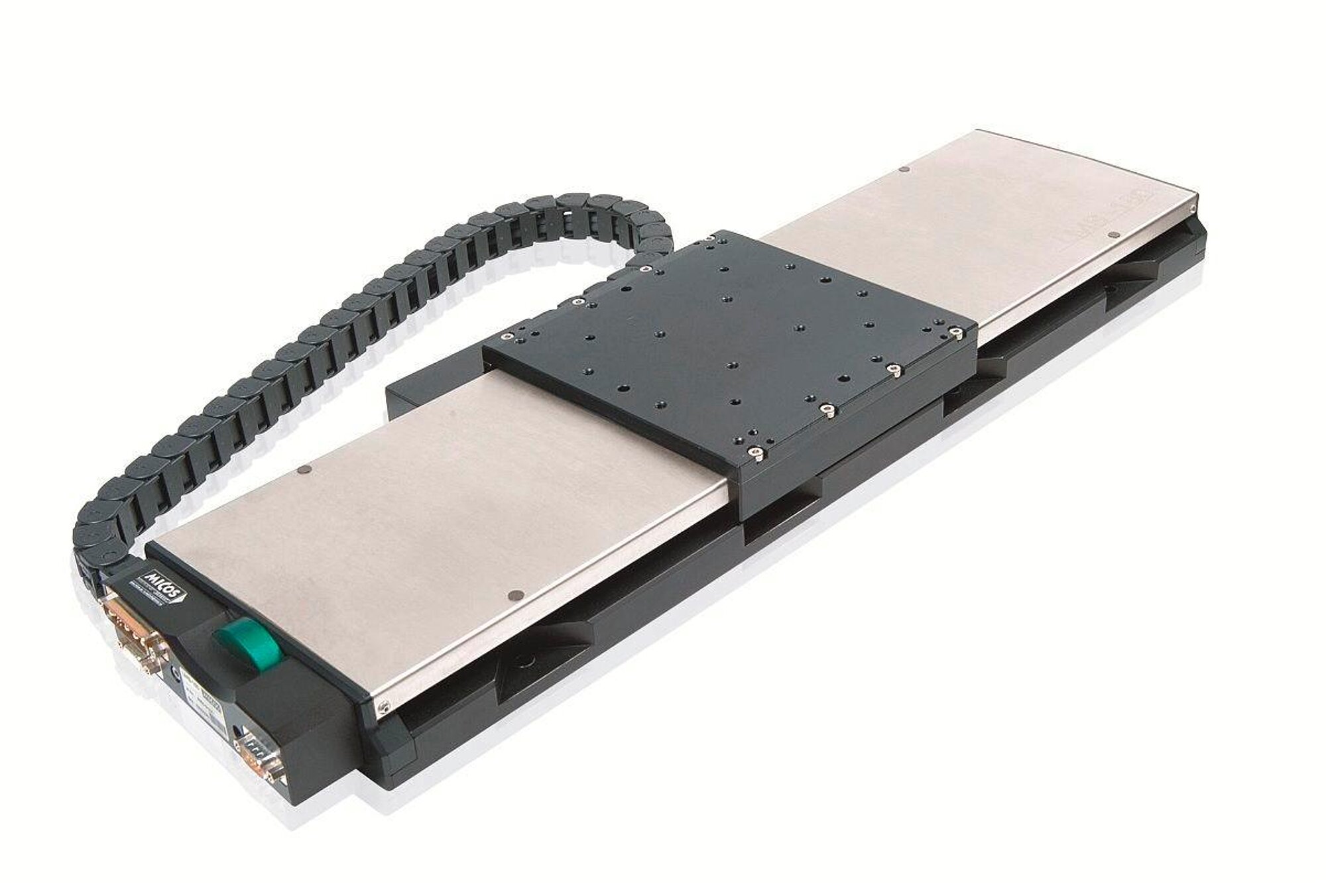

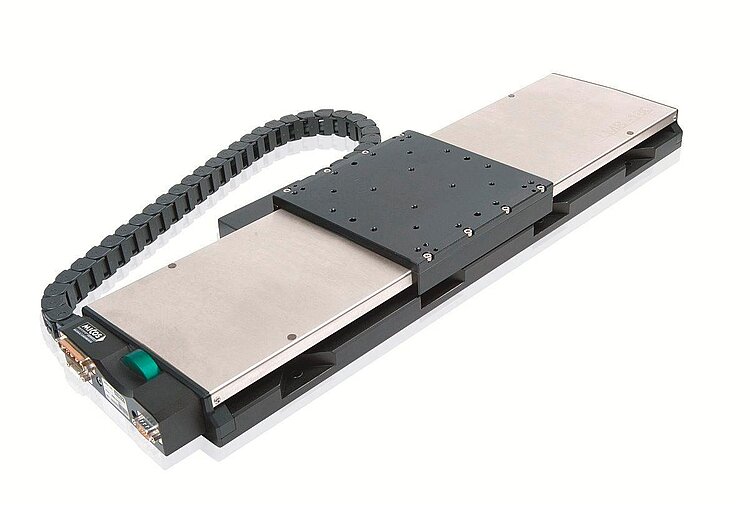

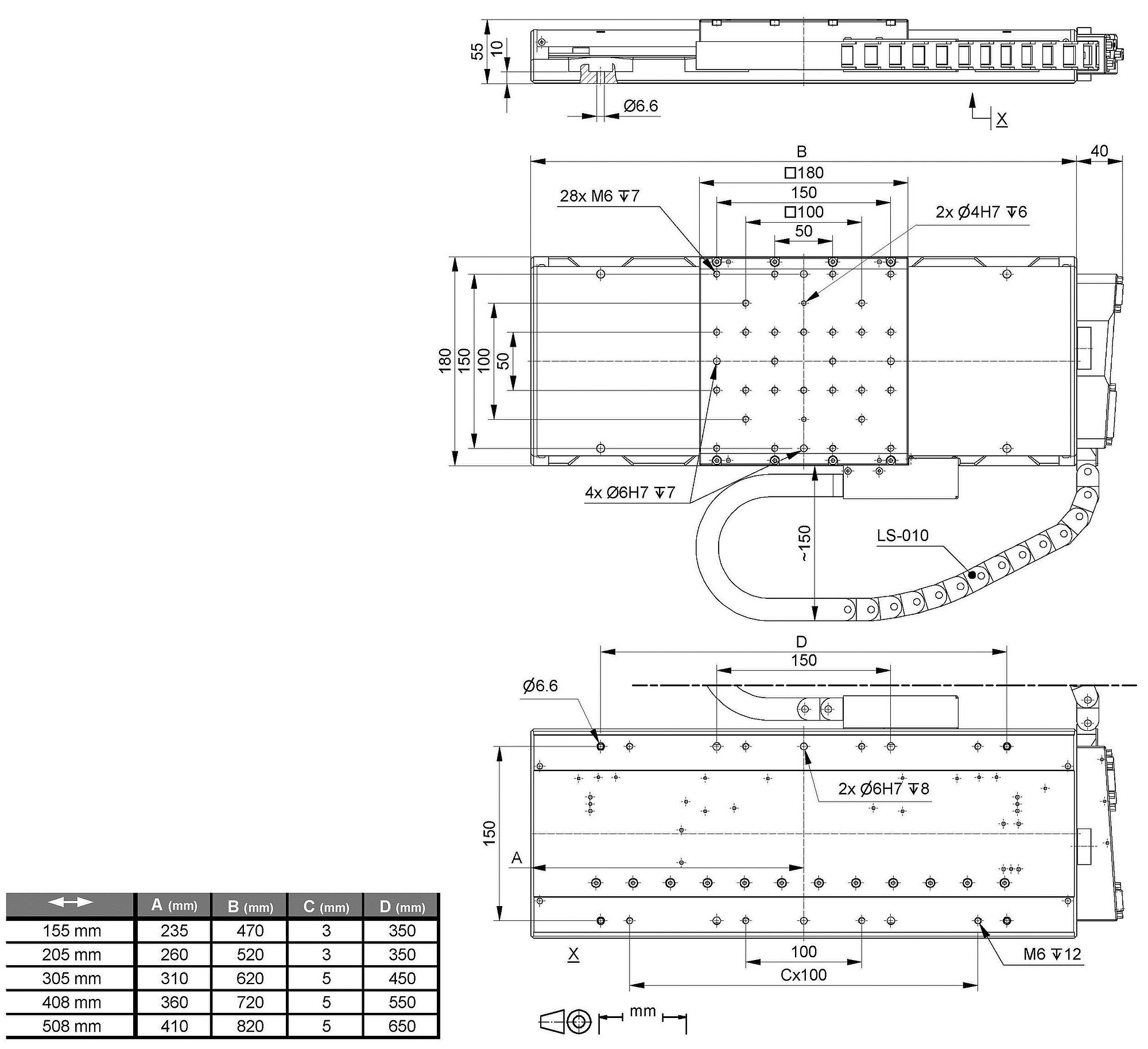

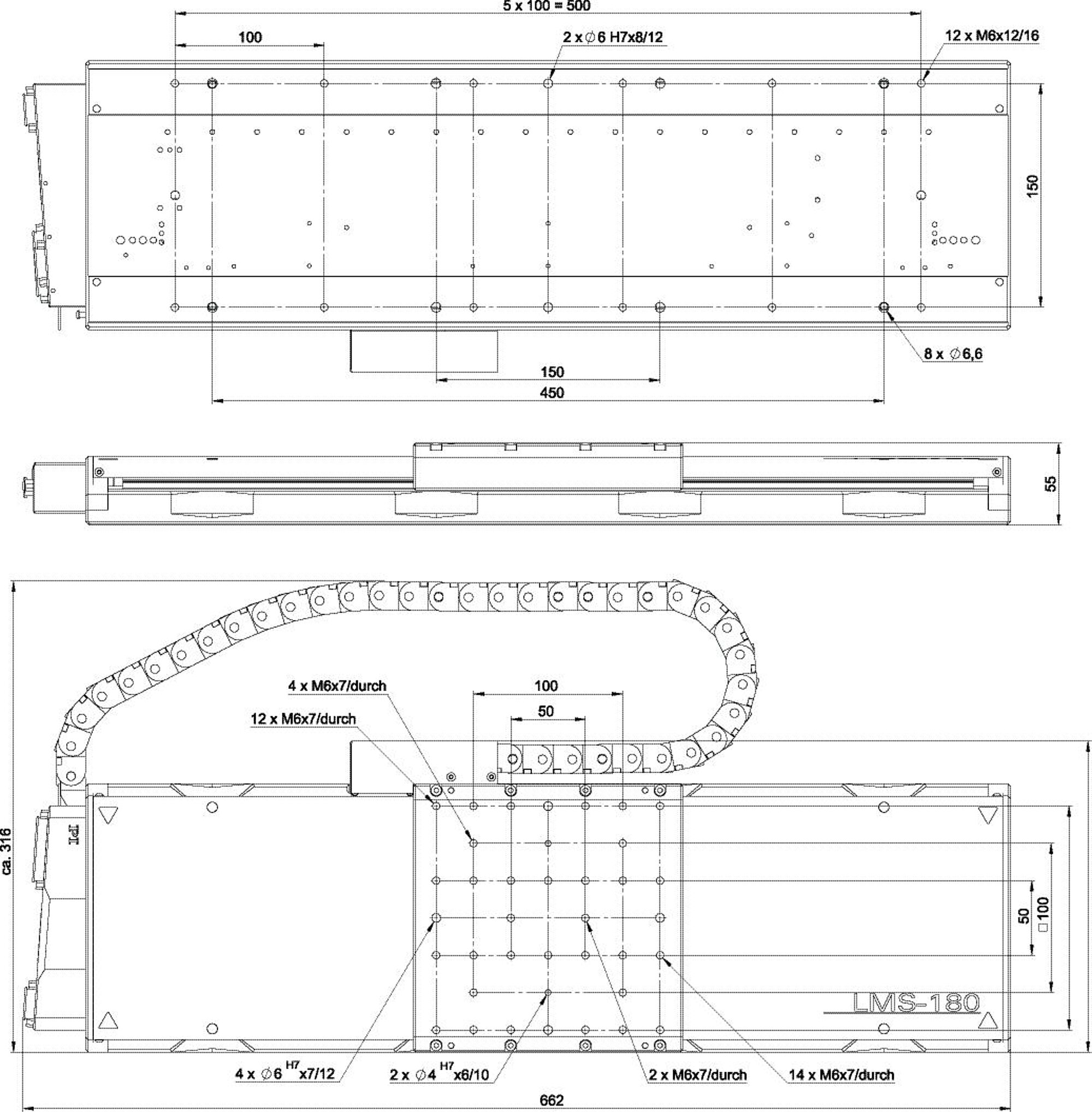

LMS-180 Precision Linear Stage

High Dynamics due to Magnetic Direct Drive, Excellent Travel Accuracy

  • Travel ranges to 508 mm (20")
  • Velocity to 500 mm/s
  • Incremental encoder with 15 nm resolution
LMS-180 Precision Linear Stage
Product Description Specifications Downloads Quote / Order

Reference-class linear stage

High travel accuracy with recirculating ball bearings. Inductive limit switches. High position resolution due to incremental encoder with analog signal transmission (sin/cos, 1 Vpp).

Multi-axis combinations with the directly driven rotation stages of the UPR series.

Versions with DC servo or stepper motors are available with the same footprint.



Magnetic direct drive

Ironless magnetic direct drive for high velocity and acceleration. High position resolution.

Fields of application

Industry and research. Metrology, precision scanning in semiconductor or electronics manufacturing.
