P-611.3 NanoCube® XYZ Piezo System

Compact Multi-Axis Piezo System for Nanopositioning and Fiber Alignment

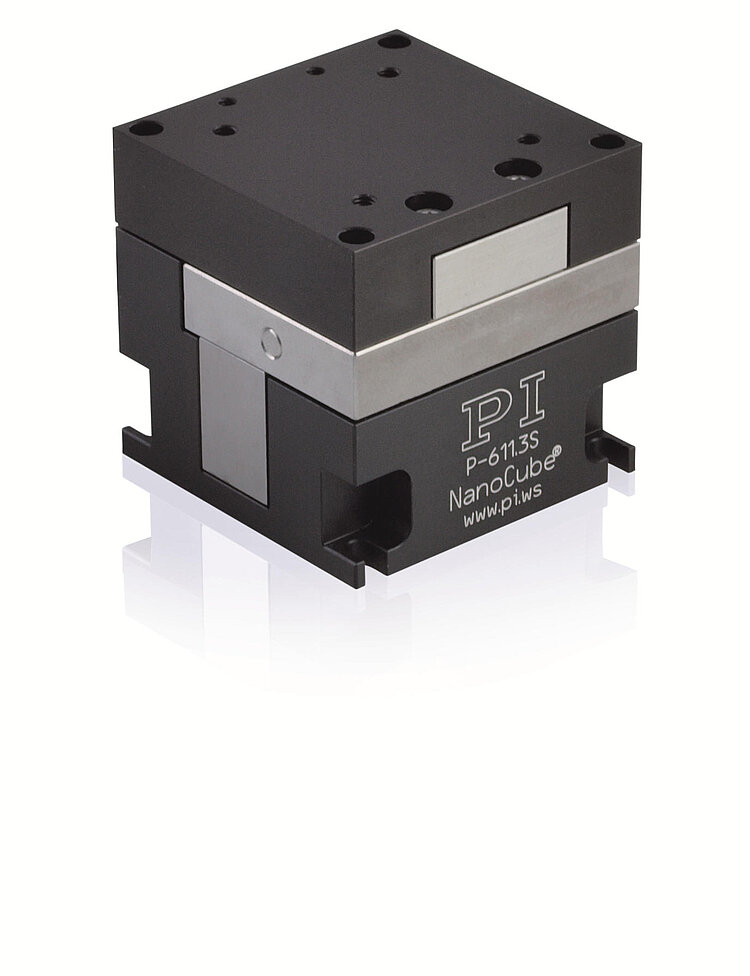

P-611.3 NanoCube® XYZ Piezo System
Product Description Specifications Downloads Quote / Order
  • Travel range to 120 µm × 120 µm × 120 µm
  • Ultracompact: 44 mm × 44 mm × 44 mm
  • Resolution to 0.2 nm
  • Fast response behavior
  • Zero-play, high-precision flexure guide system
  • Outstanding lifetime due to PICMA® piezo actuators
  • For fast scanning
  • Version with integrated fiber holder
  • Particularly inexpensive systems

Fields of application

  • Photonics / integrated optics
  • Micromanipulation
  • Biotechnology
  • Semiconductor tests
  • Fiber positioning

Outstanding lifetime thanks to PICMA® piezo actuators

The patented PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

High guiding accuracy due to zero-play flexure guides

Flexure guides are free of maintenance, friction, and wear, and do not require lubrication. Their stiffness allows high load capacity and they are insensitive to shock and vibration. They are 100 % vacuum compatible and work in a wide temperature range.

Specifications

Datasheet

Datasheet P-611.3

Version / Date
2019-01-18
Version / Date
2019-01-18
Version / Date
2019-01-18
Version / Date
2019-01-18
Document language
pdf - 660 KB
pdf - 668 KB
pdf - 749 KB
pdf - 826 KB

Downloads

Datasheet

Datasheet

Datasheet P-611.3

Version / Date
2019-01-18
Version / Date
2019-01-18
Version / Date
2019-01-18
Version / Date
2019-01-18
Document language
pdf - 660 KB
pdf - 668 KB
pdf - 749 KB
pdf - 826 KB

Documentation

Documentation

User Manual PZ253

P-611 Nanopositioning Systems with Strain Gauge Sensors / without Sensor
Version / Date
1.1.0 2019-03-25
Version / Date
1.1.0 2019-03-25
Document language
Documentation

Technical Note P611T0006

Unpacking and Handling of P-611 Nanopositioning Systems
Version / Date
2018-01-24
Document language English
pdf - 1 MB
Documentation

Short Instructions PZ240

Piezo Positioning Systems: P-5xx / P-6xx / P-7xx
Version / Date
6.1.0 10/2019
Version / Date
6.1.0 10/2019
Document language
pdf - 1 MB
pdf - 1 MB

3-D Models

3-D Models

P-611.3x 3-D model

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
