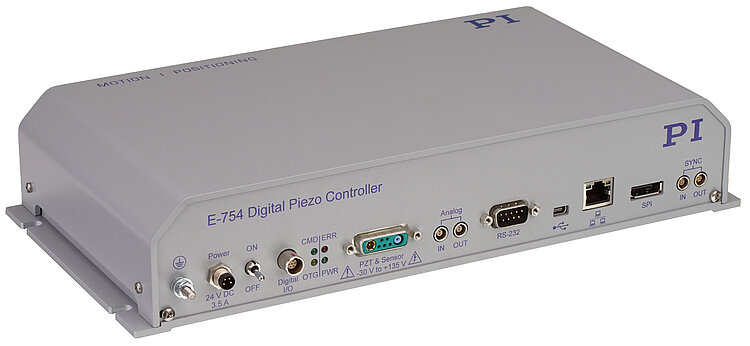

E-754 Digital Piezo Controller

High-Speed, Single-Axis Controller

  • Next generation digital controller provides higher flexibility, accuracy, and speed
  • Autoloading of calibration data from stage ID chip for interchangeability of controller and mechanics
  • Analog inputs and outputs
  • Digital I/O lines for task triggering
  • Extensive software package
  • For nanopositioning systems with capacitive sensors
E-754 Digital Piezo Controller
Product Description Specifications Downloads Quote / Order

Digital linearization for the highest accuracy

Linearization algorithms based on higher-order polynomials reduce the linearity error to less than 0.01 % with capacitive sensors. That is typically 10 times better than conventional controllers.

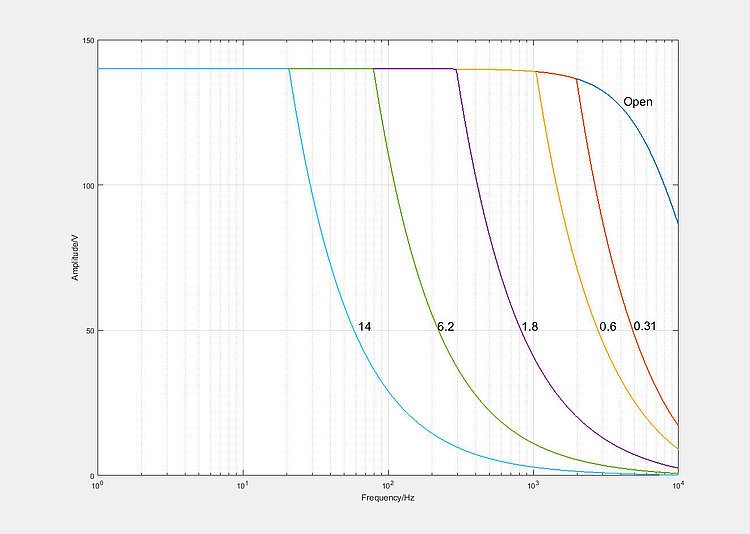

High velocity and bandwidth for dynamic applications

The controller is perfectly suited to high dynamics operation thanks to its high-resolution D/A converter and high-performance voltage amplifier. The high-speed processor with a sensor sampling rate of 50 kHz ensures settling times in the millisecond range and below.

Flexible customization for a variety of applications

The ID chip contains the calibration and servo control parameters of the mechanics for PI nanopositioning systems that are equipped with an ID chip and were calibrated with digital electronics. The controller reads the data "intelligently" to adapt itself automatically to the mechanics connected and therefore renewed calibration is unnecessary after changing system components.

The integrated wave generator can save and output periodic motion profiles. Preconfigured sine and triangle wave profiles are provided to support the user when defining the curve, but any user-defined waveforms are possible.

Extensive functions, software support

Powerful macro command language. Nonvolatile macro storage, e.g., for stand-alone operation with autostart macro. Data recorder. P-I controller, parameter changing during operation. Extensive software support, e.g., for LabVIEW, C, C++, MATLAB, Python. PIMikroMove user software.

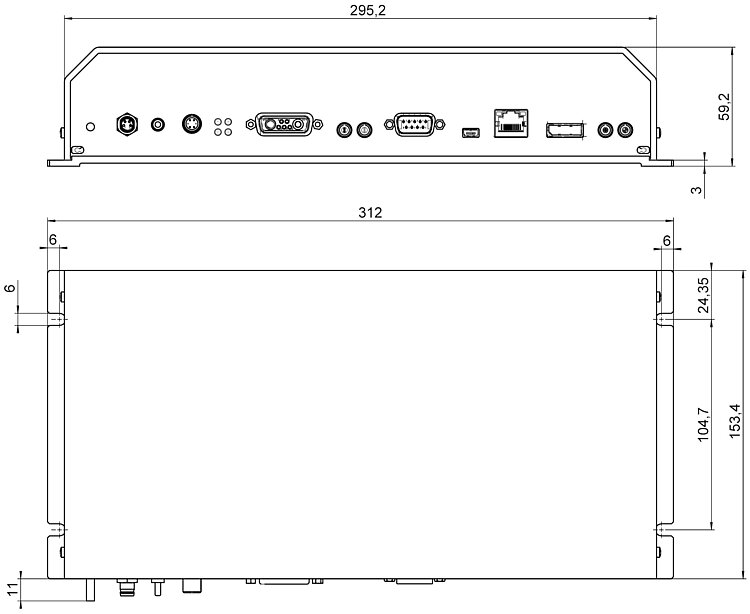

Specifications

Datasheet

Datasheet E-754

Version / Date
2020-10-07
pdf - 677 KB
Version / Date
2020-10-07
pdf - 685 KB
Version / Date
2020-10-07
pdf - 783 KB

Downloads

Datasheet

Datasheet

Datasheet E-754

Version / Date
2020-10-07
pdf - 677 KB
Version / Date
2020-10-07
pdf - 685 KB
Version / Date
2020-10-07
pdf - 783 KB

Documentation

Documentation

Technical Note A000T0074

Guide to Grounding and Shielding

Version / Date
2018-11-22
pdf - 120 KB
Version / Date
2018-11-22
pdf - 125 KB
Documentation

User Manual E754T0001

E-754 High-Speed Single-Axis Digital Piezo Controller

Version / Date
2019-07-01
pdf - 5 MB
English
Documentation

Commands Manual PZ283E

GCS Commands for E-754 High-Speed Single-Axis Digital Piezo Controller

Version / Date
1.1.0 2019-07-01
pdf - 875 KB
English

General Software Documentation

General Software Documentation

Software Manual SM157

PIPython - Programming PI Controllers with Python

Version / Date
2021-08-17
pdf - 866 KB
Version / Date
2021-08-17
pdf - 874 KB
General Software Documentation

Software Manual SM151E

PI GCS2 DLL

Version / Date
2.10.0 2019-08-26
pdf - 1 MB
English
General Software Documentation

Software Manual SM155

PI MATLAB Driver GCS 2.0

Version / Date
1.1.0 2016-02-29
pdf - 1 MB
Version / Date
1.1.0 2016-02-29
pdf - 1 MB
General Software Documentation

Software Manual SM148

PIMikroMove

Version / Date
2.14.0 2020-01-30
pdf - 6 MB
English
General Software Documentation

User Manual A000T0028

Updating PI Software with PIUpdateFinder

Version / Date
2020-05-20
pdf - 482 KB
Version / Date
2020-05-20
pdf - 488 KB
General Software Documentation

Software Manual SM146

GCS Array Data Format

Version / Date
1.2.1
pdf - 153 KB
English
General Software Documentation

Software Manual SM158

PI GCS2 Driver Library for NI LabVIEW

Version / Date
7.0.1 202-03-03
pdf - 3 MB
English

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
