- 20 kHz sampling rate control
- Option for increased output current
- Interfaces: TCP/IP, USB and RS-232
- Optional analog inputs and outputs
- Autoloading of calibration data from stage ID chip for interchangeability of controller and mechanics
- 4th order polynomial linearization for mechanics and electronics

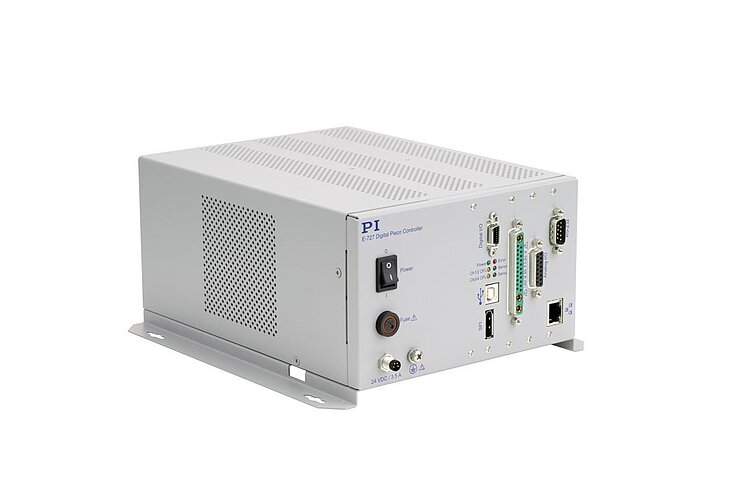

Digital controller for piezo-based nanopositioning systems
Integrated low-noise power amplifiers for PICMA® piezo actuators. Output voltage -30 to +130 V. Supports nanopositioning systems with strain gauge sensors, capacitive sensors or piezoresistive sensors. P-I controller with 2 notch filters. Linearization based on 4th-order polynomials. Optional Dynamic Digital Linearization (DDL). Delivery includes wide input range power supply, USB and RS-232 cable.

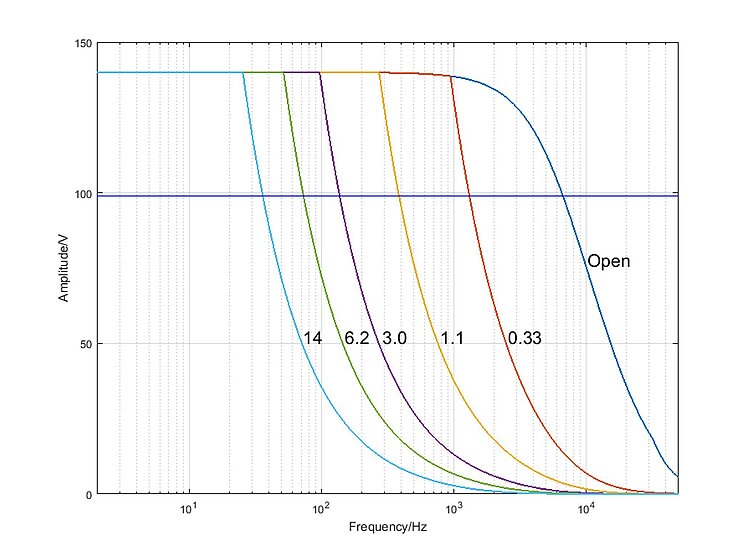

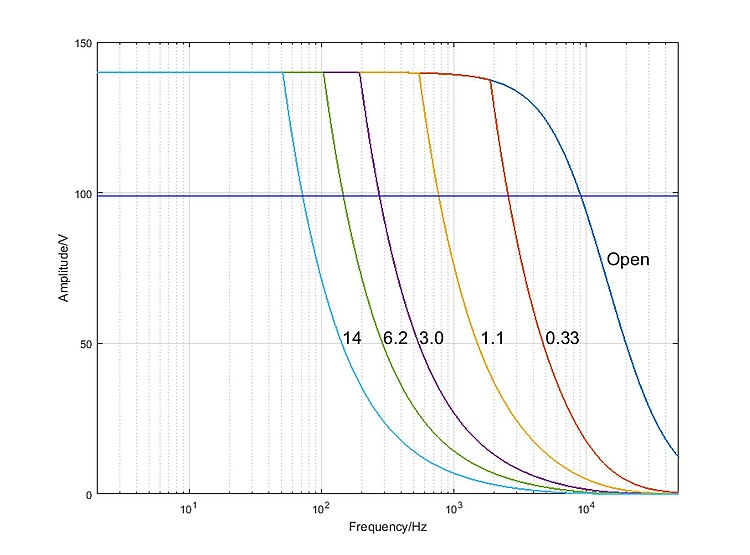

Increased output current (optional) for dynamic applications that require a high peak current.
ID chip for fast startup and quick exchange of system components. Data recorder, wave generator, macros. Extensive software support, e.g., for NI LabVIEW, dynamic libraries for Windows and Linux.
TCP/IP, USB, RS-232, SPI. 4 analog inputs and outputs each (optional) for external sensors, target values or external amplifiers. 4 digital inputs and outputs respectively.
