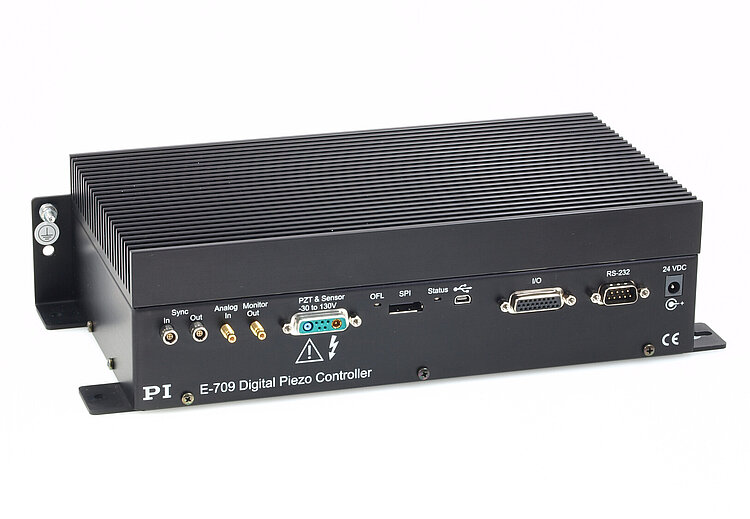

E-709.CHG Digital 1-Channel Piezo Controller

High Output Power for Dynamic Operation, Capacitive Sensors

  • Output power up to 50 W
  • Linearity error maximum of 0.02 %
  • Fast 25 Mbit/s serial interface
  • Comprehensive I/O functions
  • Extensive software package
E-709.CHG Digital 1-Channel Piezo Controller
Product Description Specifications Downloads Quote / Order

Fast piezo controller

1 channel. For piezo-based nanopositioning systems with capacitive sensors. High output current for dynamic applications. Digital controller. Voltage range -30 to 130 V.

Interfaces

USB, RS-232, fast serial interface with up to 25 MBit/s. Additional high-bandwidth analog control input / sensor input. Analog output, e.g., for external amplifiers.

User software and functions

PIMikroMove, PI General Command Set (GCS). Drivers for NI LabVIEW, shared libraries for Windows and Linux. Compatible with µManager, MetaMorph, MATLAB. Wave generator. Linearization. Data recorder. Autozero. Trigger I/O. Software-configurable parameters.

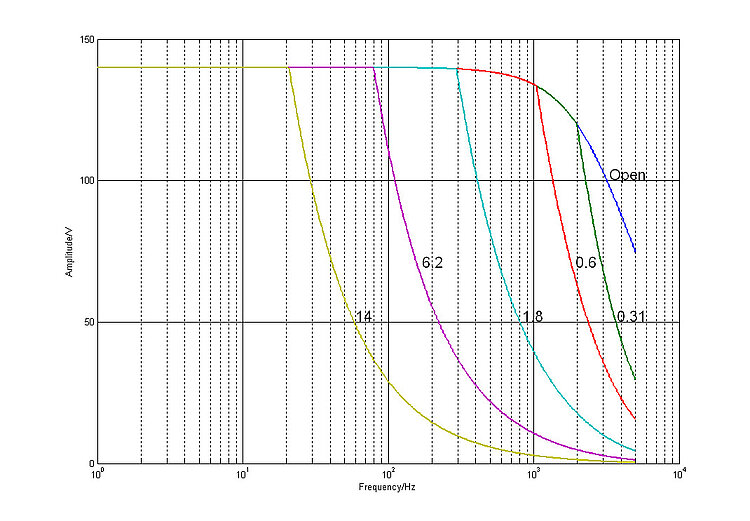

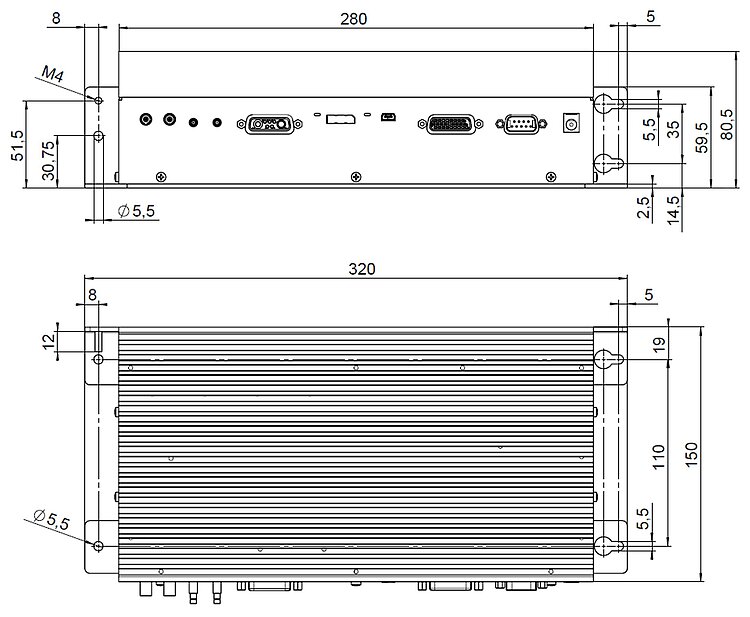

Specifications

Datasheet

Datasheet E-709.CHG

Version / Date
2020-10-07
pdf - 783 KB
Version / Date
2020-10-07
pdf - 785 KB
Version / Date
2020-10-07
pdf - 860 KB
Version / Date
2019-07-18
pdf - 908 KB

Downloads

Datasheet

Datasheet

Datasheet E-709.CHG

Version / Date
2020-10-07
pdf - 783 KB
Version / Date
2020-10-07
pdf - 785 KB
Version / Date
2020-10-07
pdf - 860 KB
Version / Date
2019-07-18
pdf - 908 KB

Documentation

Documentation

Short Instructions PZ289

Digital Piezo Controllers E-709.xxG / E-727 / E-754

Version / Date
2.0.0 06/2020
pdf - 2 MB
Version / Date
2.0.0 06/2020
pdf - 2 MB
Documentation

User Manual PZ222

E-709 Digital Piezo Controller, 1 Channel, -30 to 130 V

Version / Date
1.2.0 2019-01-31
pdf - 4 MB
English
Documentation

User Manual E709T0002

SPI Interface Description

Version / Date
2020-09-02
pdf - 707 KB
English
Documentation

Technical Note A000T0074

Guide to Grounding and Shielding

Version / Date
2018-11-22
pdf - 120 KB
Version / Date
2018-11-22
pdf - 125 KB

General Software Documentation

General Software Documentation

User Manual A000T0028

Updating PI Software with PIUpdateFinder

Version / Date
2020-05-20
pdf - 482 KB
Version / Date
2020-05-20
pdf - 488 KB
General Software Documentation

Software Manual SM146

GCS Array Data Format

Version / Date
1.2.1
pdf - 153 KB
English
General Software Documentation

Software Manual SM148

PIMikroMove

Version / Date
2.14.0 2020-01-30
pdf - 6 MB
English
General Software Documentation

Software Manual SM151E

PI GCS2 DLL

Version / Date
2.10.0 2019-08-26
pdf - 1 MB
English
General Software Documentation

Software Manual SM155

PI MATLAB Driver GCS 2.0

Version / Date
1.1.0 2016-02-29
pdf - 1 MB
Version / Date
1.1.0 2016-02-29
pdf - 1 MB
General Software Documentation

Software Manual SM158

PI GCS2 Driver Library for NI LabVIEW

Version / Date
7.0.1 202-03-03
pdf - 3 MB
English

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
