P-601.10
PiezoMove OEM lever-amplified actuator, 100 µm, open loop

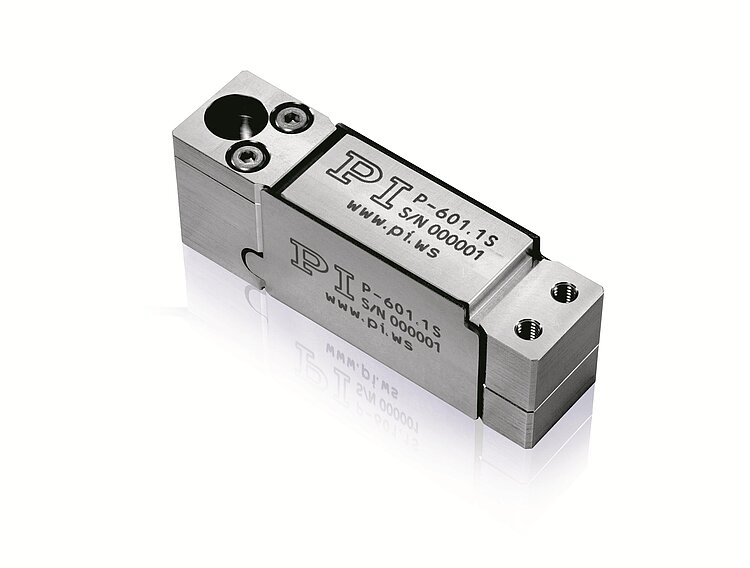

P-601 PiezoMove Linear Actuator with Guides
With Optional Position Sensor
- Flexure guides for linear motion with minimum tip and tilt
- Travel ranges to 400 µm
- Resolution to 0.2 nm
- Available with integrated position sensors
- Outstanding lifetime due to PICMA® piezo actuators
- Ideal for OEM applications in optics, medical technology, biotechnology, and microfluidics
- Customized versions with longer travel range, shorter response time or nonmagnetic

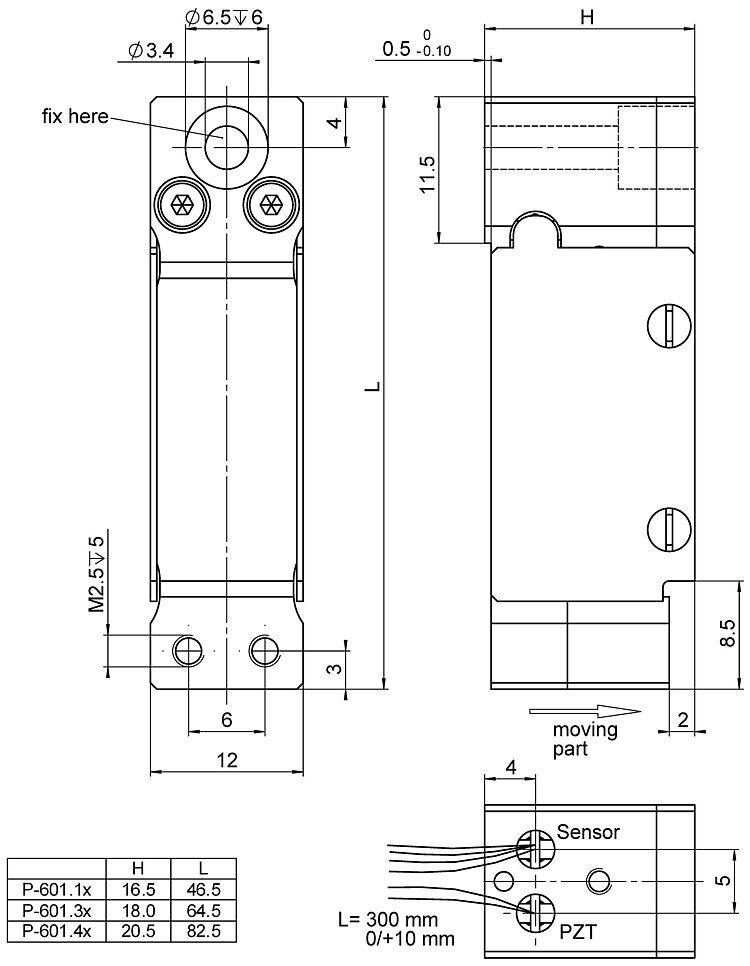

P-601, dimensions in mm

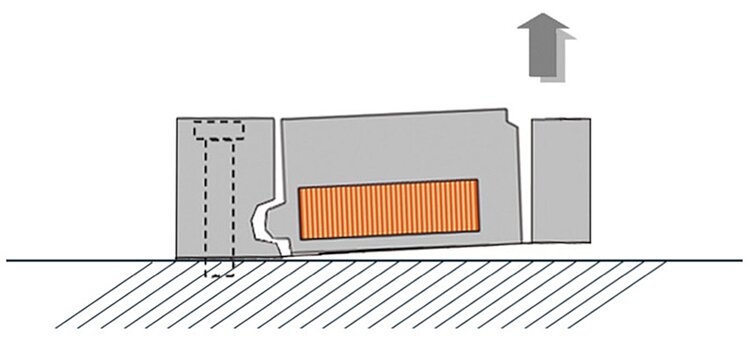

Direction of motion of the P-601. The flexure guides prevent tilt at the output.
P-601 PiezoMove Linear Actuator with Guides
Product Description
Specifications
Downloads
Quote / Order
Application fields
- Nanopositioning
- High-speed switching
- Patch clamp
- Microdispensing
- Adaptive systems technology / automation
- Photonics / integrated optics
- Biotechnology
Outstanding lifetime thanks to PICMA® piezo actuators
The patented PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.
High guiding accuracy due to zero-play flexure guides
Flexure guides are free of maintenance, friction, and wear, and do not require lubrication. Their stiffness allows high load capacity and they are insensitive to shock and vibration. They are 100 % vacuum compatible and work in a wide temperature range.
Specifications
Specifications
P-601.1S P-601.1SL | P-601.3S P-601.3SL | P-601.4S P-601.4SL | P-601.x0 P-601.x0L Open-loop versions | Unit | Tolerance | |
|---|---|---|---|---|---|---|
Active axes | Z | Z | Z | Z | ||
Motion and positioning | ||||||
Integrated sensor | SGS | SGS | SGS | – | ||
Travel range at -20 to 120 V, open loop | 100 | 250 | 400 | as P-601.xS | µm | +20 % / -0 % |
Travel range, closed loop | 100 | 250 | 400 | – | µm | calibrated |
Resolution, open loop | 0.2 | 0.3 | 0.4 | as P-601.xS | nm | typ. |
Resolution, closed loop | 2 | 6 | 12 | – | nm | typ. |
Linearity error, closed loop | 0.1 | 0.3 | 0.3 | – | % | typ. |
Repeatability | 8 | 10 | 30 | – | nm | typ. |
Mechanical properties | ||||||
Stiffness in motion direction | 0.8 | 0.38 | 0.28 | as P-601.xS | N/µm | ±20 % |
Resonant frequency, no load | 750 | 440 | 350 | as P-601.xS | Hz | ±20 % |
Resonant frequency, under load, 30 g | 620 | 350 | 290 | as P-601.xS | Hz | ±20 % |
Push/pull force capacity in motion direction | 30 / 10 | 20 / 10 | 15 / 10 | as P-601.xS | N | max. |
Lateral force | 30 | 30 | 30 | as P-601.xS | N | max. |
Drive properties | ||||||
Ceramic type | PICMA® P-885 | PICMA® P-885 | PICMA® P-885 | as P-601.xS | ||
Electrical capacitance | 1.5 | 3.1 | 4.6 | as P-601.xS | µF | ±20 % |
Miscellaneous | ||||||
Operating temperature range | -20 to 80 | -20 to 80 | -20 to 80 | -20 to 80 | °C | |
Material | Stainless steel | Stainless steel | Stainless steel | Stainless steel | ||
Mass (without connector) | 0.05 | 0.08 | 0.11 | as P-601.xS | kg | ±5 % |
Cable length | S versions: 0.3 m SL versions: 1.5 m | S versions: 0.3 m SL versions: 1.5 m | S versions: 0.3 m SL versions: 1.5 m | 0.3 m | ±10 mm | |
Sensor/voltage connection | S versions: Wire leads SL versions: LEMO | S versions: Wire leads SL versions: LEMO | S versions: Wire leads SL versions: LEMO | x0 versions: Bare stranded wires x0L versions: LEMO | ||
Recommended electronics | E-610, E-625, E-831 | E-610, E-625, E-831 | E-610, E-625, E-831 | E-610, E-625, E-831 |
The resolution of the system is only limited by the noise of the amplifier and measuring technology because PI piezo actuators are free of friction.
All specifications based on room temperature (22 °C ±3 °C).
Downloads
Product Note
Product Note
Product Change Notification Piezo Actuator Driven Products
Version / Date
2021-04-19
pdf - 377 KB
English
Datasheet
Documentation
3-D Models
3-D Models
P-601 3-D model
zip - 588 KB
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
P-601.10L
PiezoMove OEM lever-amplified actuator, 100 µm, open loop, LEMO connectors
P-601.1S
PiezoMove OEM lever-amplified actuator, 100 µm, strain gauge sensor
P-601.1SL
PiezoMove OEM lever-amplified actuator, 100 µm, strain gauge sensor, LEMO connectors
P-601.30
PiezoMove OEM lever-amplified actuator, 250 µm, open loop
P-601.30L
PiezoMove OEM lever-amplified actuator, 250 µm, open loop, LEMO connectors
P-601.3S
PiezoMove OEM lever-amplified actuator, 250 µm, strain gauge sensor
P-601.3SL
PiezoMove OEM lever-amplified actuator, 250 µm, strain gauge sensor, LEMO connectors
P-601.40
PiezoMove OEM lever-amplified actuator, 400 µm, open loop
P-601.40L
PiezoMove OEM lever-amplified actuator, 400 µm, open loop, LEMO connectors
P-601.4S
PiezoMove OEM lever-amplified actuator, 400 µm, strain gauge sensor
P-601.4SL
PiezoMove OEM lever-amplified actuator, 400 µm, strain gauge sensor, LEMO connectors
Questions? - Ask a PI Engineer
Compatible Electronics
Compatible Accessories
Related Products
Technology
PICMA® Technology
Highly reliable and extended lifetime through the patented manufacturing process for multilayer actuators.
Flexure Guiding Systems
Flexure guides from PI have proven their worth in nanopositioning. They guide the piezo actuator and ensure a straight motion without tilting or lateral offset.
