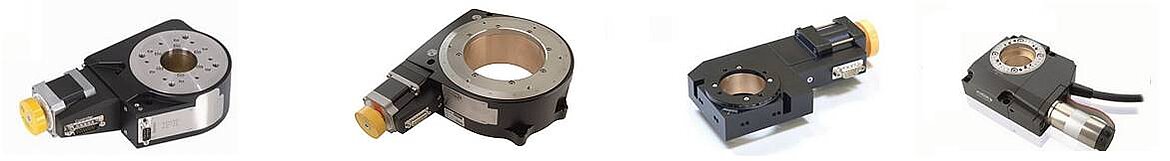

Precision Rotation Stages with Stepper Motors and Closed-Loop Servo Motors / Worm Gear Precision Rotary Stages

High Angular Resolution, Continuous Rotation, High Holding Force, Self-Braking

Motorized worm gear driven rotary tables provide high angular resolution (the worm gear ratio directly multiplies the motor output torque and motor angle resolution) and holding torque. PI offers precision motorized worm gear rotary tables with both stepper motors and closed-loop servo motors with encoder feedback. While open-loop stepper motors are often used for their lower cost and ease of control, closed loop servo motors with encoder feedback provide higher speed, higher accuracy, and repeatability. PI also provides closed-loop stepper motor rotary stages, combining the best of both worlds. PI stepper motor rotation stages are provided with stepper motor controllers featuring a micro stepping mode for higher performance. For single axis applications, a compact and very cost effective single axis stepper motor controller is available.

For the best performance and highest velocity, direct-drive rotary stages with torque motors are recommended (link to new Rotary Stage Page with Direct Drive Torque Motors).

Compact Stepper Motor Rotation Stages and Closed-Loop Servo Motor Rotation Stages with Worm Gears

DT-34 Small Rotation Stage
Show more
DT-34 Small Rotation Stage
Worm Gear, Servo & Stepper
  • 10mm aperture, 20mm turn table
  • 700µrad min. inc. motion
  • 195-675°/sec max. velocity
  • 1.5kg load
RS-40 Small Rotation Stage
Show more
RS-40 Small Rotation Stage
Worm Gear, Servo & Stepper
  • 20mm aperture, 34mm turn table
  • 87µrad min. inc. motion
  • 7°/sec max. velocity
  • 2kg load
DT-80 Small Rotation Stage
Show more
DT-80 Small Rotation Stage
Worm Gear, Servo & Stepper
  • 40mm aperture, 64mm turn table
  • 70µrad min. inc. motion
  • 40°/sec max. velocity
  • 2kg load

Medium and Large Precision Rotation Stages with Stepper Motors and Closed-Loop Servo Motors and Worm Gears

L-611 Precision Rotary Stage
Show more
L-611 Precision Rotary Stage
Worm Gear, Servo / Stepper
  • 35mm aperture, 80mm turn table
  • 0.7µrad min. inc. motion
  • 50-200°/sec max. velocity
  • 10kg load
  • Direct encoder option
PRS-200 Precision Rotary Stage
Show more
PRS-200 Precision Rotary Stage
Worm Gear, Servo / Stepper
  • 120mm aperture, 200mm turn table
  • 0.5 – 8.7µrad min. inc. motion
  • 35-75°/sec max. velocity
  • 50kg load
  • Direct encoder option
M-060/1/2 Precision Rotary Stage
Show more
M-060/1/2 Precision Rotary Stage
Worm Gear, Servo / Stepper
  • 20/35/45mm aperture, 60/100/120mm turn table
  • 5 – 32µrad min. inc. motion
  • 7.5-90°/sec max. velocity
  • 50kg load
  • Rotary encoder
