M-038 Rotation Stages with Worm Gear Drive

  • Ultra-High Resolution
  • Continuous Rotation Range
  • New: M-038.PD with Novel Active Drive Concept
  • Preloaded Worm Drive for Zero Backlash
  • DC Motor, Stepper Motor and Manual Versions
  • 30 mm ø Clear Aperture



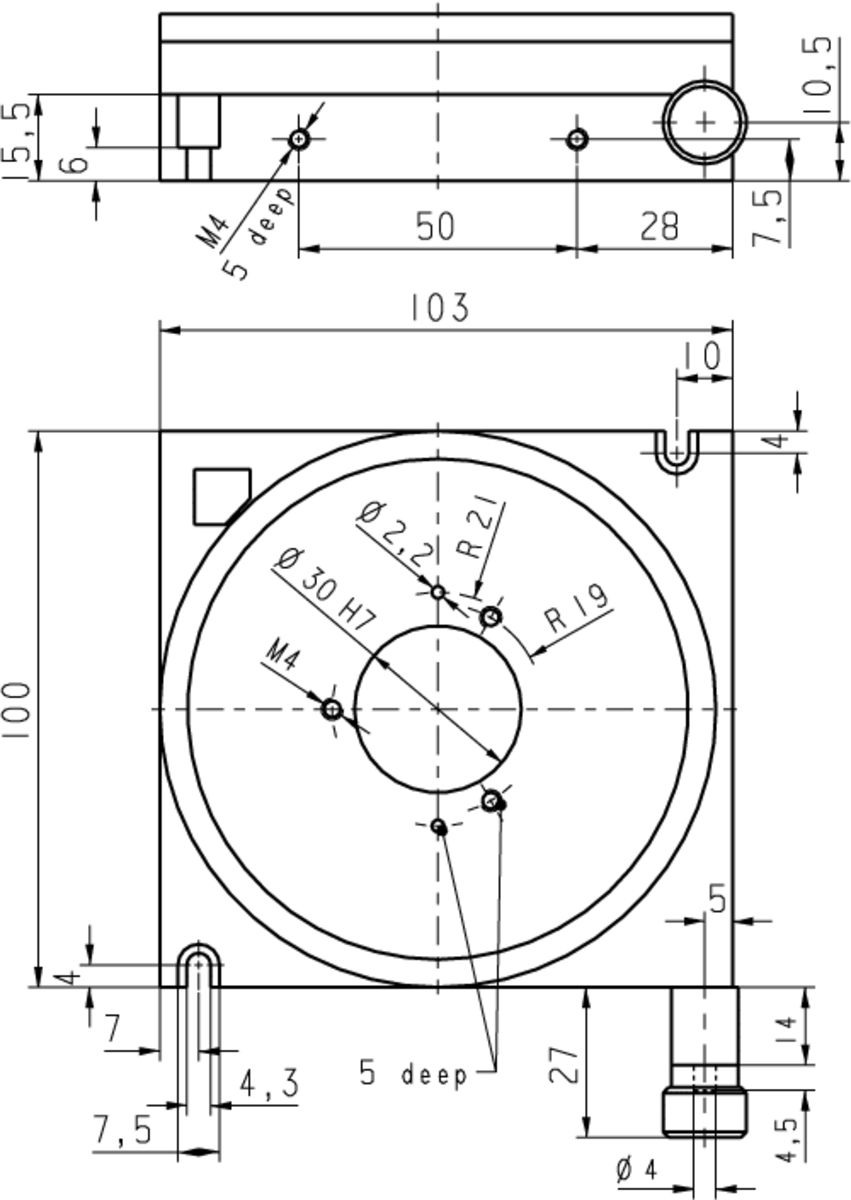

M-038 rotation stages are equipped with worm wheel drives providing continuous rotation in both directions. An integrated spring preload eliminates backlash. The worm gear ratio is 180:1, corresponding to a turntable rotation of 2 ° per revolution of the drive shaft. Coarse position can be read from an adjustable scale ring on the outer edge of the turntable graduated in 2 degree increments and a drive shaft mounted indicator with 0.1 degree graduations. DC motor and stepper motor drives are available.

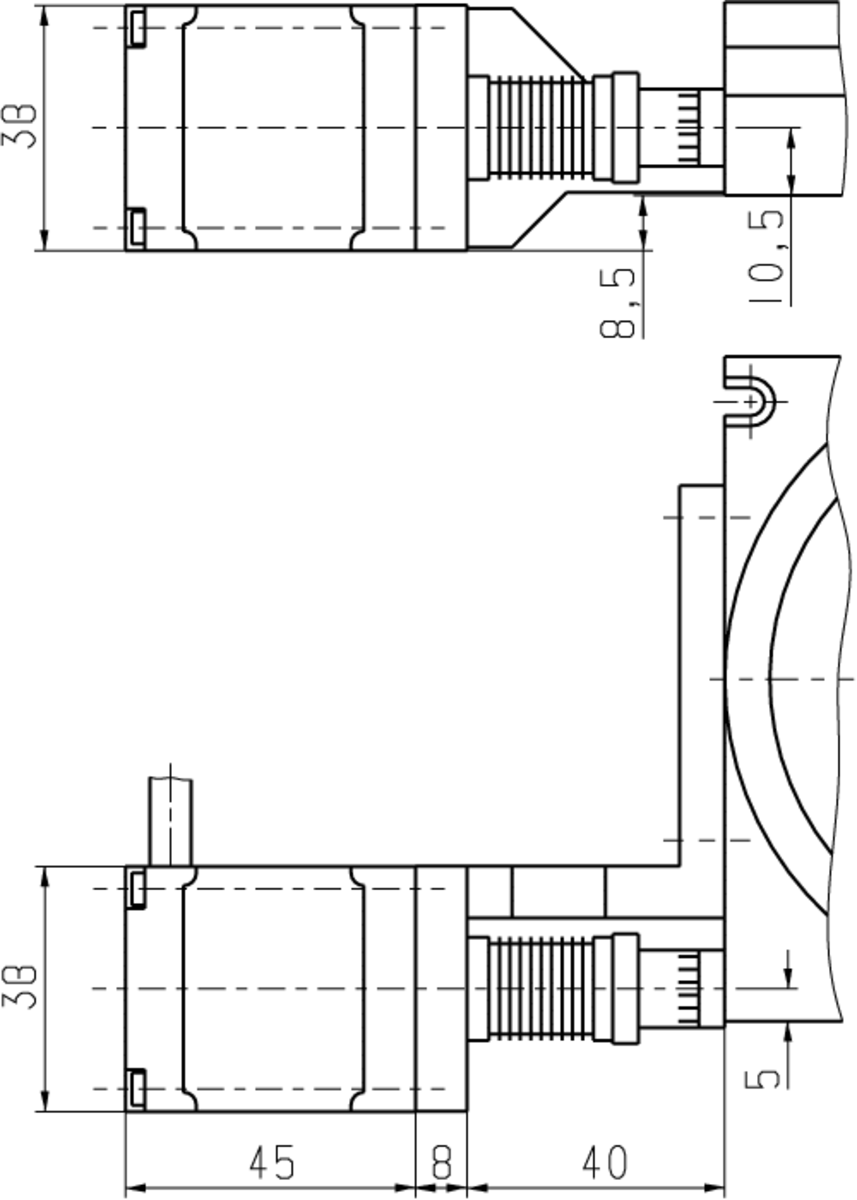

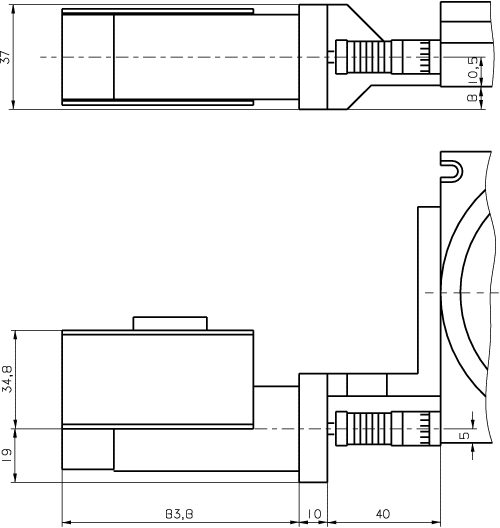

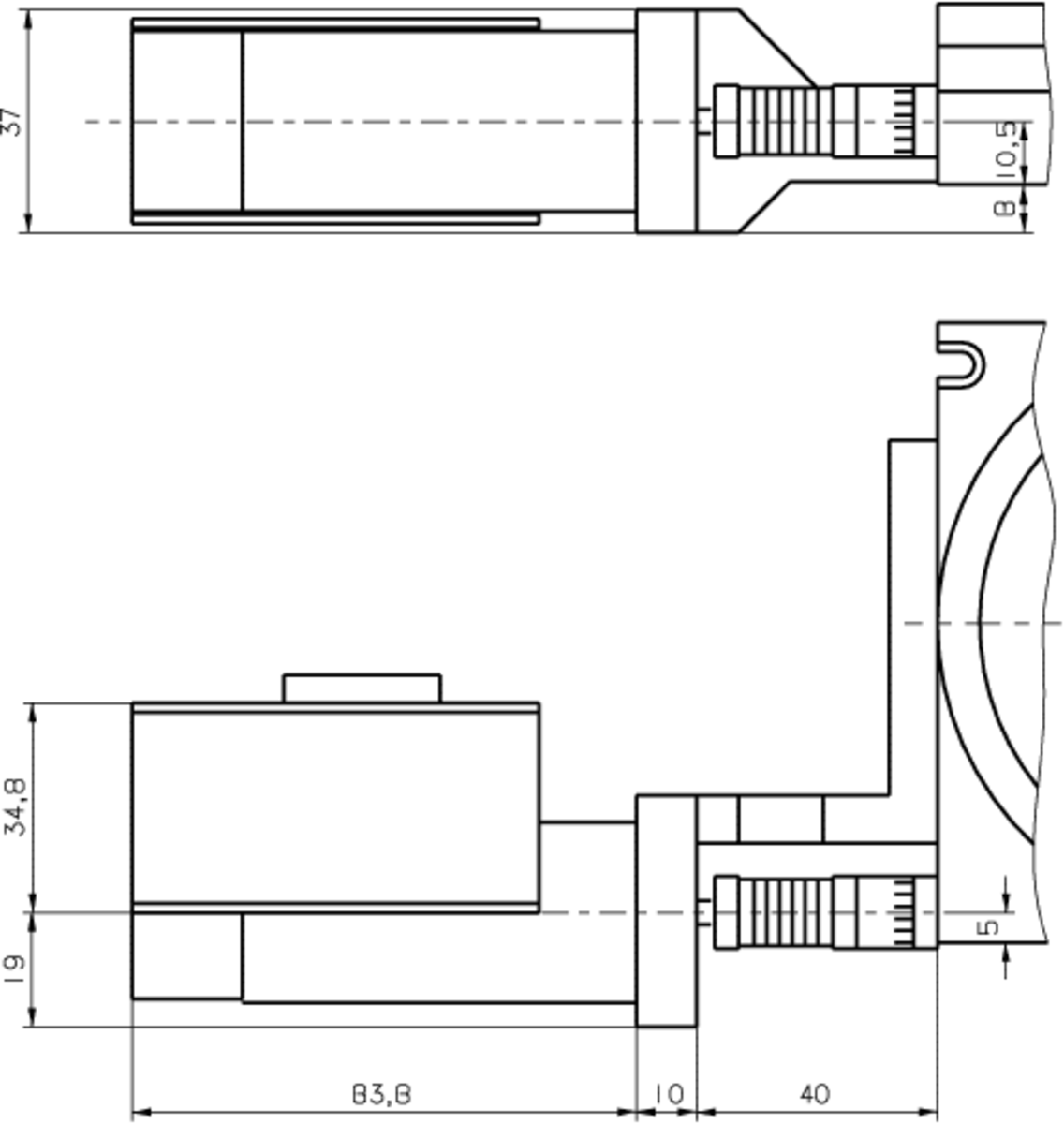

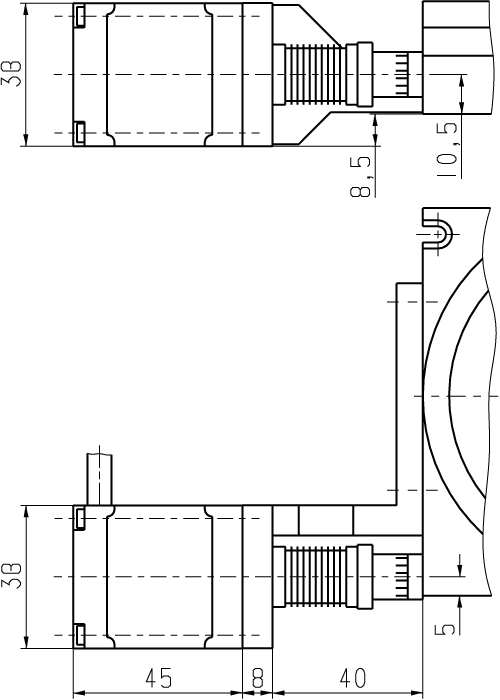

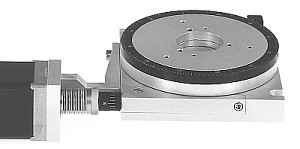

M-038.DG features a 3 Watt DC motor with 29.6:1 backlash free gearhead and a 2000 counts/ revolution encoder, mounted on the motor shaft. M-038.5S is equipped with a 5 phase stepper motor providing 2000 half-steps/ revolution.

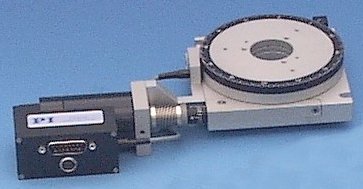

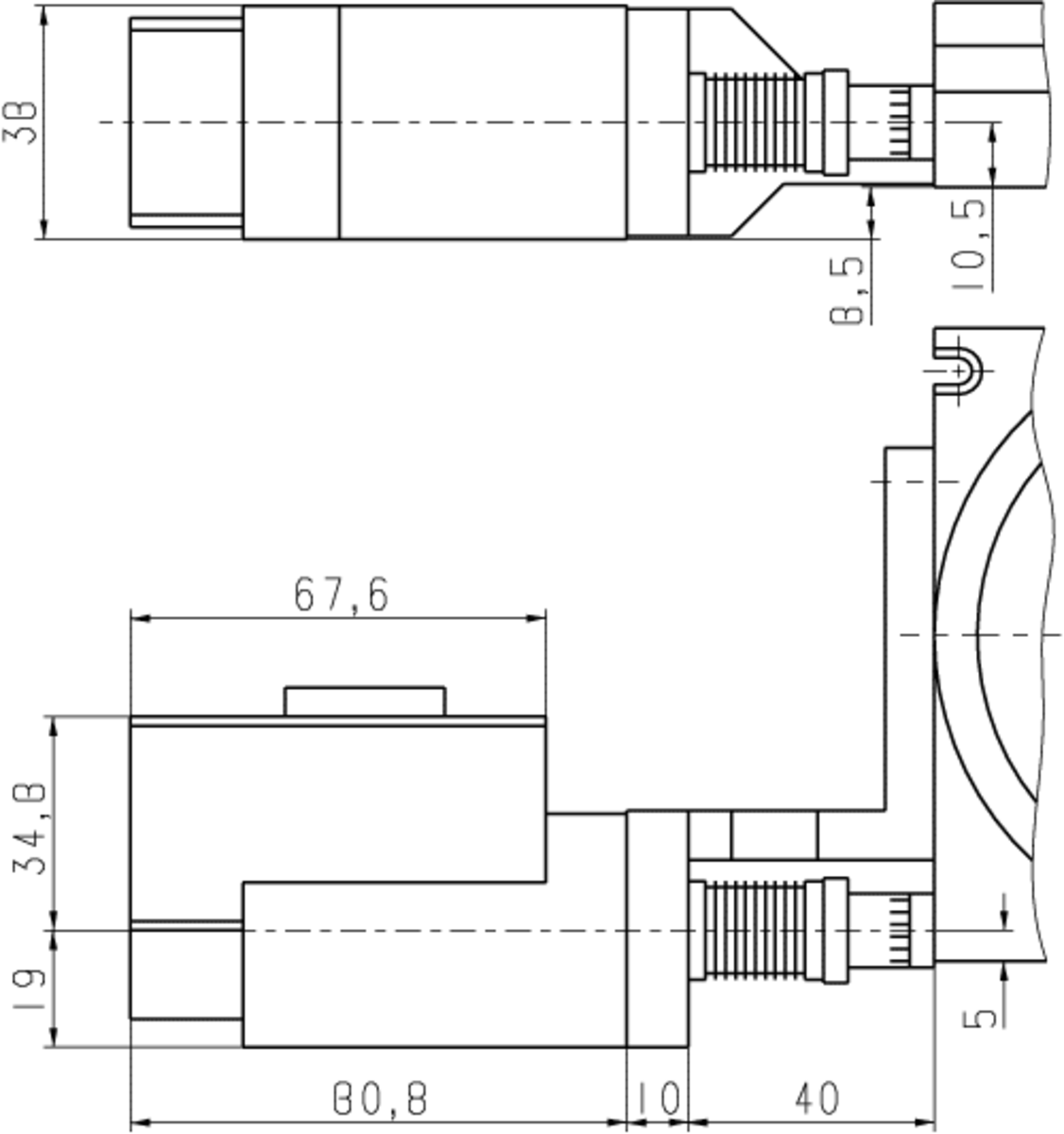

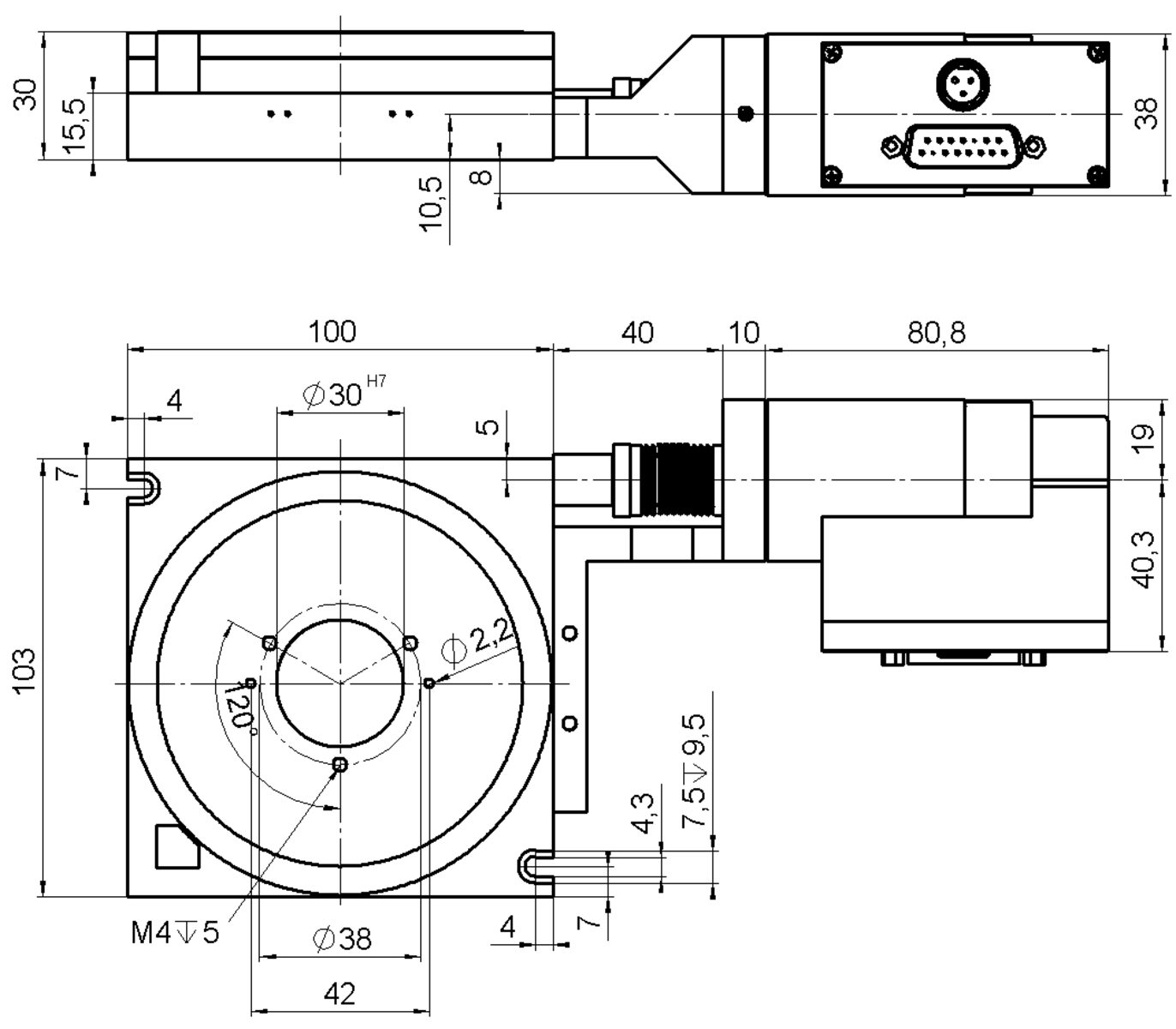

The top model, M-038.PD, is equipped with a 30 Watt Active Drive DC motor providing 9 µrad minimum incremental motion and velocity to 90 deg/sec. The novel Active Drive concept features an integrated, high efficiency power amplifier and reduces overall system cost, because the stage can be driven directly from a PC-motor controller card (e.g. C-842).



ORDERING INFORMATION:
M-038.00 Rotation Stage, ø 100 mm, > 360°, Manual Drive
M-038.DG Rotation Stage, ø 100 mm, > 360°, Closed Loop DC Motor/ Gearhead Drive
M-038.PG Rotation Stage, ø 100 mm, > 360°, Closed Loop Active DC Motor/ Gearhead Drive*
M-038.PD Rotation Stage, ø 100 mm, > 360°, Closed Loop Active Drive DC Motor Drive*
M-038.5S Rotation Stage, ø 100 mm, > 360°, 5 Phase Stepper Motor Drive
* Includes 24 V Power Supply for Integrated Power Amplifier

TECHNICAL DATA:

Models

M-038.00

M-038.DG

M-038.PD

M-038.5S

Units

<link>Notes

Rotation range

Continuous

continuous

continuous

continuous



Design resolution

-

0.59 (34 x 10-6)

8.75 (0.0005)

17.5 (0.001)

µrad (deg)

A3

Min. incremental motion

-

5

8.75

17.5

µrad

A4

Unidirectional repeatability

-

20

20

20

µrad



Backlash

-

200

200

200

µrad



Max. velocity

-

6

90

10

deg/sec



Wobble

< 75

< 75

< 75

< 75

µrad



Maximum axial force

± 400

± 400

± 400

± 400

N



Maximum torque (q X, q Y)

± 6000

± 6000

± 6000

± 6000

mNm



Maximum torque CW**

2000

2000

2000

2000

mNm



Maximum torque CCW**

800

800

800

800

mNm



Encoder resolution

-

2000

4000

-

counts/rev.



Gear ratio

-

(28/12)4 :1 » 29.6:1

-

-



Worm Gear ratio

180:1

180:1

180:1

180:1



Nominal motor power

-

3

30

- *

W



Motor voltage range

-

0 to ± 12

0 to ± 24

24 *

V



Weight

0.9

1.25

1.35

1.25

kg



Material

Al

Al

Al

Al



L

Recommended motor controller

-

C-842, C-844

C-842, C-844



D2



* 24 V chopper voltage, 0.5 A / phase, 8 ohms / phase
** CW: clockwise; CCW: counter-clockwise

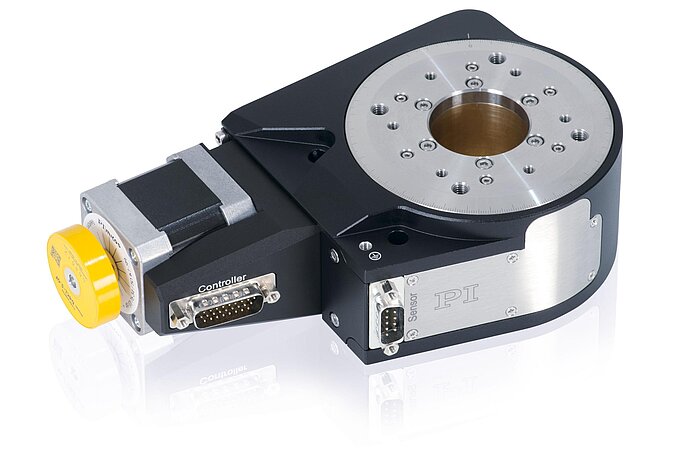

Related Products and Additional Resources
