M-228 • M-229 High-Resolution Linear Actuator with Stepper Motor

Compact and Particularly Inexpensive

  • Travel ranges 10 and 25 mm
  • High load capacity 80 N
  • Resolution 0.36 nm with gearhead version
  • Velocity to 4 mm/s
  • Direct drive versions include handwheel
  • Noncontact limit and reference switches
M-228 • M-229 High-Resolution Linear Actuator with Stepper Motor
Product Description Specifications Downloads Quote / Order

Compact standard-class linear drive

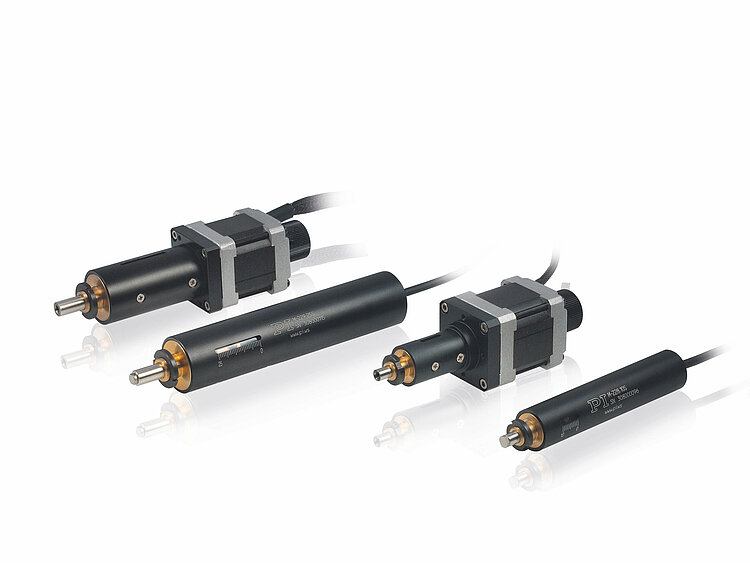

Stepper mike with 2-phase stepper motor as powerful direct drive, or slim design version with gearhead motors.

High-quality components

Nonrotating tip for uniform motion prevents wobble, torque, and wear at the point of contact. Noncontact limit switches protect the mechanics. A direction-sensing reference switch supports automation applications. Integrated position indicator. Versions with direct drive include handwheel for manual adjustment.

Inexpensive system solution

In conjunction with the networkable C-663.12 Mercury Step single-channel controller, the linear actuators offer good performance at an economically attractive system price for single-axis and multi-axis configurations.

Specifications

Datasheet

Datasheet M-228 • M-229

Version / Date
2023-07-12
pdf - 867 KB
Version / Date
2023-07-12
pdf - 863 KB

Downloads

Datasheet

Datasheet

Datasheet M-228 • M-229

Version / Date
2023-07-12
pdf - 867 KB
Version / Date
2023-07-12
pdf - 863 KB

Documentation

Documentation

Short Instructions MP122EK

Linear Actuators: M-168 / M-22x / M-23x

Version / Date
6.0.0 2023-10-10
pdf - 372 KB
Version / Date
6.0.0 2023-10-10
pdf - 384 KB
Documentation

User Manual MP86

M-228, M-229 Linear Actuators with Stepper Motor

Version / Date
2.0.0 2021-01-22
pdf - 2 MB
Version / Date
2.0.0 2021-01-22
pdf - 2 MB

3-D Models

3-D Models

M-22x 3-D model

zip - 631 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

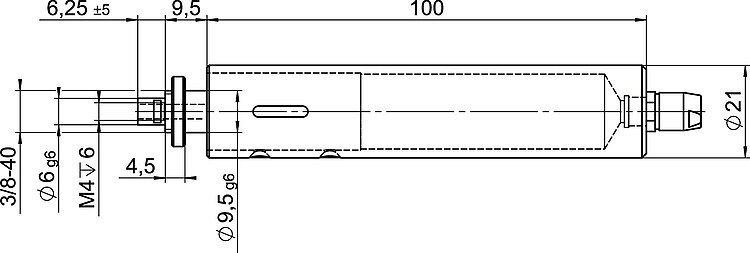

M-228.10S

High-resolution linear actuator with stepper motor; 2-phase stepper motor with gearhead; 10 mm travel range; 20 N feed force; 1.5 mm/s maximum velocity; trapezoidal-threaded spindle; limit switches: Hall effect; 0.5 m cable length

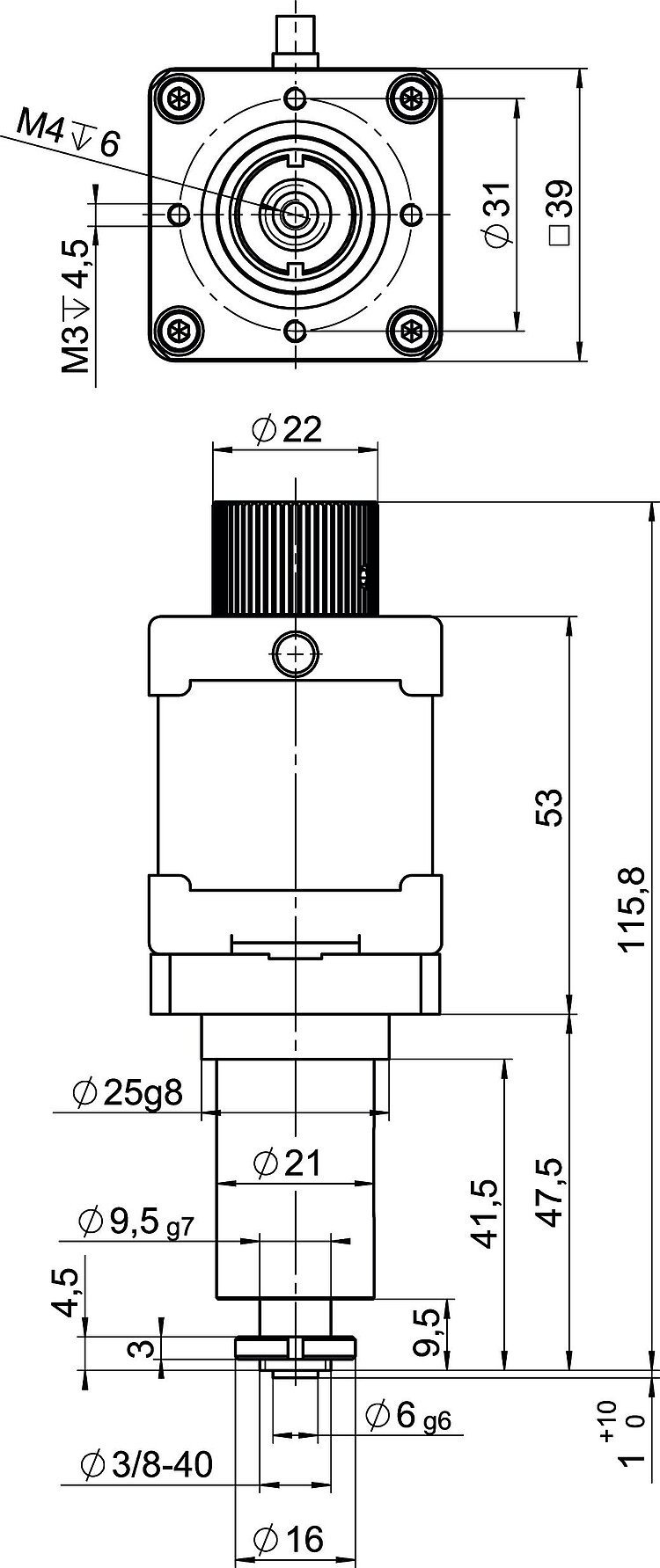

M-228.11S

High-resolution linear actuator with stepper motor; 2-phase stepper motor; 10 mm travel range; 50 N feed force; 4 mm/s maximum velocity; trapezoidal-threaded spindle; limit switches: Hall effect; 0.6 m cable length

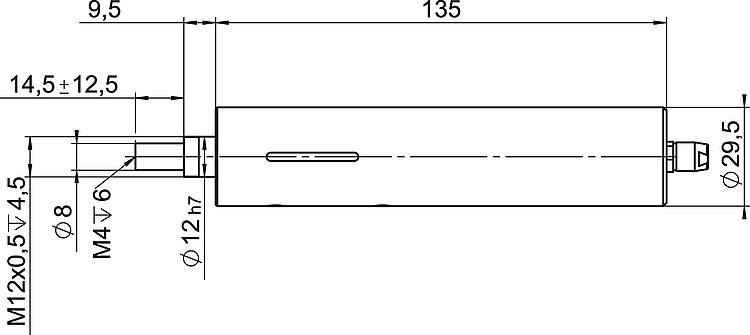

M-229.25S

High-resolution linear actuator with stepper motor; 2-phase stepper motor with gearhead; 25 mm travel range; 50 N feed force; 1.5 mm/s maximum velocity; trapezoidal-threaded spindle; limit switches: Hall effect; 0.5 m cable length

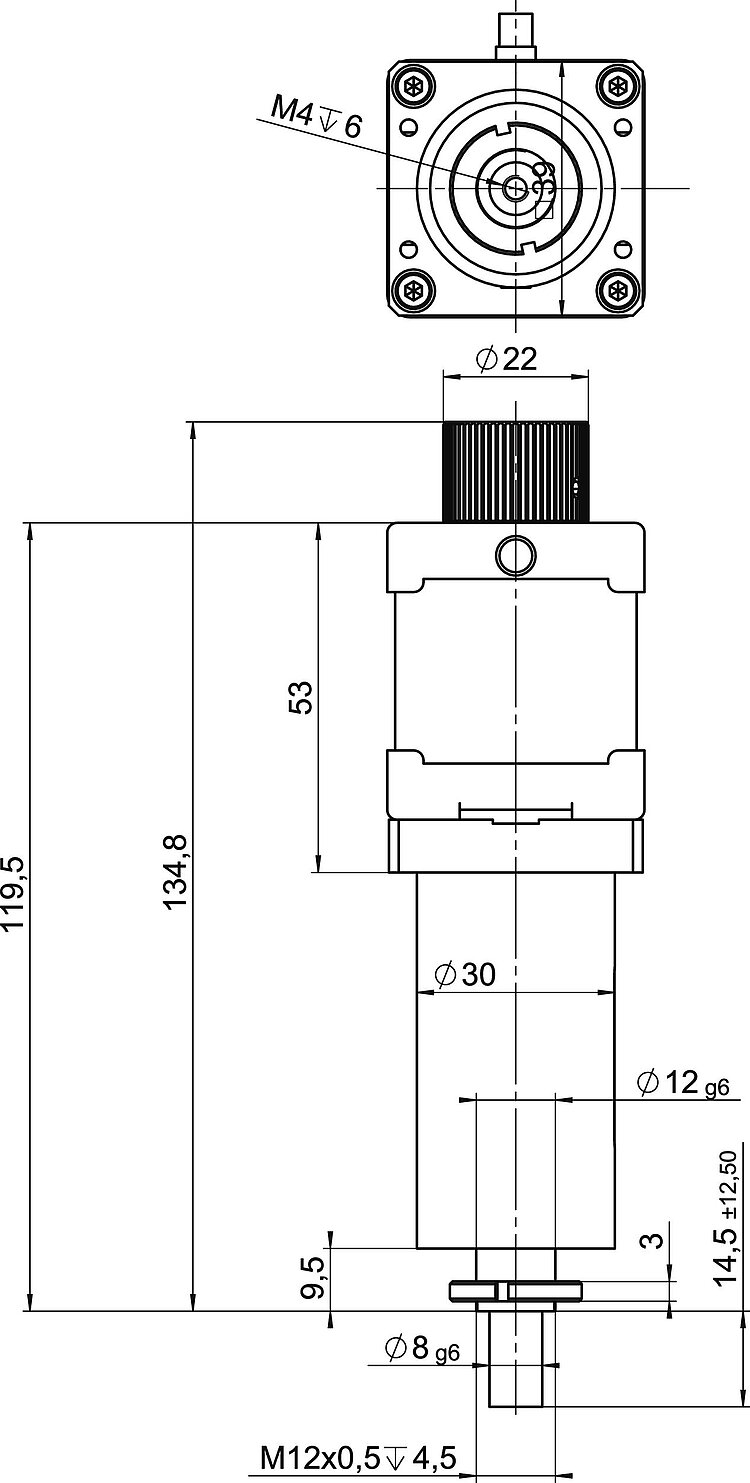

M-229.26S

High-resolution linear actuator with stepper motor; 2-phase stepper motor; 25 mm travel range; 80 N feed force; 4 mm/s maximum velocity; trapezoidal-threaded spindle; limit switches: Hall effect; 0.6 m cable length
