Precision Motion Controllers and Drivers for Positioning Systems

Servo Motors, Stepper Motors, Brushless Motors, Linear Motors and Piezo Motors

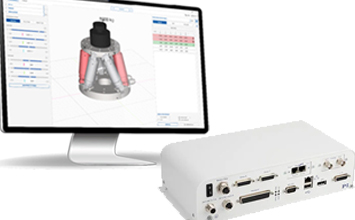

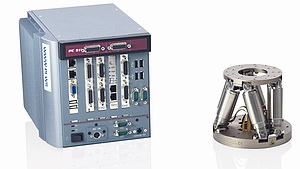

PI provides a large variety of hardware & software solutions for high precision motion control. Our portfolio spans from integrated compact single axis servo controllers / drivers, such as popular Mercury-class motion controllers, to complex multi-axis systems for parallel-kinematics positioners, such as hexapods.

Examples of Custom Motion Systems / Precision Automation

ACS Advanced Industrial Controllers
PI recently acquired the majority shares of ACS Motion Control. Together with ACS, a plethora of controllers and drivers for virtually any type of motor drive can be offered: three phase, DC, brushless, stepper, ultrasonic, piezo-stick-slip, piezo-walk, linear-servo, high-speed voice coil, and, of course, piezo controllers for flexure-guided precision nano-positioners.

OEM cards, rack-mount solutions and custom motion controllers with hundreds of axes are available.

Choose from a Product Group below, or scroll to see all Product Groups

Flexible Motion Controller System for Servo, Stepper, and Piezo Motors

C-885 PIMotionMaster Flexible Multi-Axis Motion Controller
Show more

C-885 PIMotionMaster Flexible Multi-Axis Motion Controller

  • Hosts modules for different drive technologies: servo motors, piezo step motors, ultrasonic motors
  • Scalable – grows with the application
  • Plug-and-play installation
  • Easy configuration and start-up
  • Space and cost-saving

Motion Controllers for Stepper Motors

C-663 Mercury™ Step Controller
Show more

C-663 Mercury™ Step Controller

1-Axis, Networkable, for Stepper-Motors

  • High performance stepper motion control at low cost
  • 2,048 microstep resolution for very smooth motion
  • Open loop and closed loop operation
  • Network capability for multi-axis applications
  • Compatible and networkable with Mercury™ controllers
  • Joystick port for manual control

Precision Motion Controllers for Closed-Loop Positioning Systems

with Brushless (BLDC), Brushed, 3-Phase, and Voice Coil Motors

C-863 Mercury Servo Controller
Show more

C-863 Mercury Servo Controller

For DC-Motors, Network Feature

  • High performance precision motion control at low Cost
  • 20 MHz encoder input for high speed & resolution
  • Macro programmable stand-alone functionality
  • Integrated servo power amp supplies up to 30 W
  • Data recorder
  • Network capability for multi-axis applications
C-884 PID Precision Servo Motor Controller
Show more

C-884 PID Precision Servo Motor Controller

Cost Efficient, 6-Axis / 4-Axis

  • Position feedback: incremental and absolute-measuring encoders (no referencing)
  • Motor types: brushless servo motors and traditional DC motors
  • Trapezoidal velocity profile
  • Point-to-point motion, vector motion, user-definable trajectories
  • Powerful Python macro command language, nonvolatile storage for stand-alone operation
  • Data recorder for detailed motion system analysis
  • 2 channel motion controller
  • High resolution microstep amplifier for DC brush, 2-phase Stepper, 2- and 3-phase linear / torque motors (BLDC)
  • 24 V / 48V bus-voltage up to 500 W
  • High performance processor, 760 Mips
  • Closed-loop with absolute encoder option
C-891 Compact Motion Controller for 3-Phase Brushless Motors
Show more

C-891 Compact Motion Controller for 3-Phase Brushless Motors

Linear and Torque Motors

  • Designed for sine-commuted 3-phase linear and rotary motors
  • Automatic detection of the motor phase
  • 20 kHz control bandwidth
  • Digital inputs and outputs
  • A/B digital or analog (sin/cos) encoder signals
  • BiSS interface for absolute encoders
C-413 Compact Voice Coil Motion Controller
Show more

C-413 Compact Voice Coil Motion Controller

1 & 2 Axis, Optional Force Control

  • 1 or 2 motor channels
  • Up to 4 sensor channels for 2 force and 2 position sensors each
  • Servo update rate to 10kHz
  • TCP/IP, USB, SPI interface
  • A/B digital or analog (sin/cos) encoder signals
  • Extensive software support

Advanced Motion Controllers for 3-Phase Motors and Air Bearing Stages

These high performance controllers feature state of the art ACS SPiiPlusEC motion control modules and EtherCAT® master, and includes ServoBoost™ for up to eight axes of motion. ServoBoost™ provides better, more consistent servo performance that is insensitive to noise or (load) changes in the system.

This series of motion controllers from PI offers a completely integrated electronics solution, with controller, drives, and power supplies packaged together. The A-81x is in a compact 19-inch rack-mount enclosure for 1, 2, or 4 axes of motion, while the slightly larger A-82x is capable of controlling 4, 6, or 8 axes. These controllers are designed and optimized to work with the PIglide line of air bearing stages which feature direct drive linear and rotary servo motors and high resolution encoders.
Show more

A-824/6/8 PIglide Motion Controller

High Power: 4, 6 & 8 Motion Axes

  • Fully integrated closed-loop servo, amplifier module & power supplies
  • 2000 W continuous, 3900 W peak
  • 3-Phase BLDC / voice coil / DC
  • Quiet PWM drives
  • Sine/cosine and BiSS-C encoders
  • 20A peak output current/axis
This series of motion controllers from PI offers a completely integrated electronics solution, with controller, drives, and power supplies packaged together. The A-81x is in a compact 19-inch rack-mount enclosure for 1, 2, or 4 axes of motion, while the slightly larger A-82x is capable of controlling 4, 6, or 8 axes. These controllers are designed and optimized to work with the PIglide line of air bearing stages which feature direct drive linear and rotary servo motors and high resolution encoders.
Show more

A-811/2/4 PIglide Motion Controller

Compact: 1, 2 & 4 Motion Axes

  • Fully integrated closed-loop servo, amplifier module & power supplies
  • 600W power supply
  • 3-phase BLDC / voice coil / DC
  • Quiet PWM drives
  • Sine/cosine and BiSS-C encoders
  • 10A Peak output current/axis

Motion Controllers for Ultrasonic Piezo Motors

C-877 Low Cost 2-Axis Controller
Show more

C-877 Low Cost 2-Axis Controller

For Ultrasonic Motors

  • Integrated power amplifier with dynamic control automatically operate motors in the optimum frequency range for maximum performance
  • Proprietary PID servo control for ultrasonic direct drive motors with dynamic parameter switching
  • Data recorder
  • Macro programming language, for automation and stand-alone operation
C-877 Compact Low Cost Controller
Show more

C-877 Compact Low Cost Controller

For Ultrasonic Motors

  • Low cost single axis version
  • Proprietary PID servo control for ultrasonic direct drive motors with dynamic parameter switching
  • Data recorder
  • Macro programming language, for automation and stand-alone operation
C-867 Closed-Loop Controller / Driver
Show more

C-867 Closed-Loop Controller / Driver

For High-Speed Ultrasonic Piezo Linear Motors

  • Optimized for PILine® ultrasonic piezo linear motors
  • High-bandwidth encoder inputs allow high speed and resolution
  • PID servo motion control with dynamic parameter switching
  • Integrated piezo motor power driver
  • USB, RS-232 and analog interfaces (e.g. for joystick)
  • 4 + 4 programmable TTL-I/Os for flexible automation

Stick-Slip Piezo Motor Controller / Drivers for Q-Motion Positioners and PiezoMike Actuators

  • Integrated power amplifier and voltage generator for piezo intertia drives
  • ID chip compatibility & extensive software package
  • Digital I/O ports (TTL)
  • TCP/IP and USB interface
  • Optional digital joystick for manual operation
E-871.1A1N Servo Controller
Show more

E-871.1A1N Servo Controller

For Closed-Loop Piezo-Ratchet Actuators / Q-Motion Stages

  • Integrated power amplifier and voltage generator for piezo inertia drives
  • TCP/IP,  USB, RS-232
  • Extensive software support: LabVIEW, MATLAB, C / C++ / C# / VB.NET, Python
  • Optional joystick for manual operation
E-871 / E-872 Stick-Slip Piezo Driver/Controller
Show more

E-872 Stick-Slip Piezo Driver/Controller

For Open-Loop Piezo-Ratchet Actuators / Q-Motion Stages

  • Integrated power amplifier and voltage generator for piezo inertia drives
  • OEM driver available
  • Serial control of up to 4 stages and actuators by one unit
  • TCP/IP, USB, USB for joystick, digitial I/O
E-872 OEM Driver Board
Show more

E-872 OEM Driver Board

For Q-Motion Stick-Slip Inertia Motors, 1 Channel, 48 V

  • Cost effective driver board
  • Step-direction input signal
  • E-872.01: full step modus
  • E-872.02: micro step modus

PiezoWalk® Motor Controllers

The controller features a high-speed servo (50kHz update rate) and also includes a data recorder and a wave generator. The comprehensive software package comes with LabVIEW drivers and shared libraries for Windows and Linux. Multiple interfaces such as TCP/IP, USB, RS-232, are installed as well as eight digital I/Os for trigger functions and external synchronization.
Show more

E-712.1AM Precision Motion Controller

For NEXLINE® Nanopositioning Linear Motors

  • Special motion control algorithms for NEXLINE®nanopositioning linear drives
  • Ultra-Fast servo: 50kHz update rate
  • 32-bit digital filters
  • Highly stable 20-bit D/A converter
  • Fully programmable low-pass and notch filters
  • Non-volatile user settings and last-position data
  • PI General Command Set compatible
E-861 Networkable Motion Controller/Driver
Show more

E-861 Networkable Motion Controller/Driver

For NEXACT® Linear Drive Nano-Positioners

  • Precision motion control for NEXACT® drives and positioning systems
  • Complete system with controller, integrated power amplifiers and software
  • Open-loop operation, or closed-loop with linear encoder
  • High performance at low cost
  • Daisy-chain networking for multi-axis operation
  • Non-volatile macro storage for stand-alone functionality with autostart macro
E-862 Low-Cost NEXACT® Piezo Motor Driver
Show more

E-862 Low-Cost NEXACT® Piezo Motor Driver

  • For NEXACT® piezo motor drives & nano positioning Stages
  • Combined step generator and power amplifier
  • Cost-effective design
  • Interface for automation, joystick for manual operation
