Fast Laser Beam Steering System

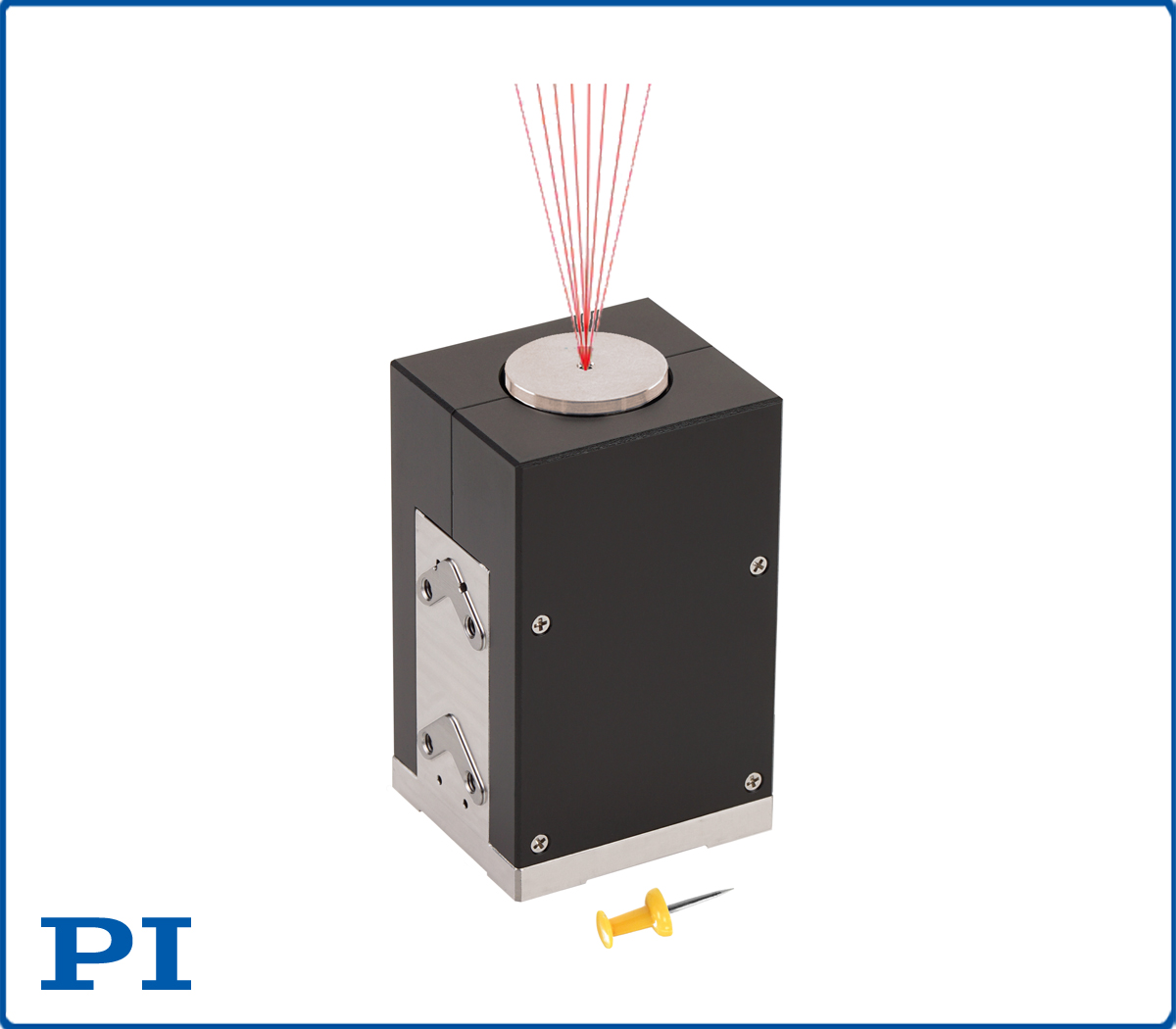

PI (Physik Instrumente), leader in the field of high-speed piezoelectric and voice-coil based laser beam steering technology broadens its portfolio of high-performance laser beam control mirror platforms. With milli-second response and settling time and high dynamic linearity, the new S-335 fast steering mirror (FSM) platforms are ideal for precision image processing and image stabilization, laser beam steering, materials processing, and lithography.
2-Axis, Frictionless Guiding, No Polarization Rotation
S-335 steering mirror platforms provide precise angular tip/tilt motion of the top platform around two orthogonal axes. These flexure-guided, electro-ceramic driven systems can provide higher accelerations than other actuators, enabling step response times in the sub-millisecond range, with frictionless backlash-free motion. The single pivot-point design also prevents the drawback of polarization rotation, which is common with conventional 2-axis stacked systems, e.g. galvo scanners.
Long Ranges with Integrated Motion Amplifier
Integrated EDM flexure based motion amplifiers provide an industry-leading tip/tilt angle up to 35mrad, equal to an optical deflection angle of 70mrad (4°). ID chip support allows for fast start-up and a simple data exchange between tip/tilt platforms and controllers.
Parallel-Kinematics: Smaller with Improved Stability, Linearity & Dynamics
PI piezo steering mirrors are based on a parallel-kinematics design with coplanar rotational axes and a single moving platform driven by two pairs of differential actuators. The advantage is jitter-free, multi-axis motion with excellent
temperature stability. Compared to stacked (two-stage) mirror scanners, the parallel-kinematics design provides symmetrical dynamic performance in both axes with faster response and better linearity in a smaller package.
