Alignment of Optical Fibers & Photonic Devices
Cost-Effective Alignment Solutions
Photonics, the science and application of light, has transformed industries ranging from telecommunications and healthcare to manufacturing and beyond. With the increasing demand for high-speed data communication, processing, and advanced sensing technologies, photonics has become integral to innovation. Silicon photonics, in particular, has surged, combining optics with semiconductor technology for unprecedented performance and energy efficiency.
As the global reliance on photonics grows, the industry demands new solutions for testing and assembly. PI provides high-end alignment systems for applications where throughput is key, as well as affordable alignment engines based on modular precision positioning stages. Both ends of the spectrum benefit from PI’s high-performance motion controllers with award-winning embedded alignment algorithms.

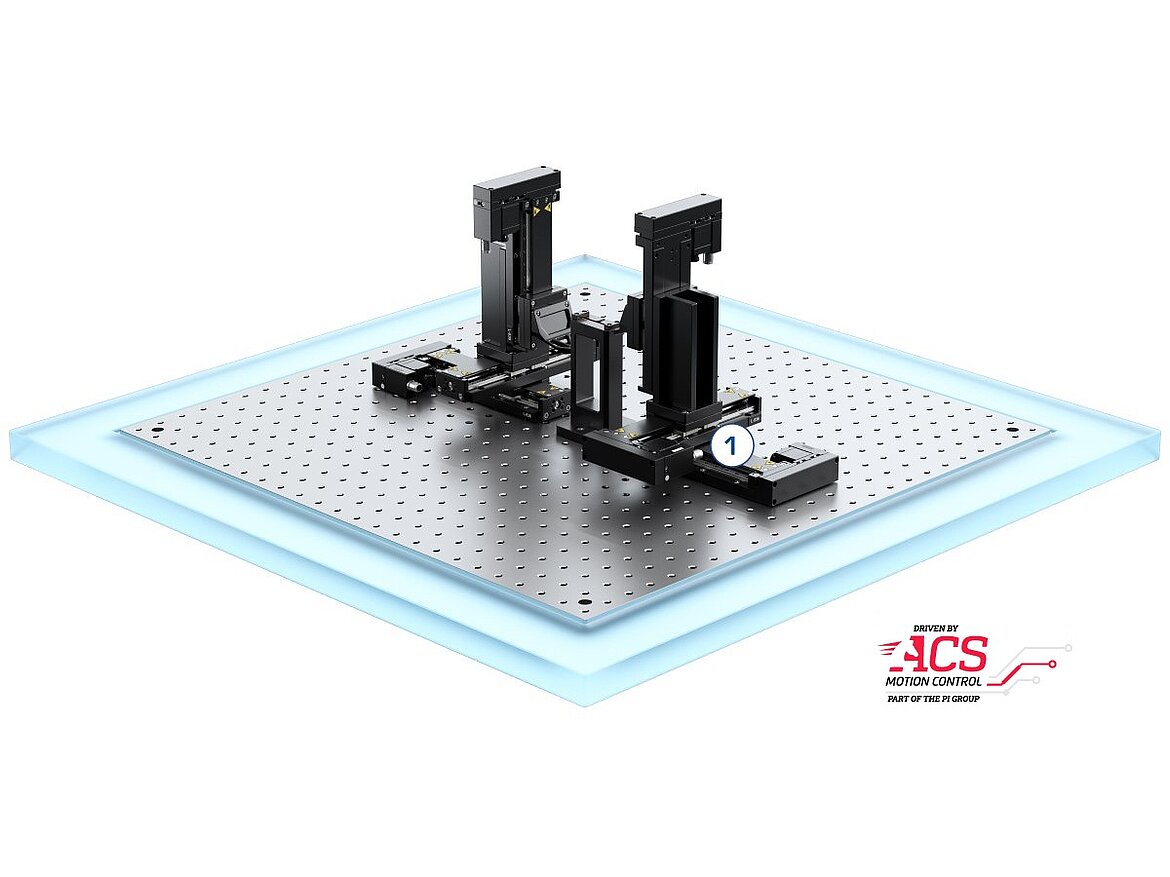

XYZ Axis – Precision Linear Stages
- Low profile, compact, high-stiffness mechanical design
- Travel range to 200 mm
- Precision ball screw and recirculating ball bearing guides
- Direct-drive stepper motors, 40 mm/s max velocity
- Linear encoder option for higher accuracy and repeatability
- Holding brake option prevents collision
- Economically priced with fast delivery
>> L-836 Universal Linear Stage
Optional Rotary Stages
- Highly accurate and repeatable rotation
- Choice of direct-drive and worm-gear designs
- Closed-loop option for higher accuracy and repeatability
>> Rotary Stages
