M-168 High Resolution Stepper-Motor High Precision Linear Actuators

  • 10, 25 & 50 mm Travel Ranges
  • Resolution 0.25 µm
  • 5 Phase Stepper Motor
  • Manual Positioning Knob
  • Sub-nm Resolution with Optional PZT Actuator

M-168 are compact high resolution linear actuators providing high resolution linear motion up to 50 mm with sub-micrometer resolution and excellent repeatability. They consist of a micrometer screw drive with non-rotating tip driven by a 2000 half step/revolution 5-phase stepper motor. Compared to conventional rotating tip micrometer drives the non-rotating tip design offers the following advantages:

  • elimination of torque-based stage platform tilting
  • elimination of wear at the contact point
  • elimination of tip angle dependent wobble

For High speed linear actuators and linear modules linear motors are recommended.

M-168 Stepper-Mikes feature an extremely low stiction/friction construction allowing for highest resolution and repeatability. A manual positioning knob provides coarse resolution of 5 µm. All models come with standard flat tips.

An optional piezo motor insert provides nanometer precision and dynamic scanning and tracking.

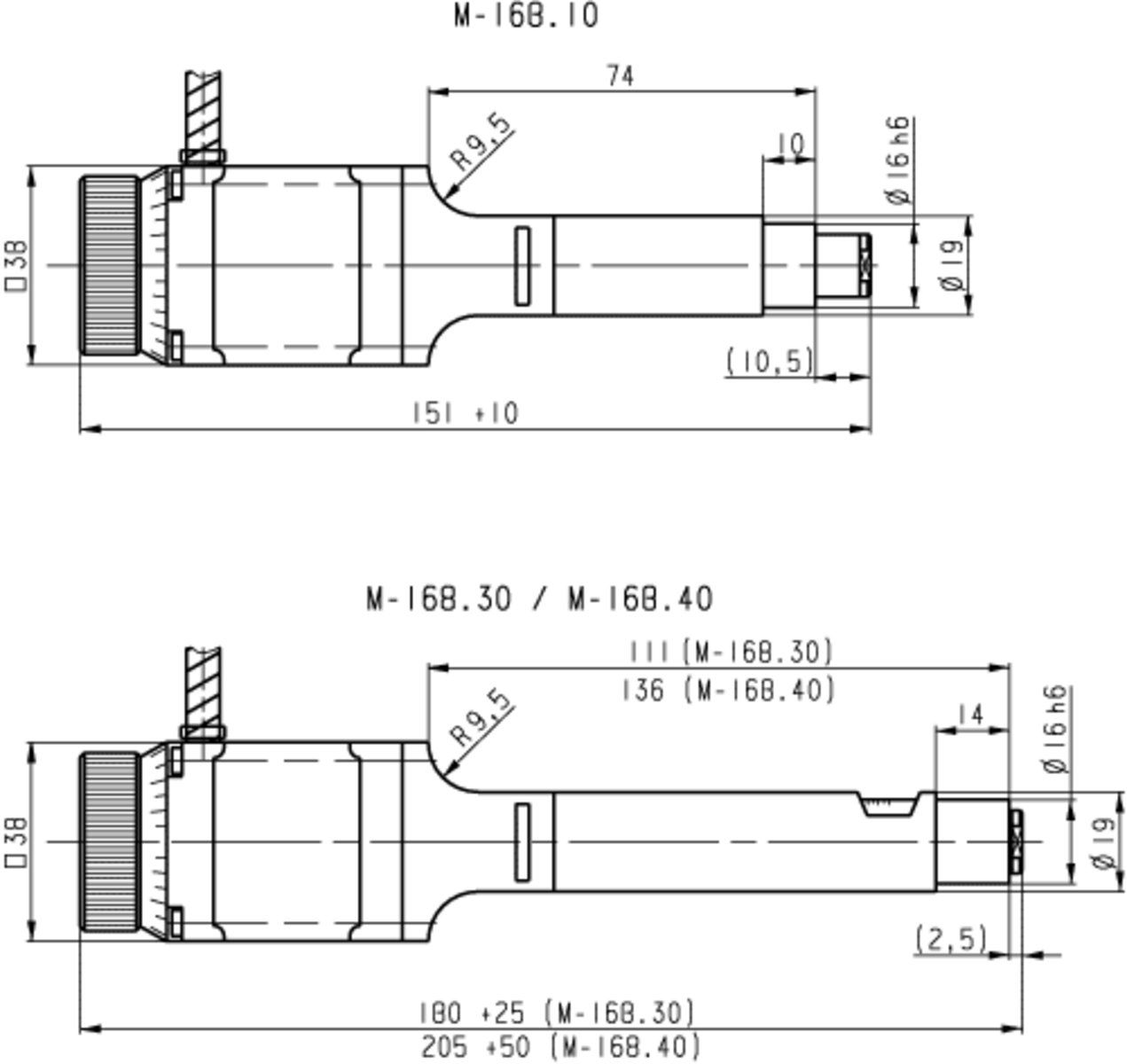

For mounting, the Stepper-Motor Linear Actuators are clamped around the 19 mm diameter. Clamping around the 16 mm diameter sleeve should only have a supporting function; high forces at this point will increase friction and reduce accuracy and resolution. For the same reason, lateral forces on the tip must be avoided.

ORDERING INFORMATION:
M-168.10 Stepper-Motor High Precision Linear Actuator, 10 mm, 0.25 µm Resolution
M-168.30 Stepper-Motor High Precision Linear Actuator, 25 mm, 0.25 µm Resolution
M-168.40 Stepper-Motor High Precision Linear Actuator, 50 mm, 0.25 µm Resolution

TECHNICAL DATA:

Models

M-168.10

M-168.30

M-168.40

Units

<link>Notes

Travel range

10

25

50

mm



Design resolution

0.25

0.25

0.25

µm

A3

Min. incremental motion

0.25

0.25

0.25

µm

A4

Unidirectional repeatability

0.25

0.25

0.25

µm



Backlash

2

2

2

µm



Max. velocity

3

3

3

mm/sec



Max. push/pull force

50

50

50

N



Max. lateral force

0.02

0.02

0.02

N (at tip)



Motor resolution

2000

2000

2000

steps/rev.



Drive screw pitch

0.5

0.5

0.5

mm



* Motor type

C-545
(5 phase stepper)

C-545
5 phase stepper)

C-545
(5 phase stepper)



Weight

0.4

0.45

0.5

kg



* 24 V chopper voltage, 0.5 A / phase, 8 ohms / phase.

Related Products and Additional Resources

This is a legacy product that may have limited availability or may have been replaced. Ask a PI engineer for an equivalent new model.
