N-216 NEXLINE® Linear Actuator

Nanopositioning Over Long Travel Ranges, With High Forces, PiezoWalk® Principle

  • Force generation to 600 N
  • Holding force to 800 N
  • Travel range 20 mm
  • Integrated direct-measuring linear encoder with resolution 5 nm
N-216 NEXLINE® Linear Actuator
Product Description Specifications Downloads Quote / Order

Application fields

  • Industrial precision positioning
  • Semiconductor technology
  • Semiconductor tests
  • Wafer inspection
  • Lithography
  • Nanoimprinting
  • Nanometrology
  • Motion in strong magnetic fields and in a vacuum

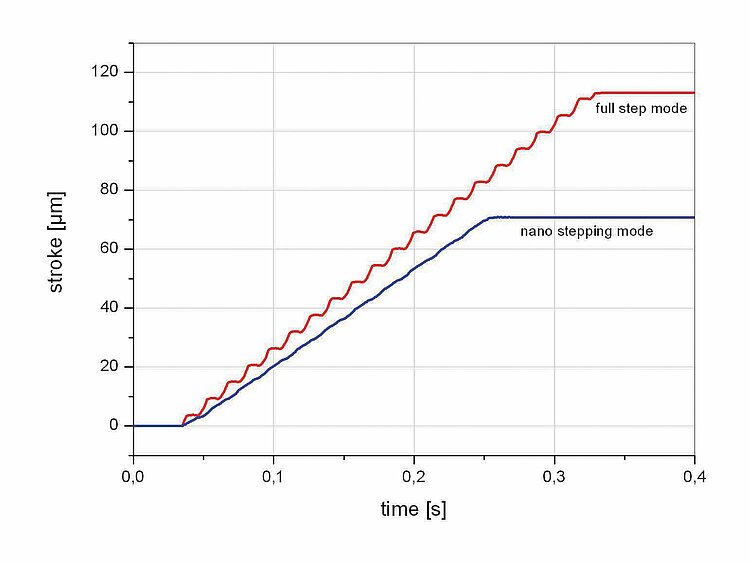

Nanometer precision and high feed force with PiezoWalk® walking drives

Several piezo actuators perform a walking motion in the PiezoWalk® walking drive that leads to forward feed of a runner. Control of the actuators allows the smallest step and forward feed motion at a resolution of well under one nanometer.

Highly accurate position measuring with incremental linear encoder

Noncontact optical encoders measure the position directly at the platform with the greatest accuracy. Nonlinearity, mechanical play or elastic deformation have no influence on the measurement.

Suitable for sophisticated vacuum applications

Piezo motors from PI can be designed for use in a vacuum and are suitable for operating in strong magnetic fields. Special versions of the drives are available for this purpose. Piezo walking drives can also be used in cleanrooms or in environments with strong ultraviolet radiation.

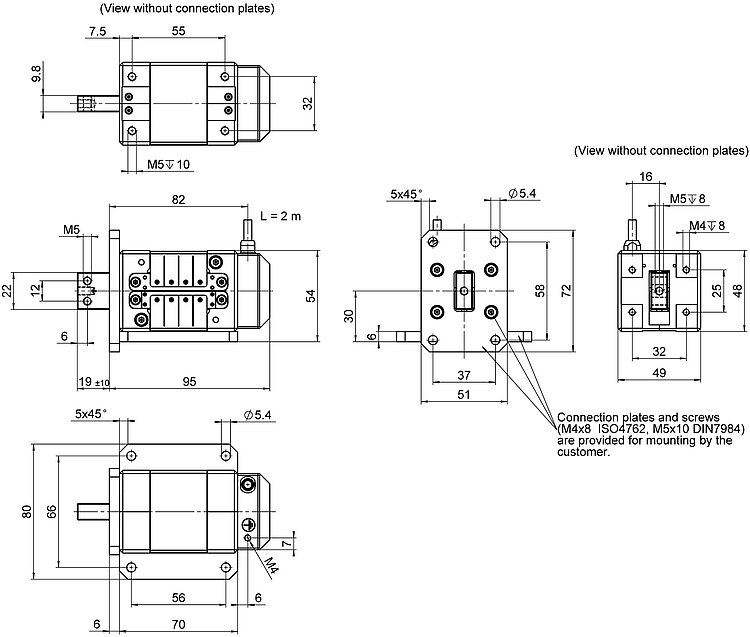

Specifications

Datasheet

Datasheet N-216

Version / Date
2024-01-09
pdf - 786 KB
Version / Date
2024-01-09
pdf - 808 KB
Version / Date
2019-01-22
pdf - 788 KB

Downloads

Datasheet

Datasheet

Datasheet N-216

Version / Date
2024-01-09
pdf - 786 KB
Version / Date
2024-01-09
pdf - 808 KB
Version / Date
2019-01-22
pdf - 788 KB

Documentation

Documentation

User Manual MP120

N-216 NEXLINE® Linear Actuator

Version / Date
1.2.1 2024-05-06
pdf - 2 MB
Version / Date
1.2.1 2024-05-06
pdf - 2 MB

3D Models

3D Models

N-216 3-D model

zip - 225 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
