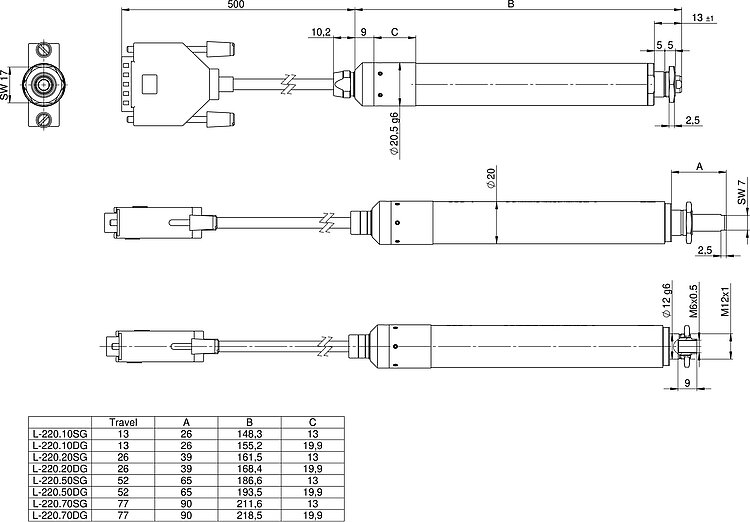

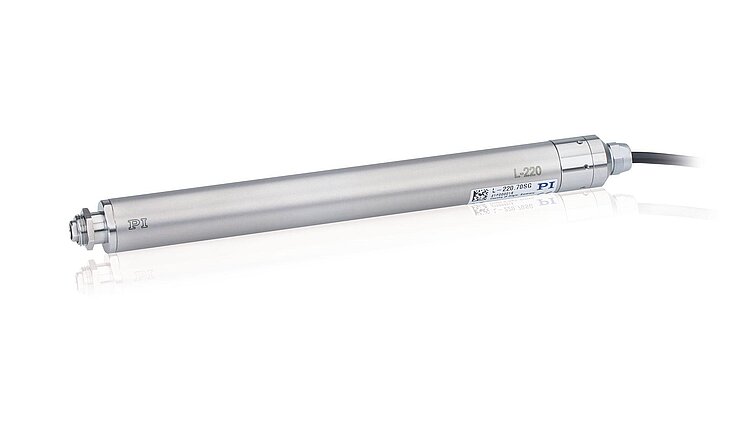

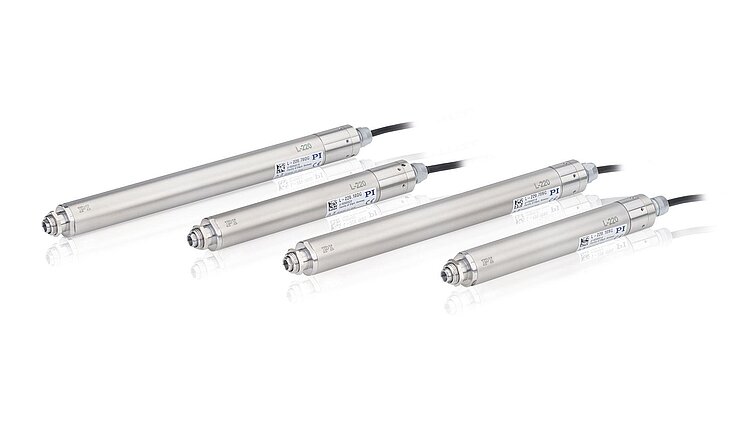

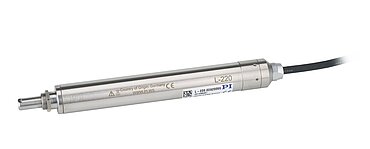

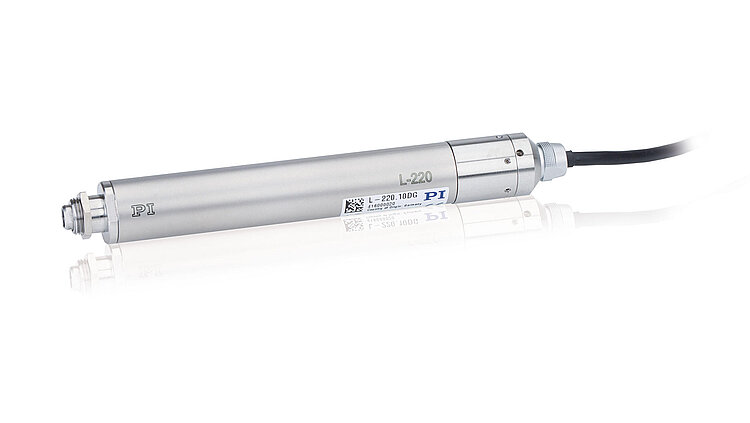

L-220 High-Resolution Linear Actuator

Suitable for a High Number of Cycles

L-220 High-Resolution Linear Actuator
Product Description Specifications Downloads Quote / Order
  • Forces up to 125 N
  • Travel ranges 13 to 77 mm (½" to 3")
  • DC or stepper motor
  • Vacuum-compatible versions to 10-9 hPa on request

Reference-class linear drive

Combines high precision, high forces, and high dynamics. Versions available for vacuum environments to 10-9 hPa.

High-quality components

Ball screw for smooth feed. Nonrotating tip for uniform motion prevents wobble, torque, and wear at the point of contact. Incl. flat and spherical tip for decoupling forces. Noncontact limit switches protect the mechanics. A direction-sensing reference point switch supports automation applications. Position-controlled variants with differential encoder driver in the connector for safe signal transfer over distances up to 10 m.

Motor variants

  • Position-controlled DC motors with a gearhead and high-resolution rotary encoders allow for incremental motion of just 100 nm
  • High-performance and low-vibration 2-phase stepper motors with gear ratio allow precision positioning even without position control

Application fields

Research, Automation, Optical alignment

Specifications

Datasheet

Datasheet L-220

Version / Date
2018-09-04
Version / Date
2018-09-04
Version / Date
2018-10-23
Document language
pdf - 204 KB
pdf - 207 KB
pdf - 778 KB

Downloads

Datasheet

Datasheet

Datasheet L-220

Version / Date
2018-09-04
Version / Date
2018-09-04
Version / Date
2018-10-23
Document language
pdf - 204 KB
pdf - 207 KB
pdf - 778 KB

Documentation

Documentation

User Manual MP149

L-220 High-Resolution Linear Actuator
Version / Date
2017-03-22
Version / Date
2017-03-22
Document language
Documentation

Short Instructions MP159EK

Linear Actuators: L-2xx
Version / Date
1.2.0 01/2019
Document language English
pdf - 507 KB

3-D Models

3-D Models

L-220 3-D model

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
