New Miniature Hexapod for Photonics Alignment provides Dynamics and Precision, and Automated Alignment Algorithms

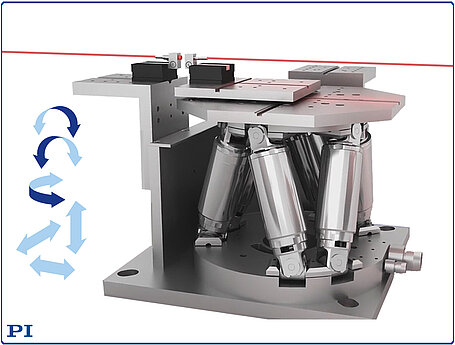

PI has added a high dynamics model to its range of compact hexapods. Designed for photonics alignment applications, the hexapod provides 6 degrees of freedom, actuator resolution of 5 nanometers and repeatability as good as 60 nanometers, while providing velocities to 20mm/sec. Sustaining loads to 5kg, the new H-811.F2 features a removable magnetic kinematic plate to accelerate workflow with different fiber optics components. Its compact size, large travel range of up to 34mm for linear motions and up to 42° for rotary motions, and a user programmable pivot point facilitate work with fiber optic and photonics components.
High Duty Cycle – Design for Industrial Alignment
The hexapod is designed for industrial precision alignment applications with long-life brushless motors and low friction ballscrews and joints. A powerful controller with build-in multi-axis alignment routines makes the new hexapod an ideal tool for automatic alignment tasks.
How do Hexapod Parallel Motion Systems work?
Hexapods are 6 DOF positioning / motion systems that derive 6-axis movement (XYZ, pitch, yaw, roll) from actuators placed in parallel between a top and bottom platform. Available in a variety of sizes with bases ranging from 50mm to 1m and different load capabilities up to 2 tons, PI hexapods are an easy solution to complex multi-axis precision motion applications. PI hexapods come with state-of-the-art controllers and software tools based on 25 years of hexapod R&D, resulting in fast solution implementation to a plethora of applications from medical to photonics. All 6 axes can be commanded simply as Cartesian coordinates, and the center of rotation can be changed on the fly with a software command. Other advantages are the absence of friction and torque, caused by dragged cables.
Features & Advantages
- 6-Axis system (XYZ, Theta X, Y, Z)
- Travel ranges to 34mm linear / 42° rotary
- Strut resolution: 5 nanometers
- Load capacity to 10lbs
- Repeatability to 0.06µm
- Velocity to 20 mm/sec
