Dynamic Positioning & Scanning Delivered in Integrated XY Linear Motor Drive

This new planar drive is designed for the nanopositioning demands of metrology and precision automation applications.

Precision motion control and nanopositioning industry leader PI (Physik Instrumente) now offers a new reference class XY stage in its PIMag® series of high dynamics linear motor stages with the V-731, equipped with incremental linear encoders for direct position measurement and 3-phase electromagnetic linear motors. Fields of application include micro-assembly, biotechnology, precision laser machining, optics, lens testing, and photonics alignment.

Design with ironless linear motors improves smoothness
The proprietary PIMag stages do not require mechanical components in the drivetrain as the force is transmitted directly by magnetic forces to the motion platform, without friction and zero-wear on the drive. The ironless, non-cogging linear motors provide very smooth motion, and a high dynamic velocity range along with rapid acceleration. They are ideal for applications where high or extremely constant velocity is required and reliability and maximum uptime are crucial.

Excellent guiding accuracy: 8” travel range
The V-731 stage is equipped with integrated linear encoders providing 10 nanometers resolution. Precision crossed roller bearings with anti-creep cage assist guarantee excellent repeatability to 100 nanometers from this compact low profile stage, measuring only 310x310x80mm.

Details Article



Dynamic Positioning & Scanning Delivered in Integrated XY Linear Motor Drive

Version / Date
Document language English
pdf - 516 KB

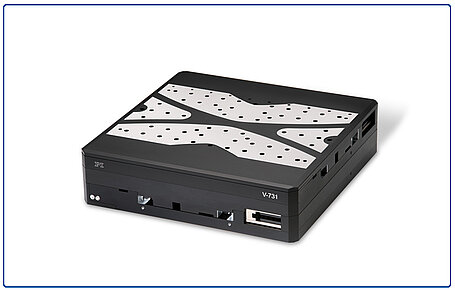

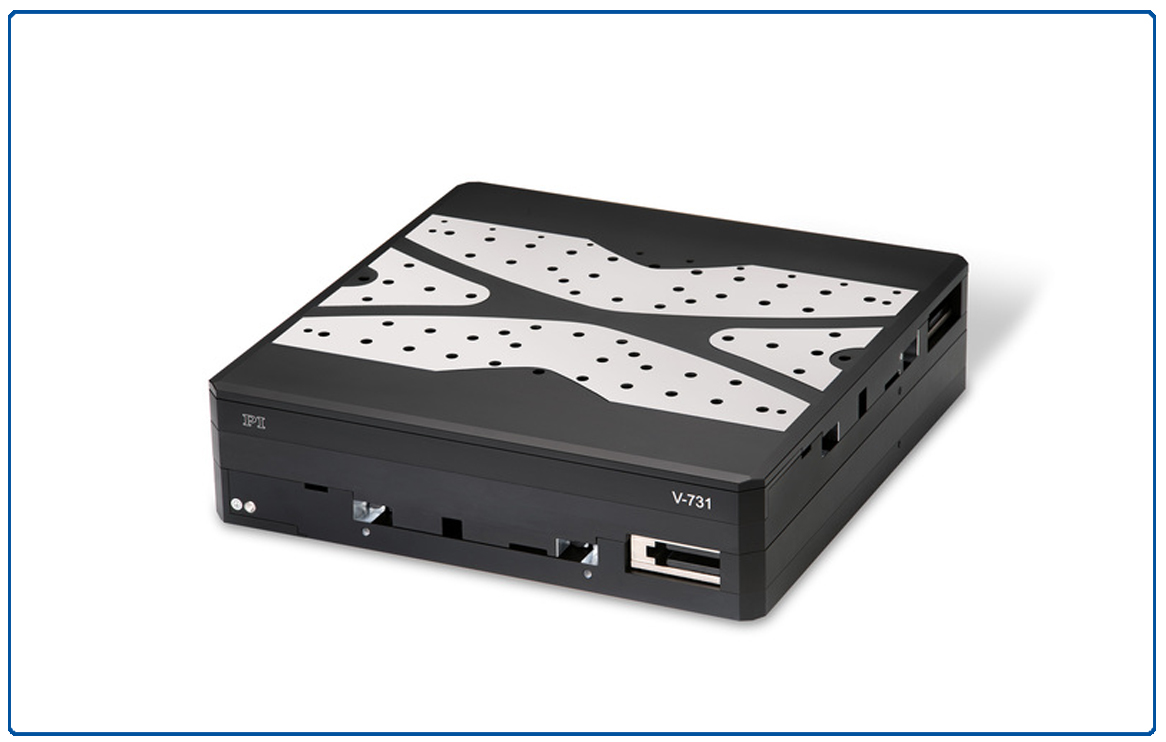

V-731 high res image
