VT-80 Linear Stage

Basic Version for Universal Fields of Use

  • Travel ranges from 25 to 300 mm (1 to 12")
  • Low profile, also for XY combinations
  • Max. Velocity to 20 mm/s
  • Load capacity to 5 kg
  • Variants suitable for vacuum available
VT-80 Linear Stage
Product Description Specifications Downloads Quote / Order

Standard-class linear stage

Recirculating ball bearing guides and precision leadscrew for smooth and even feed. Stress-relieved aluminum base for high stability. Mechanical limit switches.

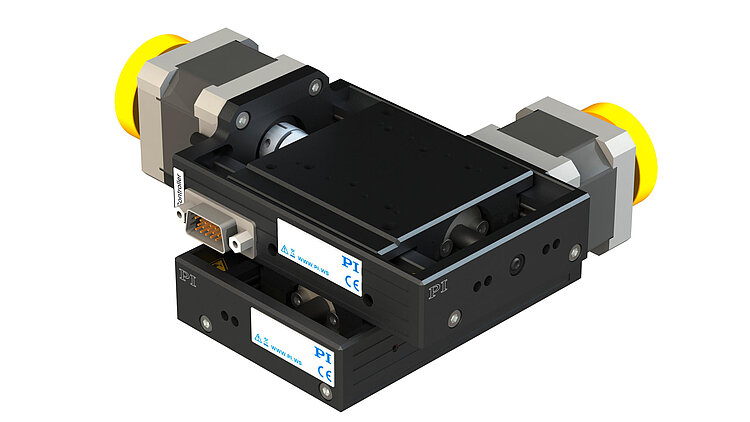

XY combinations

XY combinations of VT-80 linear stages are possible without an adapter. The compact XY variant with 25 mm travel range per axis is available for both motor types as factory option (preassembled at the factory):

  • 62309111: VT-80 XY linear stage, DC motor, 80 mm width, 25 mm travel range, mechanical limit switches, preassembled XY combination of two 62309110-0000 linear stages
  • 62309211: VT-80 XY linear stage, stepper motor, 80 mm width, 25 mm travel range, mechanical limit switches, preassembled XY combination of two 62309210-0000 linear stages

All other travel range variants can be combined to XY combinations by the customer.

Note that the specifications for XY combinations can differ from the specifications of the single axes.

Drive types

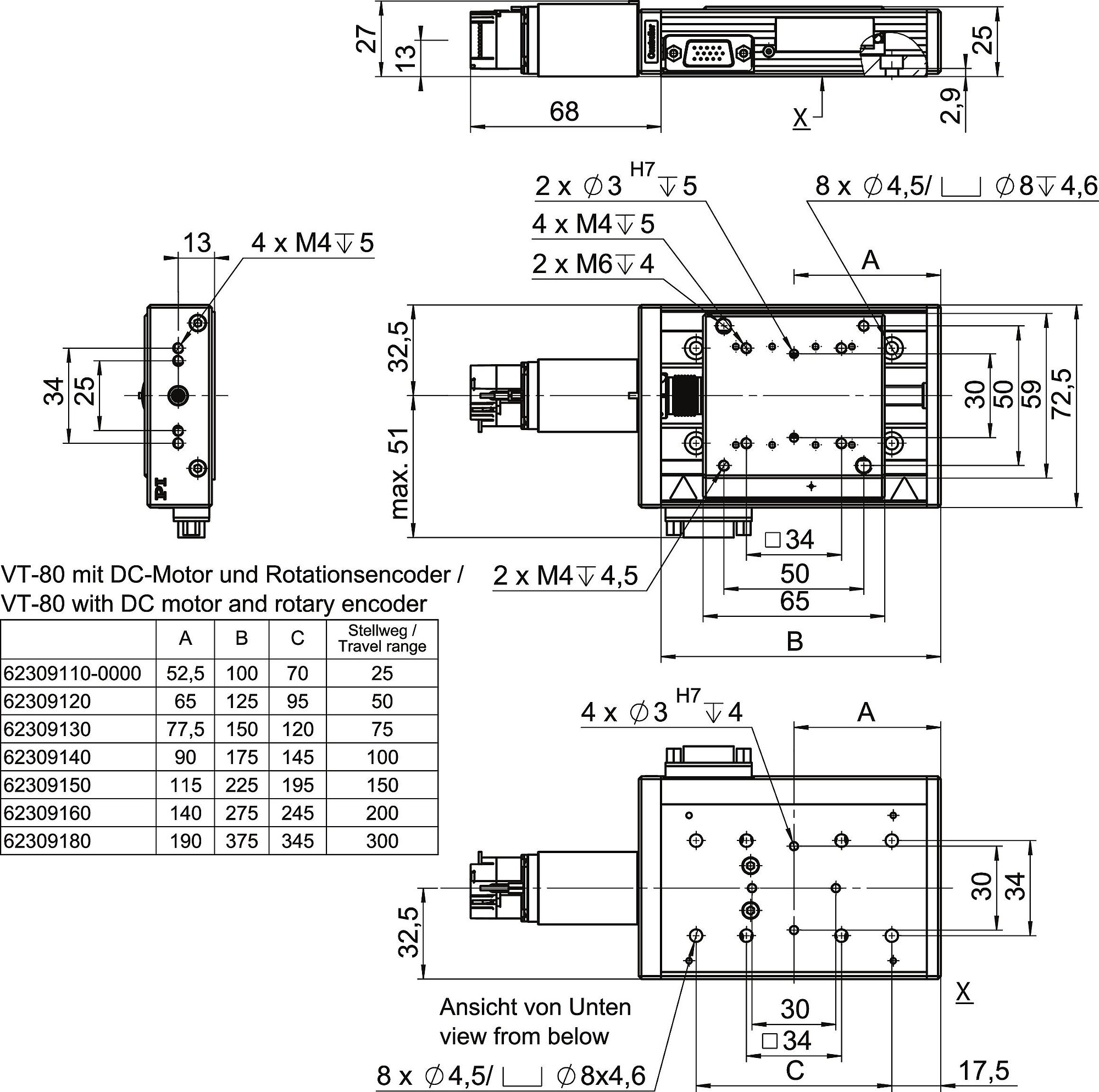

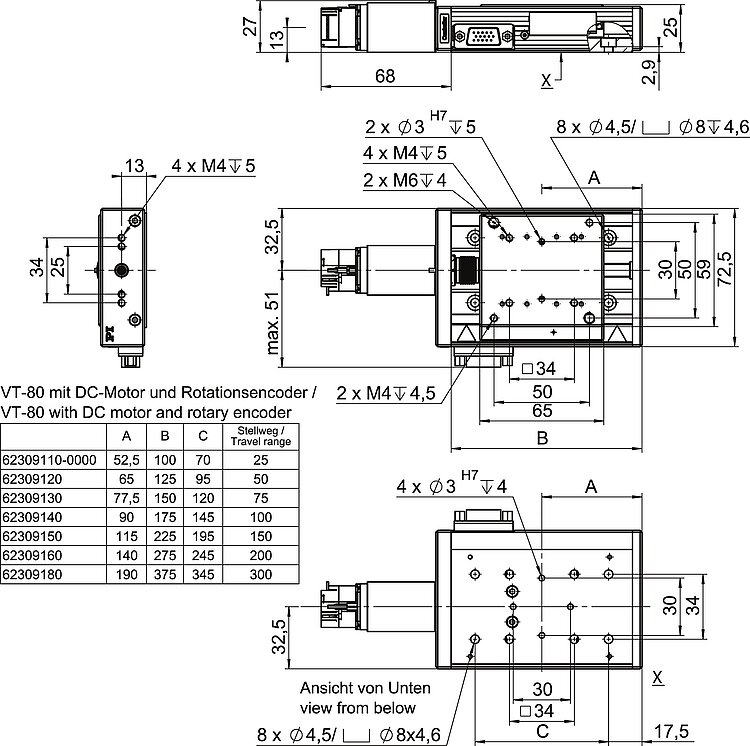

  • Closed-loop DC motor with rotary encoder on the motor shaft

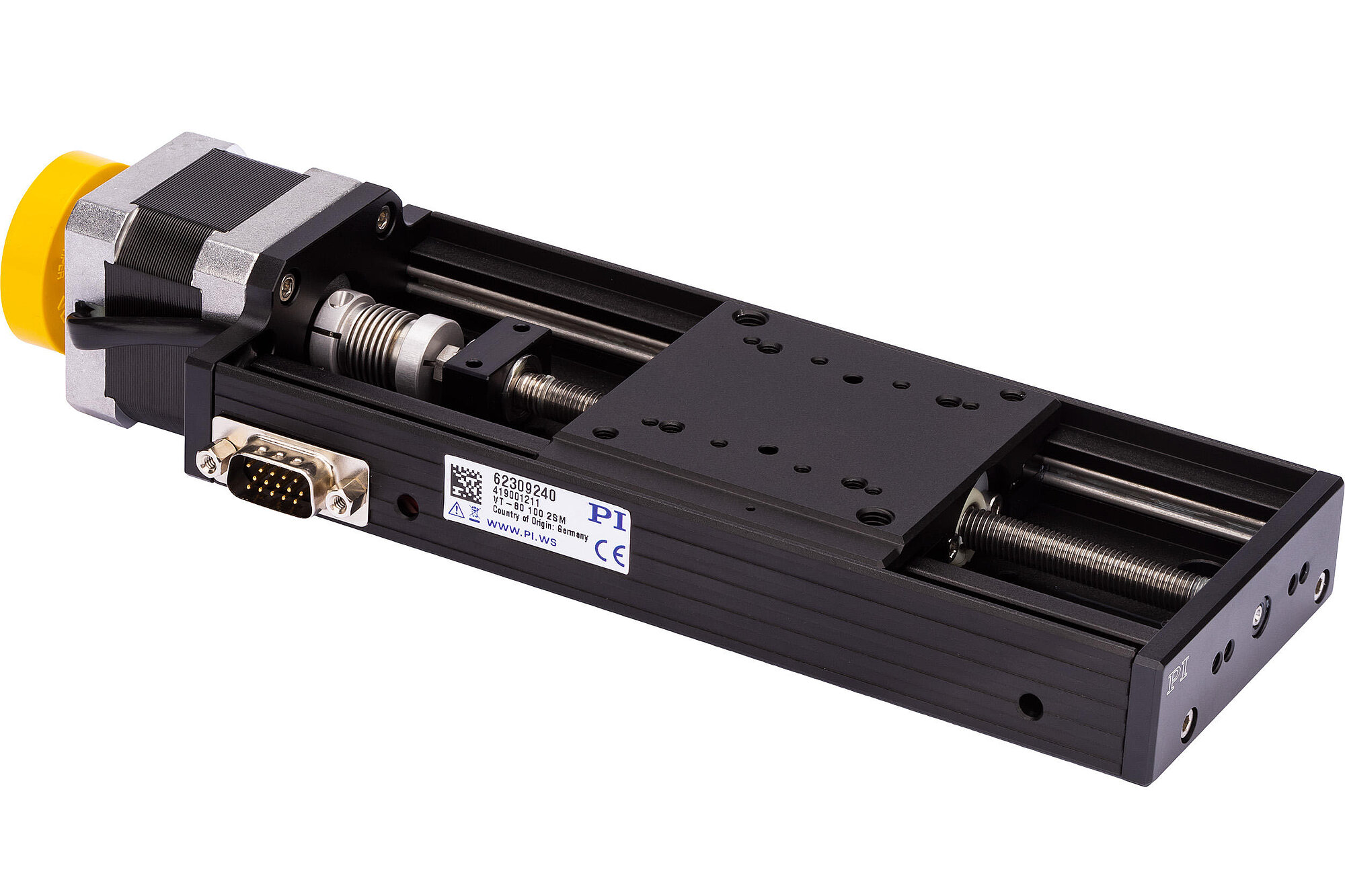

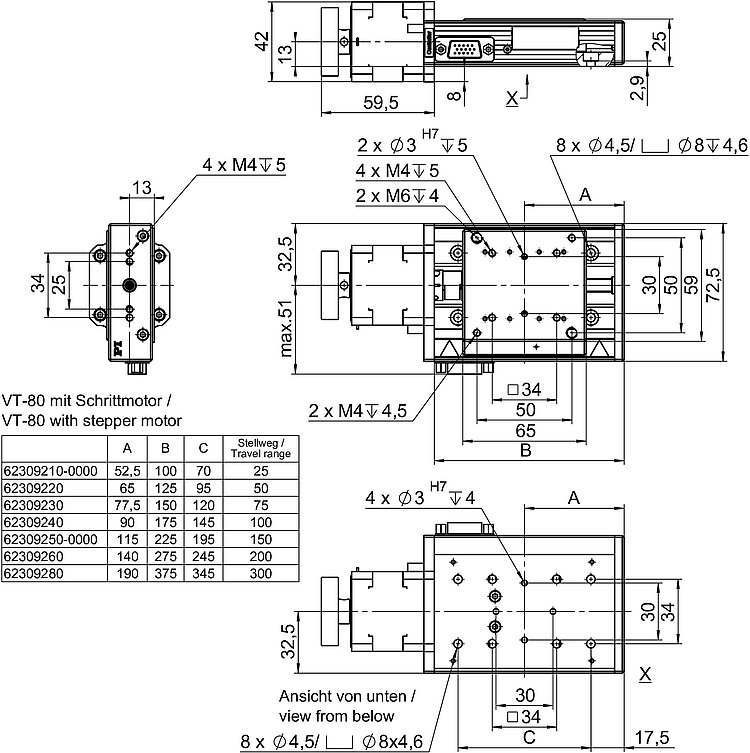

  • 2-phase stepper motor for high torque even at low velocities and high resolution

Recirculating ball bearing guides

When carefully assembled, recirculating ball bearing guides are distinguished by a beneficial combination of high load capacity, lifetime, maintenance-free operation, and guiding accuracy. The moving part of the stages is supported by four preloaded recirculating ball bearing units, which run on two guide rails. Each bearing unit is made up of two independent rows of circulating ball bearings.

Application fields

Positioning tasks with low duty cycle in industry and research.

Specifications

Datasheet

Datasheet VT-80

Version / Date
2021-10-26
pdf - 1 MB
Version / Date
2021-10-26
pdf - 1 MB
Version / Date
2021-01-26
pdf - 860 KB

Downloads

Product Note

Product Note

Product Change Notification Stepper Motor VT-80 / DT-80

Version / Date
2019-04-23
pdf - 238 KB
English

Datasheet

Datasheet

Datasheet VT-80

Version / Date
2021-10-26
pdf - 1 MB
Version / Date
2021-10-26
pdf - 1 MB
Version / Date
2021-01-26
pdf - 860 KB

Documentation

Documentation

Short Instructions MP146EK

Positioners with Electric Motors: DT-xx / HPS-170 / L-xxx / LS-xxx / MTS-65 / PRS-xxx / RS-40 / UPL-120 / VT-80 / WT-xx / WT-xxx

Version / Date
2.0.0 01/2020
pdf - 736 KB
Version / Date
2.0.0 01/2020
pdf - 749 KB
Documentation

User Manual VT-80

Linear Stage

Version / Date
2019-12-04
pdf - 1 MB
Version / Date
2019-12-05
pdf - 1 MB

3-D Models

3-D Models

VT-80 3-D model

VT-80 3-D model

Version / Date
2021-03-26
zip - 11 MB
Separate connection cable required for motor and sensor connection respectively.

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
